Yamaha M5000 Flagship 200W Hi-Fi Power Amplifier
Description
Description

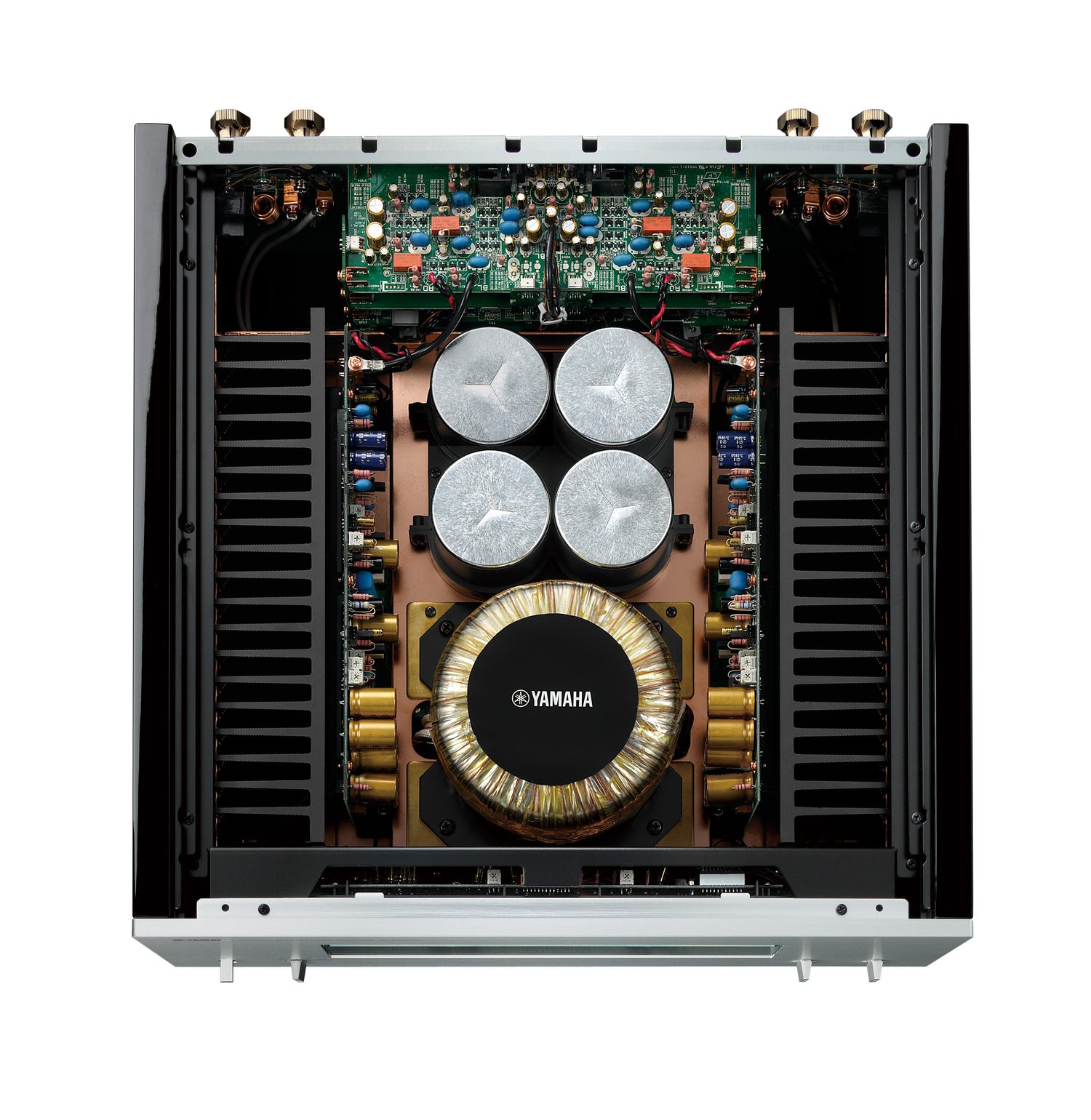

Massive Toroidal Core Transformer and Low Impedance Design
Delivering high-fidelity performance, a massive toroidal transformer is utilised with a 3 mm thick pure brass base which suppresses unwanted vibrations.
In addition, the power transformer does not influence the surrounding audio circuits due to less leakage flux.
The drawn-out copper wiring from the winding core contributes to the low-impedance design by markedly reducing the loss of energy when compared to conventional designs.
MOSFETs Floating and Balanced Pre-amplifier
As opposed to conventional power amplifier designs whereby power is supplied via a power transistor and the negative polarity is connected to ground, the power supply of the M-5000 is connected directly to each positive and negative side of the output stage.
Completely floating the entire power amp circuit from the ground removes any undesirable impact of minute voltage fluctuations or ground noise.
The design also creates an ideal symmetrical layout for employing MOSFET power amplifiers, improving drivability for low-impedance speakers.
Performance-Based Symmetrical Design
Meticulously designed, the M-5000 adopts a perfectly symmetrical layout to isolate the left and right channels both physically and electrically.
The deliberately simple design which also serves to reduce the signal path as much as possible, minimises energy loss and achieves lower impedance for high-fidelity performance.

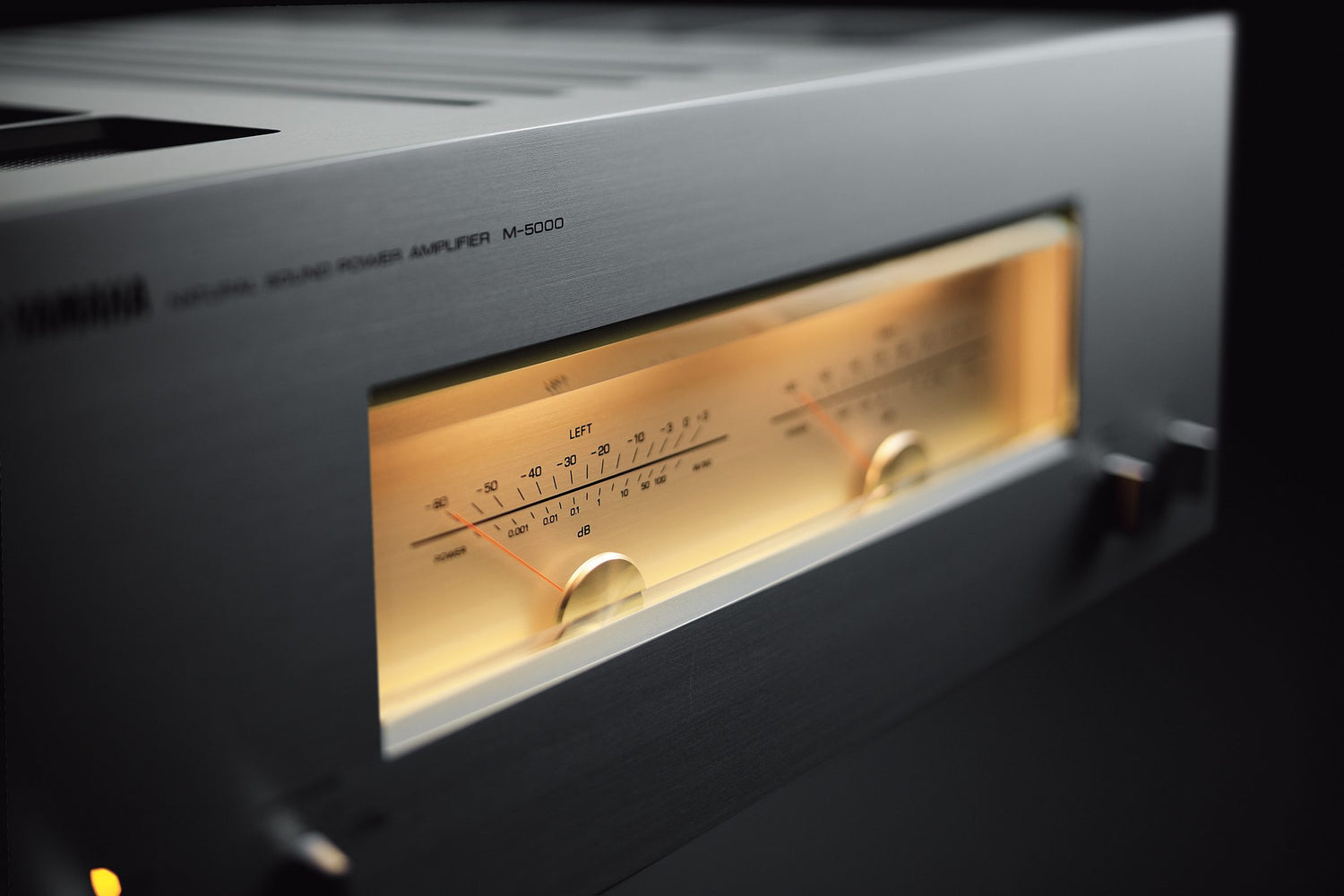

Exquisite Level Meters
The M-5000 features large, high-precision meters on the front panel, enabling audiences to visualise the dynamics of the music.
Measuring 7 mm thick and made from Asahi glass, these quality meters only enhance the luxurious and exceptionally elegant aesthetic of the M-5000.

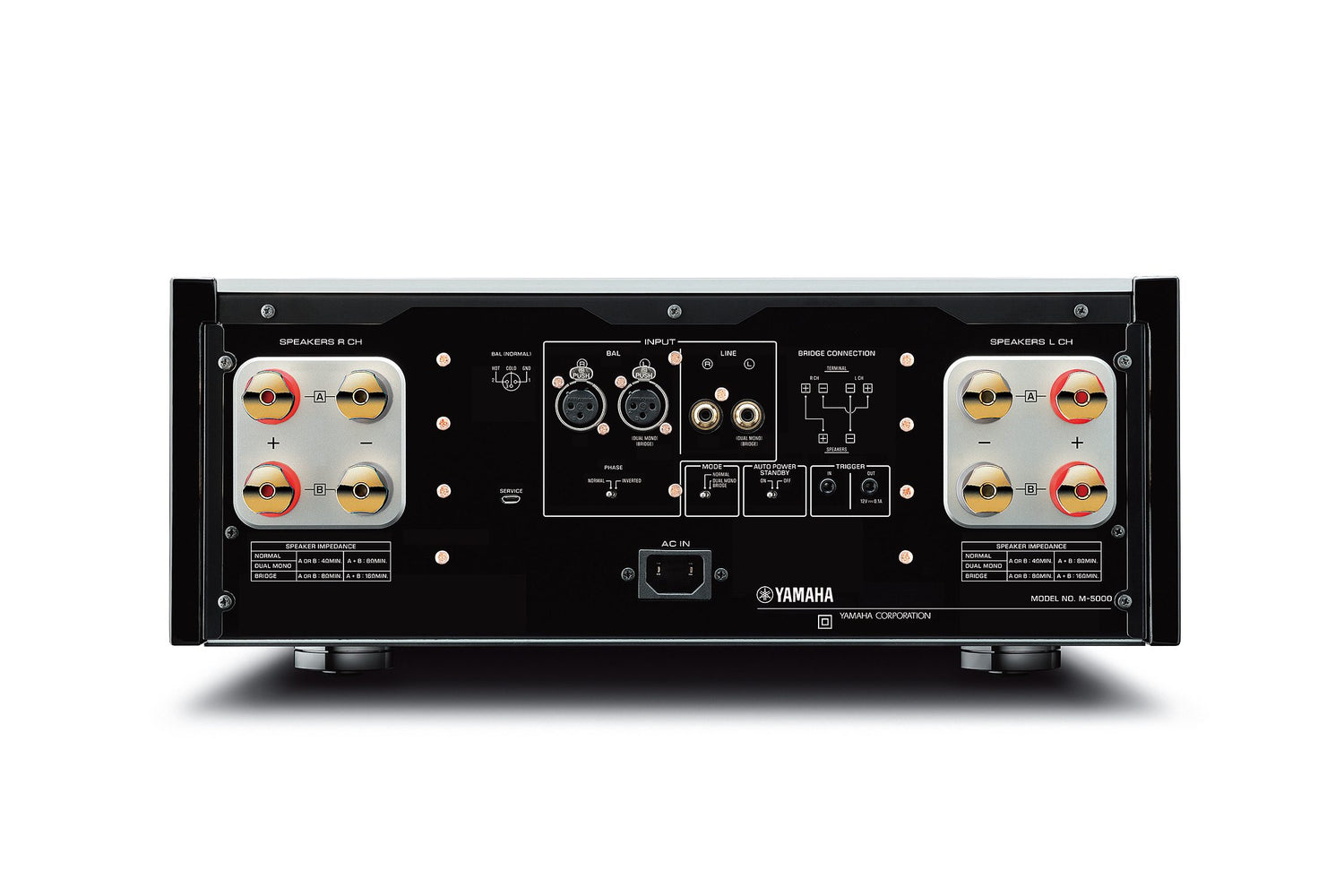

Premier Speaker Terminals
The M-5000 utilises oversized, screw-type speaker terminals to ensure ease of use and a secure connection. Cut from a pure brass block, the original Yamaha design denotes meticulous attention to detail and premier quality.
The 3 mm thick terminal base plate is also made from pure brass for strength and rigidity and assists in reducing distortion due to its non-magnetic properties.
Custom Designed Feet
All aspects of the M-5000 design were considered in producing this flagship model. Its construction exudes master craftsmanship and reflects an obsession with achieving the highest levels of performance.
The feet are no exception. Original in design, the heavy-duty brass feet function either as fully supported spikes or with a scratch guard base for use on delicate surfaces.
Key Features
Key Features
Specifications
Specifications
| Specification | Details |
|---|---|
| Input terminnal | RCA: 1, BAL: 1, TRIGGER IN: 1 |
| Output Terminal | TRIGGER OUT: 1 |
| Rated Output Power | 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven) |
| Maximum Output Power | 220W + 220W (4 ohm, 1 kHz, 0.7% THD) |
| IEC Output Power | 125W + 125W (8 ohm, 1 kHz, 0.02% THD) |
| Maximum Effective Output Power | [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm) |
| Power Bandwith | 10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W) |
| Damping Factor | 300 or higher (8 ohm, 1 kHz) |
| Maximum Input Signal Voltage | 300 or higher (8 ohm, 1 kHz) |
| Frequency Response | +0 db / -3 db (5 Hz-100kHz), +0 dB / -0.3 dB (20Hz-20 kHz) |
| Total Harmonic Distortion Plus Noise | 2ch driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms) |
| Signal to Noise Ratio | [IHF-A network, Input 1 kohm shorted] 110 dB |
| Residual Noise | [IHF-A network] (BAL) 40uVrms, (LINE) 50 uVrms |
| Meter Class | The 2.5th class |
| Power Consumption | 400W |
| Standby Power Consumption | Off Mode: 0.1W, Standby Mode: 0.2W |
| Maximum Power Consumption | 800W |
| Power Management (Auto Power Standby) | Yes |
| Dimensions (W x H x D) | 435×180×464 mm; 17-1/8" x 7-1/8" x 18-1/4" |
| Weight | 26.9 kg; 59.3 lbs |
