Yamaha AS2200 Integrated Amplifier

Yamaha  |  SKU: 80474
Model# AS2200
£3,899.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Product Warranty Available

    5-Year Warranty

Description

Toroidal Transformer

The A-S2200 utilises toroidal power transformers, esteemed for their exceptional performance in Hi-Fi components. Their ability to retain energy, in contrast to alternatives, empowers the A-S2200 to convey the emotional energy of the artist infused within the music.

Elegant Level Meters

The level meters pay homage to the nostalgic era of Hi-Fi while underlining the significance of pure Hi-Fi for today’s discerning enthusiasts. By visually portraying the dynamics and rhythm of the music, the softly illuminated LED level meters evoke a warm, nostalgic feel.

ENGAGEMENT

True Hi-Fi places the artist at the forefront, transcending the listener's physical space. Music listening transforms into an immersive, active experience rather than a passive pursuit. Yamaha’s Hi-Fi range embodies this musical experience of true engagement.

Sturdy Ground Connection using Thick Wires

A naturally expansive sound stage is achieved through meticulous design and component selection. Specifically chosen thick wires for ground connection contribute to the overall low impedance amplifier design, resulting in a broad and expansive sound stage that envelops the listener. Consequently, the components fade into the background, leaving the artist's presence intact.

Refined Speaker Terminals

Crafted from pure brass, the luxurious speaker terminals allow effortless tightening by hand, ensuring a highly secure connection.

RHYTHM

Music goes beyond storytelling. The rhythm and groove of the music reach the listener, consciously or subconsciously, evoking emotions from the music's narrative. Presenting the music as envisioned by the artist accomplishes this for the listener.

Mechanical Ground Concept

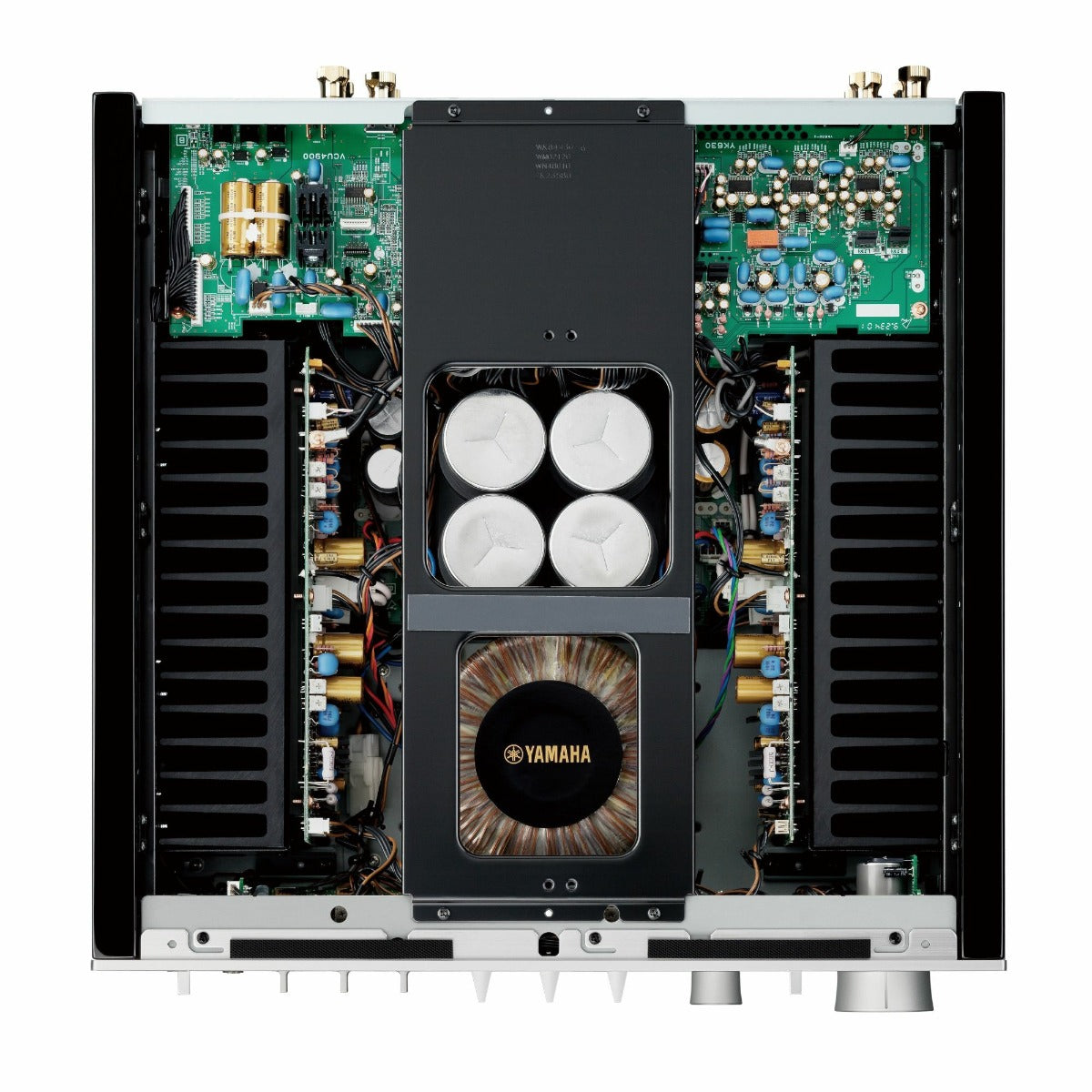

The Mechanical Ground Concept, embraced in the A-S2200, maximises rigidity and minimises unwanted vibrations, resulting in expressive and rhythmic bass. Further rigidity is achieved by directly bolting the large power transformer, block capacitors, and heat sink to the chassis. Moreover, the feet, welded with bolts to the main chassis, reinforce absolute rigidity.

Silver-Plated Brass Feet

The heavy-duty silver-plated brass feet complete the amplifier's structural integrity.

Key Features

  • Fully balanced circuit design from input to speaker out
  • Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
  • Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
  • Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
  • Mechanical ground concept maximises rigidity for expressive and rhythmic bass
  • 2+3 Extended 5 year warranty via product registration

Specifications

Specification Details
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms) 105/135/190/220 W
Damping Factor (1 kHz, 8 ohms) ≧ 250
Frequency Response +0 / -3 dB (5 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz)
RIAA Equalization Deviation (PHONO MM/MC) +/-0.5 dB
Dimensions (W x H x D) 435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4"
Weight 22.7 kg; 50.0 lbs
Rated Output Power (20 Hz-20 kHz, 0.07% THD) 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
Total Harmonic Distortion PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035% (50 W/8 ohms)
Signal-to-Noise Ratio PHONO MC: 90 dB, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
Input Sensitivity PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
Transformer 625VA (Toroidal)

What's in the Box

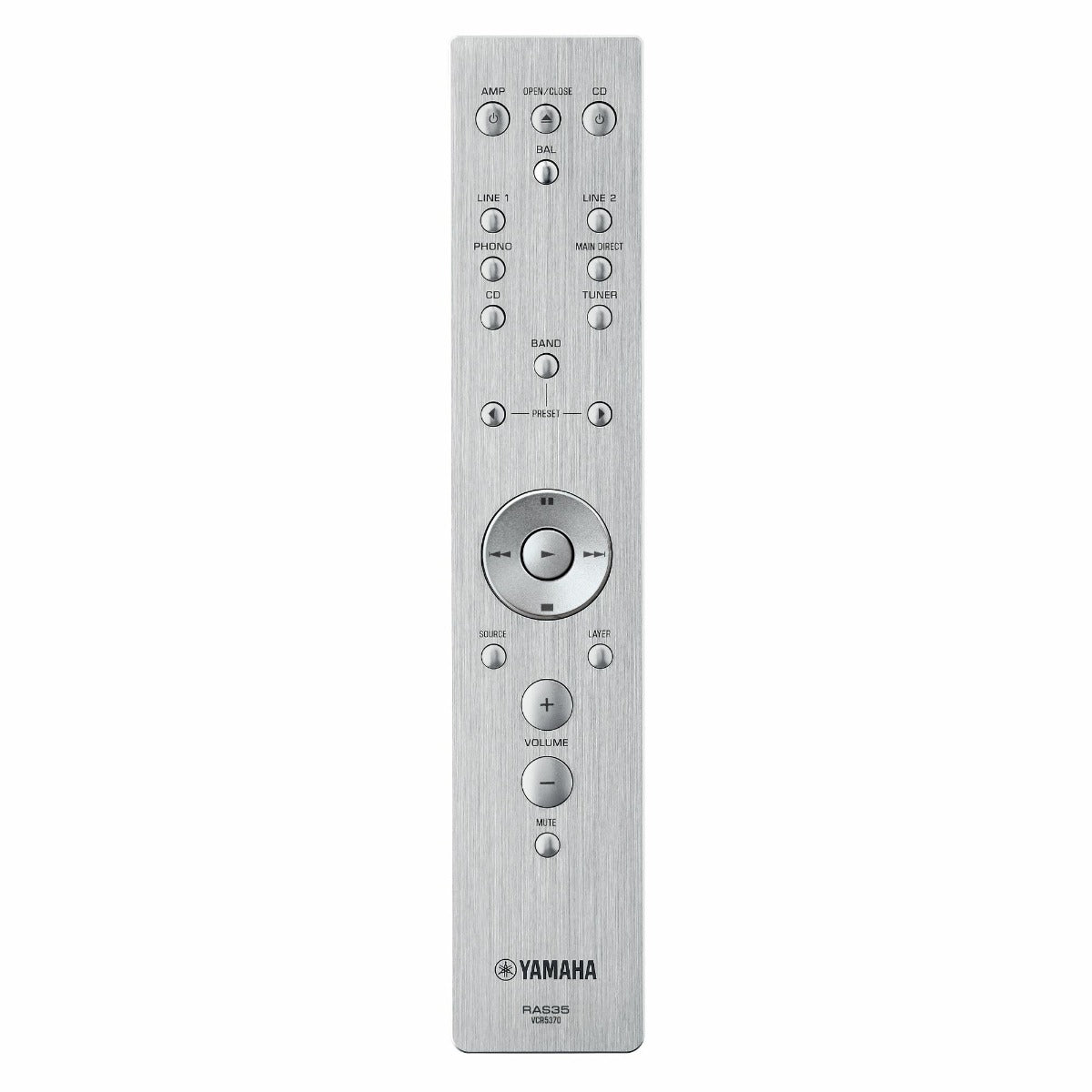

  • Remote control
  • Batteries (AAA, R03, UM-4) (×2)
  • Power cable*
  • Owner’s Manual (this book)
  • Safety Brochure
  • * Multiple power cables might be included in the package depending on the area of distribution.
    Please use the one that is appropriate for your AC outlet
