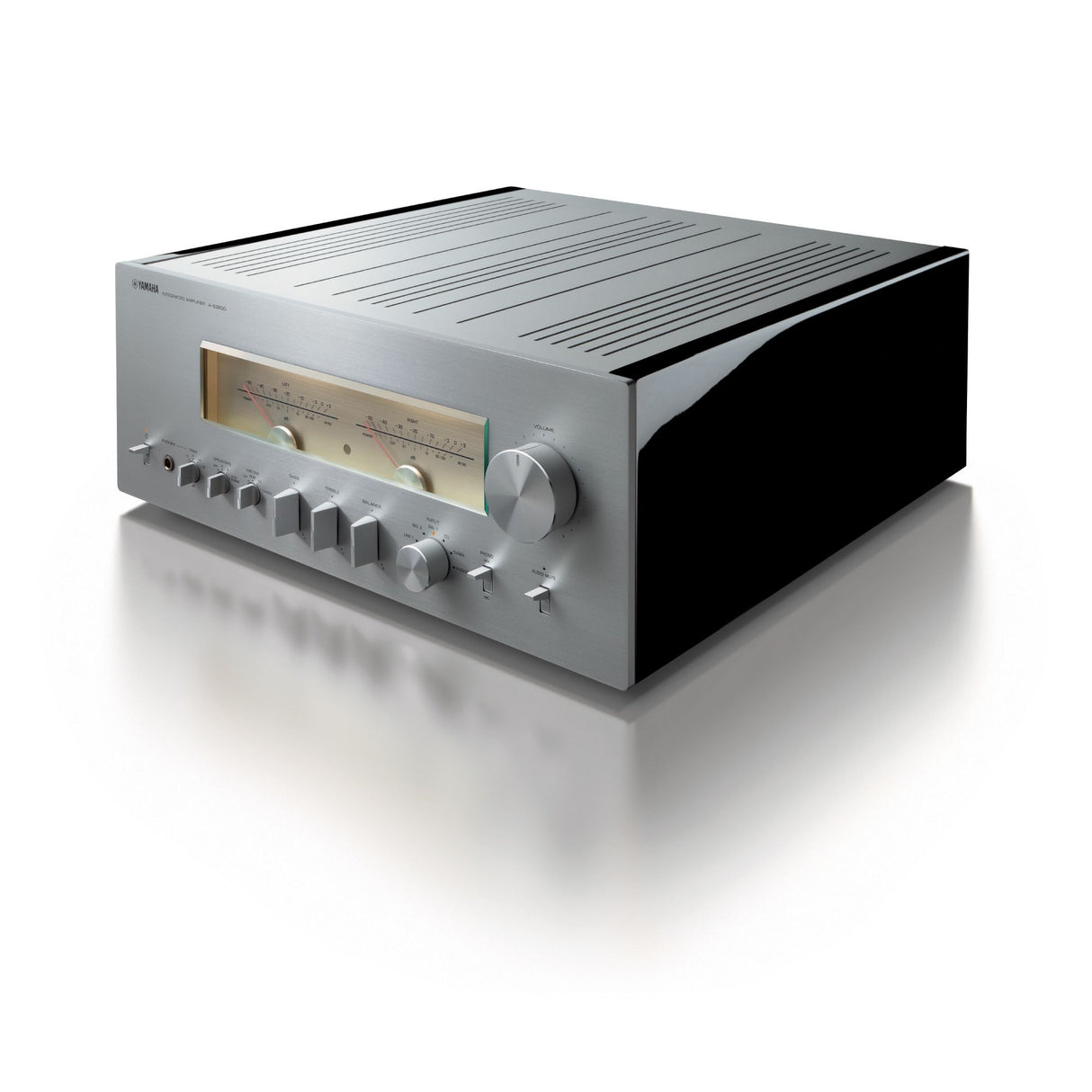

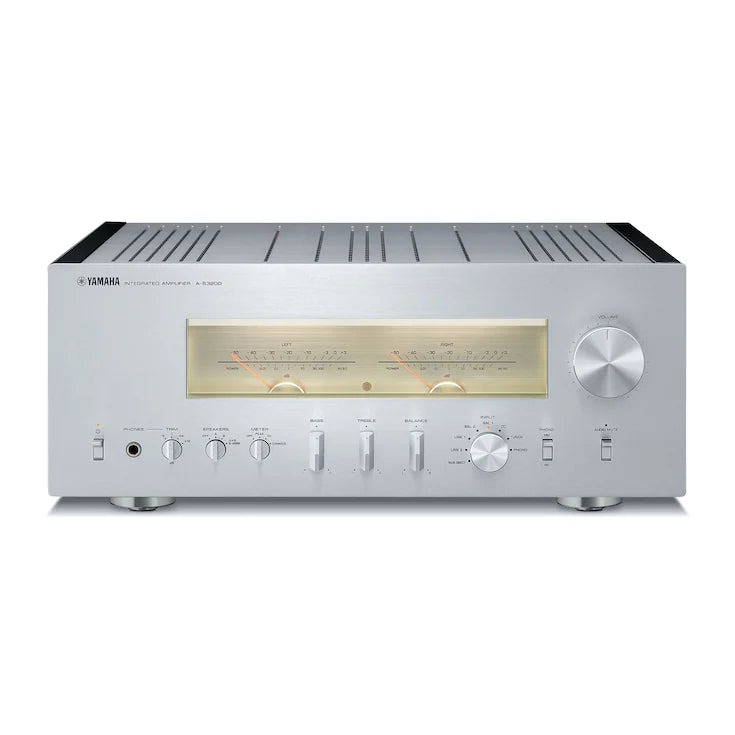

Yamaha AS3200 Flagship Hi-Fi Integrated Amplifier
Description
Description

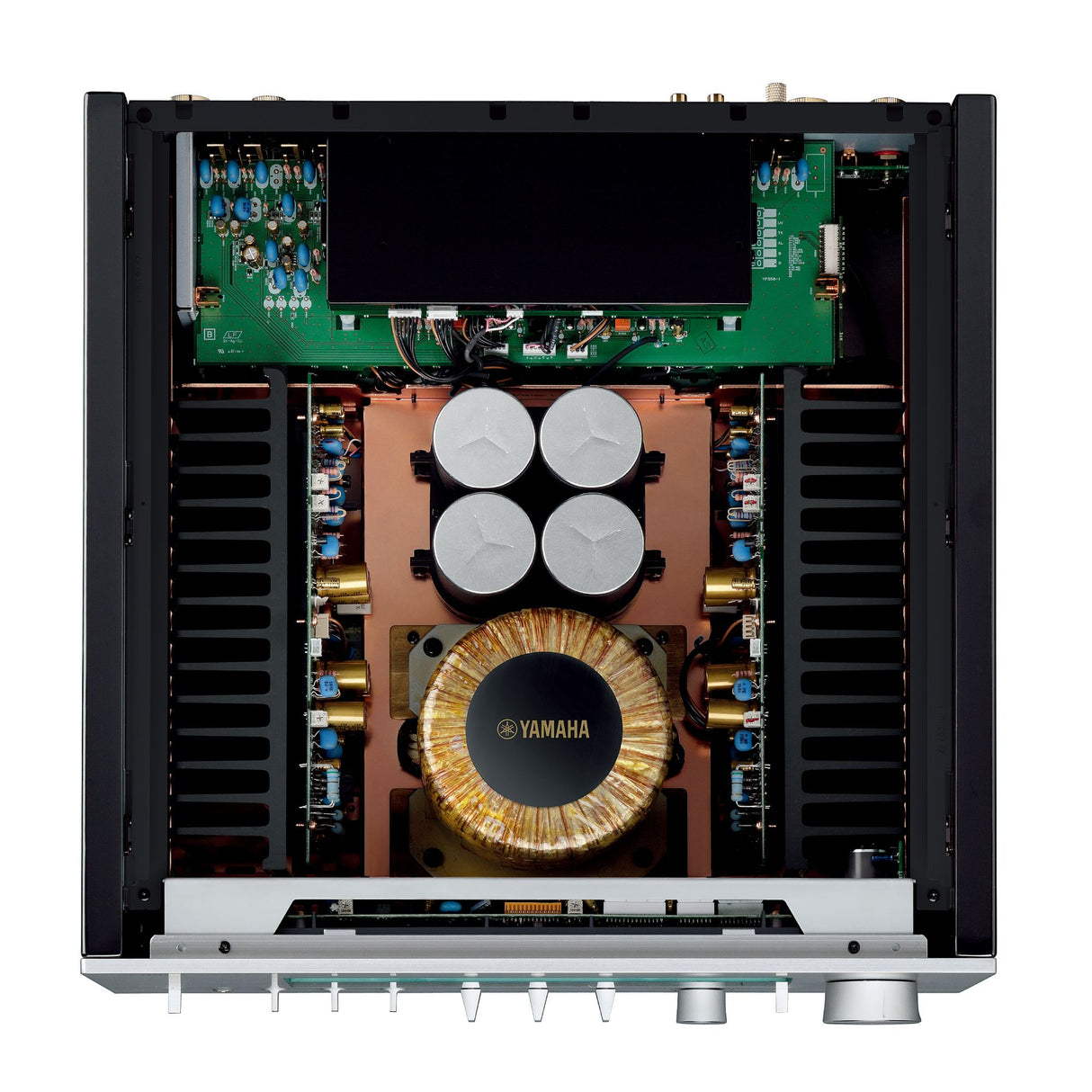

Toroidal Transformer
A large toroidal transformer has been used in the A-S3200 in the pursuit of pure musicality. With less flux leakage there is no negative impact on other sensitive audio circuits, while the copper wire is directly drawn from the winded core, minimizing energy loss compared to other substitutes, allowing the full emotional energy in the music to be felt by the listener.
High-Quality Component Selection
Acknowledged for their musical performance and use in high-end home audio products, high-quality capacitors were selected, delivering an authentically musical sound.
Following an intensive forging process, the PC-Triple C speaker wire has an inherently more linear structure, allowing for smoother signal transmission to accurately present the original musical recording.
Sturdy Ground Connection using Thick Wires
Adopting low impedance design concept minimizes both energy loss while maintaining absolute integrity in the audio signal. Preservation of the original audio results in an open, natural sound stage, bringing the listener and the artist together.

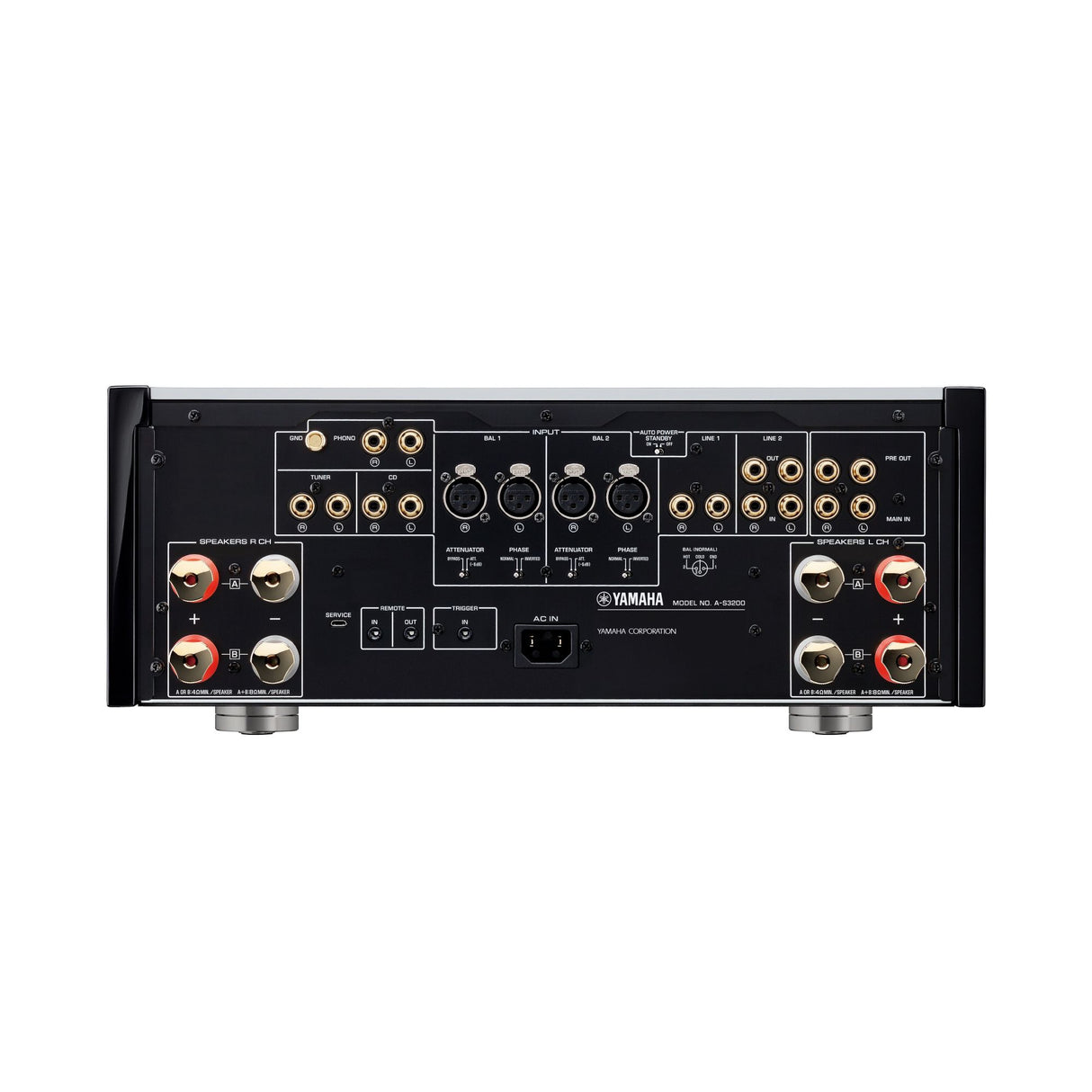

Refined Speaker Terminals featuring Brass and Copper
Adopting brass screws and gilding oxygen-free copper terminals for the large block capacitors contributes to superior connectivity, superbly delivering the additional headroom available in the four large 22,000μF capacitors to produce the open soundstage.
Mechanical Ground Concept
An expression of deep, rhythmic and melodious bass generates feeling from the music, the story of the music. The Mechanical Ground Concept achieves this expressive and rhythmic bass by maximising rigidity and reducing any unwanted vibration. The large power transformer, block capacitors and heat sink are directly bolted to the chassis delivering greater rigidity, while the feet, with bolts directly welded to the main chassis, provide further reinforcement for absolute rigidity. The A-S3200 has an original Rigid Streamlined Construction that further suppresses vibration.
Silver-Plated Brass Feet
Completing the rigidity of the amplifier are the heavy-duty brass feet used with either spikes or the scratch-resistant base for delicate surfaces, originally engineered exclusively for the flagship M/C-5000.
Key Features
Key Features
Specifications
Specifications
| Specification | Details |
|---|---|
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 170 W + 170 W |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 120/150/200/300 W |
| Damping Factor (1 kHz, 8 ohms) | ≧ 250 |
| Frequency Response | +0 / -3 dB (5 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz) |
| RIAA Equalization Deviation (PHONO MM/MC) | +/-0.5 dB |
| Dimensions (W x H x D) | 435×180×464 mm; 17-1/8" x 7-1/8" x 18-1/4" |
| Weight | 24.7 kg; 54.5 lbs |
| Rated Output Power (20 Hz-20 kHz, 0.07% THD) | 100 W + 100 W (8 ohms), 150 W + 150 W (4 ohms) |
| Total Harmonic Distortion (20Hz to 20kHz) | PHONO MC→LINE2 OUT: 0.02% (1.2 mVrms), PHONO→LINE2 OUT: 0.005% (1.2 Vrms), CD, etc./BAL1,2→SP OUT: 0.035% (50 W/8 ohms) |
| Signal-to-Noise Ratio | PHONO MC: 90 dB, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL1,2: 114 dB |
| Input Sensitivity | PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms |
| Transformer | 623VA (Toroidal) |
