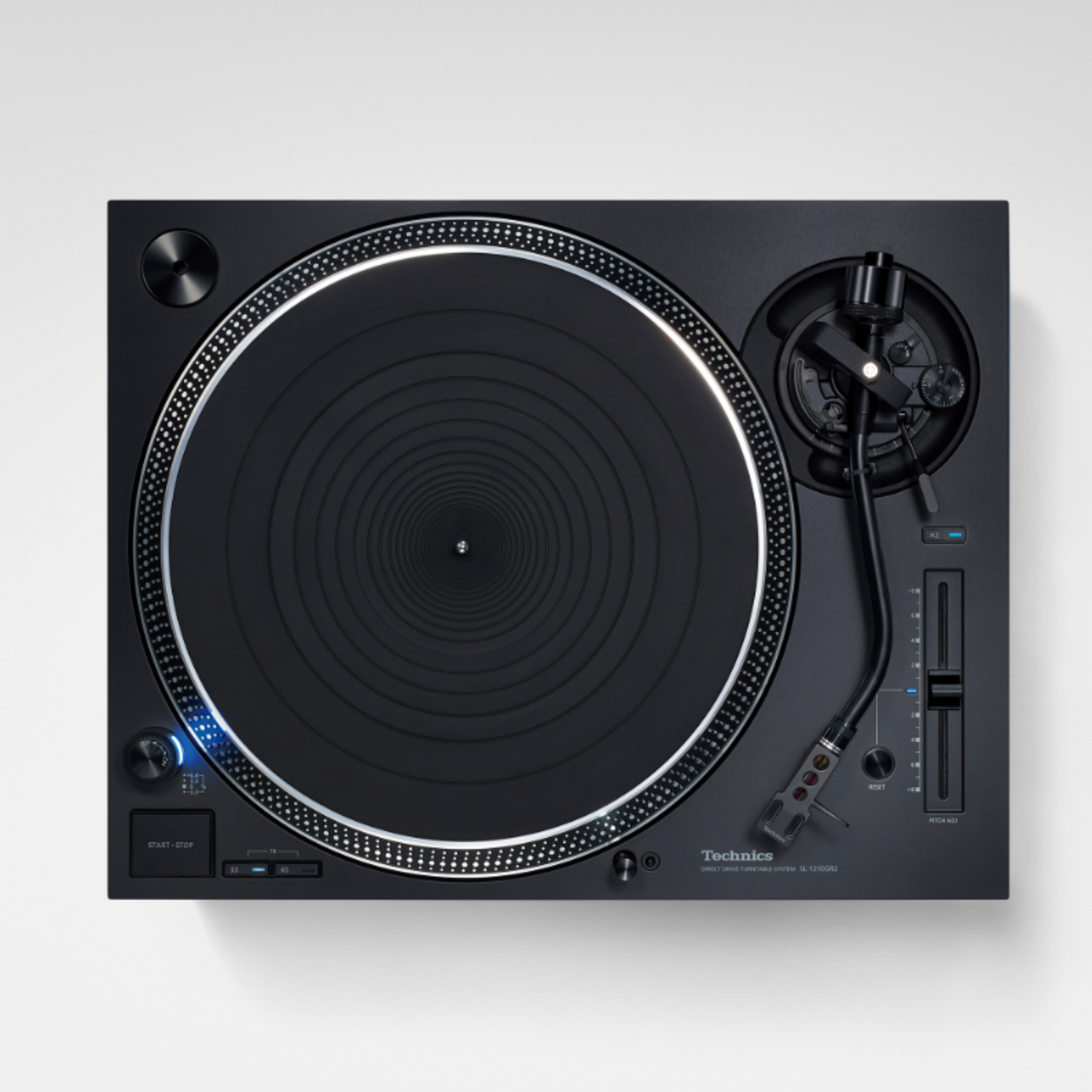

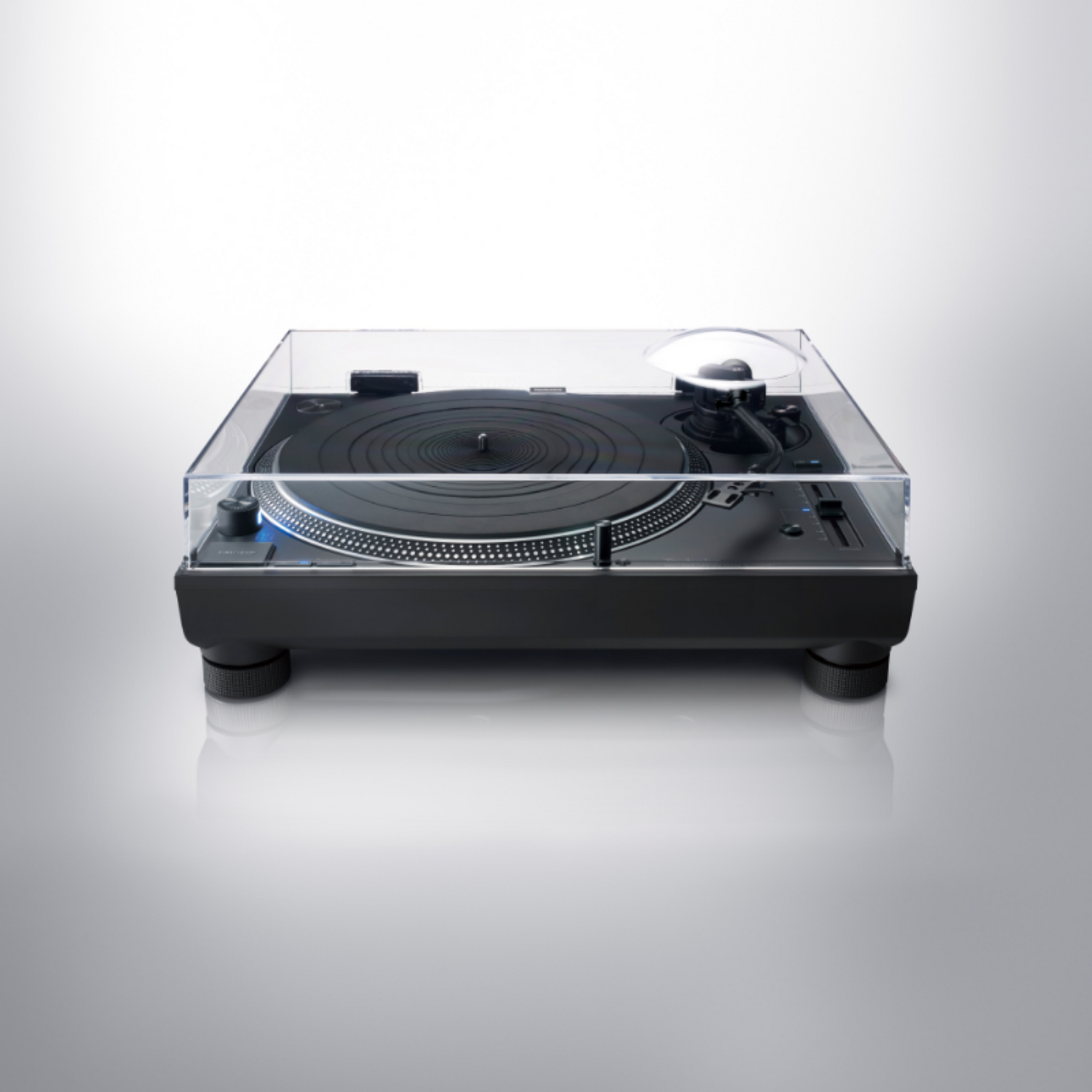

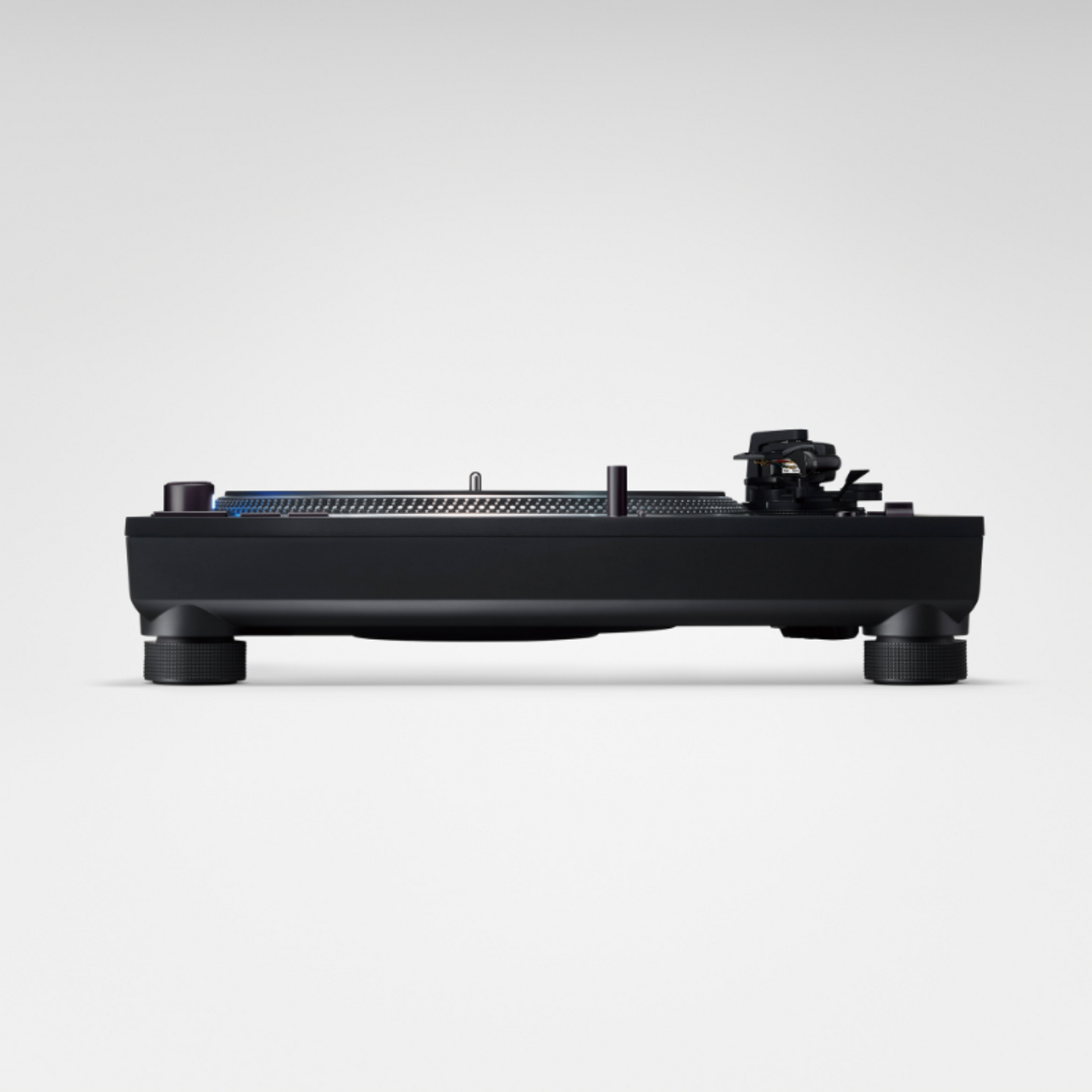

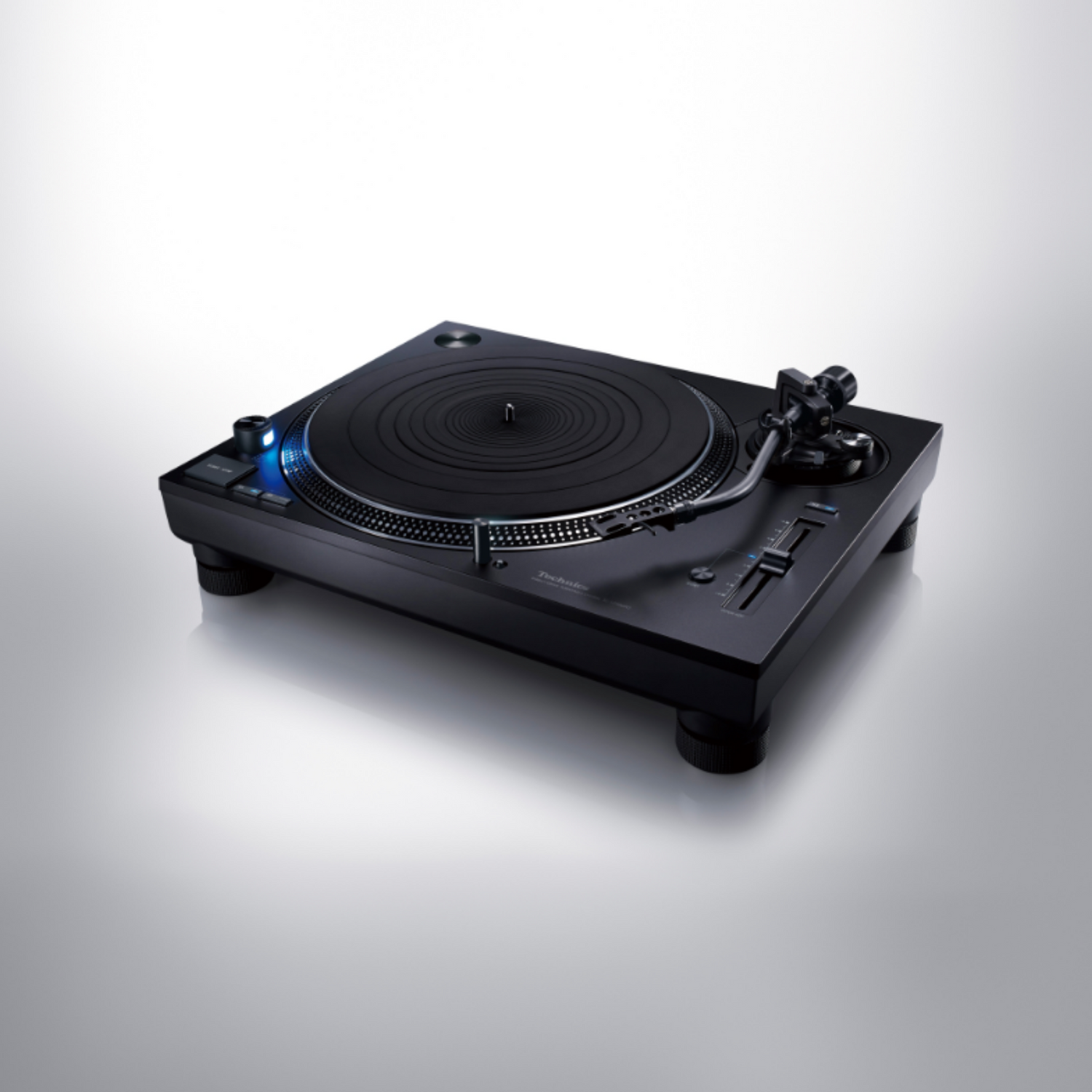

Technics SL-1210GR2 Direct Drive Turntable

Technics  |  SKU: 94525
£1,799.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

Coreless Direct Drive Motor Achieving Stable Rotation

In 1970, Technics commercialised the world‘s first direct drive turntable, and the system took the world by storm. Unlike belt drive and other systems, direct drive systems rotate the motor at low speed and directly drive the platter, thus providing numerous advantages, such as the almost complete absence of degradation in S/N ratio due to motor vibration and deceleration mechanisms, as well as high reliability over a long period time because of not requiring parts replacement.

And in 2016, Technics developed the twin-rotor, surface-facing, coreless direct drive motor with rotor magnets placed on both sides, thereby eliminating the rotation irregularity of the motor, referred to as "cogging," which was a unique issue for direct drive systems. This motor was adopted for the SL-1200G, which once again drew a significant response in the hi-fi market. The SL-1210GR2 inherits the same design philosophy with the new development of a single-rotor, surface-facing, coreless direct drive motor, resulting in the elimination of cogging.

Low-Noise Switching Circuit

Use of a high-speed switching power supply ensures a stable supply capacity and less ripple and humming. Applying a switching power supply to a turntable eliminates the need for a large transformer and countermeasures for the ensuing mechanical vibrations.
A switching frequency of above 100 kHz limits the impact of noise on the music playback bandwidth.

Current Injection Active Noise Cancelling

This technology combines a noise detection device with an error amplifier. It detects residual noise in the power supply and applies an inverse phase current to remove noise components. It removes low frequency noise more effectively than a regulator to ensure a more ideal power supply.


Pursuing Rigidity and Vibration Damping Characteristics

The platter achieves high rigidity and vibration damping characteristics by using a two-layer construction with deadening rubber applied to the entire rear surface of the aluminium die-cast to eliminate the unnecessary resonance that is otherwise relayed to the record, thereby producing clear sound.

To increase the inertial mass and reduce vibration, the shape of the aluminium die-cast portion was optimized by simulation. At 2.5 kg (including the rubber mat), the SL-1210GR2 platter is 0.8 kg heavier than that of the previous SL-1200MK5. Also, the back surface of the platter has strengthening ribs added to improve rigidity. Increasing the surface area of contact with the deadening rubber achieves damping characteristics that are more than twice those of the SL-1200MK5.

Tonearm Achieving High Initial-Motion Sensitivity

The tonearm tracks the rotation of the record and enables reading with high precision, and the tonearm inherited by Technics is the traditionally used static-balance universal S-shaped tonearm, employing an aluminium pipe with excellent light weight and rigidity for the material of the tonearm pipe.
With its gimbal suspension construction, the tonearm bearing section uses a cut-processed housing that employs high-precision bearings, as in the SL-1200G and SL-1200GR. The high initial-motion sensitivity of 5 mg or less is achieved through manual assembly and adjustment by skilled Japanese artisans. This enables the grooves etched into the records to be accurately traced.

In addition, one type of auxiliary weight comes included, and the cartridge can be swapped with a variety of other cartridges to match the music genre or feeling. (Applicable cartridge weight when using the supplied auxiliary weight: 10 - 16.4 g (not including the supplied head shell)

Key Features

  • Coreless direct drive motor achieving stable rotation
  • ΔΣ-Drive suppresses vibrations from the motor for smoother, more accurate rotation
  • Low-noise, low-voltage power circuit and a switching power supply
  • Two-layer platter with high rigidity and vibration damping
  • Tonearm achieving high initial-motion sensitivity
  • High-rigidity body and high-damping silicon insulators for smooth sound and isolation from various vibrations

Specifications

Turntable Section
Type Direct Drive
Motor Brushless DC motor
Turntable Speeds 33-1/3, 45 and 78 rpm
Pitch Adjustment Range ±8% and ±16%
Starting Torque 2.2 kg
Build-up Characteristics 0.7 s. from standstill to 33- 1/3 rpm
Braking system Electronic brake
Wow and Flutter 0.025% W.R.M.S.
Turntable Platter Aluminum die-cast
Diameter: 332mm
Weight: Approx. 2.5kg (Including rubber sheet)

Tonearm Section
Type Static Balance
Effective Length 230mm
Overhang 15mm
Tracking Error Angle Within 2° 32'　(at the outer groove of 30cm(12") record)
Within 0° 32' (at the inner groove of 30cm(12") record)
Offset Angle 22°
Arm Height Adjustment Range 0 - 6mm
Stylus Pressure Adjustment Range 0 - 4g (Direct Reading)
Head Shell Weight Approx. 7.6g
Applicable Cartridge Weight Range (without auxiliary weight)
5.6 - 12.0g
3.1 - 9.5g (using cartridge spacer)
14.3 - 20.7g (including head shell)
(with auxiliary weight)
10.0 - 16.4g
7.5 - 13.9g (using cartridge spacer)
18.7 - 25.1g (including head shell)
Cartridge Mounting Dimension 12.7 mm (1/2") interval
Head Shell Terminal Lug 1.2mmφ 4-pin terminal lug

Terminals
Audio Output PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

General
Power Supply AC220-240 V, 50/60 Hz
Power Consumption 11 W (ON)
0.3 W (OFF)
Dimensions (W x H x D) 453 x 173 x 372 mm
Weight Approx. 11.5kg
Operating temperature range 0° to +40°
Weight 35% to 80% RH (no condensation)

What's in the Box
  • Turntable
  • Turntable sheet
  • Dust cover
  • EP record adaptor
  • Balance weight
  • Auxiliary weight
  • Cartridge spacer Head shell
  • Overhang gauge
  • Screw set for cartridge
  • PHONO cable
  • PHONO earth lead
  • AC power supply cord
  • Owner's Manual
