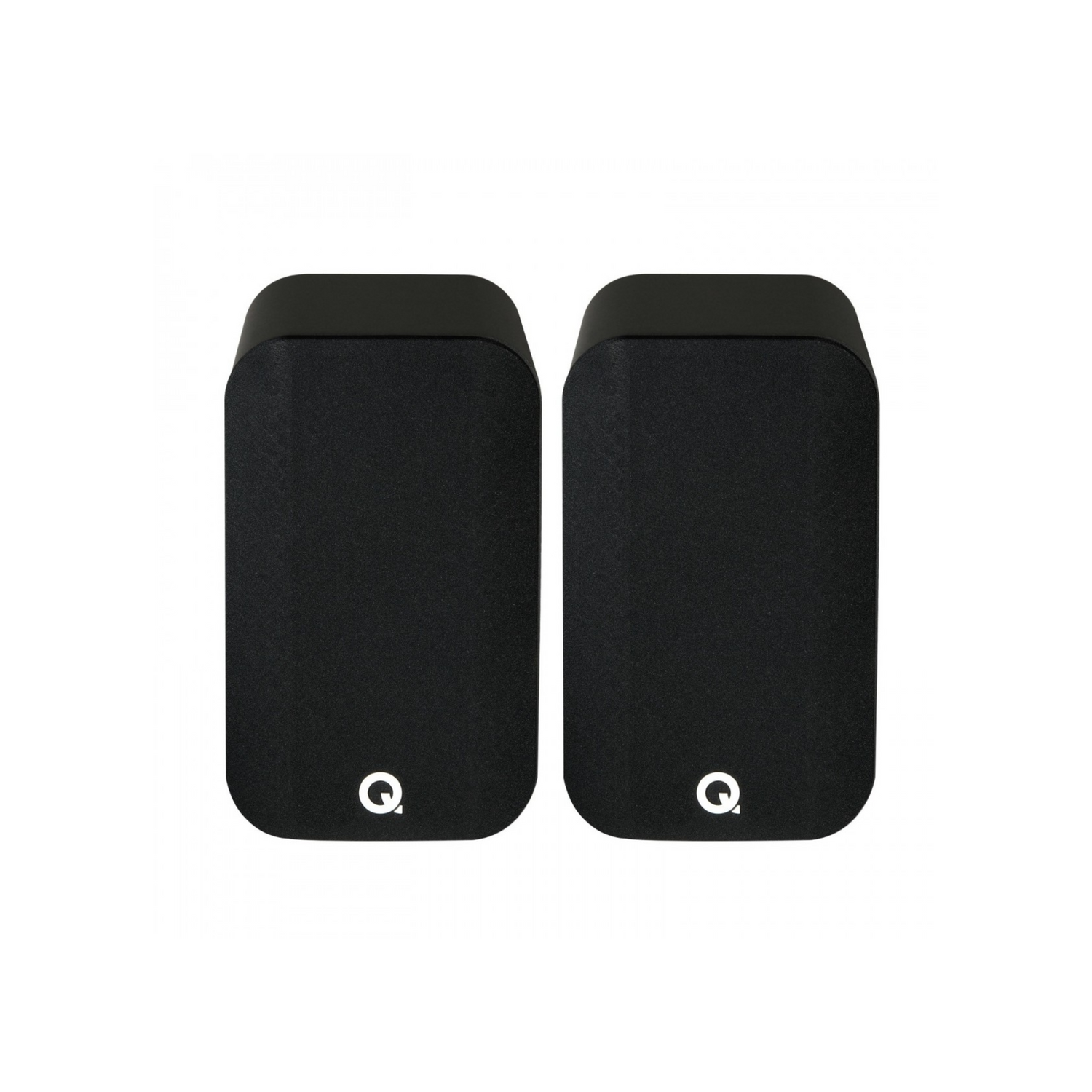

Q Acoustics Q 5020 Bookshelf Speakers
Description
Description
C3 Continuous Curved Cone design
A genuine advancement in elements of mid/bass driver design, the C3 Continuous Curved Cone profile is the result of extensive research and expert engineering to combine the bass performance benefits of a traditional straight conic cone with the high/mid-range frequency control of a flared cone.
By creating a single, smooth, continuous curve profile, the advantages are manifold. Firstly, its excellent dispersion, alongside its well-controlled frequency response, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this tighter, damped low-end sound allowing more flexibility in placement of speakers near the wall boundaries of the listening room. Harmonic distortion is also reduced, ensuring the 5010 delivers a sonic performance and wide soundstage that belies its ranking.
The C3 Continuous Curved Cone profile has successfully addressed shortcomings in one of the basic geometrical elements of drive unit design to deliver the best characteristics of both straight and flared cones.
Sophisticated design

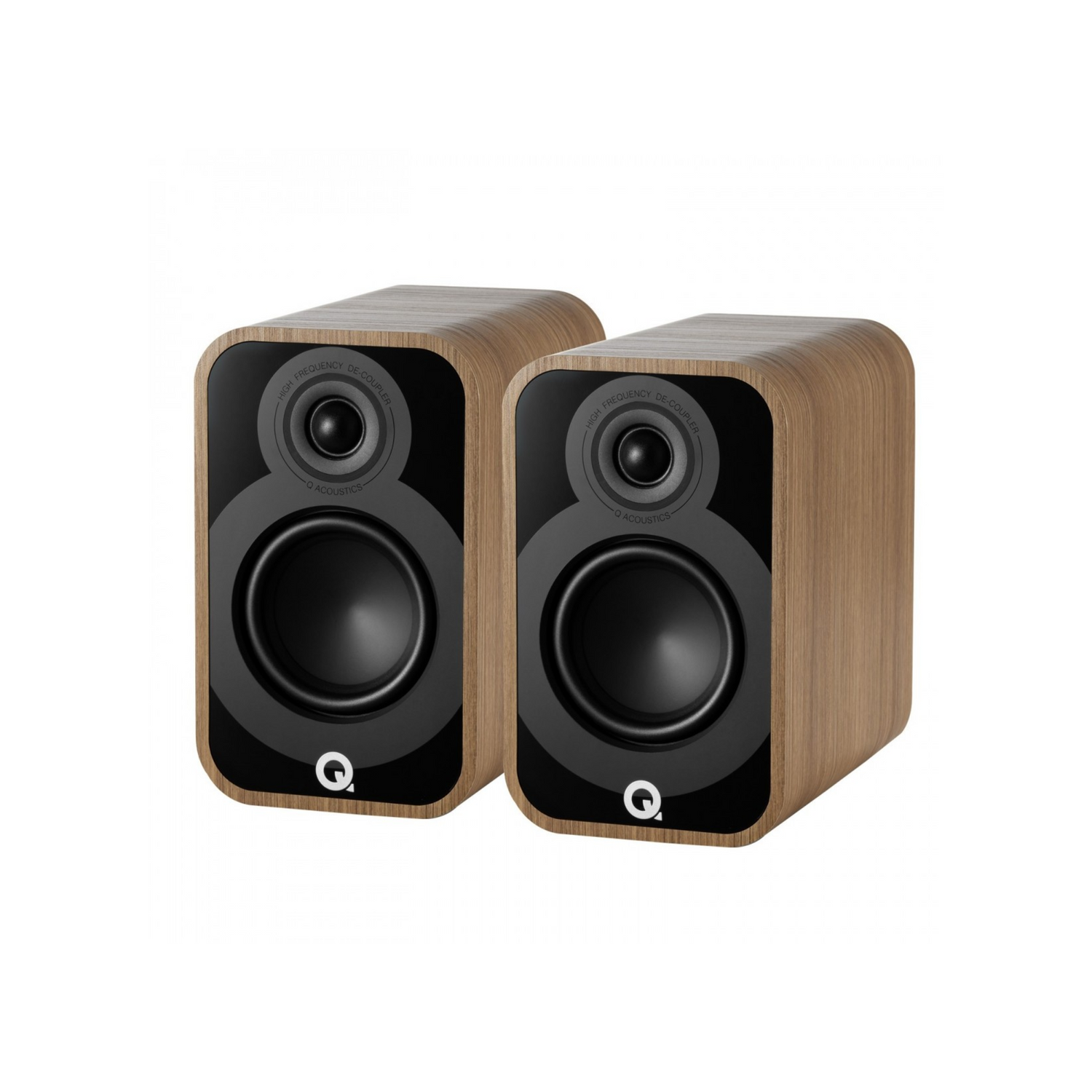

The reductive nature of the C3 Continuous Curved Cone's appearance is also reflected in the 5010 minimalist design, with its sophisticated but contemporary lines leaning towards the elegant form of the latest Concept speaker series.
The baffle fronts are laminated with a layer of butyl rubber and black acrylic trim, not only to provide a damping layer to suppress vibration occurring in the baffle, but to offer an eye-catching counterpoint to the cosmetically clean front presentation uninterrupted by any fixings.
High-frequency driver design
Based on the tweeter design principle found in the newest Concept series, the high frequency driver unit is hermetically sealed and mechanically isolated (floating) from the baffle to prevent internal pressure modulations from within the cabinet and adjacent mid/bass driver. The inner chamber is also carefully vented for lower distortion, with a lower crossover point for seamless integration through the crossover region.
Mid/bass driver design
At the heart of the ground-up mid/bass driver design is the C3 Continuous Curved Cone. The cone's geometry requires good motor strength for optimal performance. Substantial magnets are coupled to large voice coils to increase motor strength - the result is a 50 % increase in power handling and control over a comparable driver with 25.4 mm voice coil. The result is an improvement in the dynamic range of the speaker, especially in the bass region.
Point-2-Point (P2P) and Helmholtz Pressure Equalisers (HPE) technology
Point-2-Point (P2P) internal bracing is fitted to internal areas of the cabinet susceptible to low-end frequency reverberations. This reinforcement delivers a more focused stereo image and a wider soundstage.
Key Features
Key Features
Specifications
Specifications
| Parameter | Value |
|---|---|
| Bass Unit | 1 x 125 mm (5.0 in) |
| Treble Unit | 1 x 25 mm (1.0 in) |
| Frequency Response (-6dB) | 53 Hz - 30 kHz |
| Nominal Impedance | 6 Ω |
| Minimum Impedance | 3.3 Ω |
| Sensitivity (2.83V @ 1kHz) | 87.9 dB/w/m |
| Recommended Amplifier Power | 25-100 W |
| Crossover Frequency | 2.5 kHz |
| Effective Volume | 6.8 L |
| Dimensions (per loudspeaker / H x W x D) | 284 x 180 x 293 mm |
| Weight (per loudspeaker) | 7.0 kg |
