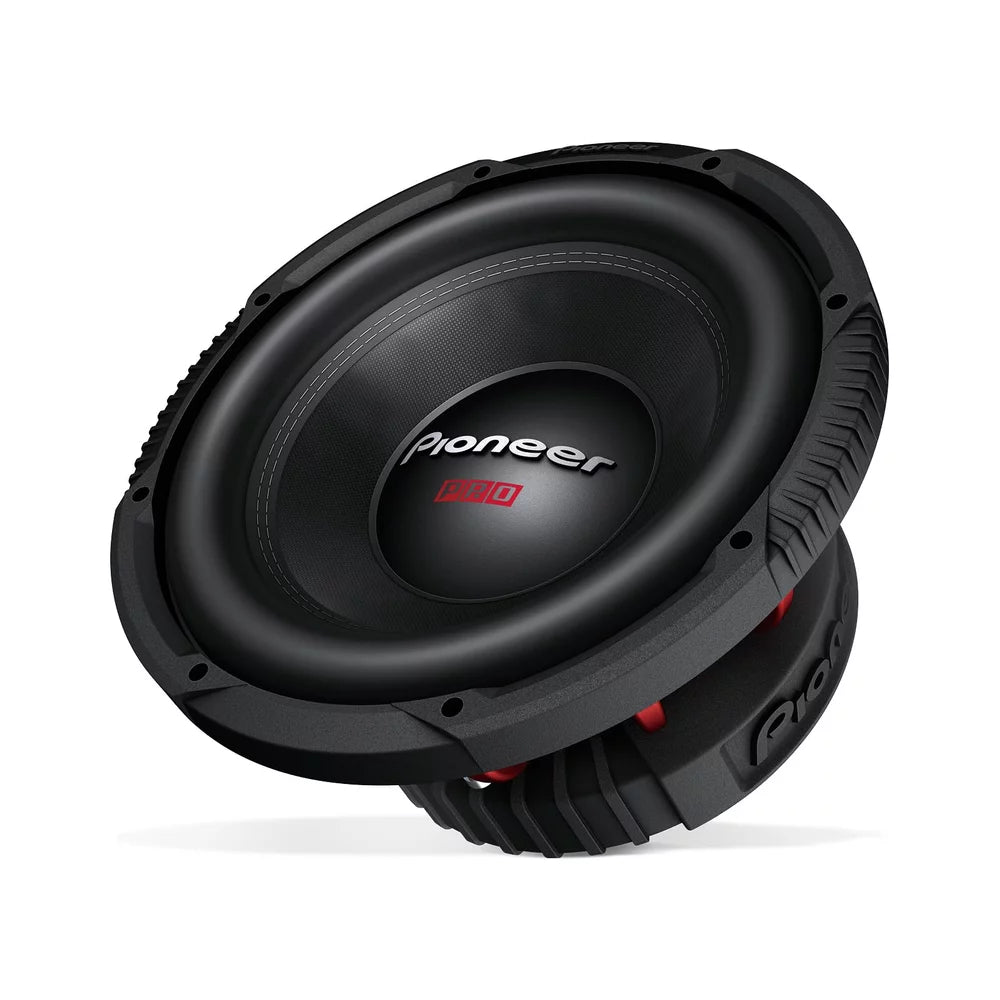

PIONEER TS-W3020 PRO 12" SUBWOOFER

Pioneer | SKU: 175974

£249.00

Free & Next-Day Delivery Available
Hassle-Free Returns Within 30 Days

Description

Features:

3500 Watts Max. Power / 1800 Watts Nominal Power
12" Optimally Blended Pulp Woofer Cone
4-layer Copper-clad Aluminum voice-coil
Frequency range: 20 Hz to 0.2 kHz
Speaker Impedance: 2x 2 ohms
Speaker Efficiency: 86 dB (1W/1M)
Mounting depth: 6.1” (154mm)
Recommended Box volume: 1.75cu.ft. (vented) / 1.25cu.ft. (sealed)
Cut Out dimensions : 11-3/32"
Equivalent Compliance (VAS) : 8.3 - 0.293
Linear Excursion (Xmax) : 22.8 - 0.897
Mounting Depth : 6.06"
Outer Diameter : 12-11/16"
Protrusion : 1"
Recommended Ported Box Internal volume : 1.75 cu.ft (50 liters)
Recommended Sealed Enclosure Volume : 1.25 cu.ft (34.4 liters)
Speaker Grill : NA
