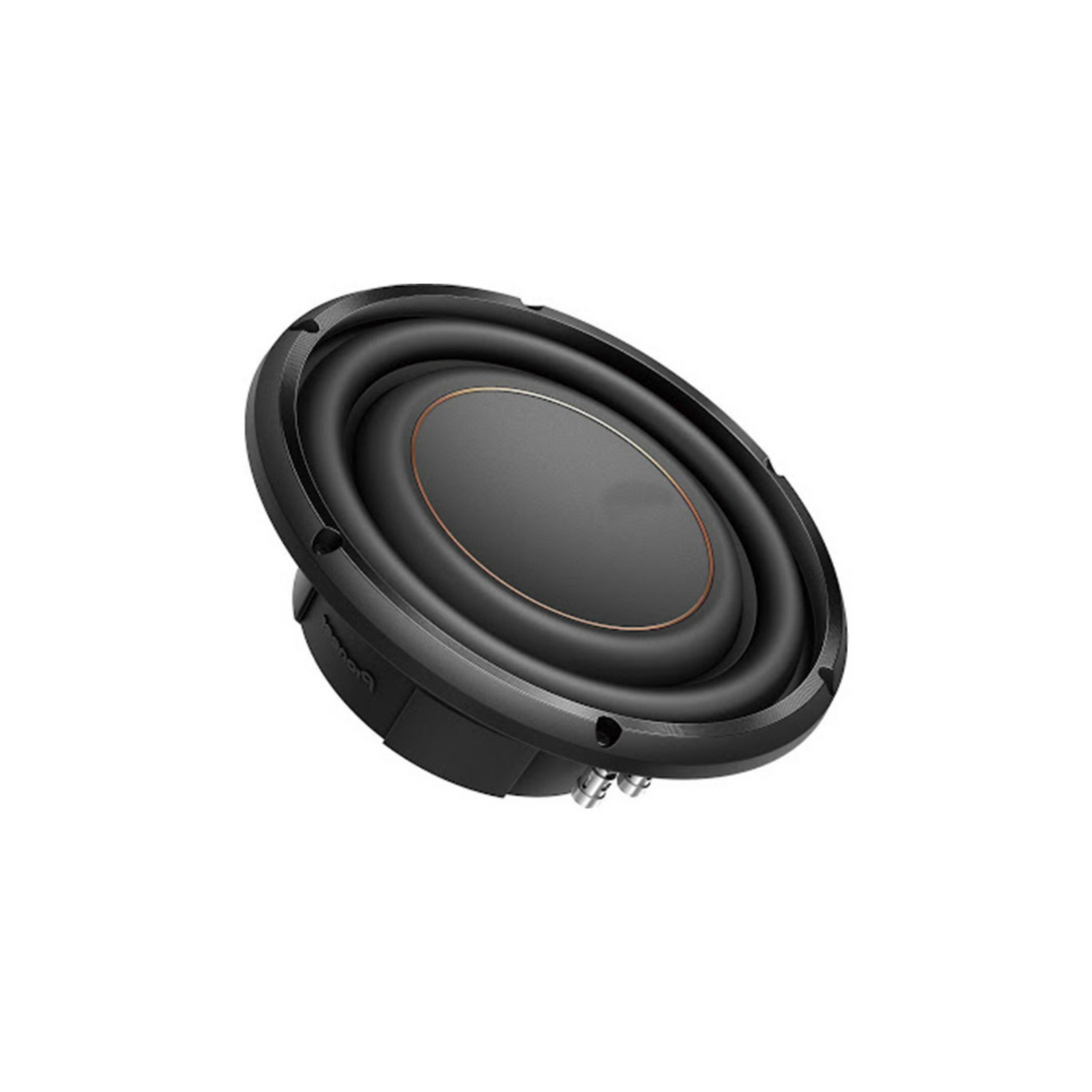

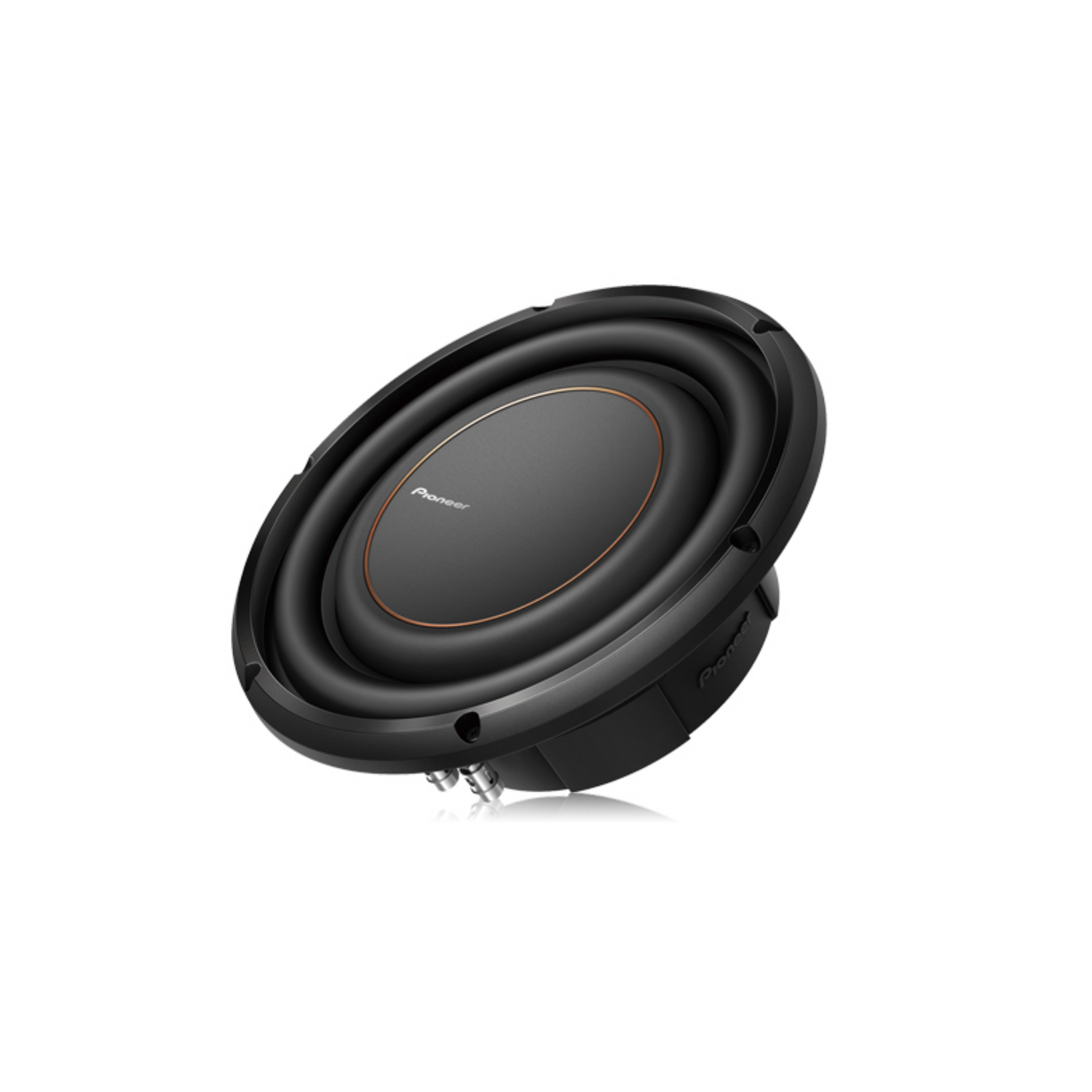

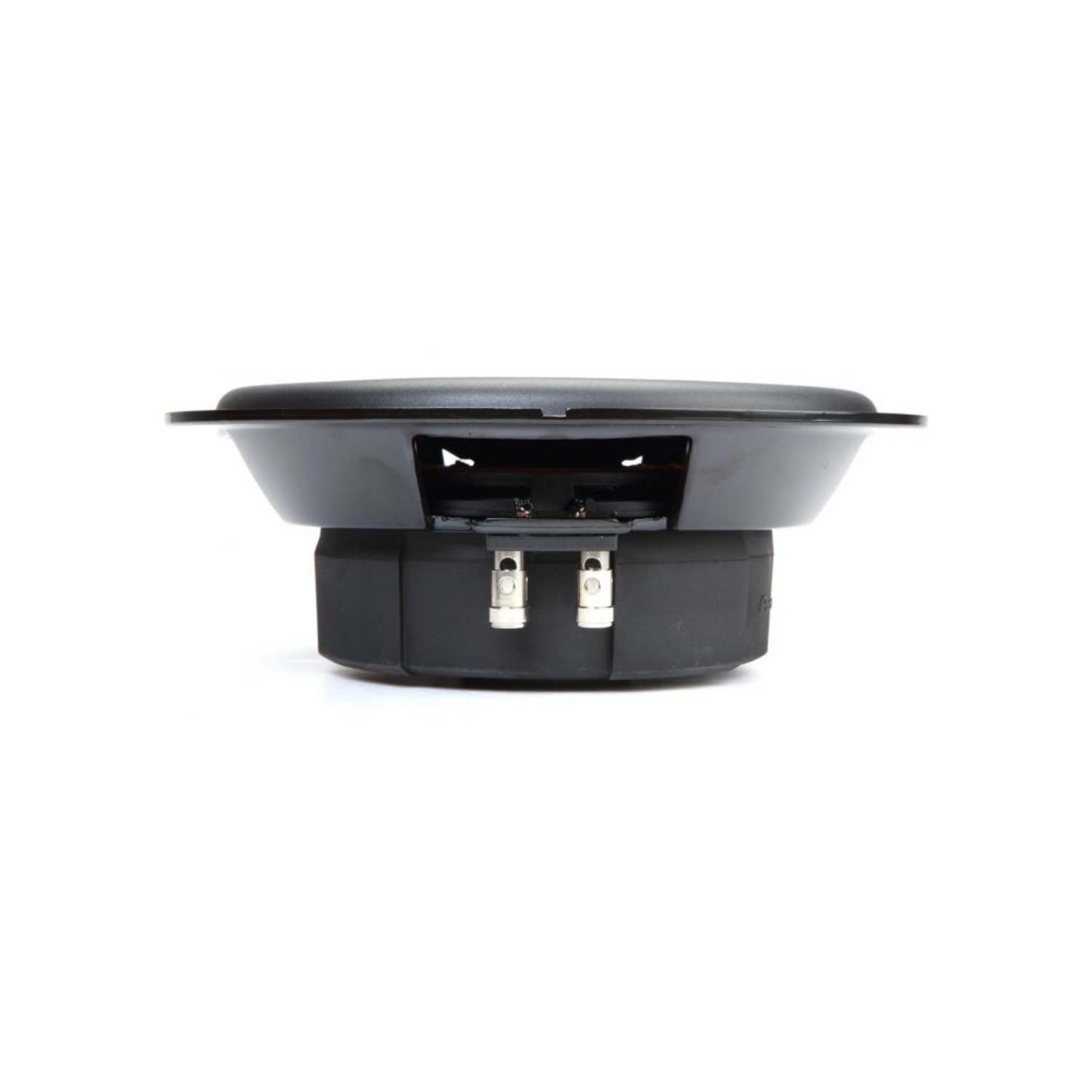

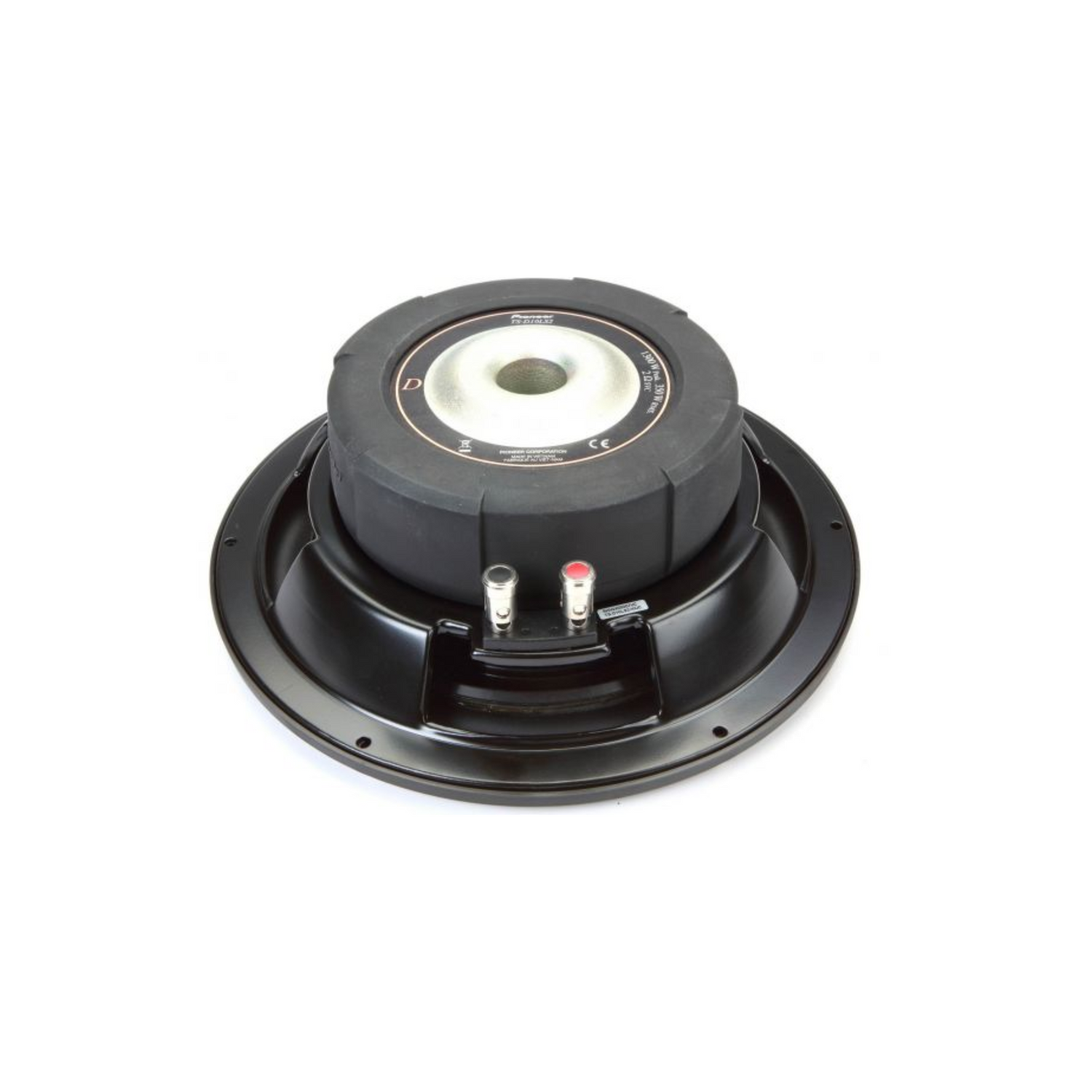

Pioneer TS-D10LS4 1300W 10"(25cm) D-Series Shallow Mount Subwoofer

Pioneer  |  SKU: 80865
Model# TS-Z10LS4
£169.99
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Product Warranty Available

    1-Year Warranty

Description

D Subwoofer: FORCEFUL, DEEP, DEFINED.

Indulge in the depths of sound with the D Subwoofer, a result of Pioneer's innovative technologies, delivering rich, profound, and precise bass that elevates your music experience. This powerful subwoofer brings an energetic, engaging, and fun dimension to your favorite tunes.

Exceptional Bass Performance

Fusing bass quality and quantity with robust power, along with installation versatility for both acoustic suspension (sealed) and bass reflex (ported) enclosures, the D Subwoofer emerges as a versatile performer. It's engineered for a thrilling impact, dynamic attack, and commanding power, ensuring you not only listen but feel the music.

Butyl Rubber Surround:

Crafted from a specially formulated, highly durable, and moisture-resistant compound, the butyl rubber material serves multiple functions. It keeps the cone in linear motion, seals it to the basket, and rapidly dampens cone vibration when the signal changes. The result? Reduced distortion and superior frequency response.

Aramid Fiber Interlaced IMPP Cone:

The subwoofer cone is built using an Injection Molded Polypropylene (IMPP) blended with aramid fibers during the molding process. This unique blend enhances the cone's strength, rigidity, and low mass while delivering deep, powerful, and distortion-free bass.

Large Diameter Voice Coil and Double Stacked Magnets:

Enhancing the voice coil's diameter and length offers better control over the woofer cone and higher power handling. Complemented by oversized 4-layer voice coils and high-energy double stacked magnets, the D Subwoofer maximizes power handling and SPL output without compromising on sound quality.

Key Features

  • 10˝ Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) cone construction
  • Butyl rubber surround for strength and linearity during high excursion
  • Shallow basket, small enclosure design for sound optimization and installation flexibility

Specifications

Key Features Details
System Type Component Subwoofer
Sensitivity (1W/1m) 76dB
Frequency Range 20 Hz to 3.4 kHz
CTA-2031 Compliant Yes
Warranty 1 Year
Continuous Power handling (RMS) - Watts 350 Watts
Maximum Peak Power Handling - Watts 1300 Watts
Nominal Impedance - OHM 4
Speaker Grill Sold separately (UD-10GL)
Build
Shape Round
Size 10"
Cone Material IMPP - Aramid Fiber
Center Cap Material ABS
Surround Material Rubber
Surround Type Rolled
Basket Material Stamped Metal
Magnet Material Ferrite
Magnet Weight 43.4 oz
Voice Coil Type Single Voice
Voice Coil Bobbin Glass imide
Voice Coil Wire Copper
Damper Aramid
Gasket PP
Wire Terminals Push Type
Unit Size (Dimensions) 10-1/2"
Mounting Depth 3-1/4"
Cut Out Dimensions 9"
Equivalent Compliance (VAS) [L] 16.1
Free Air Resonance (Fs) [Hz] 37
Total Speaker "Q" (Qts) 0.8
Linear Excursion (Xmax) [mm] 8.3
Recommended Sealed Box Volume [L] 17
Port Box Volume [L] 17
Port Length 7-1/2"
Port Diameter 3"

What's in the Box

  • (1) 10" Subwoofer
  • Trim ring
  • (6) 1-1/8" Screws
  • Adhesive backed foam gasket
  • Manual
  • Warranty information
