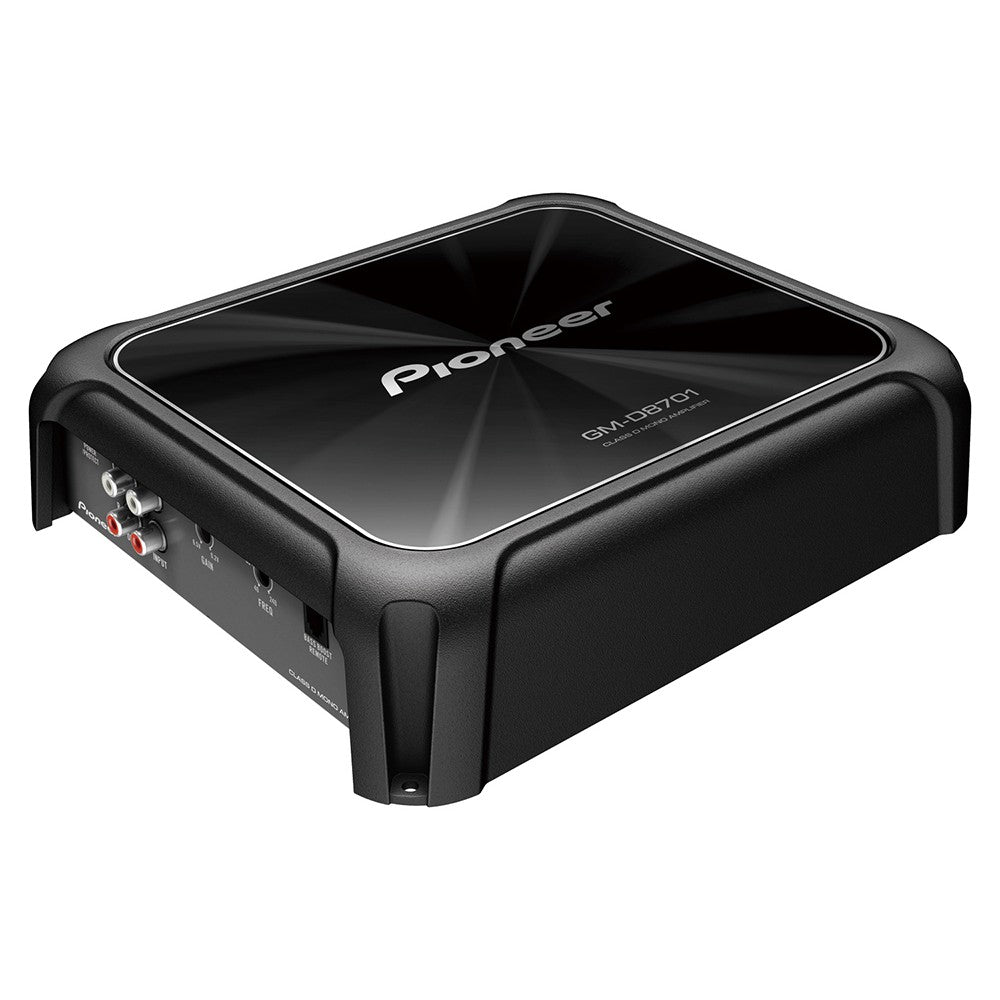

Pioneer GM-D8701 Mono 1600W Class-FD Car Amplifier with Bass Boost Remote
Pioneer | SKU:
228684
Model# GMD-8701
£184.99
Unit price
/
Unavailable
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
-
1-Year Warranty
Pioneer GM-D8701 Mono 1600W Class-FD Car Amplifier with Bass Boost ...
£184.99
Unit price
/
Unavailable
Description
Description
Utilising High-Quality Sound Components and Precision Tuning
Pioneer employs audio film capacitors and low-impedance coils in the output LC filter, ensuring exceptional sound quality. Their tuning methods, based on replicating the original audio source, offer an unparalleled listening experience to all users.
Employing an Advanced Audio Power Source Capacitor
Pioneer's proprietary high-capacity audio power source capacitor significantly enhances sound quality while guaranteeing consistent power distribution, even at high output levels.
Customisable HPF & LPF
They offer variable LPF and HPF, providing added flexibility to fine-tune audio frequencies according to subwoofer characteristics and personal preferences.
GM-D9704 / GM-D8704 - Variable LPF/HPF: 40-500 Hz
GM-D9701 / GM-D8701 - Variable LPF: 40-240 Hz
GM-D9705 - Variable LPF/HPF (A-Ch. and B-Ch.): 40-500 Hz
Variable LPF (SW-Ch.): 40-500 Hz
Enhancing the Bass

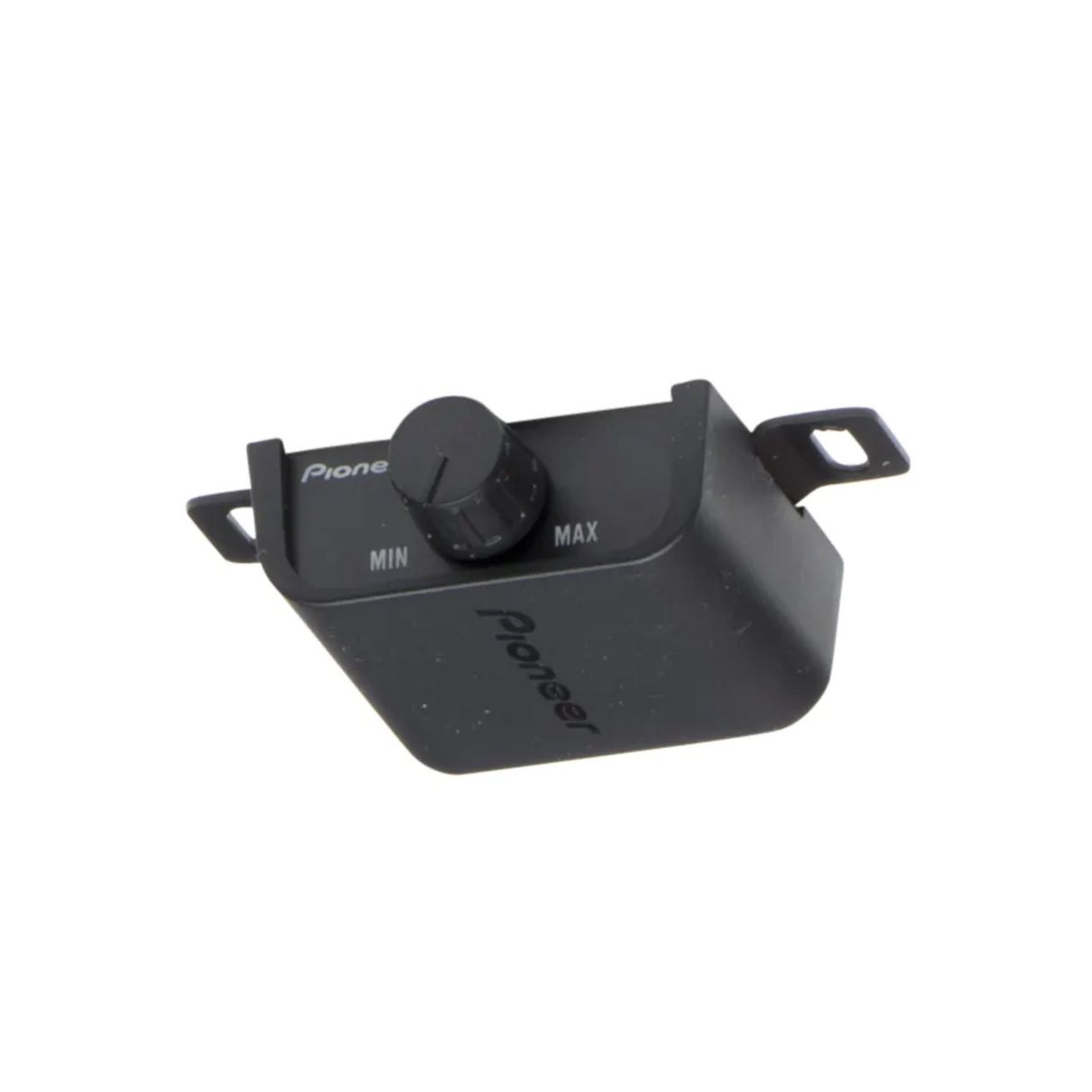

Each new Class-D amplifier comes equipped with a Bass Boost Remote Controller, enabling precise bass level adjustments tailored to individual listening preferences and musical genres.
Auto-Sensing and Turn-On Feature

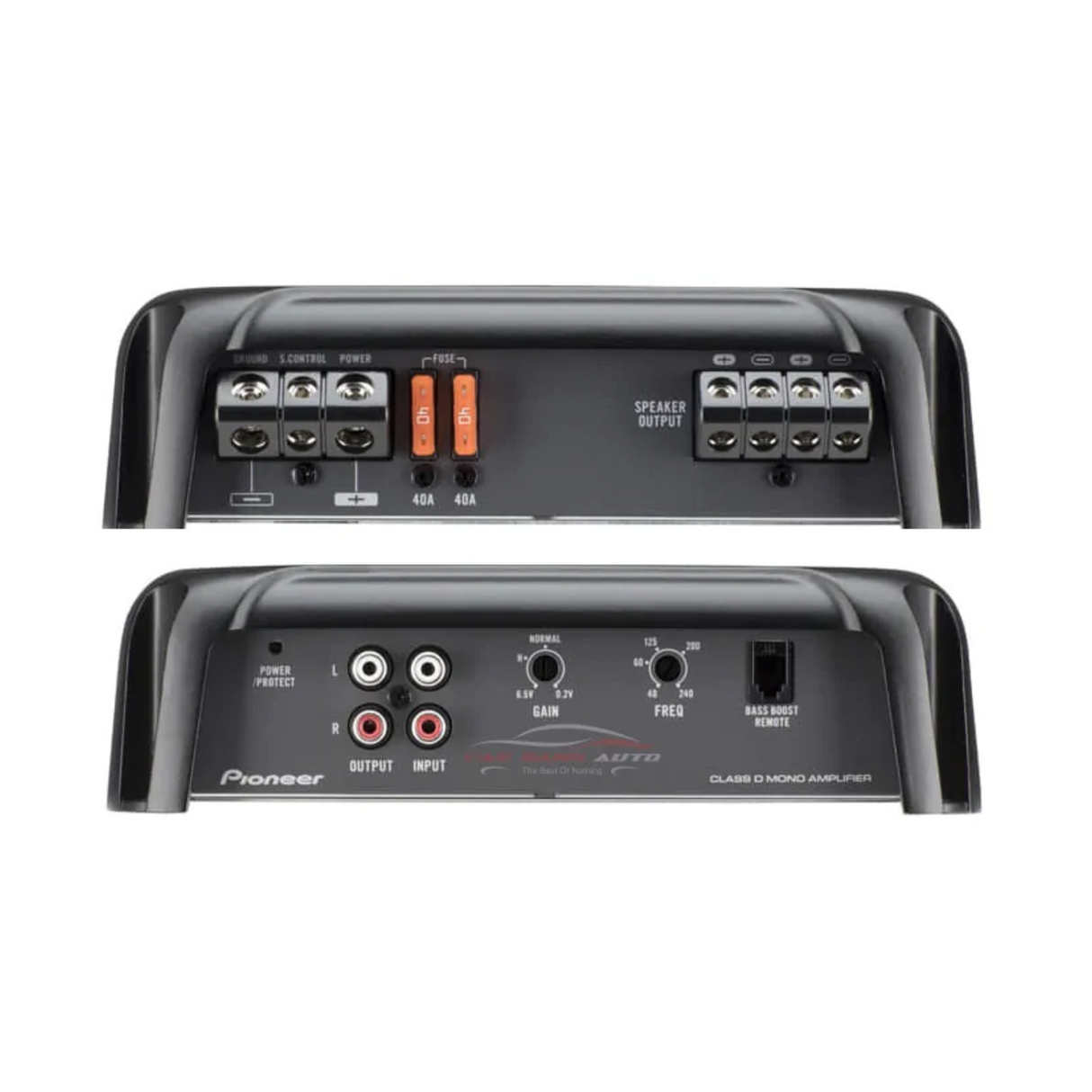

Pioneer's Class-D amplifiers intelligently switch between RCA level and speaker level input signals, automatically activating upon detecting an input signal. When using a speaker line input, the amplifier powers on upon receiver activation.
Implementing an Advanced Protection Control System
Their innovative digital amplifier circuit, the "Protection Control System," constantly monitors internal temperature, automatically adjusting input levels to prevent circuit shutdown. This design ensures stable and durable circuitry, reducing the risk of high input power and facilitating a 1 Ω connection. This feature enhances flexibility when connecting multiple subwoofers to a system.
Pioneer employs audio film capacitors and low-impedance coils in the output LC filter, ensuring exceptional sound quality. Their tuning methods, based on replicating the original audio source, offer an unparalleled listening experience to all users.
Employing an Advanced Audio Power Source Capacitor
Pioneer's proprietary high-capacity audio power source capacitor significantly enhances sound quality while guaranteeing consistent power distribution, even at high output levels.
Customisable HPF & LPF
They offer variable LPF and HPF, providing added flexibility to fine-tune audio frequencies according to subwoofer characteristics and personal preferences.
GM-D9704 / GM-D8704 - Variable LPF/HPF: 40-500 Hz
GM-D9701 / GM-D8701 - Variable LPF: 40-240 Hz
GM-D9705 - Variable LPF/HPF (A-Ch. and B-Ch.): 40-500 Hz
Variable LPF (SW-Ch.): 40-500 Hz
Enhancing the Bass
Each new Class-D amplifier comes equipped with a Bass Boost Remote Controller, enabling precise bass level adjustments tailored to individual listening preferences and musical genres.
Auto-Sensing and Turn-On Feature
Pioneer's Class-D amplifiers intelligently switch between RCA level and speaker level input signals, automatically activating upon detecting an input signal. When using a speaker line input, the amplifier powers on upon receiver activation.
Implementing an Advanced Protection Control System
Their innovative digital amplifier circuit, the "Protection Control System," constantly monitors internal temperature, automatically adjusting input levels to prevent circuit shutdown. This design ensures stable and durable circuitry, reducing the risk of high input power and facilitating a 1 Ω connection. This feature enhances flexibility when connecting multiple subwoofers to a system.
Key Features
Key Features
Specifications
Specifications
| Specification | Details |
|---|---|
| Mono Channel | Yes |
| Max. Wattage (4 Ω) | 600 W x 1 |
| Max. Wattage (2 Ω) | 1,000 W x 1 |
| Max. Wattage (1 Ω) | 1,600 W x 1 |
| Max. Wattage Bridged (4 Ω) | - |
| Wattage RMS (4 Ω <= 1%THD+N) | 300 W x 1 |
| Wattage RMS (2 Ω <= 1%THD+N) | 500 W x 1 |
| Wattage RMS (1 Ω <= 1%THD+N) | 800 W x 1 |
| Wattage RMS Bridged (4 Ω) | - |
| Frequency Response | 10 Hz to 240 Hz |
| Total Harmonic Distortion (1kHz, 4 Ω) | < 0.5% (100 Hz) |
| Signal-to-Noise Ratio (IHF-A Weighted) | > 100 dB |
| Dimensions (W x H x D) | 265 mm x 60 mm x 200 mm |
