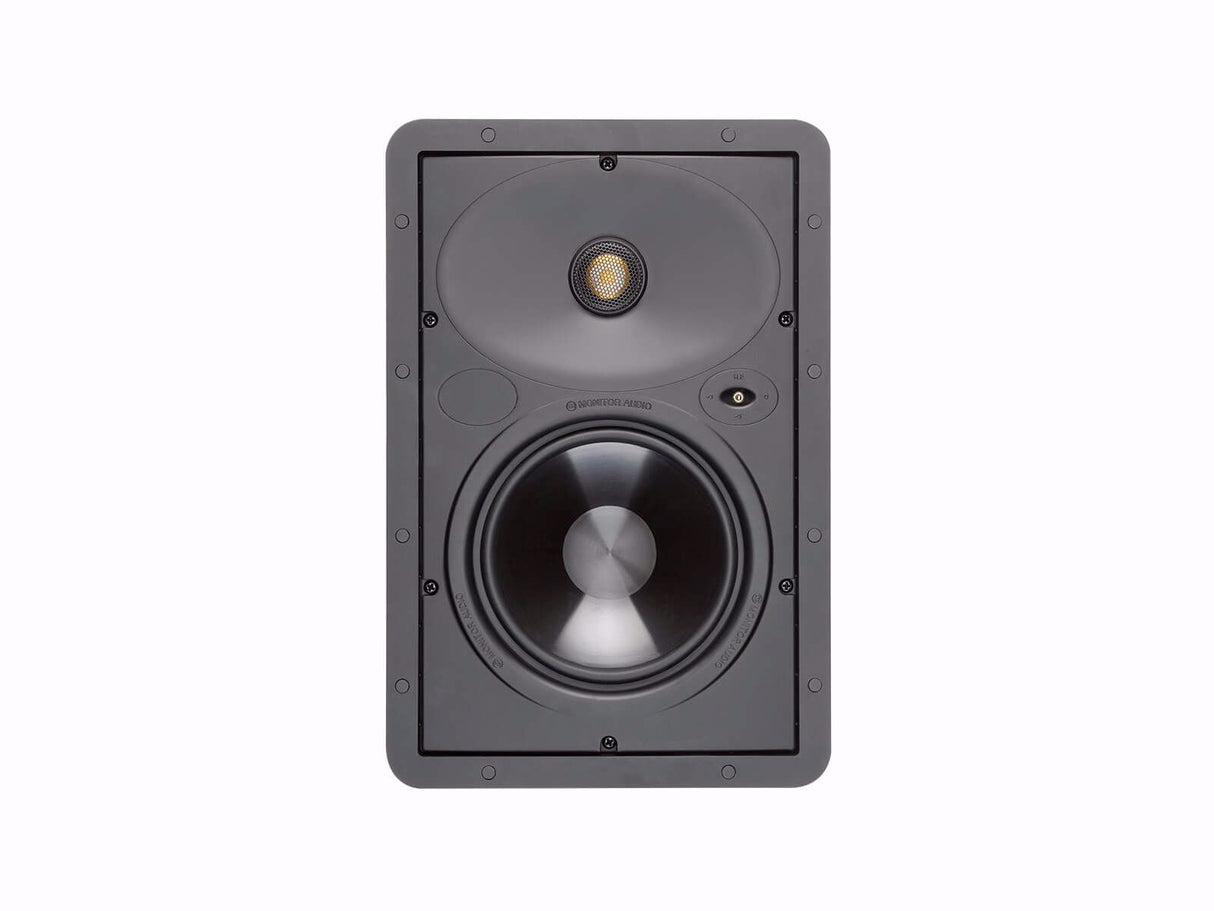

Monitor Audio W165 In-Wall Speaker (Single)

The Monitor Audio W165 features a 6 1/2" MMP II bass driver alongside Monitor Audio's distinctive C-CAM Gold Dome tweeter, ensuring high-performance sound, effortless drive, and a broad frequency response with wide dispersion. Precision in imaging and setup is achieved through a pivoting tweeter and adjustable high-frequency level (+3 dB / 0 dB / -3 dB).

The acoustic systems of Monitor Audio's renowned bass drivers and pivoting C-CAM gold dome tweeters undergo optimization through FEA analysis. This process ensures high efficiency, catering to the demanding requirements of both residential and commercial installations, delivering a wide frequency range.

Wherever Monitor Audio's speakers are deployed, their inherent versatility, unobtrusive appearance, and impressive performance guarantee excellent sound quality and straightforward, discreet, and decor-friendly installation.

Parameter	Value
Frequency Response	60 Hz – 25 kHz
Nominal Impedance	6 ohms
Sensitivity (1W@1M)	88.5 dB
Maximum SPL	107.4 dBA
Power Handling (RMS)	65 W
Recommended Amp Requirements	20 – 65 W
Drivers Unit Complement	6 1/2" MMP II cone bass driver 1” C-CAM pivoting Gold Dome tweeter
Adjustment Controls	HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (including grille)	370 mm x 250 mm (14 9/16" x 9 13/16")
Overall Depth (including grille)	89.5 mm (3 1/2")
Mounting Depth	85.5 mm (3 3/8")
Cut-Out Hole Diameter	332 mm x 213 mm (13 1/16" x 8 3/8")

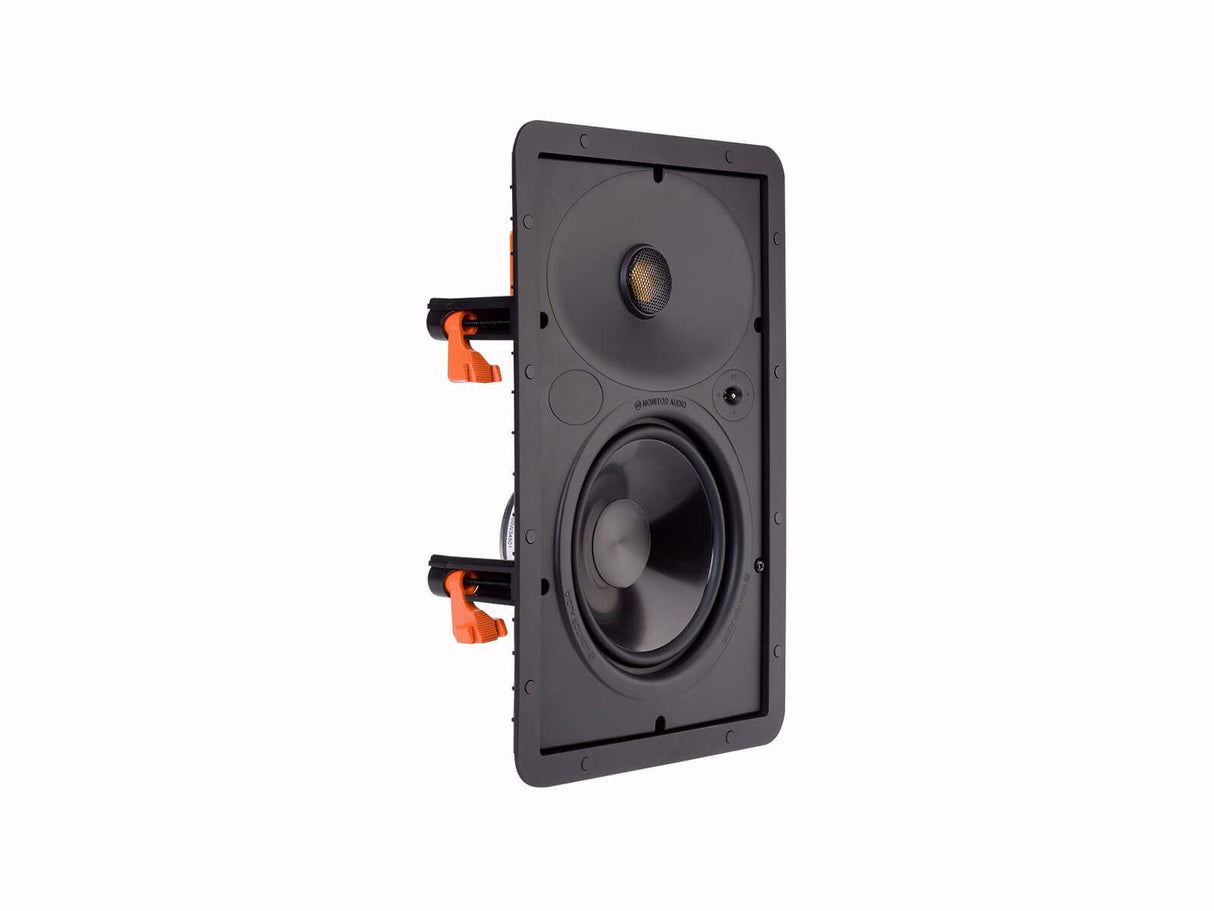

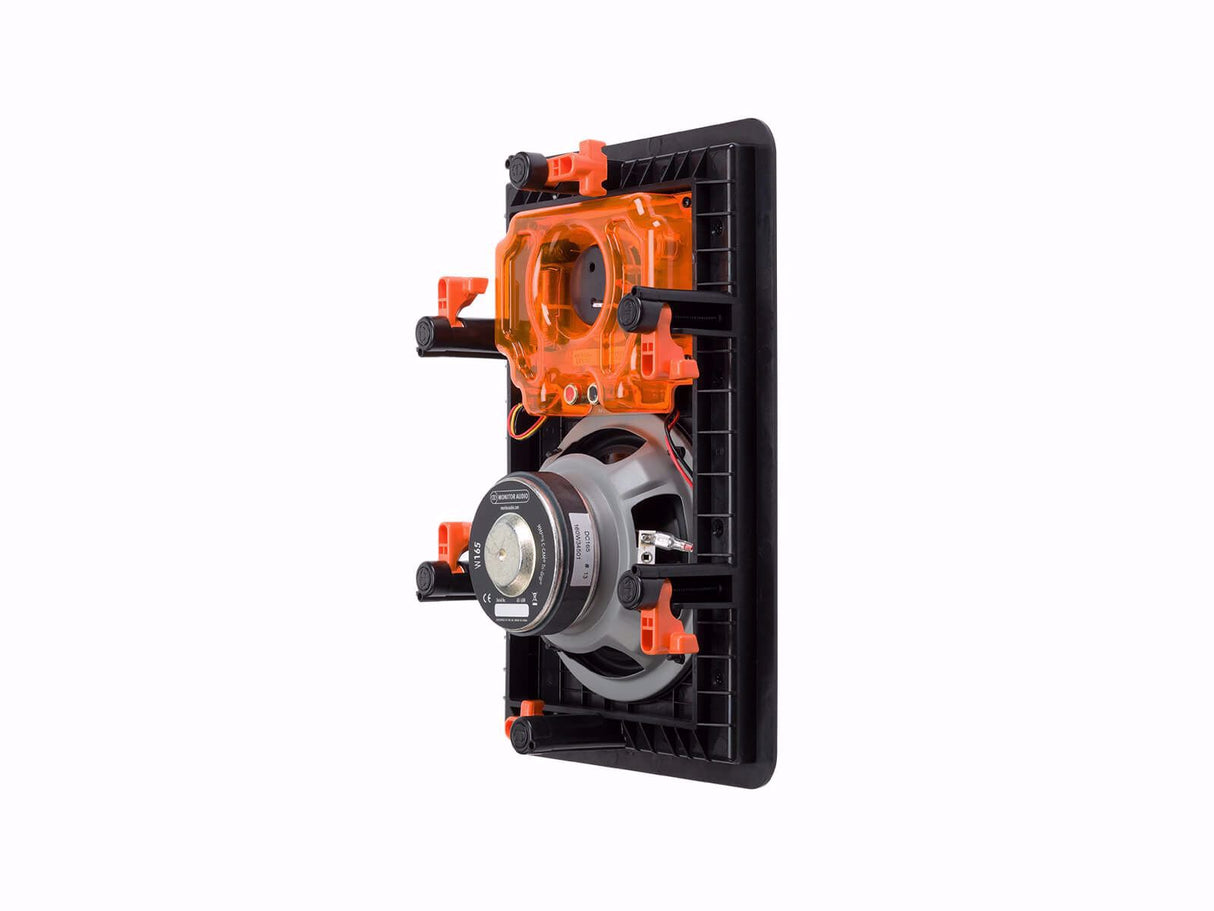

Fixing Type	6 position Tri-Grip dog fixings
Construction Material	Mineral filled ABS, RoHS compliant
Weight	2.21 kg (4 lb 14 oz)
Pre-Construction Bracket	WB6 (Purple)
