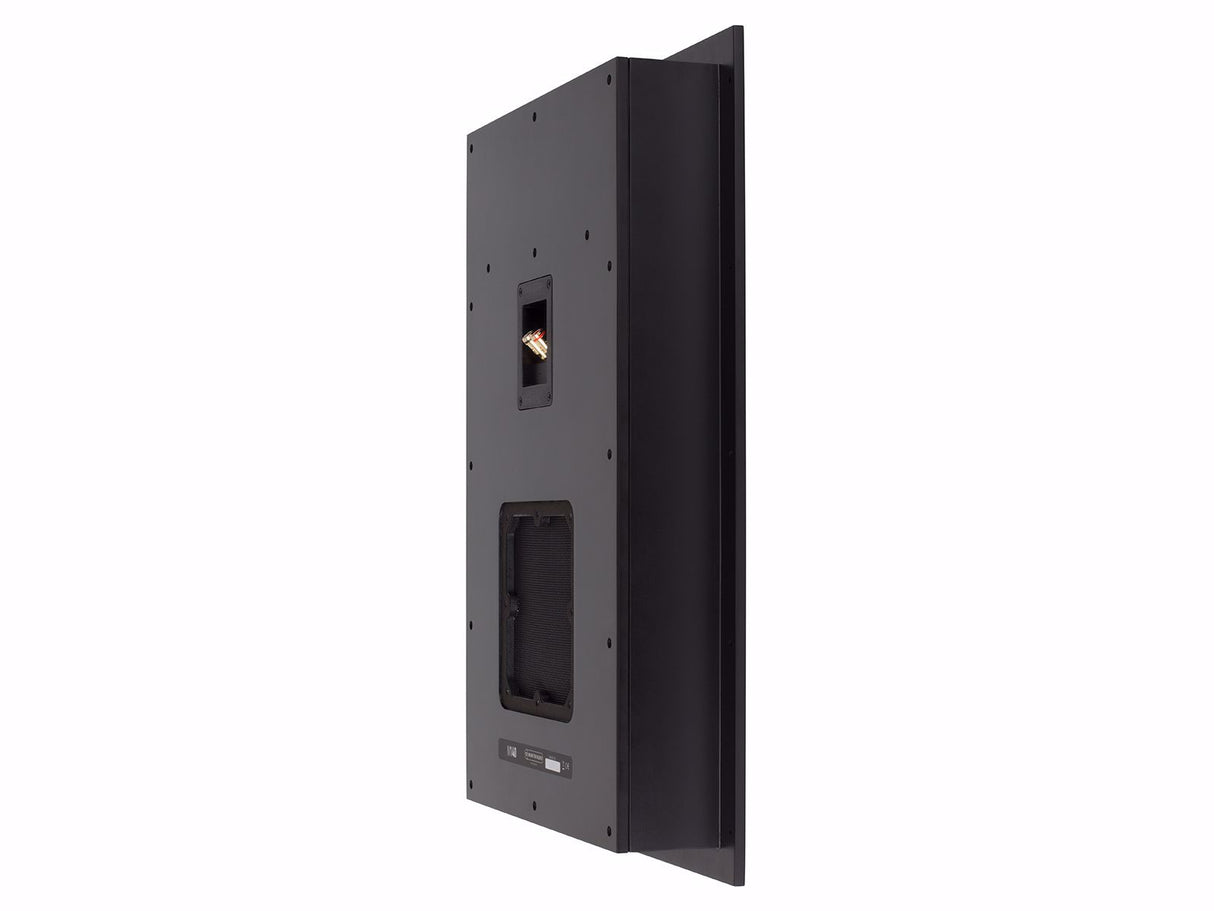

Monitor Audio IV140 Invisible Installation Speaker

Monitor Audio  |  SKU: 70343
Model# IV140
£605.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

Monitor Audio IV140 In-Wall/In-Ceiling Speaker

Designed to meet the exacting demands of designers, installers, and audio enthusiasts alike, the Monitor Audio IV140 In-Wall/In-Ceiling Speaker seamlessly combines discretion, easy installation, and high-performance audio.

Discreet Installation for Aesthetic Appeal

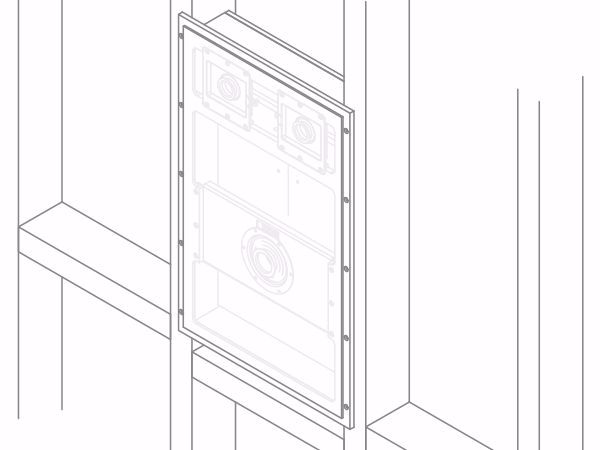

The IV140 is ingeniously crafted for concealed in-wall or in-ceiling installation, catering to the need for ultimate discretion. Its compact design effortlessly fits into conventional 4” stud bays, leaving ample space for cabling. Once installed and plastered over, the speaker becomes virtually invisible, blending seamlessly with its surroundings when painted, adorned with light wallpaper, or covered with fabric.

Powerful Transducer Design

Equipped with a large low-frequency transducer and two high-frequency transducers, the IV140 delivers punchy, high-power bass and sound vibration. This two-way transducer design incorporates an integrated crossover, expanding the frequency range to ensure crystal-clear sound quality with a smoother overall balance and character.

Integrated Back Box for Controlled Performance

The IV140 features an integrated back box design that not only enhances the audio performance but also isolates sound, ensuring consistent and controlled delivery. This rigid back box effectively minimizes sound emitted from the rear of the speaker, preventing leakage into adjacent rooms and providing an immersive audio experience.

Overload Protection for Reliability

Monitor Audio prioritizes the longevity and reliability of the IV140 with built-in automatic re-setting circuit breakers (PTC). In the event of an overload, these circuit breakers attenuate the output for a specific time, allowing the system to cool before resuming normal operation safely.

Key Features

  • 2-Way System: Features a 2-way speaker system with an integrated crossover for optimal audio performance.

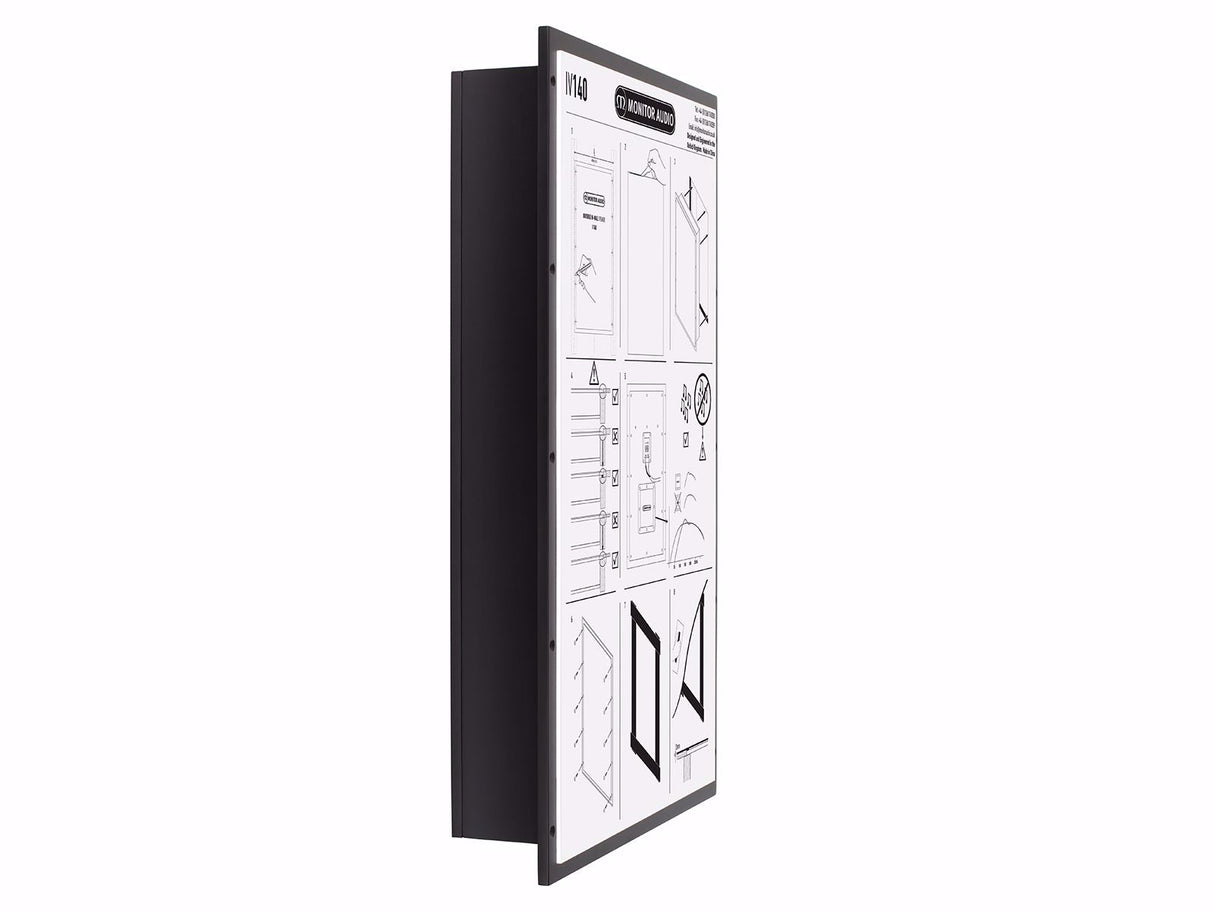

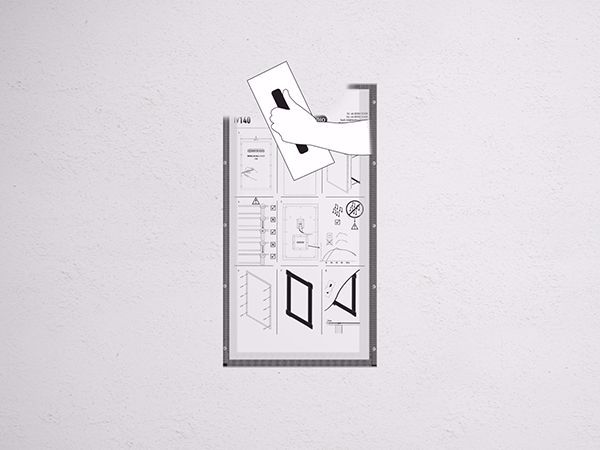

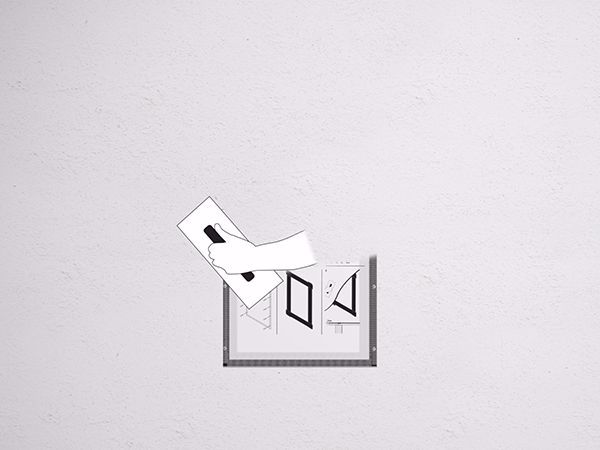

  • Pre-Construction Design: Specifically designed to be plastered in, creating an 'invisible' appearance for a seamless integration into the surroundings.
  • Low-Frequency Transducer: Equipped with a low-frequency transducer that includes high-power ceramic magnetics and a 40mm voice coil for robust bass reproduction.
  • Dual High-Frequency Transducers: Incorporates dual high-frequency transducers with high-power Neo magnets and 30mm voice coils, enhancing the clarity of audio.
  • Rigid MDF Back Box Construction: The back box is constructed with rigid MDF for durability and acoustic performance.
  • Integrated 'Hybrid' Back Box System: Features an integrated 'hybrid' controlled performance back box system that can be fully sealed or open-back, providing flexibility in sound control.
  • High-Quality Crossover: Utilizes a high-quality crossover, including metallized film capacitors and low-loss steel core inductors, ensuring precise signal processing.
  • Overload Protection: Protected against overload by PTCs (automatically re-setting breakers), enhancing the longevity of the speaker.
  • Versatile Applications: Ideal for various applications such as home cinema, distributed audio, hospitality, retail, and commercial background music where visible discretion is a key factor.

Specifications

Parameter Value
Frequency Response (-6dB) 75Hz - 18KHz (CP Sealed)
55Hz - 18KHz (Open Back)
Power Handling 50 Watts (Full Range - IEC268-5 Rating)
100 Watts Music Program (Using Minimum 80Hz High Pass Filter)
Overall Depth 95.5 mm
Fixing Type Self-tapping Screw
Sensitivity (1W@1M) 82dB (When Installed As Directed)
Amplifier Requirements 20-50 Watts (Full Range)
20-100 Watts (Using Minimum 80Hz High Pass Filter)
Cut Out Dimensions 401.5mm (Wide) x 642mm (High)
Construction Material 9mm MDF
Impedance (Nominal) 8 Ohms
Driver Complement 1 x Low-Frequency Transducer
2 x High-Frequency Transducer
Mounting Depth 83.5mm
Finish Black Painted, White Membrane
Maximum S.P.L (@1M) 102.8dBA
Overall Dimensions 350.5mm (Wide) x 591mm (High)
Connection Sprung Push Type Terminals - Gold Plated
