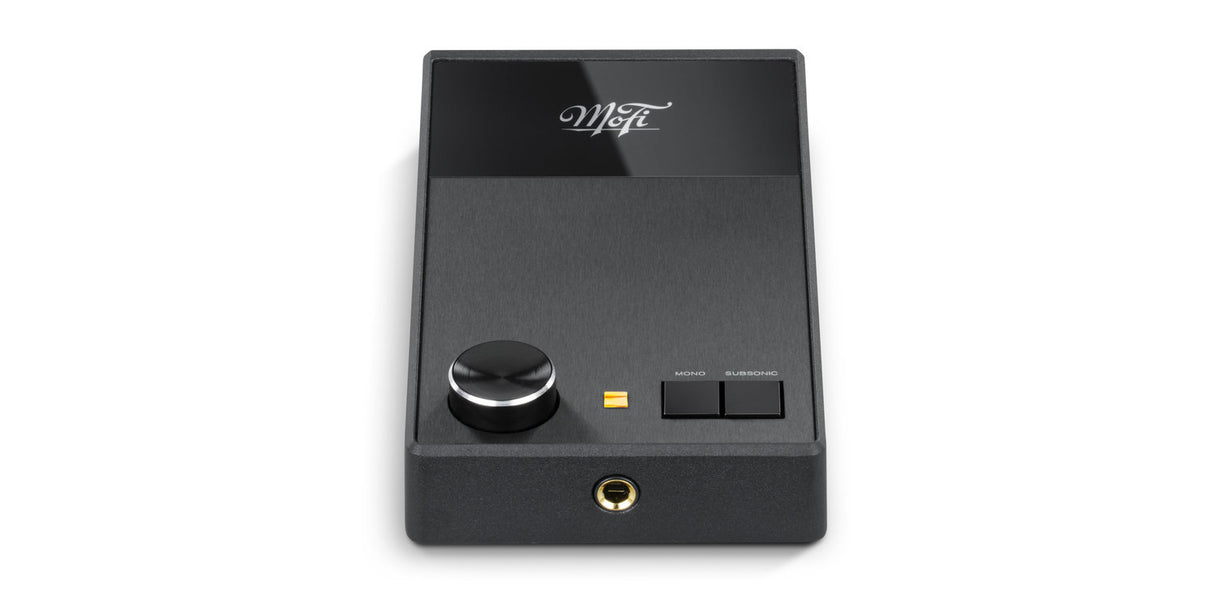

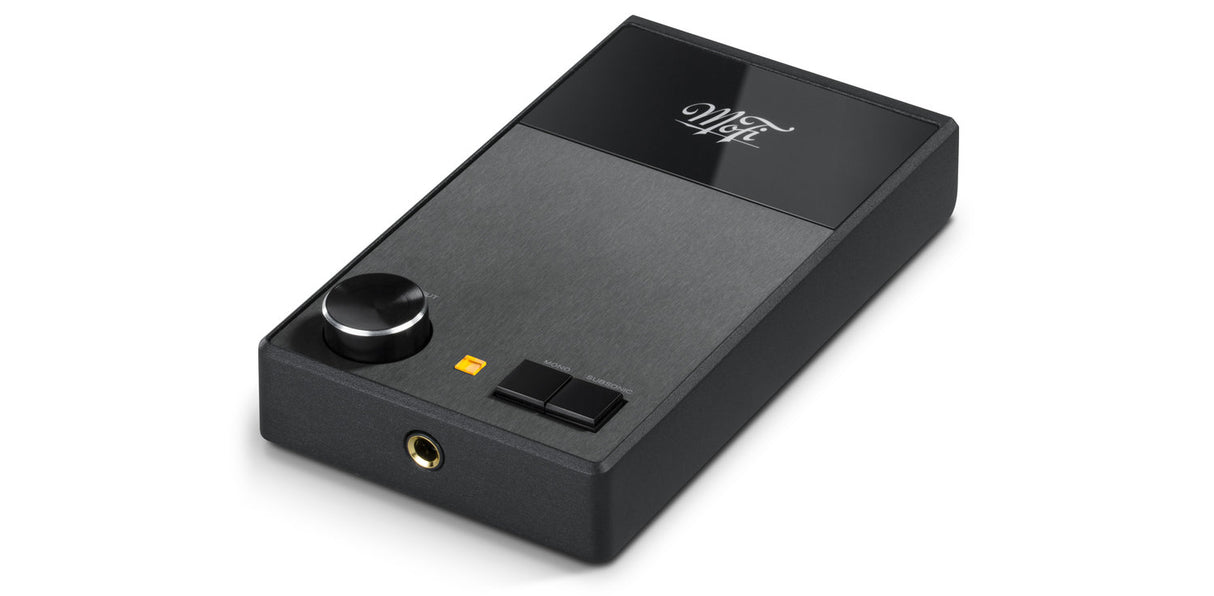

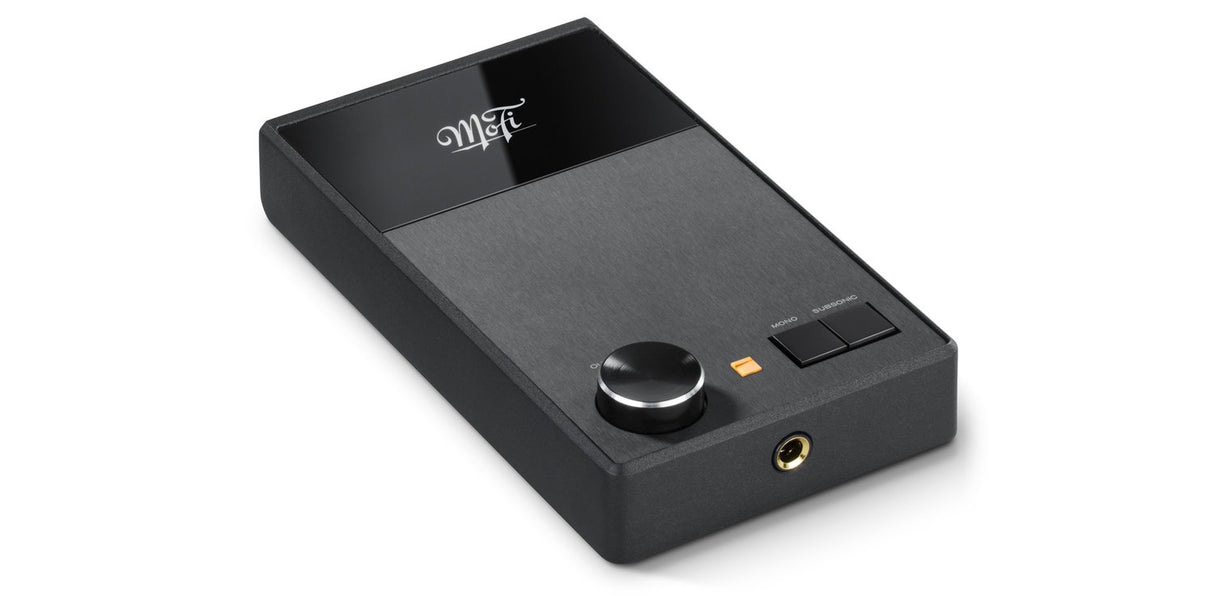

Mofi UltraPhono MM/MC Phono stage with Headphone Amplifier

MoFi Electronics  |  SKU: 74859
£499.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

In addition to the design features of StudioPhono,UltraPhono also includes an audiophile-quality Class

A headphone amplifier with a 31-step volume control for intimate listening enjoyment.

With selectable gain and loading, you will be able to tailor UltraPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit's underside to quickly make adjustments without the need for any tools.

SPECIFICATIONS

Gain
Adjustable from 40dB - 66dB

THD
< .006% (MM) / < .055% (MC)

Load Impedance (MM)
47,000 Ohms

Load Impedance (MC)
75, 100, 500, 1k, 10k, 47k Ohms

Input Capacitance
100pF

HEADPHONE AMPLIFIER

Headphone Output
8V RMS Max, 62 Ohms, 1.5 w/ch

Volume Control
31 steps, 2dB per/step, 62dB range

Mute Switch
-90dB

Minimum Impedance
> 10 Ohms
