iFi Audio ZEN DAC 3 | Technical Specifications: |
---|---|

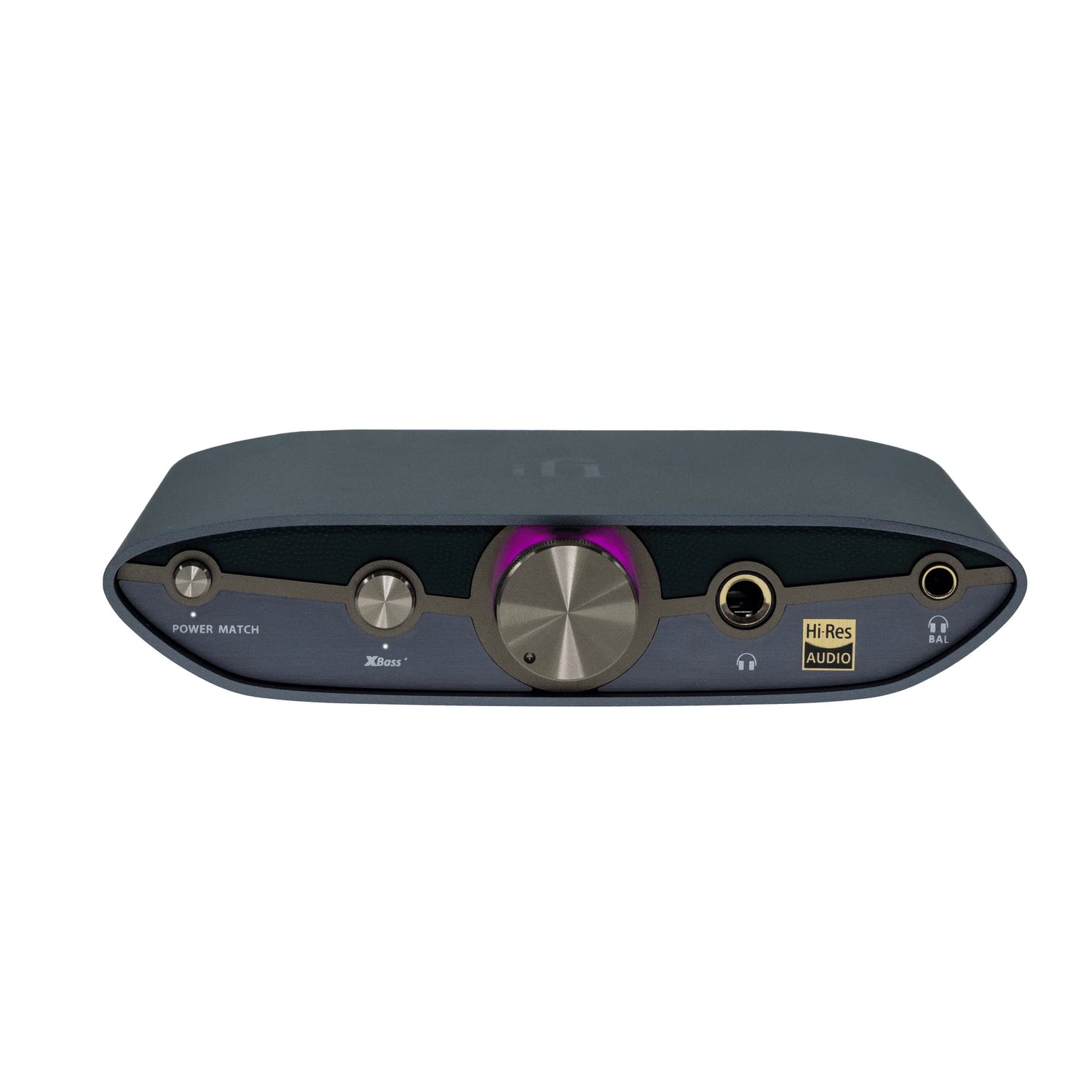

Headphone Output Connections (front): 6.35mm Single Ended Headphone Output; 4.4mm Balanced Headphone Output | |

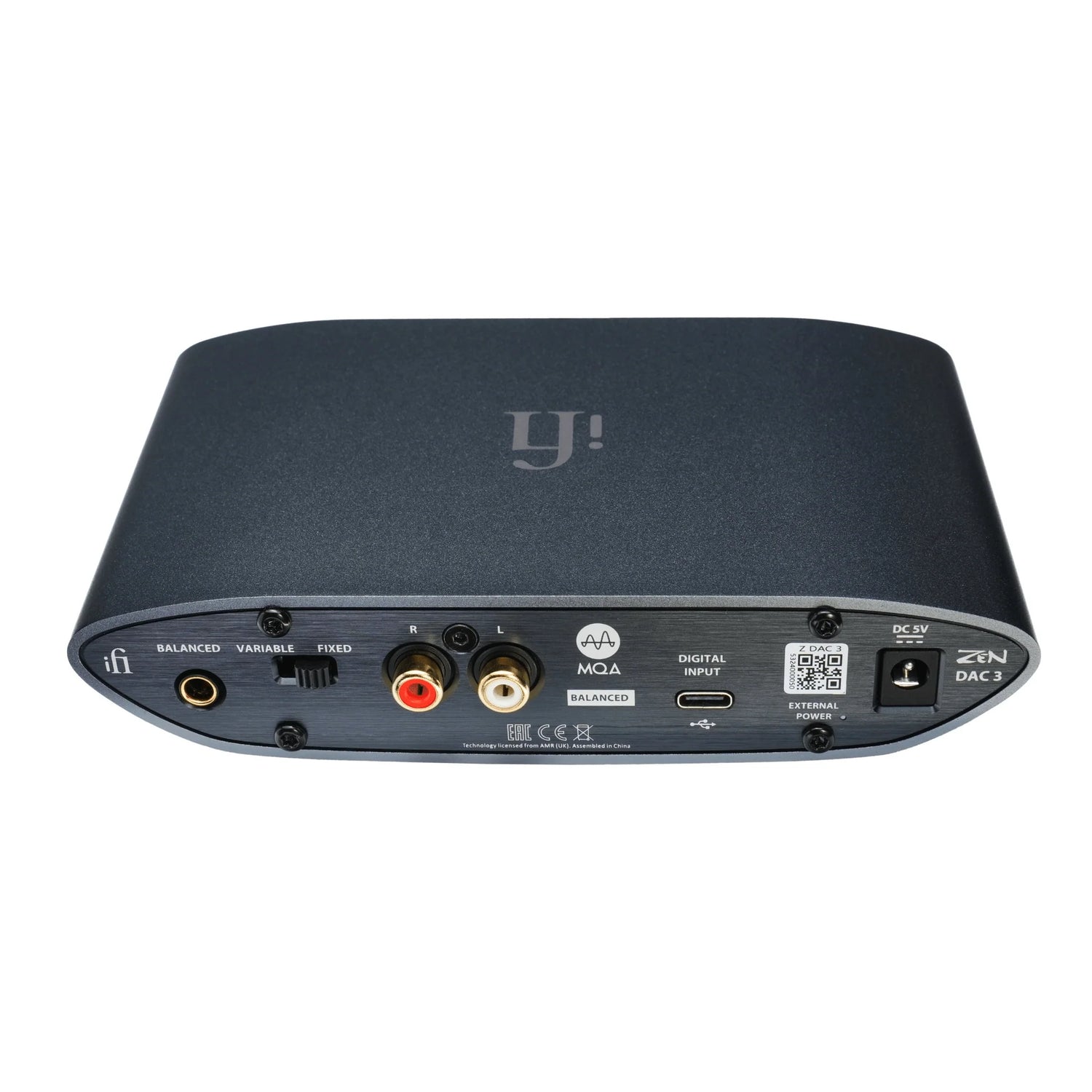

Line Output Connections (back): 4.4mm Balanced Line Output; RCA Single Ended Output | |
Inputs: USB-C (Phone/PC); Power 5V DC Centre +ve | |
Formats: PCM 768kHz, DSD 512, MQA Full Decoder | |
DAC: Bit-Perfect DSD & DXD DAC by Burr Brown | |
Headphone Output Power (RMS) Balanced 4.4mm: 390mW@32Ω; 7.2V@600Ω | |
Output Impedance: <1Ω (BAL/UnBAL) | |
SNR: 109dB(A) (BAL/UnBAL) | |
DNR: 109dB(A) (BAL/UnBAL) | |
THD + N Balanced: <0.006% (2.0V @ 600Ω) | |
THD + N UnBAL: <0.006% (1.27V @ 32Ω) | |
Line Output Power Balanced 4.4mm: 2V-6.2V max. (variable); 4.2V fixed | |
Line Output Power UnBAL RCA: 1V-3.3V max. (variable); 2.1V fixed | |
Output Impedance: <200Ω BAL; <100Ω UnBAL | |
Frequency Response: 5Hz - 90kHz (+/-3dB) | |
Power Consumption: ~2.5W Max Signal | |
Dimensions: 158x115x35mm (6.2” x 4.6” x 1.4”) | |
Weight: 456g (1.0 lbs) |
