iFi Audio ZEN CAN | |
---|---|
Features: | |
Class A discrete output buffer from the flagship Pro iCAN using Op-Amp (OV2637A) | |
FET input avoids loading volume control for low distortion and noise | |
SE inputs (1M Ohm) ensures loading of the source so always in Class A operation | |
Output amplifier gain of four steps in +6dB perfect for headphone matching | |
Extremely low distortion and noise from a circuit design | |
Delivers up to 1600mW of power at 16 ohms | |
Xbass for accurate and more natural bass frequencies | |
Balanced 4.4mm pentaconn and a single-ended 6.35mm headphone output on the front | |

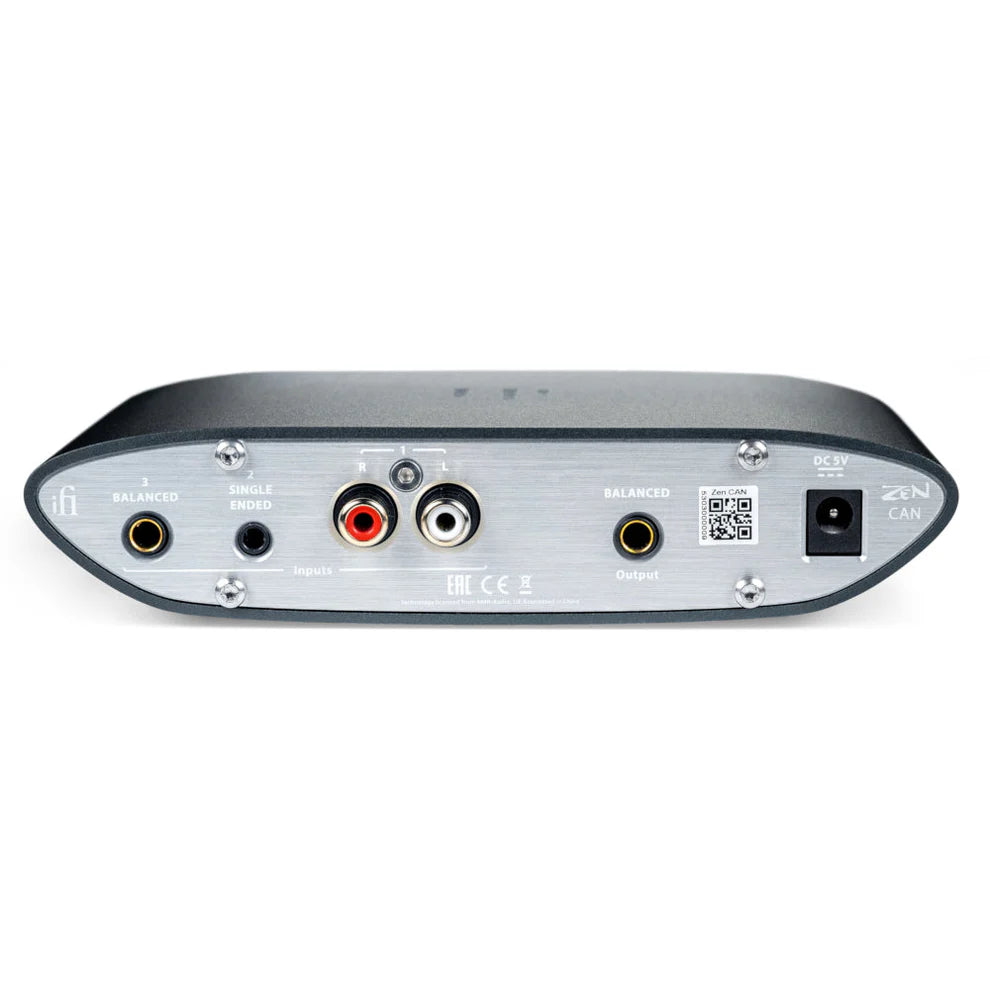

Three inputs on back including 3.5mm line out, RCA left and right sockets, and a 4.4mm balanced pentaconn | |
Additional 4.4 balanced output to connect to power amplifier or active speakers | |
Technical Specifications: | |
Inputs 4.4mm Pentaconn BAL: 4.0V nominal @ 0dBFS, 24 kOhm Zin | |
Inputs RCA L/R Socket SE: 2.0V nominal @ 0dBFS, 1 MegOhm Zin | |
Inputs 3.5mm Jack SE: 1.0V nominal @ 0dBFS, 1 MegOhm Zin | |
Max Output Balanced: >15.1V/385 mW (@ 600 Ohm); >11.0V/1890 mW (@ 64 Ohm) | |
Max Output SE: >7.6V/196 mW (@ 300 Ohm); >7.2V/1600 mW (@ 32 Ohm) | |
Output Impedance (HP) BAL: <2 Ohms | |
Output Impedance SE: <1 Ohm | |
Zout Line out: <200 Ohms | |
THD & N Balanced: <0.0007% (4V out, 600 Ohm, 1kHz) | |
THD & N SE: <0.006% (@ 100 mW/1.27V 16 Ohm) | |
SNR Balanced: >120dBA (@ 15.2V) | |
SNR SE: >118dBA (@ 7.6V) | |
Max. Input Balanced: 7.4V RMS | |
Max. Input RCA: 3.8V RMS | |
Max. Input 3.5mm: 1.92V RMS | |
Gain: 0dB, 6dB, 12dB and 18dB | |
Frequency Response: 20Hz - 20kHz (+0dB / -0.03dB) | |
Power consumption No Signal: ~5W | |
Power consumption Max Signal: ~13W | |
Input voltage: DC 5V/2.4A; AC 100 -240V; 50/60Hz | |
Dimensions: 160(w) x 117(d) x 35(h) mm (6.3" x 4.6" x 1.4") | |
Net weight: 515g (1.14 Ibs) |

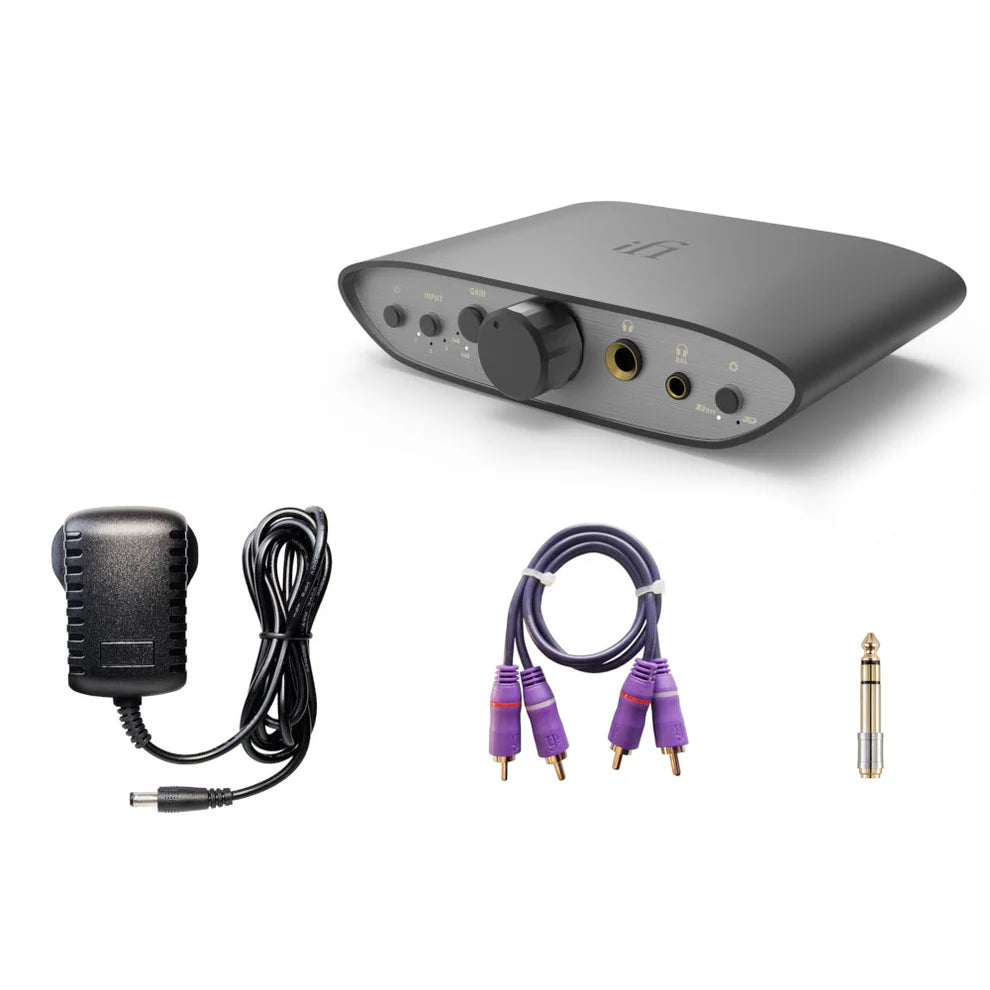

What's in the Box
