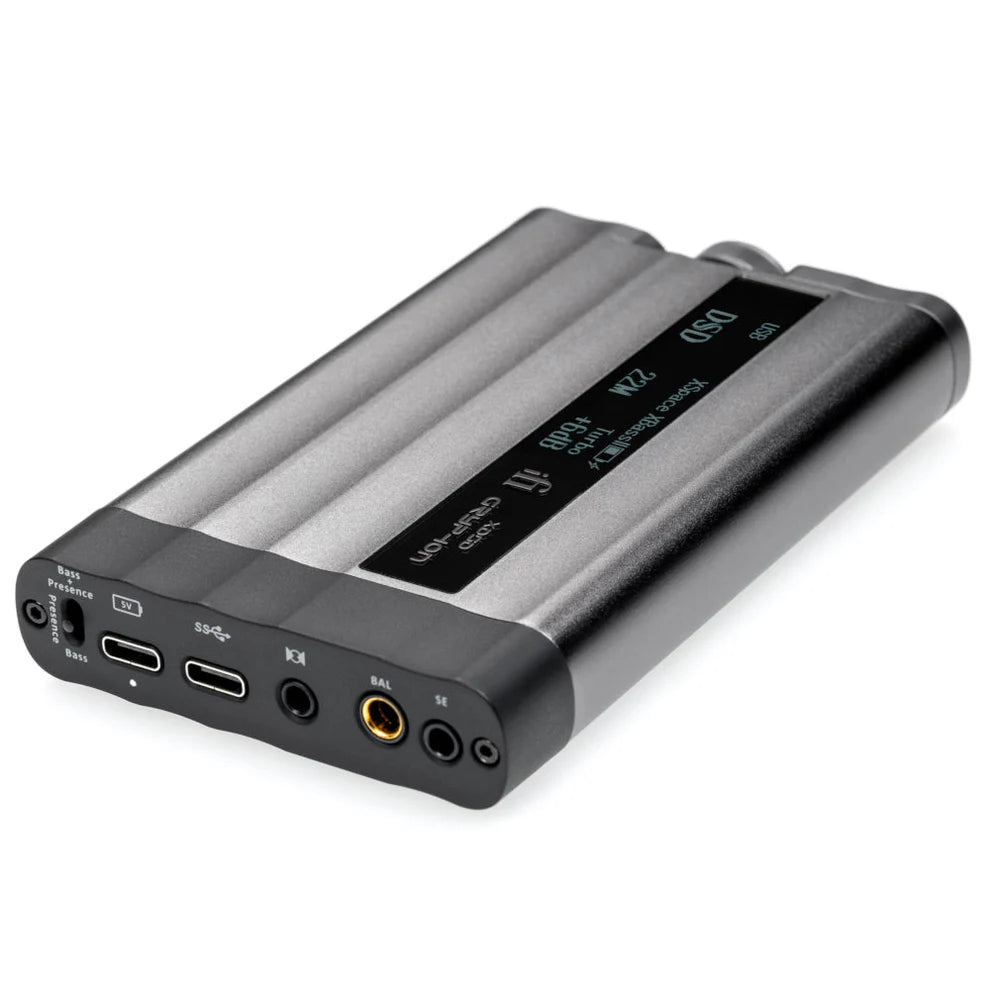

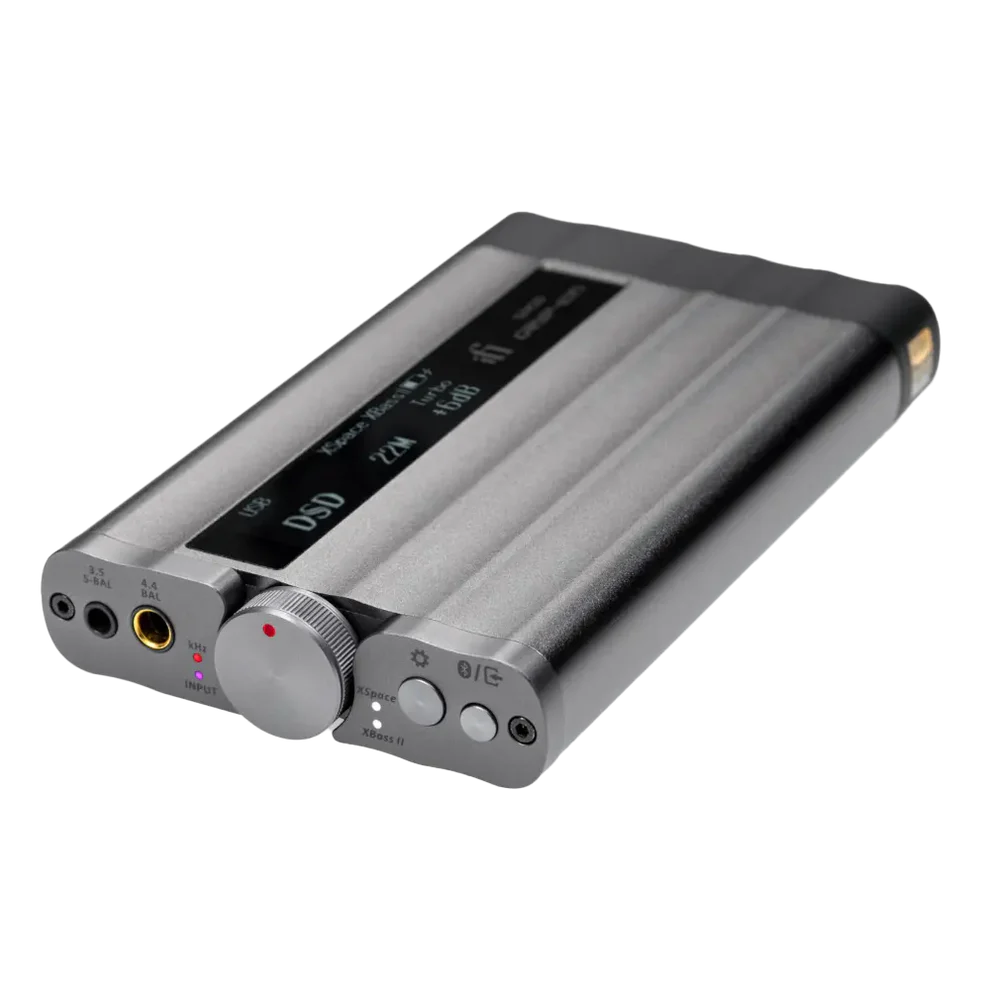

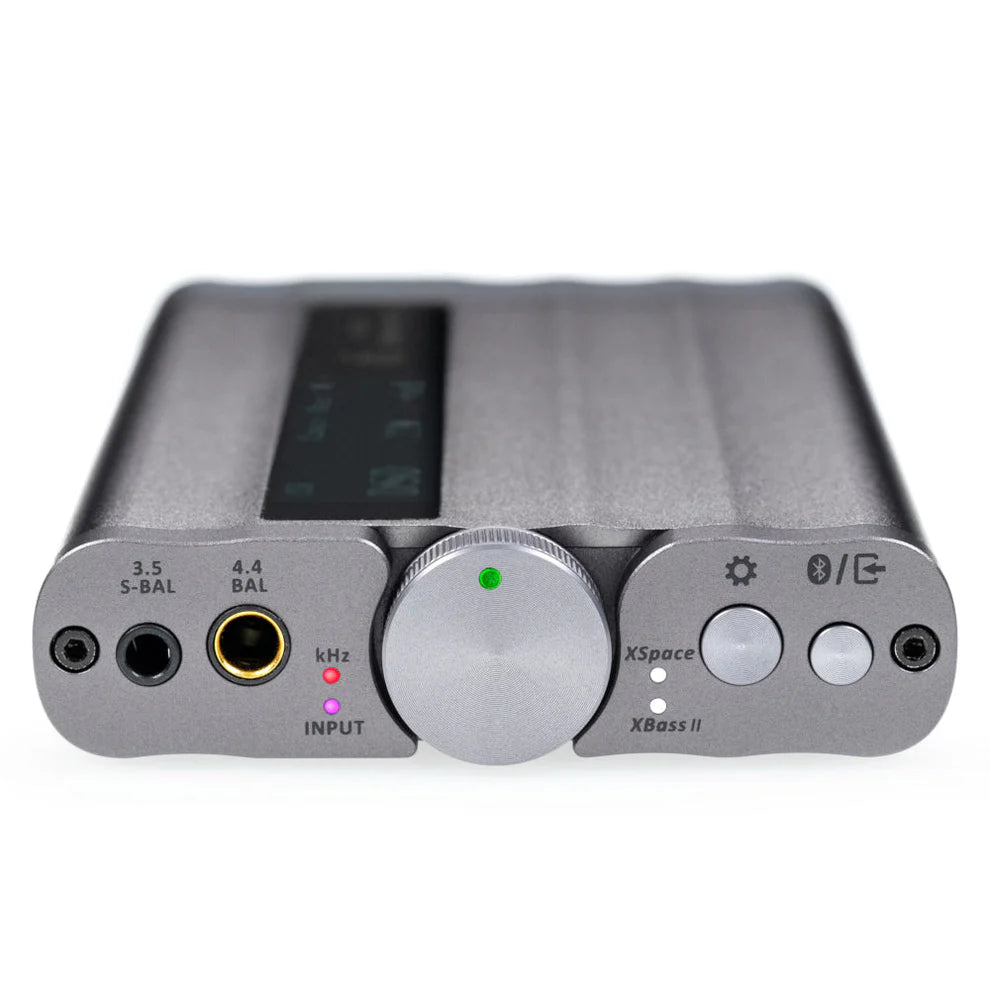

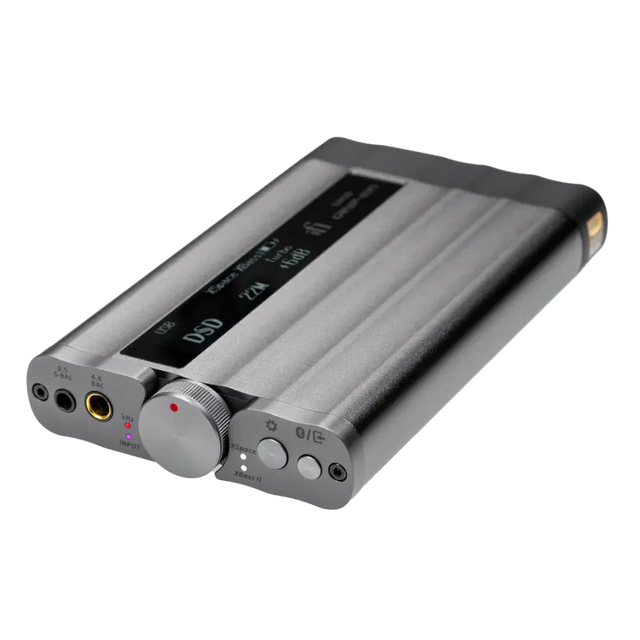

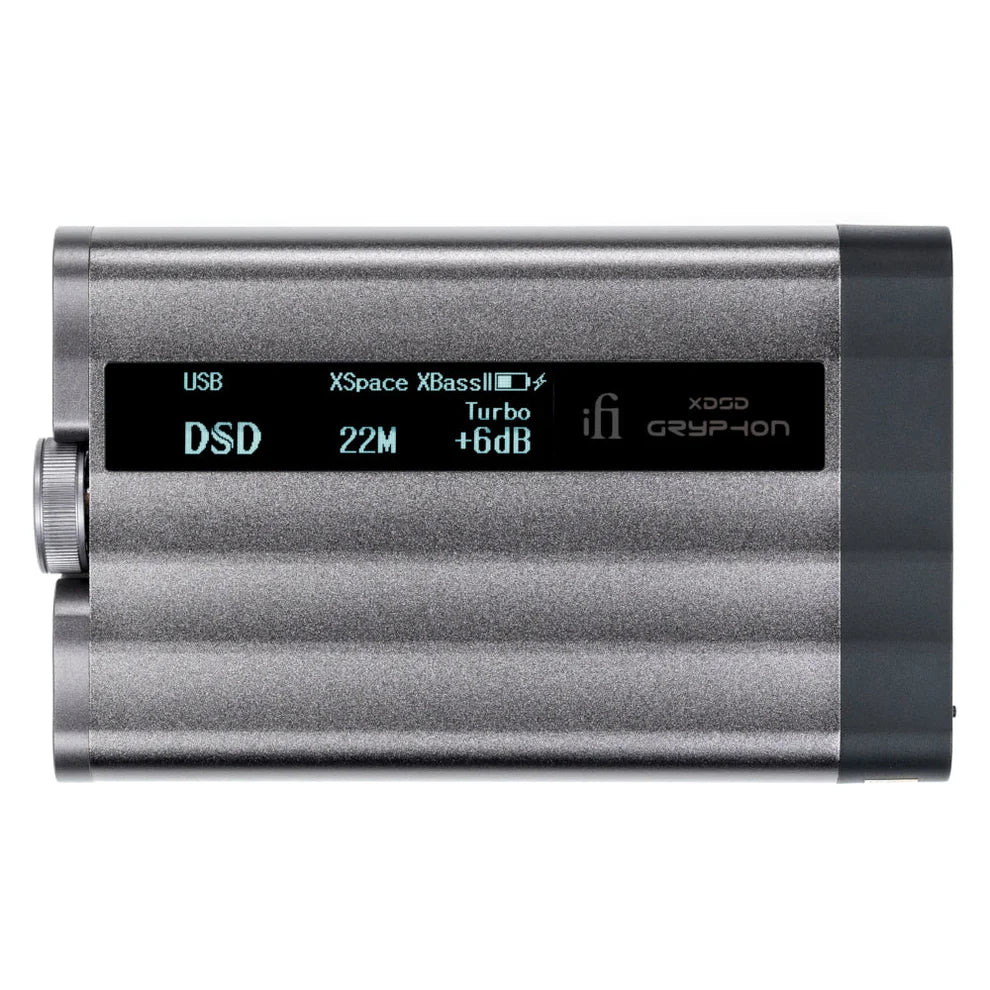

iFi Audio xDSD Gryphon | |
---|---|
Features: | |
USB-C and S/PDIF digital inputs. 4.4mm balanced and 3.5mm unbalanced analogue inputs | |
High-definition Bluetooth input for high-res wireless streaming | |
Balanced 4.4mm and unbalanced 3.5mm headphone outputs | |
32-bit/768kHz PCM, DSD512, Bluetooth 96kHz, MQA decoding | |
Burr-Brown MultiBit D/A converter for detailed, natural sound | |
Up to 8 hours constant use battery life | |
Technical Specifications: | |
Inputs Wireless: Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA, AAC and SBC Codec) | |
Inputs Wired (analogue): Balanced 4.4mm; Single-Ended 3.5mm | |
Formats DSD: DSD512/256/128/64, Octa/Quad/Double/Single-Speed | |
Formats PCM: 768/705.6/384/352.8/192/176.4/ 96/88.2/48/44.1kHz | |
Formats DXD: 768/705.6/384/352.8kHz, Double/Single-Speed DXD | |
Formats MQA (Decoder): 384/352.8kHz | |
Bluetooth Format: Up to 96kHz | |
DAC: Burr-Brown | |
Battery: USB-C charging. BC1.2 compliant up to 1900mA charging current | |
Dimensions: 123x75x19 mm (4.8"x3.0"x0.7") | |
Weight: 215 grams (0.5 Ibs) | |
Line Section: | |
Output Balanced: 6.7V max. (variable) | |
Output S-Bal (SE): 3.5V max. (variable) | |
Output Impedance Balanced: ≤200Ω | |
Output Impedance S-Bal (SE): ≤100Ω | |
Output SNR Balanced/S-Bal (SE): <110dB(A) @ 0dBFS | |
Output THD+N Balanced: <0.007% @ 0dBFS | |
Output THD+N S-Bal (SE): <0.015% @ 0dBFS | |
Headphone Section: | |
Outputs Balanced: 4.4mm Pentaconn | |
Outputs S-Bal (SE): 3.5mm SE | |
Output Power Balanced: >1000mW @ 32Ω; >74mW @ 600Ω; >6.7V max. @ 600Ω | |
Output Power S-Bal (SE): >320mW @ 32Ω; >40mW @ 300Ω; >3.5V max. @ 600Ω | |
Output Impedance Balanced/S-Bal (SE): <1Ω | |
SNR Balanced: <116dB(A) @ 0dBFS | |
SNR S-Bal (SE): <115dB(A) @ 0dBFS | |
THD+N: <0.005% (1V @ 16Ω) |

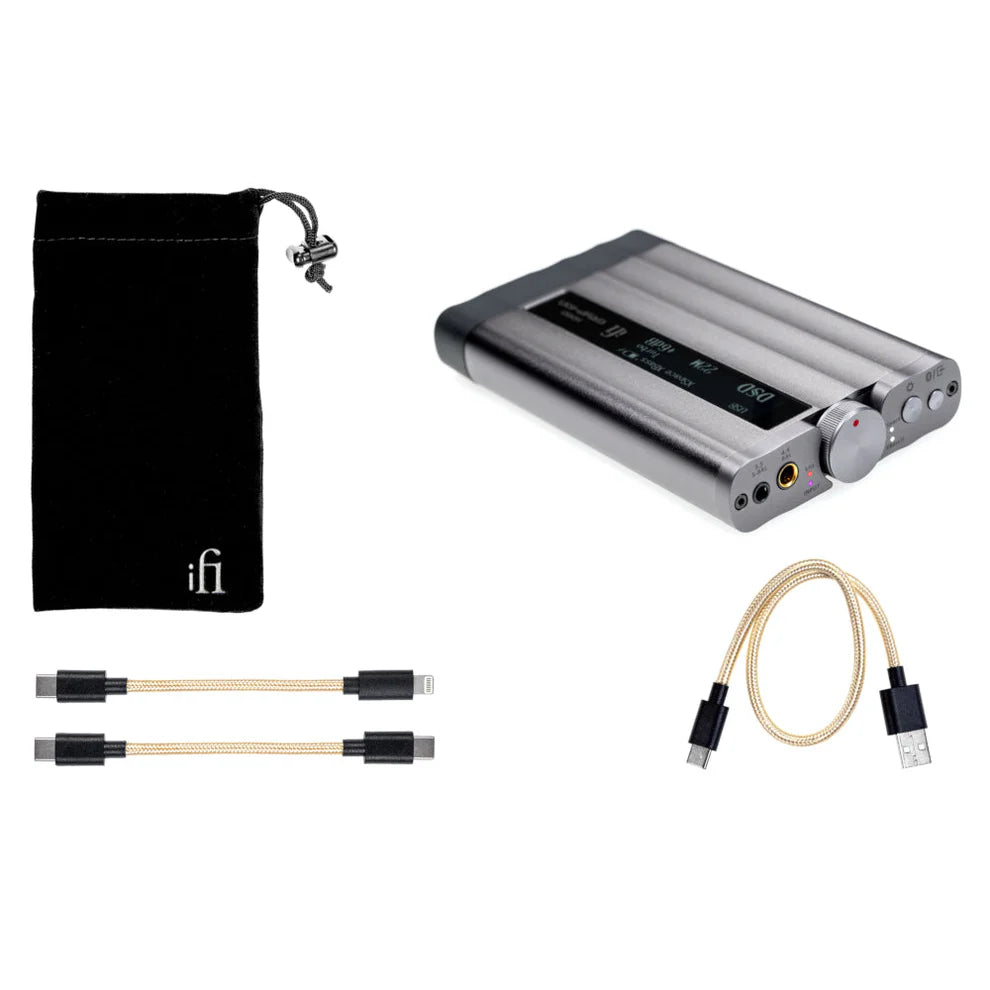

What's in the Box
