| iFi Audio NEO iDSD 2 | |
|---|---|
| Features: | |
| Ultra-Res digital audio with 32-bit/784kHz PCM, DSD512 and full MQA decoding | |
| Dual-core DAC design enables true-native DSD and PCM | |
| GMT femto-precision clock and smart storage cache offers advanced jitter reduction | |
| Four user-selectable digital filters to fine-tune sound to suit the source material | |
| State-of-the-art HD Bluetooth 5.4 for fully optimised performance | |
| Every Bluetooth format supported: aptX Lossless, aptX Adaptive, LDAC, LHDC/HWA and more | |
| Enhanced PureWave fully balanced dual-mono circuit design delivers ultra-low distortion | |
| Exceptional power drives the toughest headphone loads | |
| XSpace and XBass II to adjust soundstage and frequency response to match headphones | |
| iPower 2 included – audiophile AC/DC power supply with Active Noise Cancellation | |

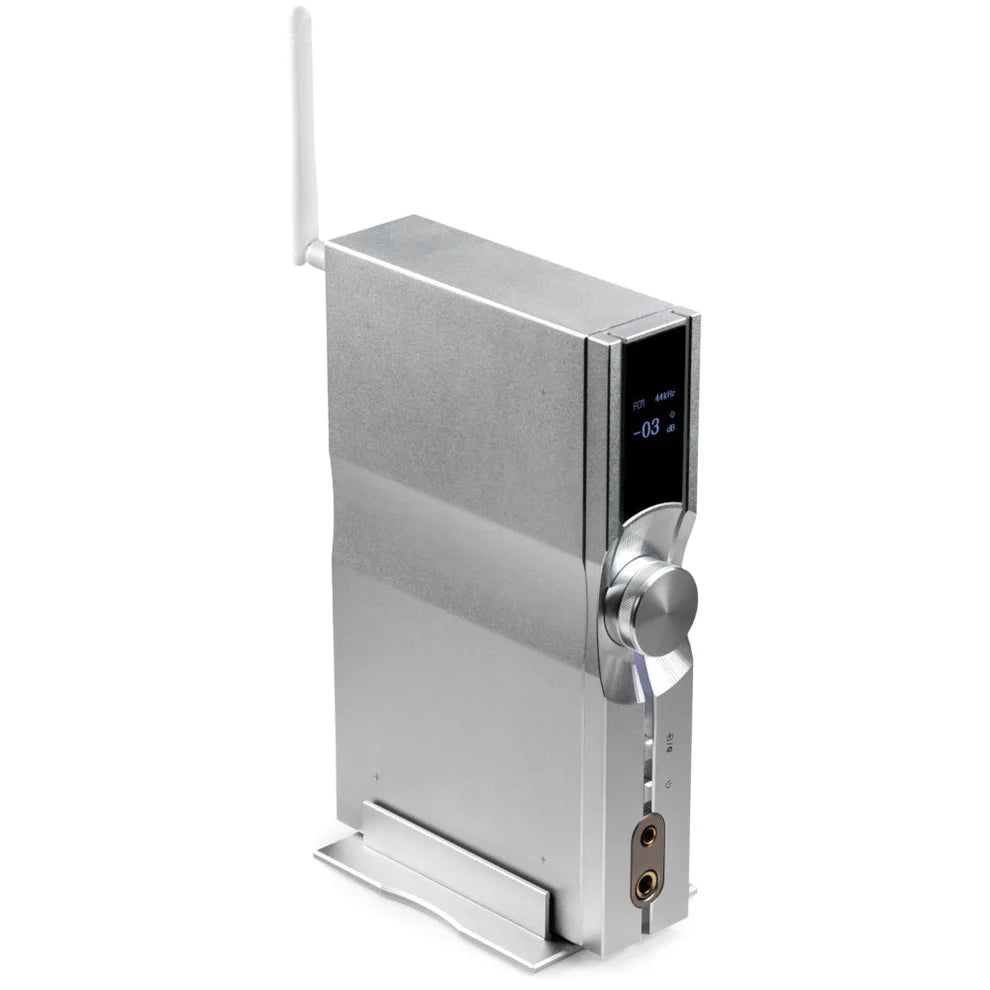

| Position horizontally or vertically - 2-inch colour display rotates to suit orientation | |
| Technical Specifications: | |

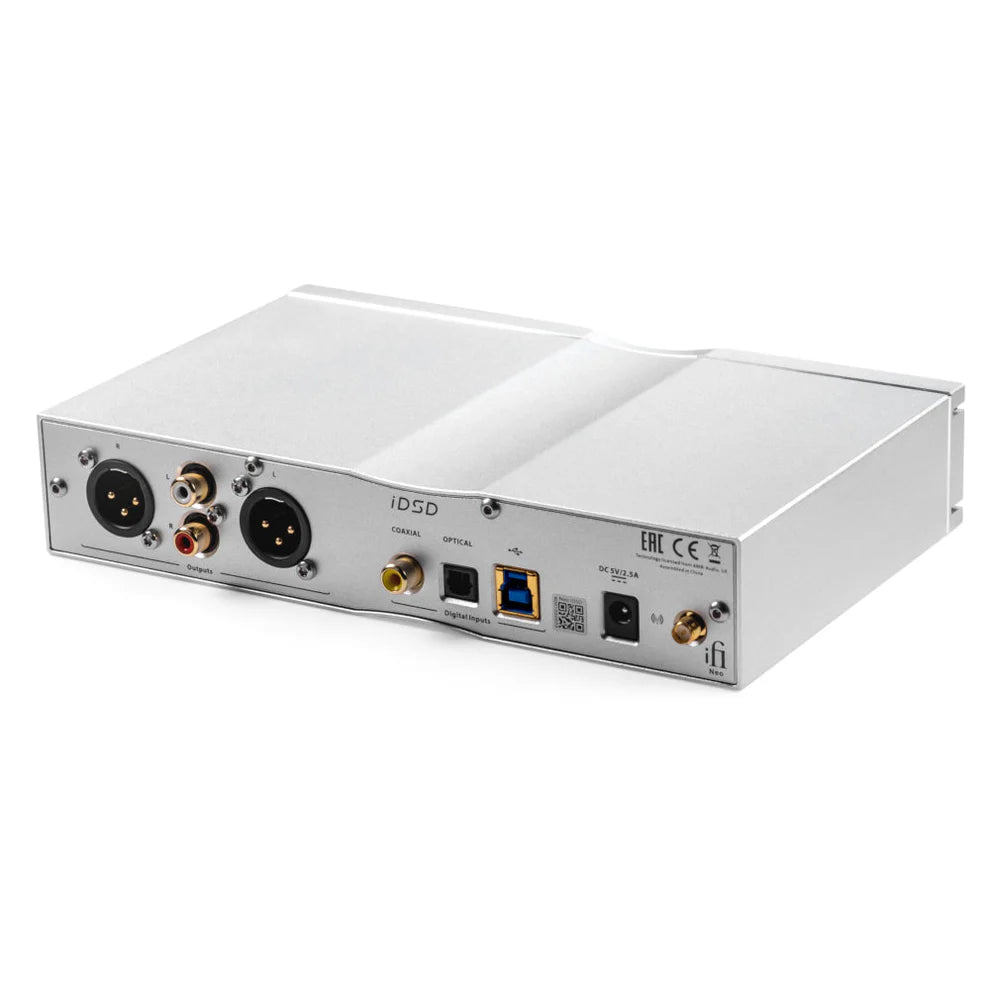

| Digital Inputs: USB3.0 B (USB2.0 compatible); S/PDIF (coaxial/optical); Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptx, LDAC, HWA/LHDC, AAC and SBC) | |
| Analogue Inputs: UnBAL 3.5mm | |
| Clock: External Sync Clock 10MHz, 1Vpp nominal, 75Ω. Sinewave or Squarewave | |
| Format: PCM 768kHz; DSD 512 (22.6MHz); MQA Full Decoder | |
| Line Section: | |
| Balanced Outputs XLR: 19.5V max. (variable) 4.4V fixed | |
| UnBAL Outputs RCA: 10.5V max. (variable) 2.2V fixed | |
| Output Impedance: XLR ≤100Ω; RCA ≤50Ω | |
| SNR: <-120dB(A) @ 0dBFS | |
| DNR: >120dB(A) @ -60dBFS | |
| THD+N: <0.0015% @ 0dBFS | |
| Headphone Section: | |
| Balanced 4.4mm Output: 3.5V / 19.5V max. (12Ω - 600Ω Headphone) | |
| UnBAL 6.3mm Output: 4.5V / 9.50V max. (12Ω - 300Ω Headphone) | |
| Balanced Output Power: >19.5V/650 mW (@ 600Ω); >13.3V/5,551 mW (@ 32Ω) | |
| UnBAL Output Power: >10.5V/184 mW (@ 600Ω); >9.5V/2,832 mW (@ 32Ω) | |
| Output Impedance: <1Ω | |
| SNR: >120dB(A) (3.3V 6.3mm/6.2V 4.4mm) | |
| DNR: -120dB(A) | |
| THD + N: <0.0015% (125mW @ 32Ω) | |
| Power supply requirement: DC 9V/1.5A - 15V/0.9A [centre +ve] (*a power supply unit must be able to deliver minimum rated repetitive current) | |
| Power consumption: No Signal ~5W; Max Signal ~13.5W | |
| Dimensions: 214 x 158 x 41 mm (8.4" x 6.2" x 1.6") | |
| Net weight: 916g (2.0 Ibs) | |

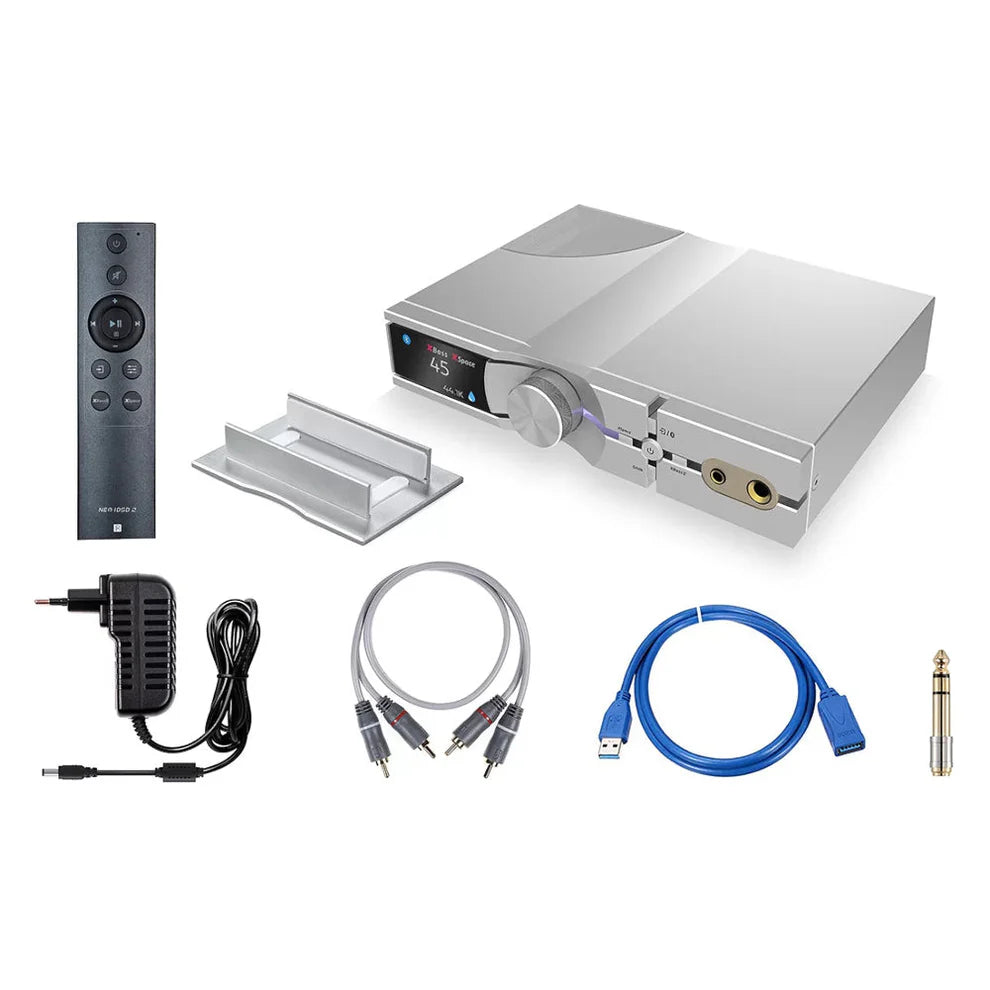

What's in the Box
