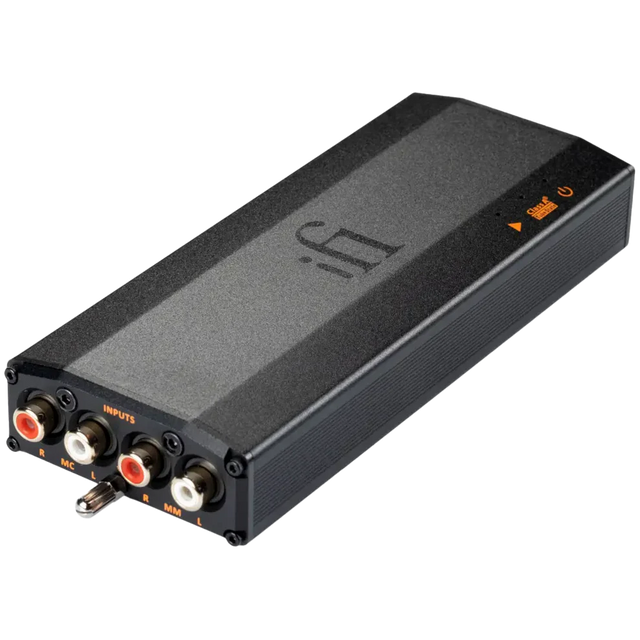

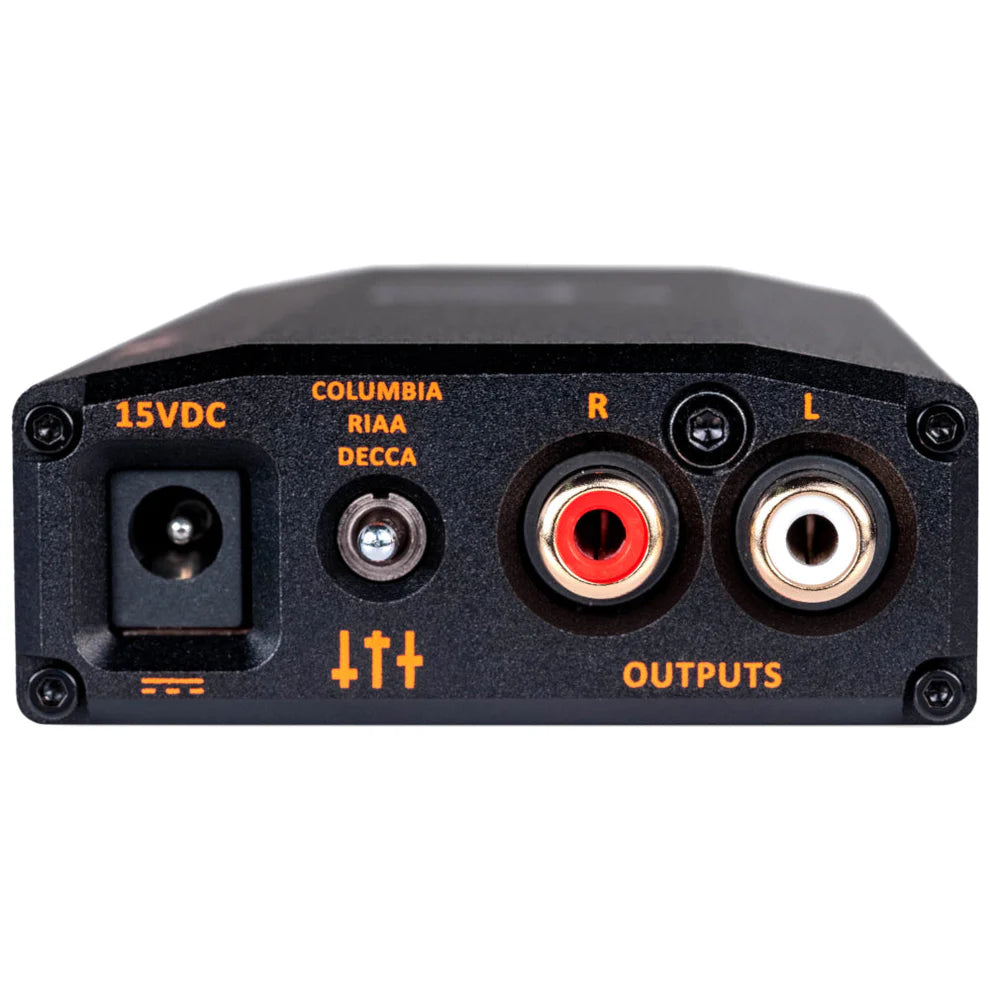

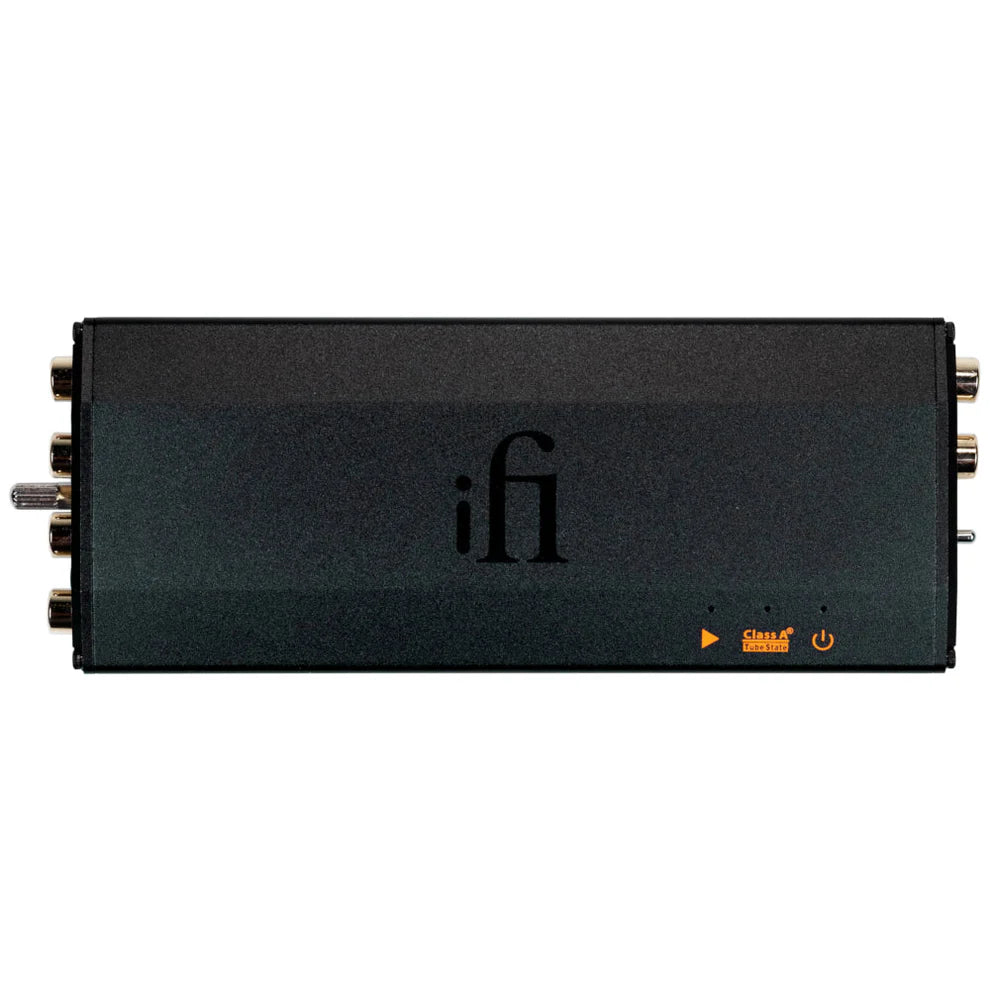

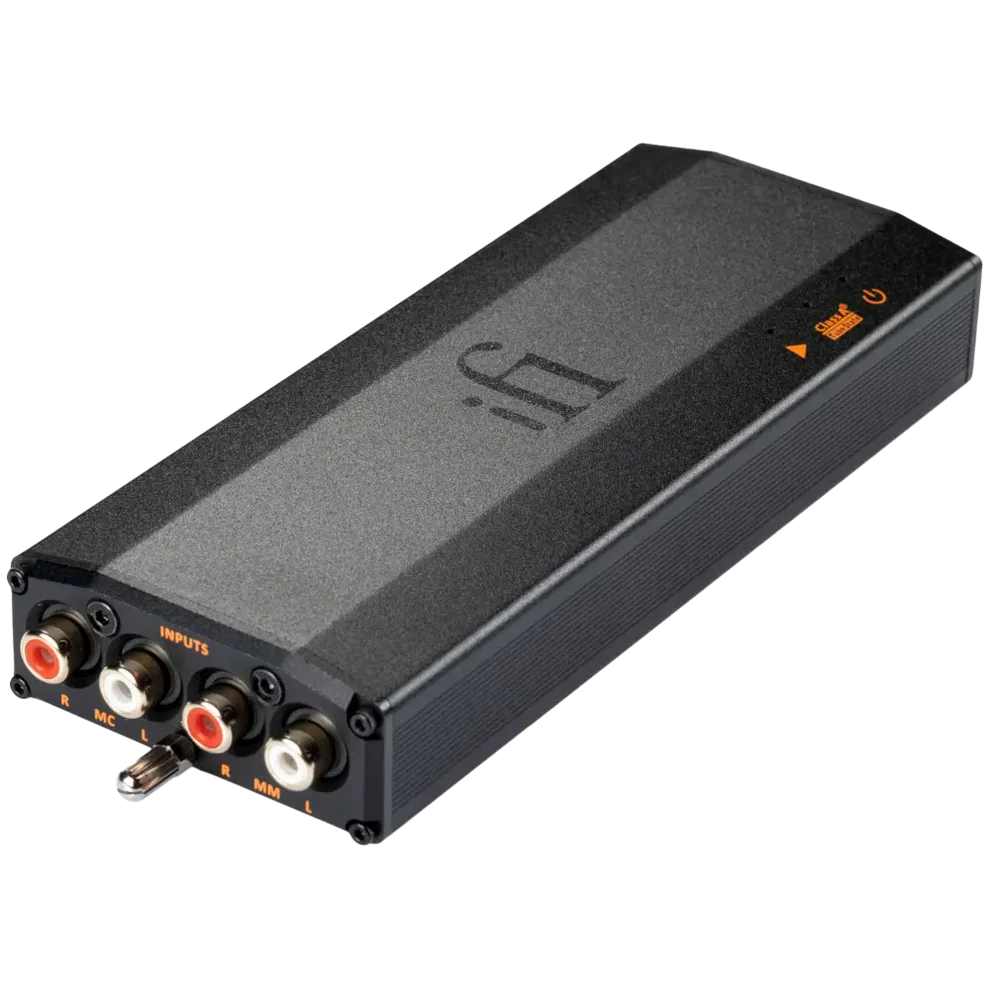

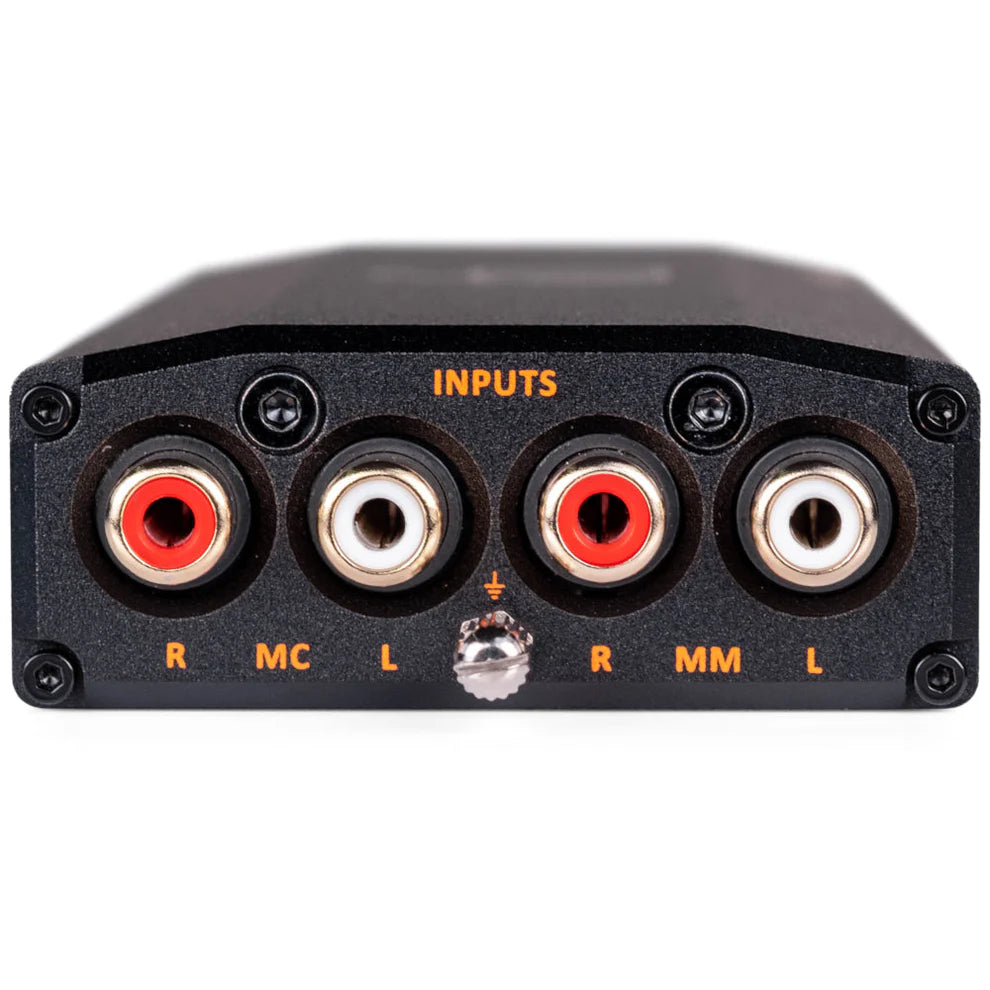

iFi Audio iPhono3 Black Label | |
---|---|
Features: | |
Driven by iFi’s Class A TubeState engine and Direct Drive Servoless design | |

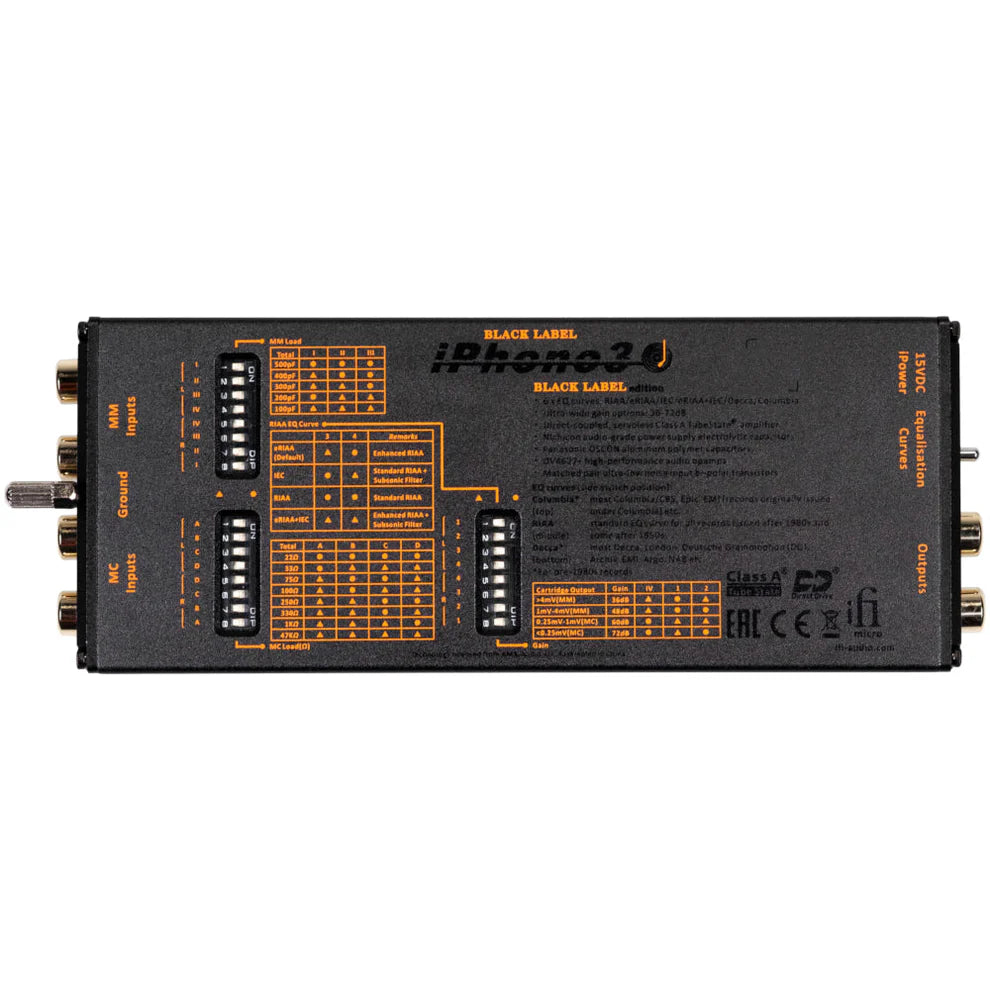

Wide range of settings such as gain, load and EQ curves | |
Precisely suit the connected phono cartridge and the record being played | |
Ultra-low distortion and class-leading dynamic range | |
Super-low noise floor - one of the ‘quietest’ phono stages at any price | |
High gain of 72dB on par with high-end phono stages at twice the price | |
Technical Specifications: | |
Frequency Response: 10Hz – 100KHz (±0.3dB); 20Hz – 20kHz (±0.2dB) | |
Dynamic Range MM (36dB): > 108dB (A-weighted) | |
Dynamic Range MC (60dB): > 106dB (A-weighted) | |
Signal-to-Noise Ratio MM (36dB): > 85dB (A-weighted re. 5mV) | |
Signal-to-Noise Ratio MC (60dB): > 85dB (A-weighted re. 0.5mV) | |
Overload Margin MM (36dB): > 26dB (re. 5mV, @ 1% THD) | |
Overload Margin MC (60dB): > 22dB (re 0.5mV, @ 1% THD) | |
Crosstalk: <-71dB (1KHz) | |
Maximum undistorted output: 7V (Load >= 600 Ohm, THD <=1%) | |
Total Harmonic Distortion (THD): <0.005% (MM 36dB 1V out 600R Load) | |
Output Impedance: <100Ω | |
Input Voltage: AC 100 – 240V, 50/60Hz | |
Power Consumption: < 5W. Use with iPower X (15v) do NOT use any other power supply. | |
Dimensions: 6.2' x 2.3' x 1.1' / 158 x 58 x 28 mm | |
Weight: 0.58 lbs / 265 g |

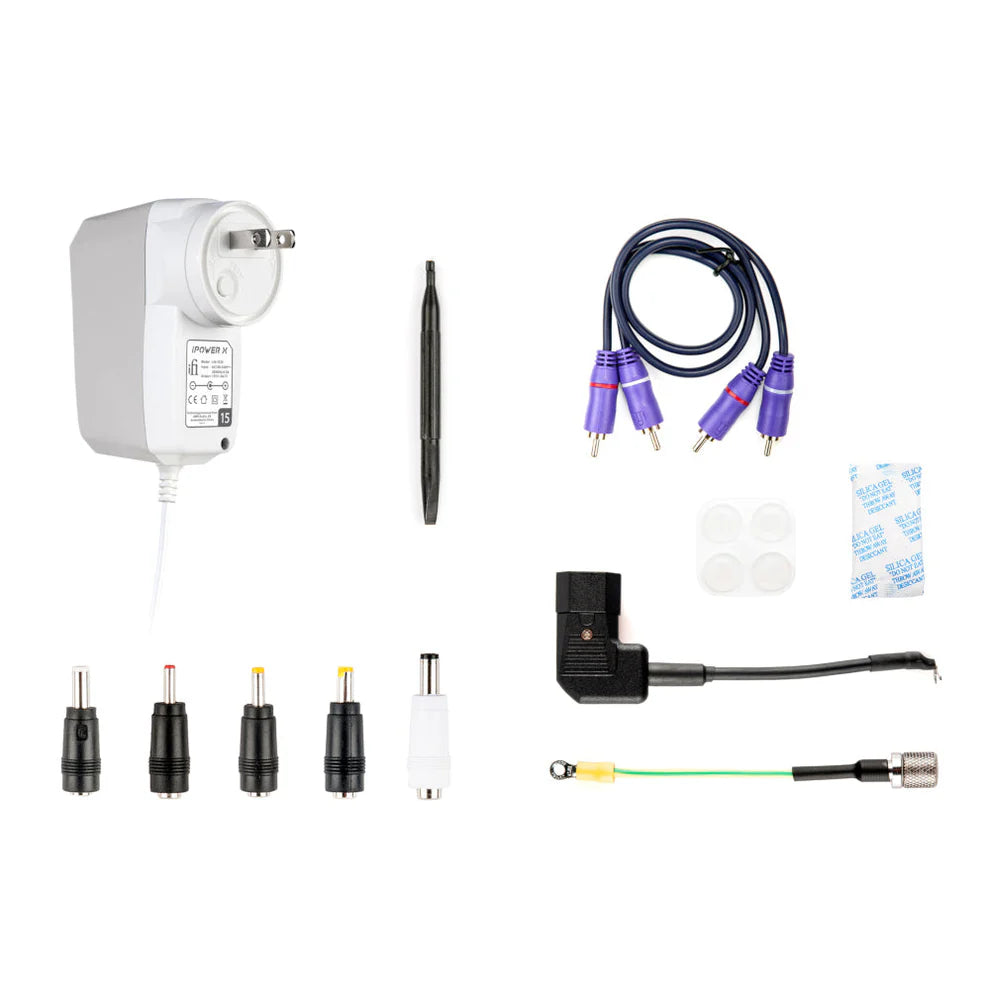

What's in the Box
