Emotiva XPA-7 G3 7-Channel Power Amplifier

Emotiva  |  SKU: 76678
Model# XPA-7
£2,749.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

Emotiva XPA-7 Gen 3, a 7-channel power amplifier that embodies exceptional talent and versatility. It empowers you to drive a 7-channel speaker system, supplying equal and robust power to all your speakers. Alternatively, harness its capabilities as the main amplifier in an intricate home cinema setup.

Powerhouse Performance

Thanks to cutting-edge innovations in power supply technology, the XPA-7 Gen 3 adeptly harmonizes power, quality, and cost-effectiveness. It ingeniously combines a regulated Switch Mode Power Supply (SMPS) with elements of traditional Class A/B and Class H technologies, striking a perfect equilibrium between quality and power. Boasting an impressive 200 watts per channel (with all channels driven), the XPA-7 Gen 3 matches the power requirements of any home cinema speaker system. When operated in stereo mode, the power output surges to a commanding 300 watts per channel at 8 ohms or a formidable 490 watts per channel into 4-ohm speakers.

Pure Sonic Integrity

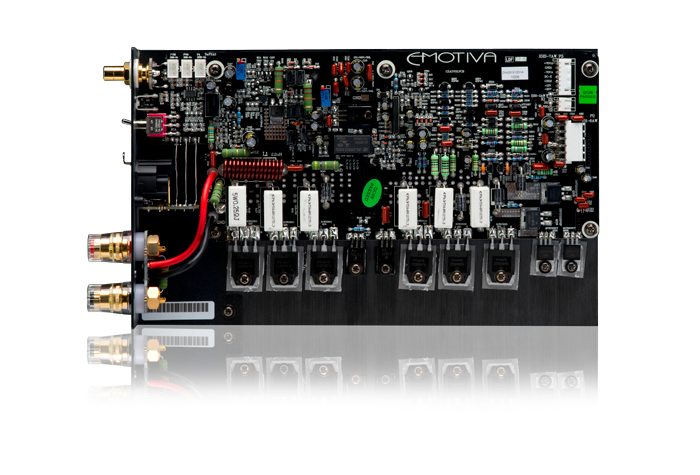

Distinguishing itself from digital-only power amplifiers, the XPA-7 Gen 3 incorporates an analog Class A/B amplifier stage. This design preserves the emotional depth and the natural "flow" of music in a way that many digital amplifiers struggle to convey.

Upgrade-Friendly Modular Design

The XPA power amplifiers feature modular construction, offering configurations from 2 to 14 channels. This not only helps manage costs but also future-proofs your power amplifier. You can easily return the amp to Emotiva's US base for the addition of extra channels or the installation of higher-quality DR (Differential Reference) modules, all without the need to replace your existing amp.

Versatile Connectivity Options

The XPA-7 Gen 3 boasts both balanced XLR and unbalanced RCA phono inputs, providing unparalleled flexibility for your system. For optimal performance, pair it with an Emotiva processor and leverage the balanced XLR connections to achieve robust synergy and high resistance to electrical interference. With RCA phono inputs, the amplifier ensures balanced and harmonious sound, making it suitable for use with AV processors from other brands.

Crafted in the USA

Designed and meticulously crafted in-house in the USA, the Emotiva XPA-7 Gen 3 maintains unwavering standards of consistency and quality control. Encased in a robust steel chassis, it not only delivers room-filling sound but also possesses the visual gravitas to match its sonic prowess.

Key Features

  • True audiophile-quality sound with a wideband, low distortion amplifier design
  • Fully modular construction using Top quality parts and construction
  • Heavy steel 4RU chassis with milled aluminum faceplate
  • Choice of balanced or unbalanced inputs
  • Audiophile-grade fault protection
  • Full five-year warranty
  • Remote trigger input and output
  • Solid machined gold-plated RCA input connectors
  • Gold plated five-way speaker binding posts with clear shields
  • Optimized Soft-Switch Class H™ power supply topology with Switched Mode Power Supply (SMPS)

Specifications

Specification Value
Power Output Per Channel
  • 300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms
  • 550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms
  • 800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms
FTC Rated Power
  • 2 Channels Driven; 20 Hz - 20 kHz; THD < 0.1%
  • 300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line)
  • 490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line)
XPA Gen3 Power Per Channel: All Channels Driven
  • THD < 0.1%; into 8 Ohms
  • Two: 300 watts RMS per channel
  • Three: 275 watts RMS per channel
  • Four: 260 watts RMS per channel
  • Five: 250 watts RMS per channel
  • Six: 225 watts RMS per channel
  • Seven: 200 watts RMS per channel
Power Bandwidth (at rated power; 8 Ohm load) 20 Hz to 20 kHz (+ / - 0.1 dB)
Broad Band Frequency Response 5 Hz to 80 kHz (+ 0 / - 0.15 dB)
THD + noise < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)
  • > 117 dB; ref FTC rated power; unbalanced input (A-weighted)
  • > 91 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads
Damping Factor (8 Ohm load) > 500
Speaker Output Connections Audiophile grade, gold-plated, 5-way binding posts
Power Supply High efficiency, audiophile grade, Switch Mode Power Supply (SMPS)
Input Sensitivity (for rated power; 8 Ohm load) 1.5 V
Gain 29 dB
Power Requirements Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)
Protection The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions
Physical Properties

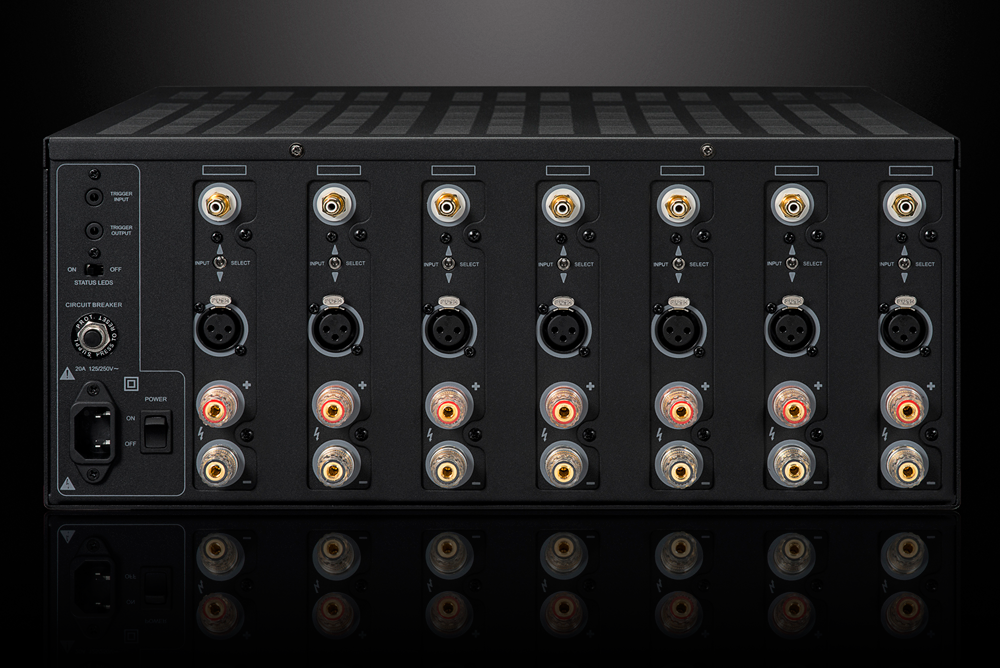

  • Input Connections: Unbalanced (RCA); balanced (XLR); one each per channel independently selectable
  • Input Impedance: 33 kohms (balanced); 23.5 kohms (unbalanced)
  • Trigger: Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required
  • Trigger Output: 12 VDC; can drive any load up to 120 mA

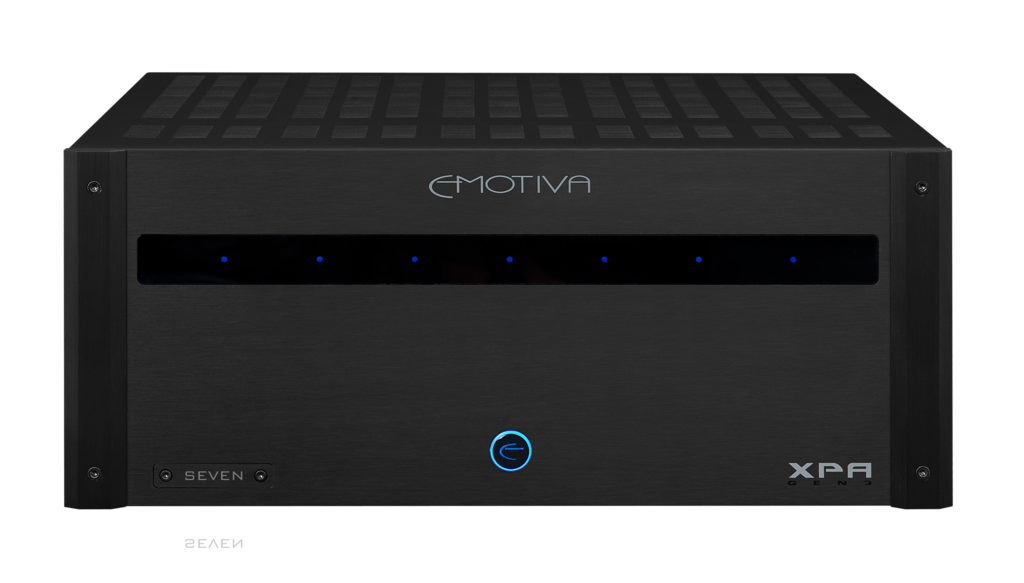

  • Front Panel Controls and Indicators: Standby; push button (halo ring changes color to indicate Standby or On)
  • Status LEDs; one per channel; blue (Status LEDs change to red to indicate a fault condition)
  • Rear Panel Controls: AC Power switch; rocker switch (switches AC main power)
  • Status LEDs switch; disables front panel Status LEDs and dims
  • Standby button halo
  • Input selector switches (one per channel); metal toggle switches to select between balanced and unbalanced inputs
  • Circuit Breaker; press button to reset circuit breaker
  • Dimensions: 17” wide x 8” high x 19” deep (unboxed; including feet), 17” wide x 7” high x 19” deep (unboxed; without feet), 24-1/2” wide x 12” high x 24-3/4” deep (boxed)
  • Weight: 53 lbs (unboxed). For boxed weight, add 5 lbs.
