Emotiva XPA-5 G3 5-Channel Power Amplifier

Emotiva  |  SKU: 76676
Model# XPA-5
£2,199.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

Five Channels of Sonic Authority

The Emotiva XPA-5 Gen 3 is a 5-channel amplifier of exceptional capability and versatility. Harness its power to drive a 5-channel system, delivering equal and robust amplification to all your speakers. Alternatively, employ it as the primary amplifier in a more intricate home cinema setup.

Powerhouse Performance

Through cutting-edge advancements in power supply technology, the XPA-5 Gen 3 skillfully balances power, quality, and cost-effectiveness. It seamlessly combines a regulated Switch Mode Power Supply (SMPS) with elements of traditional Class A/B and Class H technologies, achieving an ideal fusion of quality and power. With a formidable 250 watts per channel (all channels driven), the XPA-5 Gen 3 possesses the might to effortlessly complement any home cinema speaker configuration. Switch to stereo mode, and you'll enjoy an impressive 300 watts per channel at 8 ohms or a substantial 490 watts per channel into 4-ohm speakers.

Purity Aligned with Power

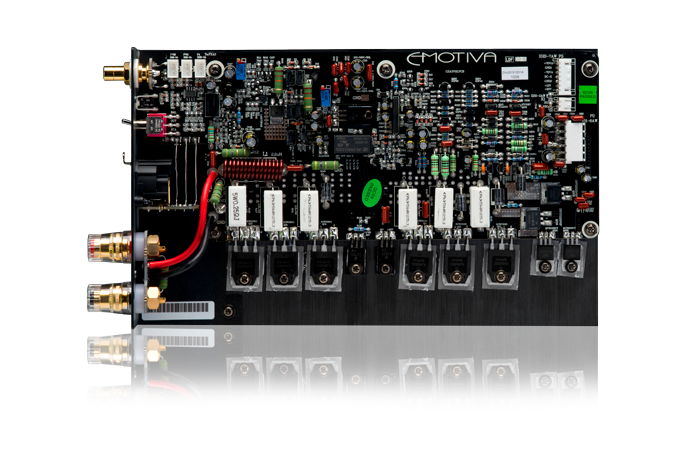

Distinguishing itself from digital-only power amplifiers, the XPA-5 Gen 3 incorporates an analog Class A/B amplifier stage. This design preserves the emotional depth and natural "flow" of music, a quality often challenging for digital amplifiers to convey.

Upgrade-Friendly Modular Design

The modular construction of XPA power amplifiers offers the flexibility to configure from 2 to 14 channels. This not only helps manage costs but also future-proofs your power amplifier. Simply return the amp to Emotiva's US base for the addition of extra channels or upgraded DR (Differential Reference) modules, all without the need to replace your existing amp.

Versatile Connectivity Options

The XPA-5 Gen 3 provides both balanced XLR and unbalanced RCA phono inputs, ensuring maximum flexibility for your system. For optimal performance, pair it with an Emotiva processor and utilize the balanced XLR connections to achieve strong synergy and enhanced resistance to electrical interference. The inclusion of RCA phono inputs ensures a balanced and harmonious sound, making this power amplifier suitable for use with AV processors from other brands.

Crafted in the USA

Designed and meticulously crafted in-house in the USA, the Emotiva XPA-5 Gen 3 maintains unwavering standards of consistency and quality control. Encased in a robust steel chassis, it not only delivers room-filling sound but also possesses the visual gravitas to match its sonic prowess.

Key Features

  • True audiophile-quality sound with a wideband, low distortion amplifier design
  • Fully modular construction using Top quality parts and construction
  • Heavy steel 4RU chassis with milled aluminum faceplate
  • Choice of balanced or unbalanced inputs
  • Audiophile-grade fault protection
  • Full five-year warranty
  • Remote trigger input and output
  • Solid machined gold-plated RCA input connectors
  • Gold plated five-way speaker binding posts with clear shields
  • Optimized Soft-Switch Class H™ power supply topology with Switched Mode Power Supply (SMPS

Specifications

Specification Value
Power Output Per Channel
  • 300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms
  • 550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms
  • 800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms
FTC Rated Power
  • 2 Channels Driven; 20 Hz - 20 kHz; THD < 0.1%
  • 300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line)
  • 490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line)
XPA Gen3 Power Per Channel: All Channels Driven
  • THD < 0.1%; into 8 Ohms
  • Two: 300 watts RMS per channel
  • Three: 275 watts RMS per channel
  • Four: 260 watts RMS per channel
  • Five: 250 watts RMS per channel
  • Six: 225 watts RMS per channel
  • Seven: 200 watts RMS per channel
Power Bandwidth (at rated power; 8 Ohm load) 20 Hz to 20 kHz (+ / - 0.1 dB)
Broad Band Frequency Response 5 Hz to 80 kHz (+ 0 / - 0.15 dB)
THD + noise < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load)
  • > 117 dB; ref FTC rated power; unbalanced input (A-weighted)
  • > 91 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads
Damping Factor (8 Ohm load) > 500
Speaker Output Connections Audiophile grade, gold-plated, 5-way binding posts
Power Supply High efficiency, audiophile grade, Switch Mode Power Supply (SMPS)
Input Sensitivity (for rated power; 8 Ohm load) 1.5 V
Gain 29 dB
Power Requirements Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)
Protection The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions
Physical Properties
  • Input Connections: Unbalanced (RCA); balanced (XLR); one each per channel independently selectable
  • Input Impedance: 33 kohms (balanced); 23.5 kohms (unbalanced)
  • Trigger: Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required
  • Trigger Output: 12 VDC; can drive any load up to 120 mA
  • Front Panel Controls and Indicators: Standby; push button (halo ring changes color to indicate Standby or On)
  • Status LEDs; one per channel; blue (Status LEDs change to red to indicate a fault condition)
  • Rear Panel Controls: AC Power switch; rocker switch (switches AC main power)
  • Status LEDs switch; disables front panel Status LEDs and dims
  • Standby button halo
  • Input selector switches (one per channel); metal toggle switches to select between balanced and unbalanced inputs
  • Circuit Breaker; press button to reset circuit breaker
  • Dimensions: 17” wide x 8” high x 19” deep (unboxed; including feet), 17” wide x 7” high x 19” deep (unboxed; without feet), 24-1/2” wide x 12” high x 24-3/4” deep (boxed)
  • Weight: 46 lbs (unboxed). For boxed weight, add 5 lbs.
