Emotiva XPA-2 G3 2 Channel Power Amplifier
Description
Description
The Emotiva XPA Gen3 Power Amp is a modular AV power amplifier that can be configured from 2 - 11 channels and upgraded over time by adding modular amplifier stages. The new XPA Series utilises a high-current switch mode power supply. It's a power supply capable of delivering over 3Kw of continuous power with absolute reliability and extremely high efficiency. It shares the dynamic attributes of a classic transformer-based design with none of the downside. It's lightweight, intelligent, and extremely powerful!
The new XPA Series amplifiers are fully modular and configurable at the time you order them. You can choose any configuration you want, from two to seven channels. All configurations are built on the same chassis, sharing one very robust power supply. If your needs change in the future, you can easily have more channels added. With the new XPA Series amplifiers, you dont have to buy another amplifier when you’re perfectly happy with your current one, but you need a few more channels.
Every amplifier in the new Third Generation XPA series was carefully designed to deliver superb technical performance, unsurpassed sound quality, and an exceptionally accurate and dynamic rendition of all types of music, thus ensuring that your entire system will sound its absolute best. Each individual XPA amplifier is modular, and can be customised to provide exactly the power and number of channels you need today, and expanded later if your needs change; and multiple matching chassis enable you to add even more channels, or more power, for a near-endless variety of options.
Assured Quality

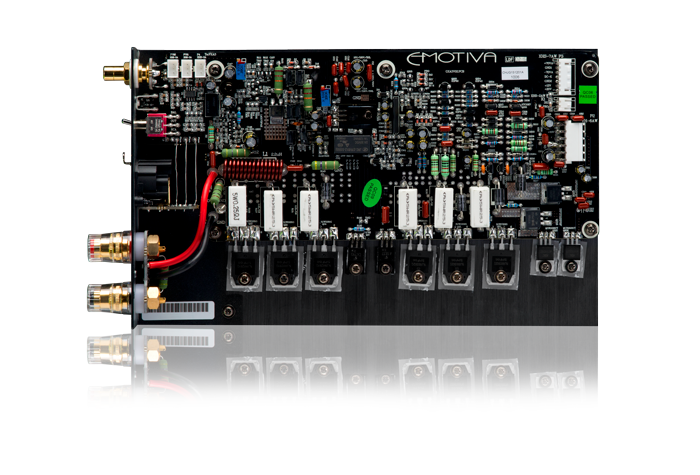

The Emotiva XPA Gen3 amplifiers go beyond sheer power and impact. Beneath the substantial power supplies lie audiophile-grade amplifier modules crafted with top-tier components. These modules are constructed using the finest materials and employ cutting-edge technologies to deliver world-class products. They are meticulously engineered and harmoniously designed to create exceptionally capable, dependable, and refined systems.
High-Output Efficiency (SMPS)
Utilizing a high-efficiency switch-mode power supply (SMPS) design along with independent, fully discrete, dual differential, high-current, short signal path Class A/B amplifier modules. This system also features an optimized Class H™ power supply topology and is equipped with microprocessor-controlled fault protection.
Key Features
Key Features
Specifications
Specifications
| Power Output Per Channel |
300 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.1%; into 8 Ohms 550 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.2%; into 4 Ohms 800 watts RMS per channel; 20 Hz - 20 kHz; THD < 0.5%; into 2 Ohms |
|---|---|
| FTC Rated Power |
2 Channels Driven; 20 Hz - 20 kHz; THD < 0.1% 300 watts RMS per channel; THD < 0.1%; into 8 Ohms (120 VAC line) 490 watts RMS per channel; THD < 0.1%; into 4 Ohms (120 VAC line) |
| XPA Gen3 Power Per Channel: All Channels Driven |
THD <0.1% ; into 8 Ohms Two : 300 watts RMS per channel Three : 275 watts RMS per channel Four : 260 watts RMS per channel Five : 250 watts RMS per channel Six : 225 watts RMS per channel Seven : 200 watts RMS per channel |
| Power Bandwidth (at rated power; 8 Ohm load) | 20 Hz to 20 kHz (+ / - 0.1 dB) |
| Broad Band Frequency Response | 5 Hz to 80 kHz (+ 0 / - 0.15 dB) |
| THD + noise | < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms |
| Signal to Noise Ratio (8 Ohm load) |
> 117 dB; ref FTC rated power; unbalanced input (A-weighted) > 91 dB; ref 1 watt; unbalanced input (A-weighted) |
| Minimum Recommended Load Impedance | 4 Ohms; which equals one 4 Ohm load or two paralleled 8 Ohm loads |
| Damping Factor (8 Ohm load) | > 500 |
| Speaker Output Connections | Audiophile grade, gold plated, 5-way binding posts |
| Power Supply | High efficiency, audiophile grade, Switch Mode Power Supply (SMPS) |
| Input Sensitivity (for rated power; 8 Ohm load) | 1.5 V |
| Gain | 29 dB |
| Power Requirements | Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected) |
| Protection | The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions |
| Physical Properties |
Input Connections: Unbalanced (RCA); balanced (XLR); one each per channel independently selectable Input Impedance: 33 kohms (balanced); 23.5 kohms (unbalanced) Trigger: Trigger Input: 5 - 12 V (AC or DC); <10 mA input current required Trigger Output: 12 VDC; can drive any load up to 120 mA Front Panel Controls and Indicators: Standby; push button (halo ring changes color to indicate Standby or On) Status LEDs; one per channel; blue Status LEDs change to red to indicate a fault condition Rear Panel Controls: AC Power switch; rocker switch (switches AC main power) Status LEDs switch; disables front panel Status LEDs and dims Standby button halo Input selector switches (one per channel); metal toggle switches select between balanced and unbalanced inputs Circuit Breaker; press button to reset circuit breaker Dimensions: 17” wide x 8” high x 19” deep (unboxed; including feet) 17” wide x 7” high x 19” deep (unboxed; without feet) 24-1/2” wide x 12” high x 24-3/4” deep (boxed) Weight: 35.5 lbs (unboxed) For boxed weight, add 5 lbs |
