Emotiva RMC1 16 Channel Dolby Atmos & DTS:X AV Processor

PERFECT FOR BOTH HOME THEATER FANS AND AUDIOPHILES

The RMC-1 delivers the level of audio performance and features you would expect from separate high-end audiophile components, combined with precise bit-perfect video switching of the latest HDR and Dolby Vision 4k UHD video content, and plenty of channels to support the latest object-oriented home theatre surround sound formats (including Dolby Atmos up to 9.1.6 and DTS:X up to 7.1.4). The RMC-1 offers the full range of audio options, from native playback of DSD audio, to pure analog playback in our audiophile Reference Stereo mode, to full decoding of the latest object oriented sound tracks. With the RMC-1 you really can have it all….. without compromise.

SUPPORT FOR THE LATEST AUDIO AND VIDEO FORMATS

Home theatre video is continually evolving to deliver a sharper picture, more colours, and more advanced features - which can make it difficult to keep track of what you actually need to take advantage of the latest video content and this year's 4k displays. The RMC-1 has eight HDMI video inputs and two HDMI video outputs, all of which support HDMI 2.0b and HDCP 2.2. The RMC-1 supports the full HDMI 2.0b 18 gBps video data rate, so it supports full 4k UHD video, at frame rates up to 4k/60, with full 12-bit color, and 4.4.4 chroma subsampling. It also supports static and dynamic HDR, including Dolby Vision, for a brilliant picture, with pure, intense colours, and remarkable contrast. The RMC-1 provides everything you need to get the most from the latest streaming content and 4k UHD Blu-Ray discs.

ADVANCED MENU SYSTEM AND CONFIGURATION OPTIONS

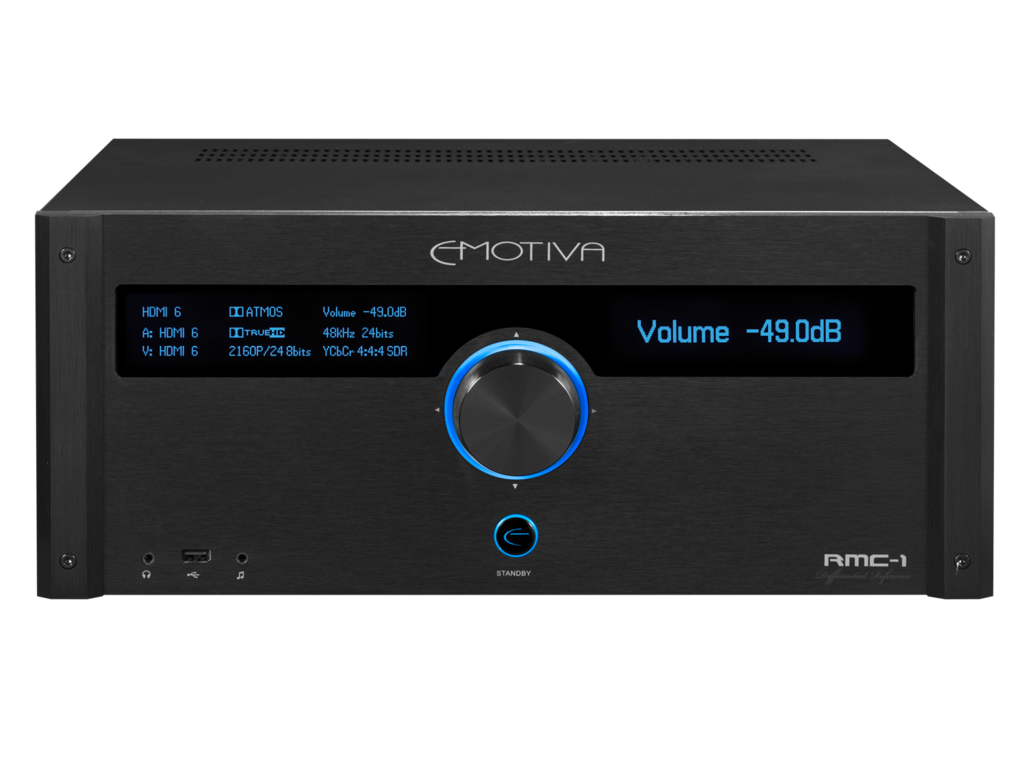

Modern home theater systems can be very complex. To make the RMC-1 powerful and flexible, yet simple to configure and operate, we developed our own custom menu and control system. Frequently used options are easy to find and access, more in-depth options are arranged logically, and the current status is always clearly displayed on the dual informative front panel OLED displays and the highly configurable on-screen display. The RMC-1 can be controlled from the unique multi-axis front panel encoder, from its iconic solid metal remote control, or using the handy remote control app, which is available for Apple and Windows computers, and Android phones. The RMC-1 can also be integrated into most universal remote and whole-home control systems.

THE WORLD'S MOST ADVANCED AUTOMATIC ROOM CORRECTION SYSTEM

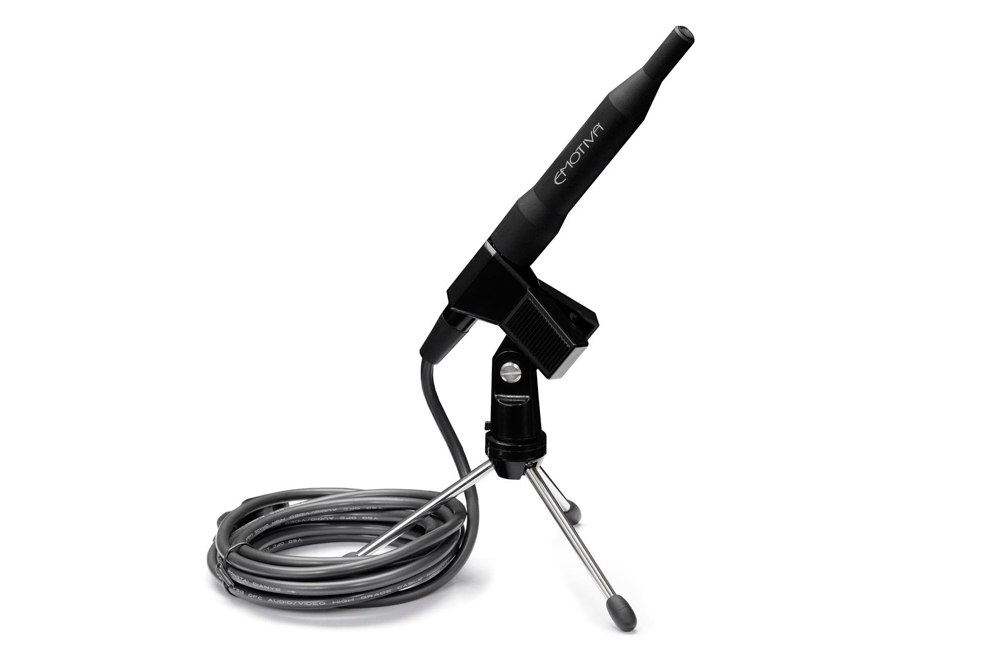

One of the main features of the RMC-1 is the advanced Dirac Live automatic room correction system, which operates across both the time and frequency domains, taking you dramatically closer to the action in today's blockbuster movies, and lifting the veil between you and your high-resolution music files. Dirac Live is widely considered to be the most advanced room correction system available today. The powerful Dirac Live engine is built into the RMC-1 itself, while the calibration software is installed and run on your computer when it's time to calibrate your system. Each RMC-1 includes its own calibrated measurement microphone and Dirac Interface Kit.

DESIGNED AND ASSEMBLED IN THE USA WITH GLOBALLY SOURCED COMPONENTS

Assembling products here in the USA gives us exceptional control over every facet of the design and production process, which helps us build the highest quality products for our customers while minimizing unnecessary complications and production delays. As with many of our current products, the RMC-1 is assembled in our production center here in Franklin, Tennessee - just south of Nashville.

Surround Sound Processing Support	Dolby Atmos (up to 9.1.6) Dolby TrueHD (up to 7.2) Dolby Digital Plus Dolby Digital DTS:X (up to 7.1.4) DTS-HD Master Audio DTS-HD High Resolution Audio DTS 5.1 Multi-Channel PCM
Digital Post Processing Support	Dolby Surround DTS Neural:X

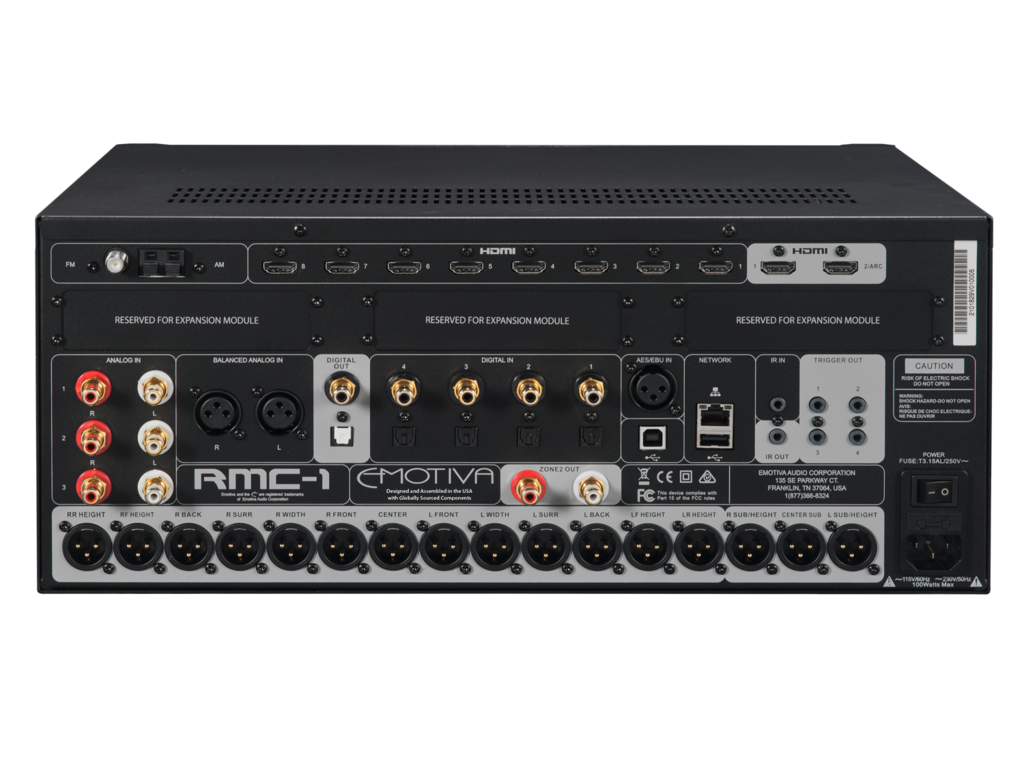

Analog Audio Inputs	(1) pair; stereo: Reference quality analogue audio (balanced XLR) (3) pairs; stereo: Reference quality analogue audio (unbalanced; machined gold-plated RCA connectors)
Analog Audio Outputs	(1) set; 16 channels: Main analogue audio outputs (balanced XLR) (1) pair; stereo: analogue line level Zone 2 output (unbalanced) (1) high-quality 1/8 stereo headphone output
Digital Video Inputs and Outputs	(8): HDMI digital video inputs: HDMI 2.0b with HDCP 2.2 (all inputs support HDMI 2.0b and HDR, including dynamic HDR and Dolby Vision) (2): HDMI digital video outputs: HDMI 2.0b with HDCP 2.2 (one with CEC and ARC). (both outputs support HDMI 2.0b and HDR - including dynamic HDR and Dolby Vision)
Digital Audio Inputs	Internal high-performance AM/FM tuner (4): Toslink optical S/PDIF digital audio (up to 24/192) (4): Coax (RCA) electrical S/PDIF digital audio (up to 24/192) (1): AES/EBU (XLR) digital audio (1): USB Type B digital audio (UAC2 USB audio up to 24/192k) Digital PCM and DSD audio supported on all HDMI inputs and USB input
Digital Audio Outputs	(1): Toslink optical S/PDIF digital audio (1): Coax (RCA) electrical S/PDIF digital audio
Other Inputs	(2): USB Type A digital data inputs (for firmware updates and future enhancements) (1): Ethernet port (RJ-45) (network connection for Dirac and remote control applications)

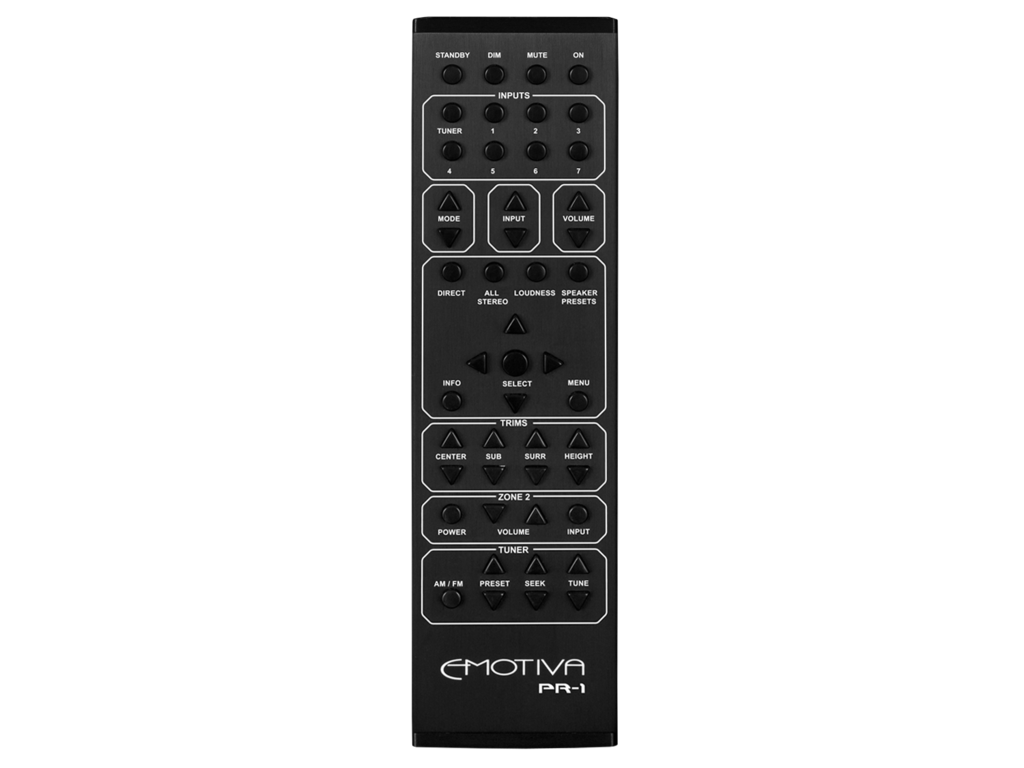

Control Options	Front panel control via unique multi-axis encoder, which combines a precision rotary encoder and a sensitive four-quadrant joystick type controller Full-sized machined aluminium infrared remote control with discrete buttons for HDMI input selection, trim adjustments, and other major functions Remote control apps - available for Apple and Windows computers and Android phones Integration with universal infrared remote controls and popular infrared and network operated whole-home control systems Four flexible Trigger Outputs can be independently configured to activate amplifiers or other trigger-enabled equipment
Description	Unboxed: 17 Wide x 15.5 Deep x 5.25 High (not counting feet) Unboxed: 17 Wide x 15.5 Deep x 5.75 High (with feet) Boxed: 22" Wide x 19" Deep x 10" High Unboxed 22 lbs. Boxed 31 lbs.
