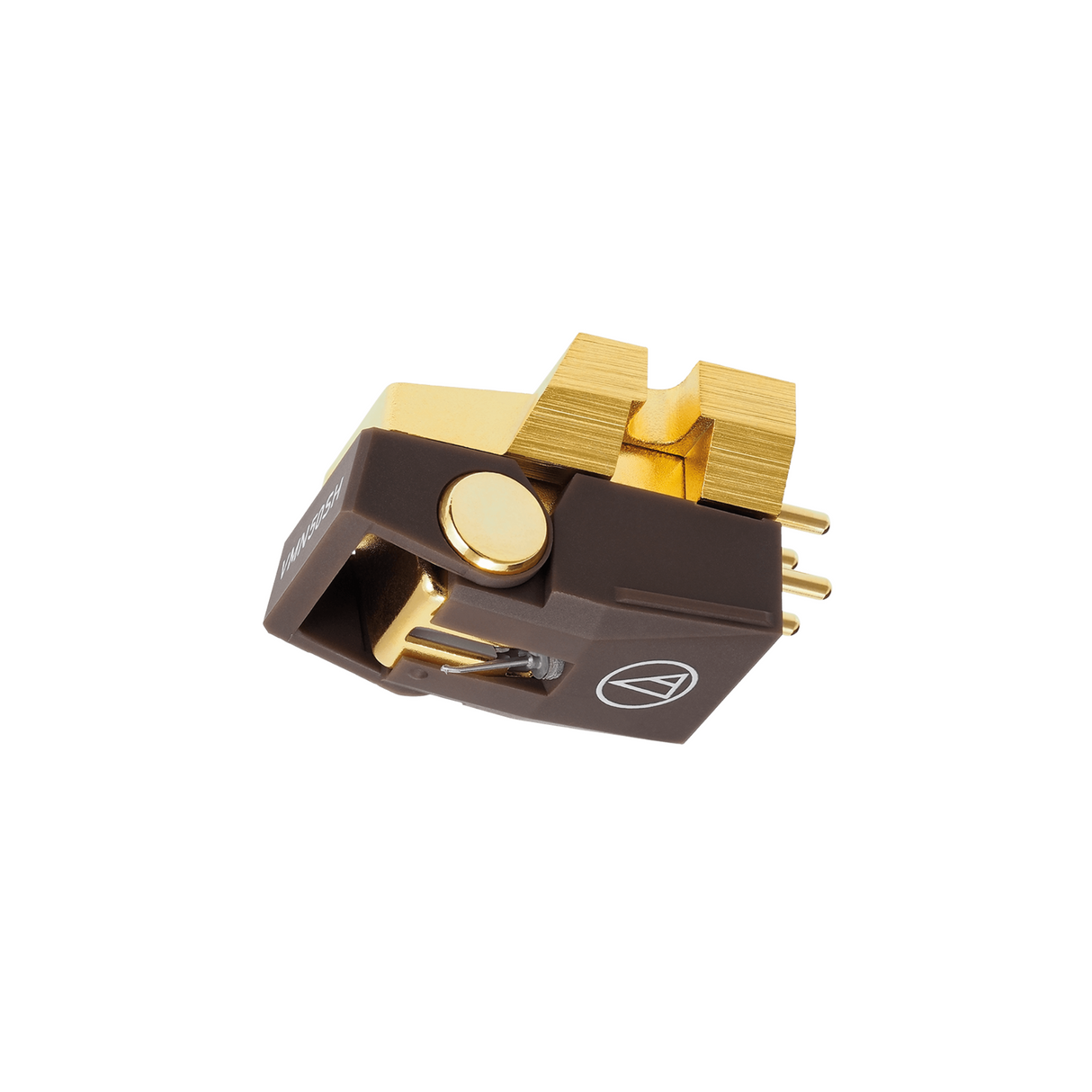

Audio Technica VM750SH Dual MM Cartridge
Audio Technica | SKU:
50369
Model# VM750SH
£339.00
Unit price
/
Unavailable
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
Description
Description
Audio Technica VM750SH Dual Moving Magnet Stereo Cartridge with Shibata Stylus

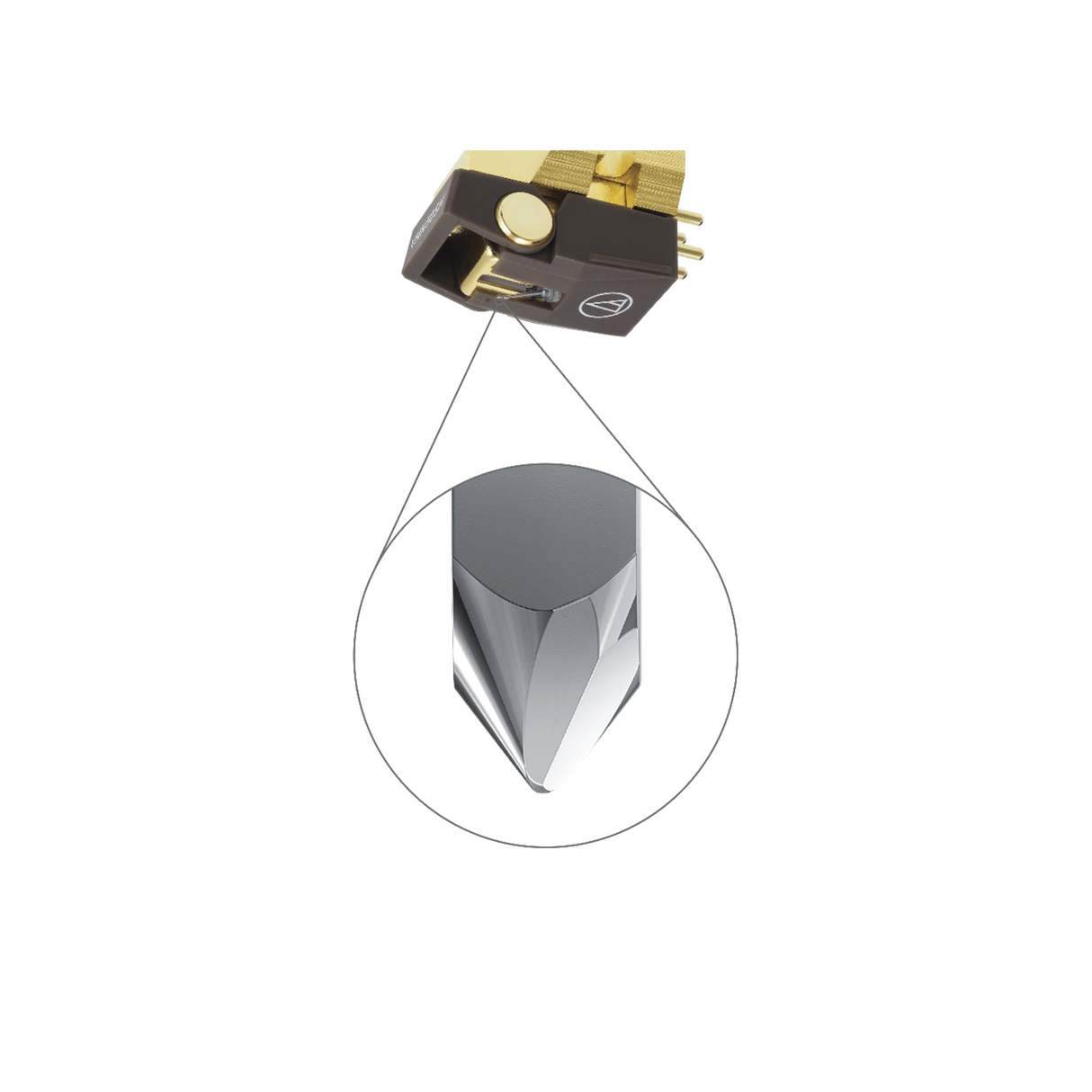

Fitted with the Shibata stylus, which was developed for playing 4 channel vinyl records that demand high-frequency reproduction capabilities during playback. Not only for high-frequencies, it is also ideal for reproducing rich mid- and low-frequencies.
Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.
Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal generating system

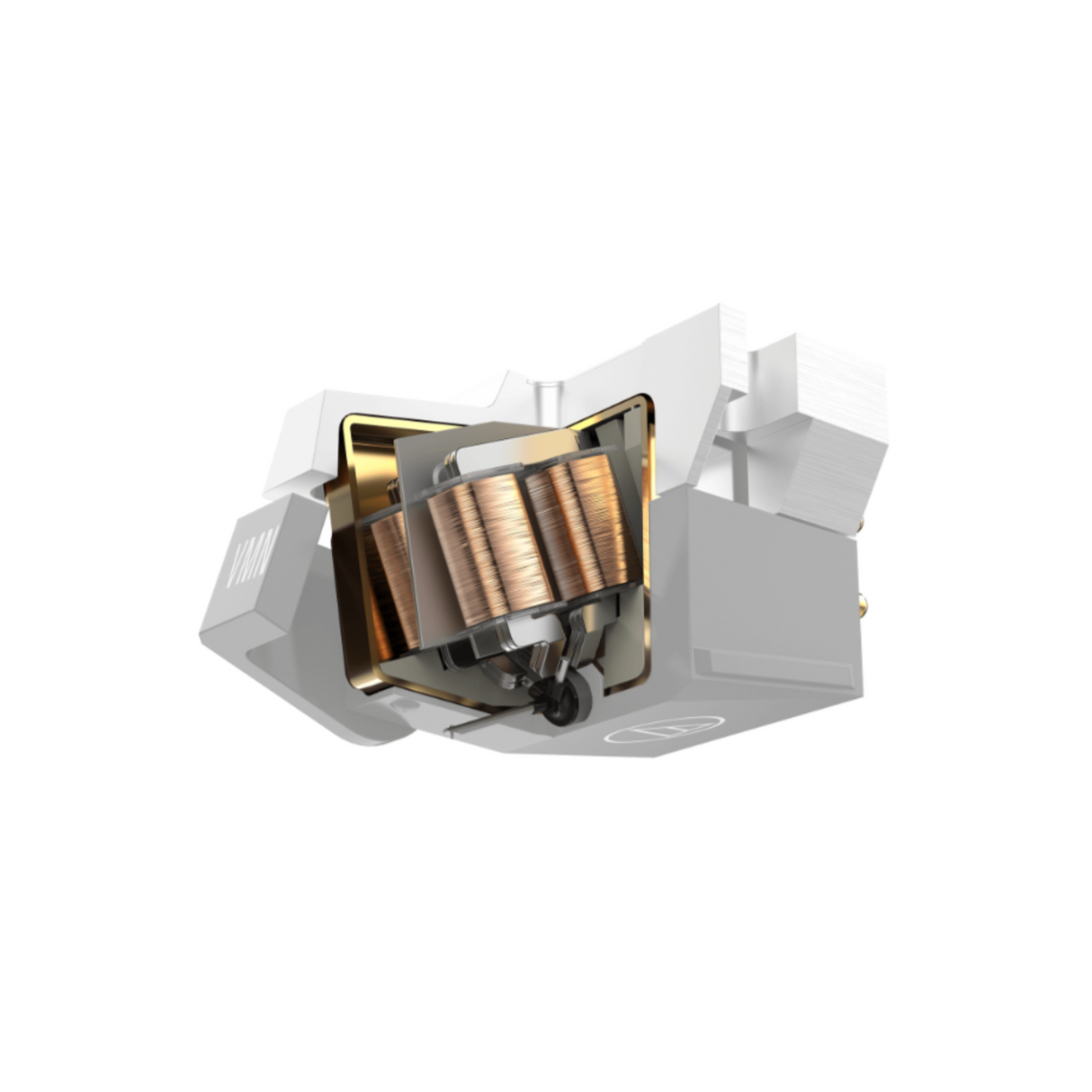

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.
Centre shield plate reduces crosstalk
A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.
700 Series
Top-end model fitted with the die-cast aluminium alloy housing. The body reduces the unwanted vibration and enhances the superior sound quality of high-performance line contact styli.
Shibata-Signature Sound
Provides a beautiful mid-high-range Shibata-signature sound and strong mid-range volume.
Fitted with the Shibata stylus, which was developed for playing 4 channel vinyl records that demand high-frequency reproduction capabilities during playback. Not only for high-frequencies, it is also ideal for reproducing rich mid- and low-frequencies.
Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.
Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.
Para-toroidal generating system
Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.
Centre shield plate reduces crosstalk
A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.
700 Series
Top-end model fitted with the die-cast aluminium alloy housing. The body reduces the unwanted vibration and enhances the superior sound quality of high-performance line contact styli.
Shibata-Signature Sound
Provides a beautiful mid-high-range Shibata-signature sound and strong mid-range volume.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 27,000Hz |
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23˚ |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | 47,000Ω |
| Coil Impedance | 2,700Ω (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Output Channel Balance | 1.0dB (1kHz) |
| Stylus Shape | Shibata |
| Cantilever | Aluminium Tapered Pipe |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
| Mounting | 1/2” centres |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
| Recommended Load Capacitance | 100 – 200pF |
| Replacement Stylus | VMN50SH |
| Stylus Size | 0.26 x 2.7 mil |
| Type | VM Type |
| Weight | 8.0g |
