Audio Technica VM670SP Mono MM Cartridge

Audio Technica  |  SKU: 50376
Model# VM670SP
£149.99
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Product Warranty Available

    1-Year Warranty

Description

Audio Technica VM670SP Dual Moving Magnet Mono Cartridge

Model dedicated to 78 RPM records, whose round stylus has a large curvature radius at the tip. The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.

Audio-Technica’s internationally patented Dual Magnet design replicates the structure of the cutter head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Mono body

For monaural operation, left and right channels should be connected. A mono body on which left and right terminals are connected internally reduces record noise which is primarily in the vertical direction and obtains a highly focused ‘centre’ sound image compared with stereo bodies.

600 Series

Specialised 600 series mono body with internal wiring dedicated to monaural sound.

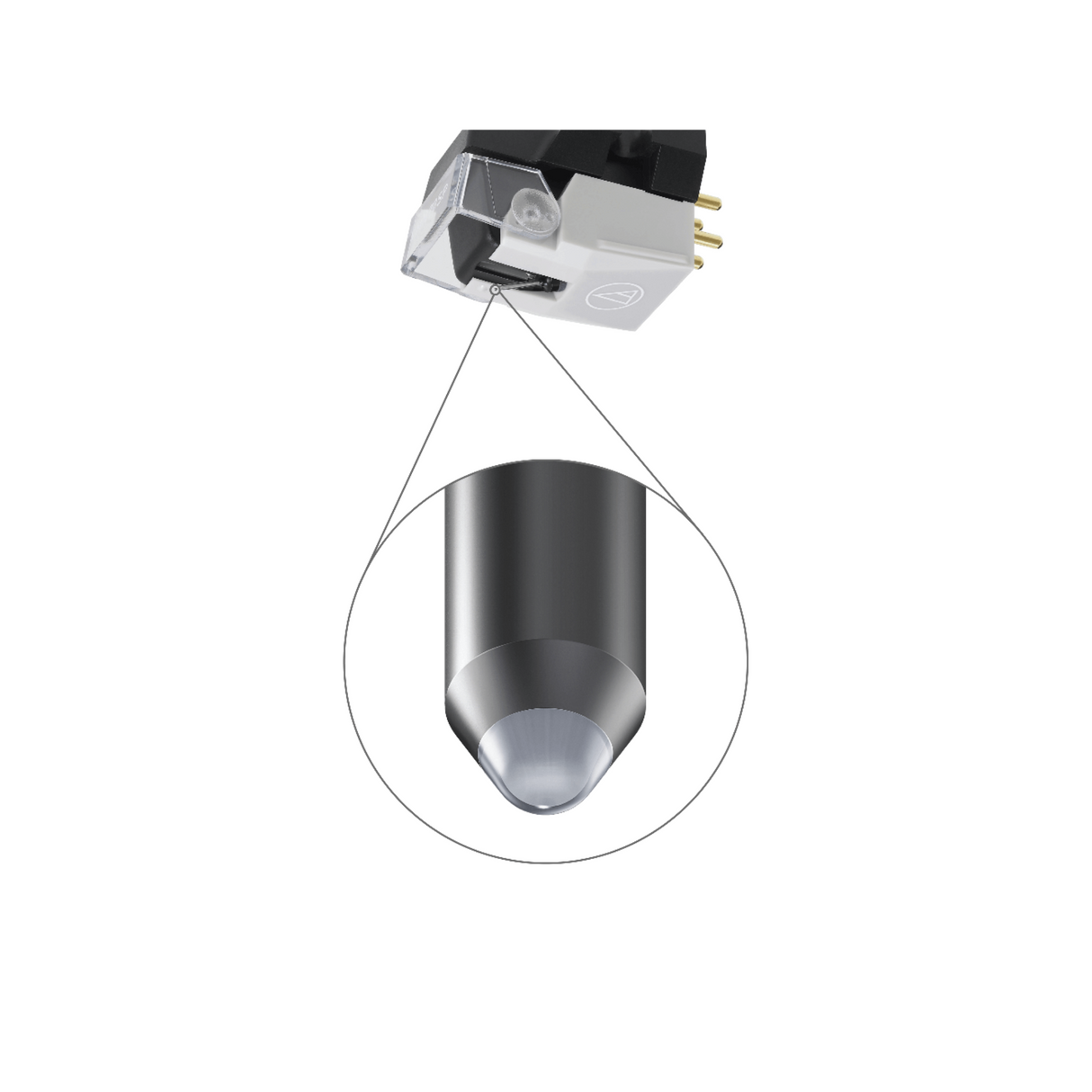

Conical Bonded (3mil) Stylus

A conical bonded stylus with a large curvature radius at the tip. The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.

Key Features

  • Aluminium cantilever
  • Para-toroidal coils improve generating efficiency
  • Mono body terminating left and right channels reduces surface noise
  • Durable low resonance polymer housing

Specifications

Cartridge & Stylus
Frequency Response 20 - 20,000Hz
Vertical Tracking Angle 23˚
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000Ω
Coil Impedance 1,400Ω (1kHz)
Output Voltage 3.0mV (1kHz, 5cm/sec.)
Stylus Shape Conical Bonded (3mil)
Cantilever Aluminium Pipe
Static Compliance 15 x 10-6 cm/dyne
Dynamic Compliance 2.0 x 10-6 cm/dyne (100Hz)
Mounting 1/2” centres
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm

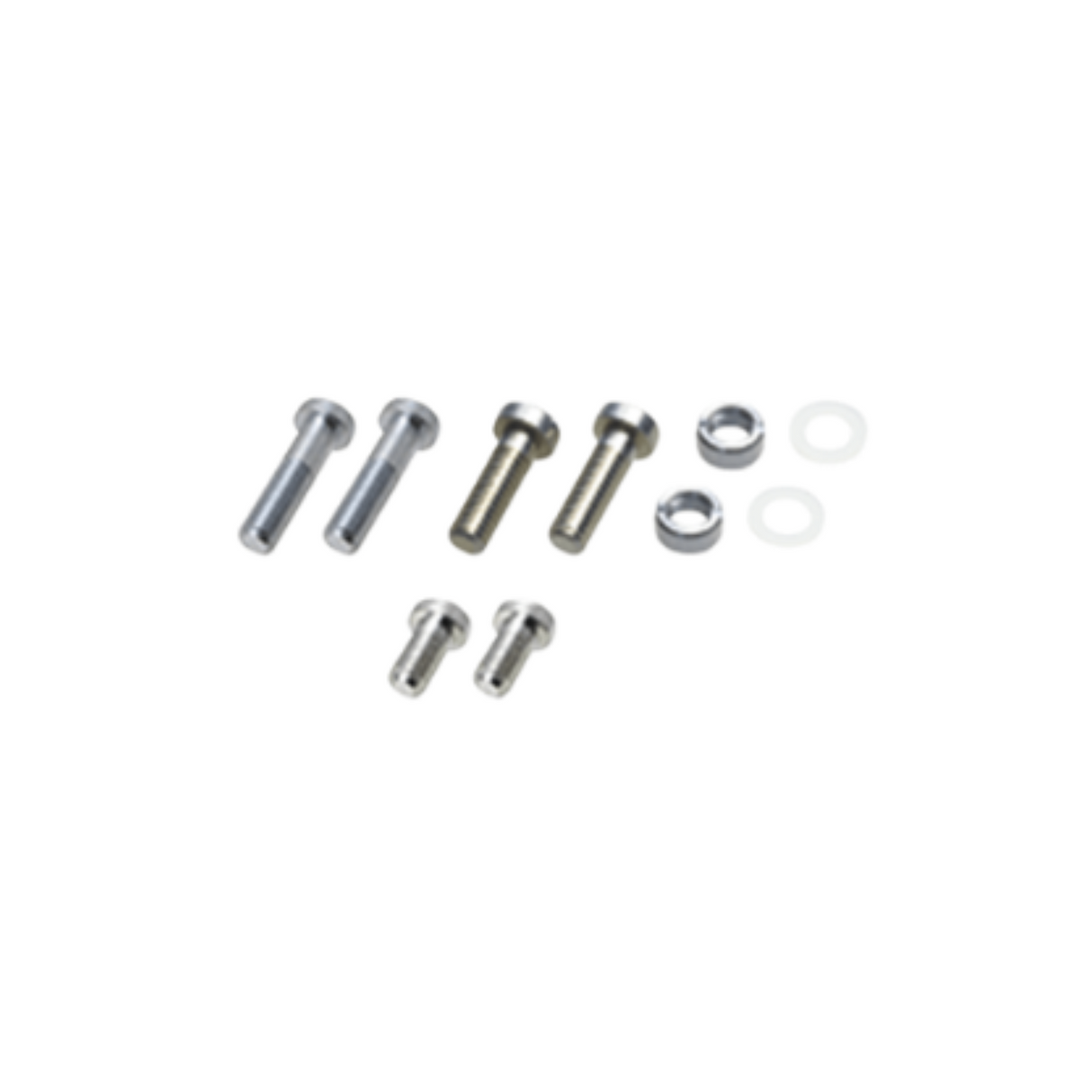

Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance 100 – 200pF
Replacement Stylus VMN70SP
Stylus Size 3.0 mil
Type VM Type
Weight 6.4g

What's in the Box

  • Audio Technica VM670SP
  • Cartridge installation screws 5mm ×2 and 10mm ×2
  • Washer ×2
  • Hexagon nut ×2
