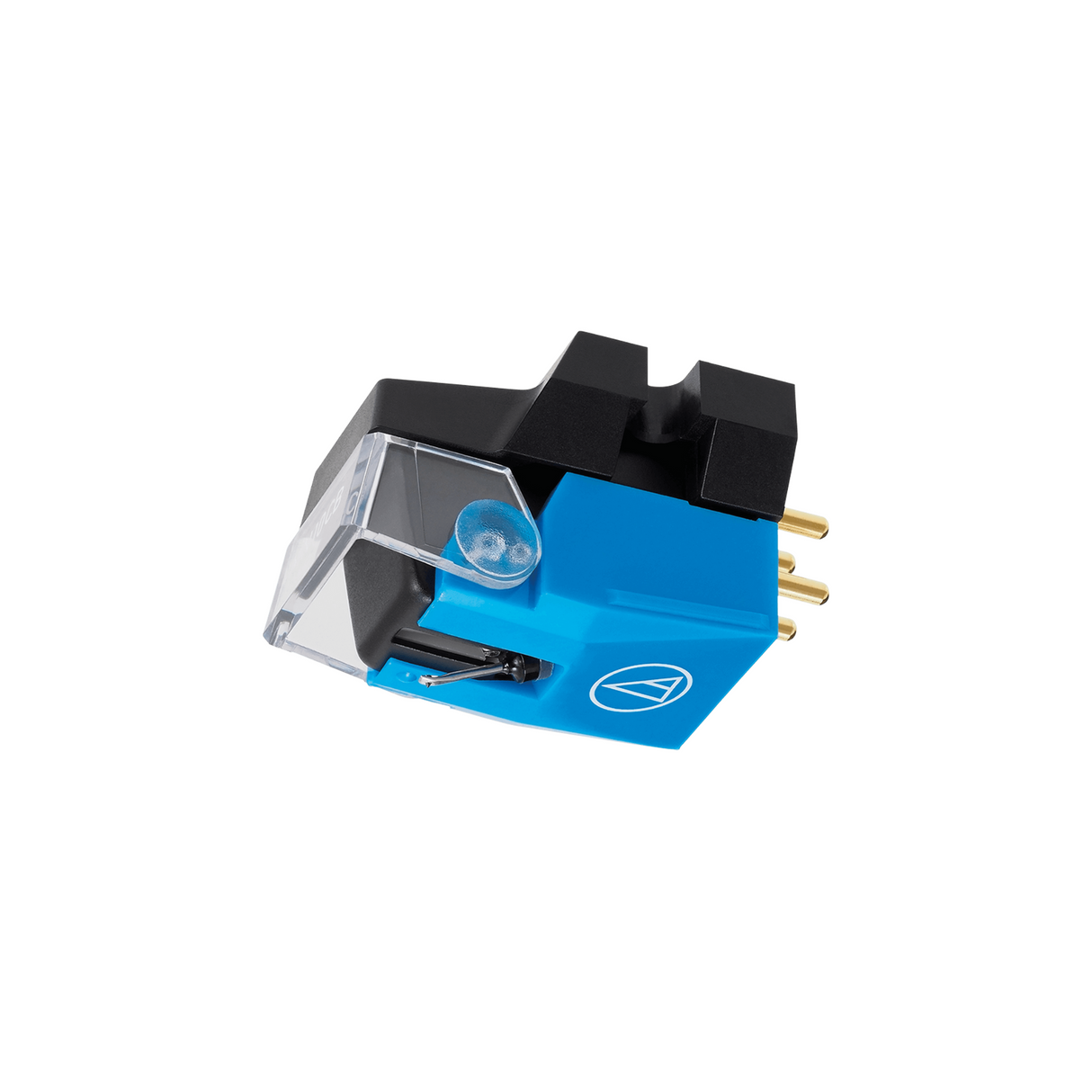

Audio Technica VM610MONO Dual Moving Magnet Mono Cartridge
Designed for playing Mono Vinyl LP records, Audio-Technica’s VM610MONO Dual Moving Magnet Cartridge is equipped with a conical bonded stylus less likely to be affected by placement and boasts stable tracking performance.
With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide. Includes mounting hardware.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 20,000Hz |
| Vertical Tracking Angle | 23˚ |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000Ω |
| Coil Impedance | 1,400Ω (1kHz) |
| Output Voltage | 3.0mV (1kHz, 5cm/sec.) |

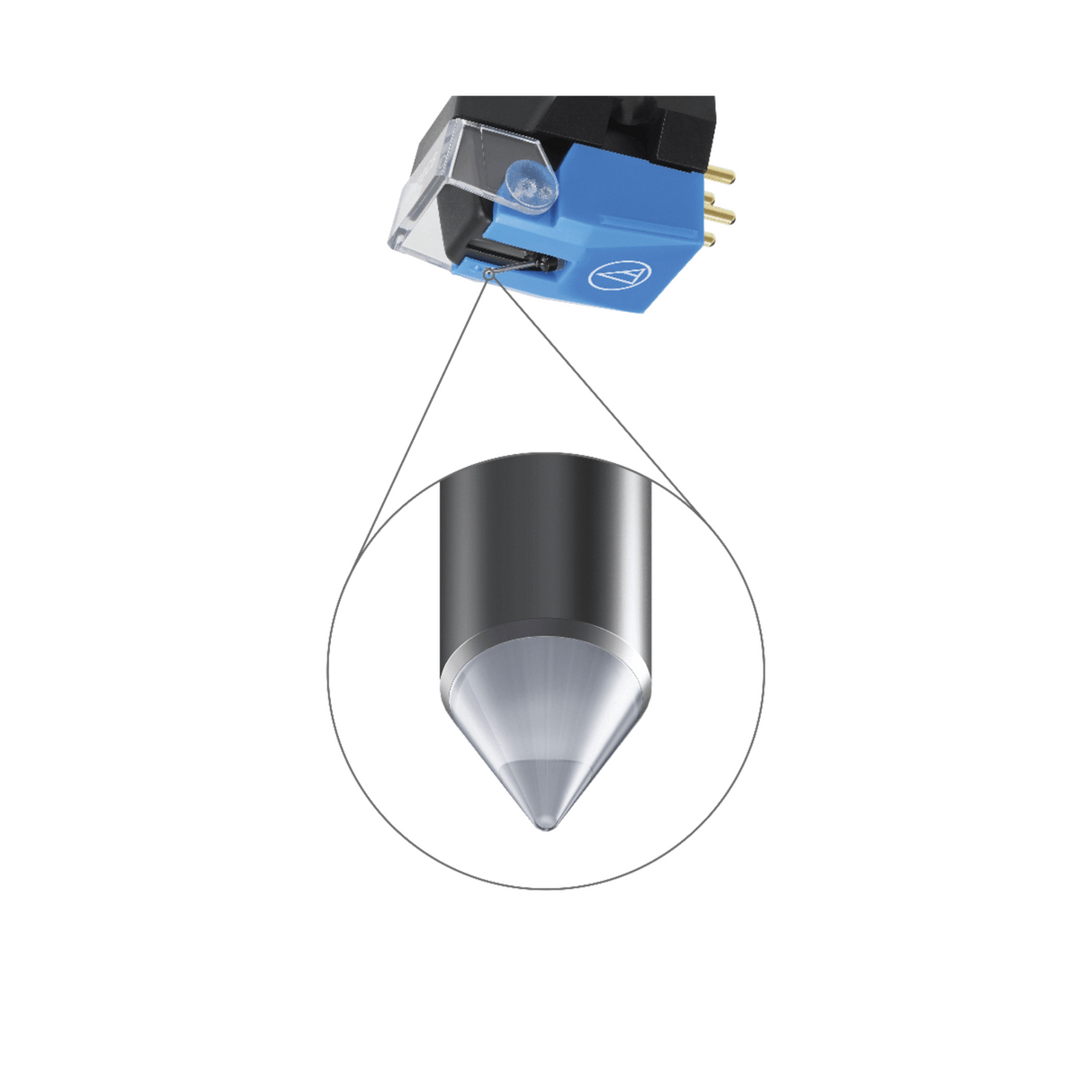

| Stylus Shape | Conical Bonded |
| Cantilever | Aluminium Pipe |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100Hz) |
| Mounting | 1/2” centres |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |

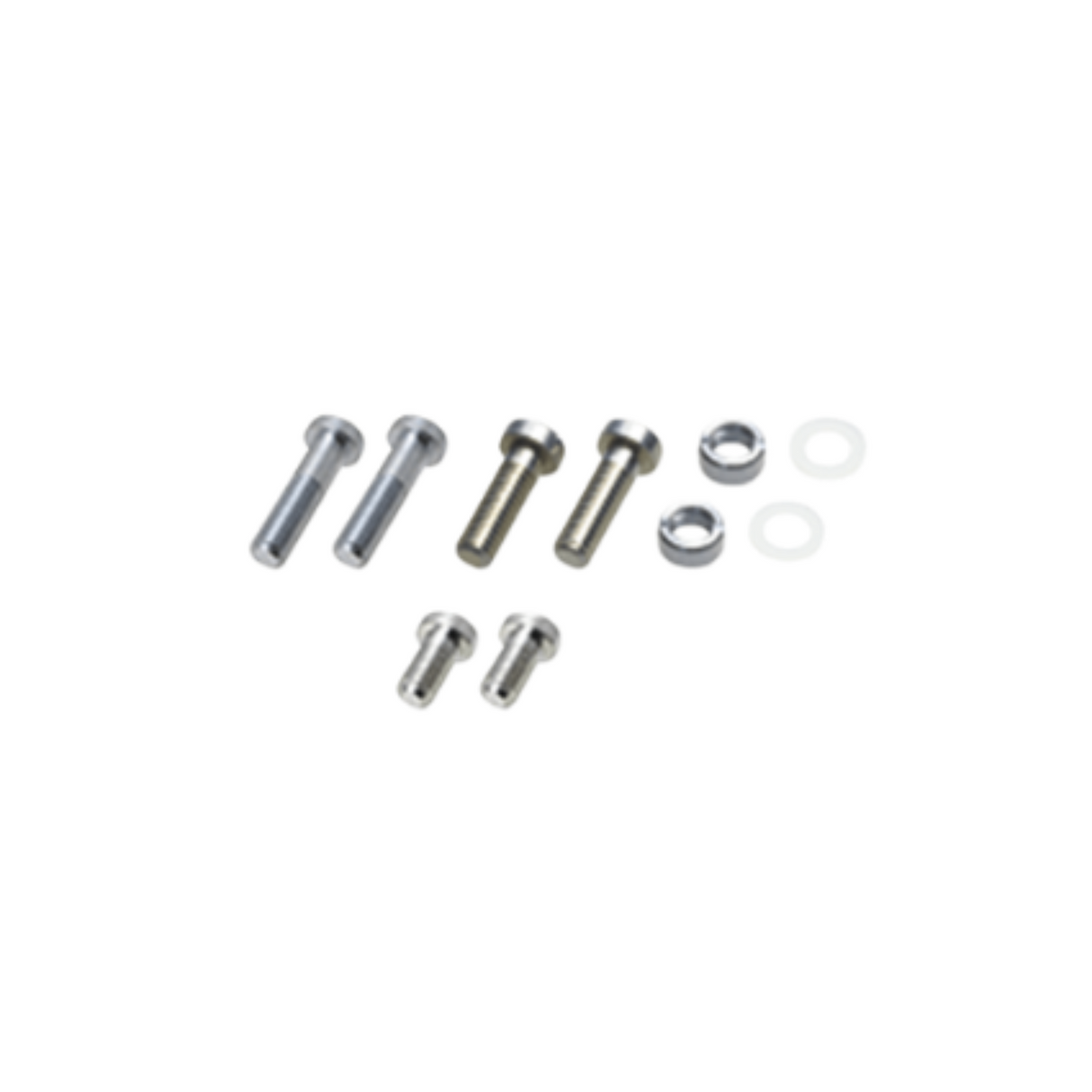

| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2 |
| Recommended Load Capacitance | 100 – 200pF |
| Replacement Stylus | VMN10CB |
| Stylus Size | 0.6 mil |
| Type | VM Type |
| Weight | 6.4g |
