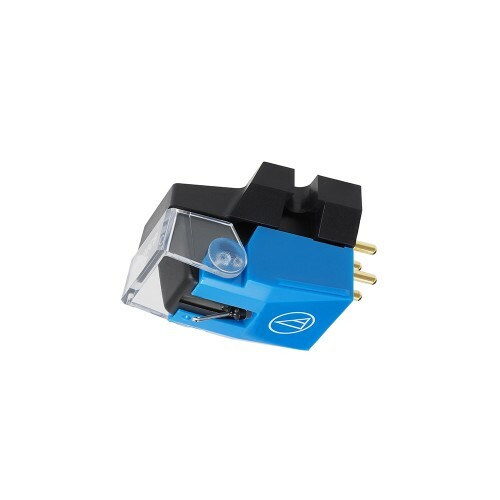

Audio Technica VM510CB Dual Moving Magnet Cartridge

Dual Moving Magnet Stereo Cartridge
Entry-level VM cartridge model equipped with a conical bonded stylus. The round stylus is less likely to be affected by placement and boasts stable tracing performance.

Audio-Technica’s internationally-patented Dual Magnet design replicates the structure of the cutter head.
Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system
Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk
A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

500 Series

Standard cartridge body fitted with the para-toroidal coils, centre shield plate, and 6N-OFC coil wire which is the same as 700 series.

Conical Bonded Stylus

The benefit of conical styli, even if the cartridge is "lean", is the ball surface of the stylus touches the groove of vinyl records precisely. Due to its stability, it has been used widely at radio stations.

Cartridge & Stylus
Frequency Response	20 - 20,000Hz
Channel Separation	25dB (1kHz)
Vertical Tracking Angle	23˚
Vertical Tracking Force	1.8 to 2.2g (2.0g standard)
Stylus Construction	Bonded Round Shank
Recommended Load Impedance	47,000Ω
Coil Impedance	2,700Ω (1kHz)
Output Voltage	5.0mV (1kHz, 5cm/sec.)
Output Channel Balance	1.5dB (1kHz)
Stylus Shape	Conical Bonded
Cantilever	Aluminium Pipe
Static Compliance	35 x 10-6 cm/dyne
Dynamic Compliance	8 x 10-6 cm/dyne (100Hz)
Mounting	1/2” centres
Dimensions	17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included	Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance	100 – 200pF
Replacement Stylus	VMN10CB
Stylus Size	0.6 mil
Type	VM Type
Weight	6.4g
