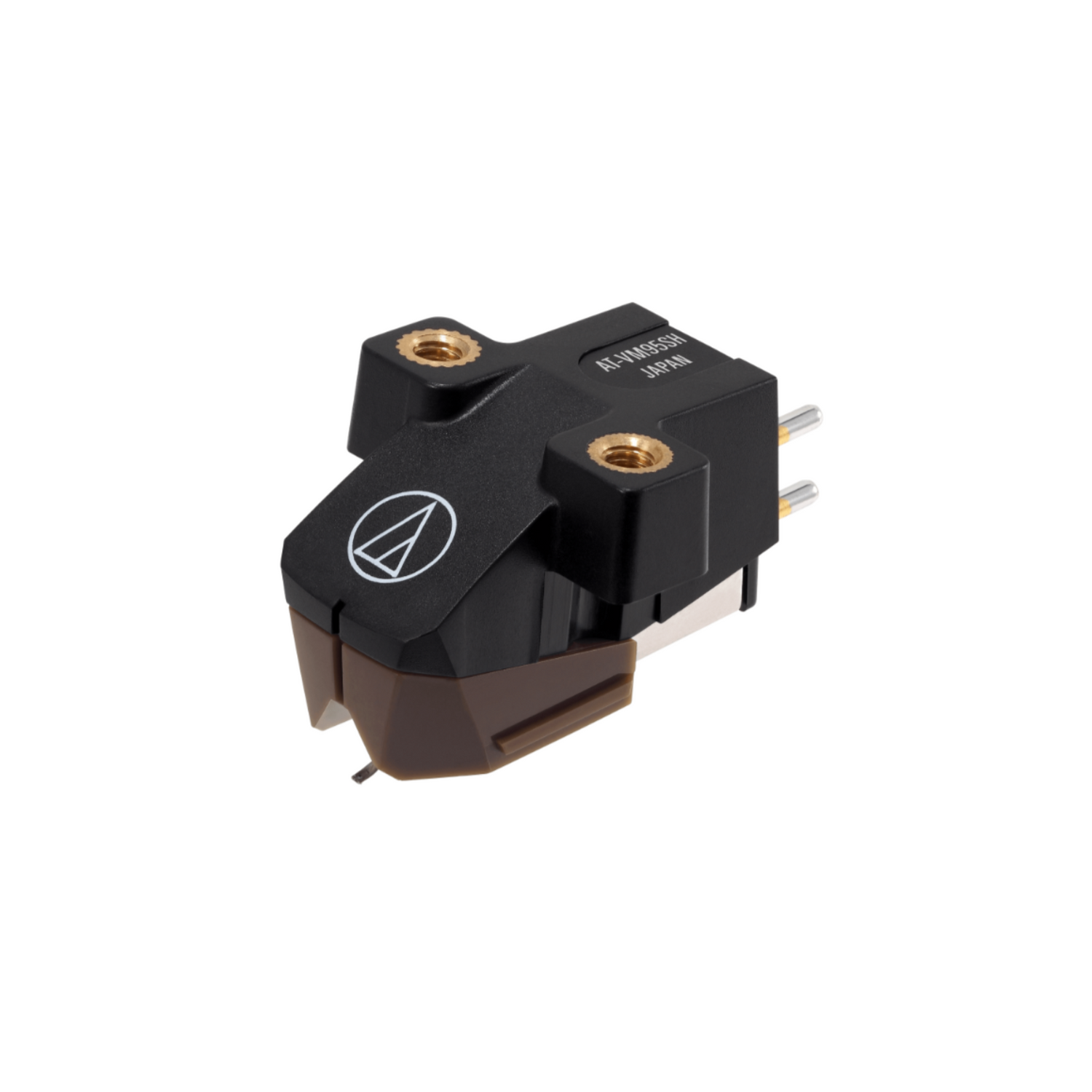

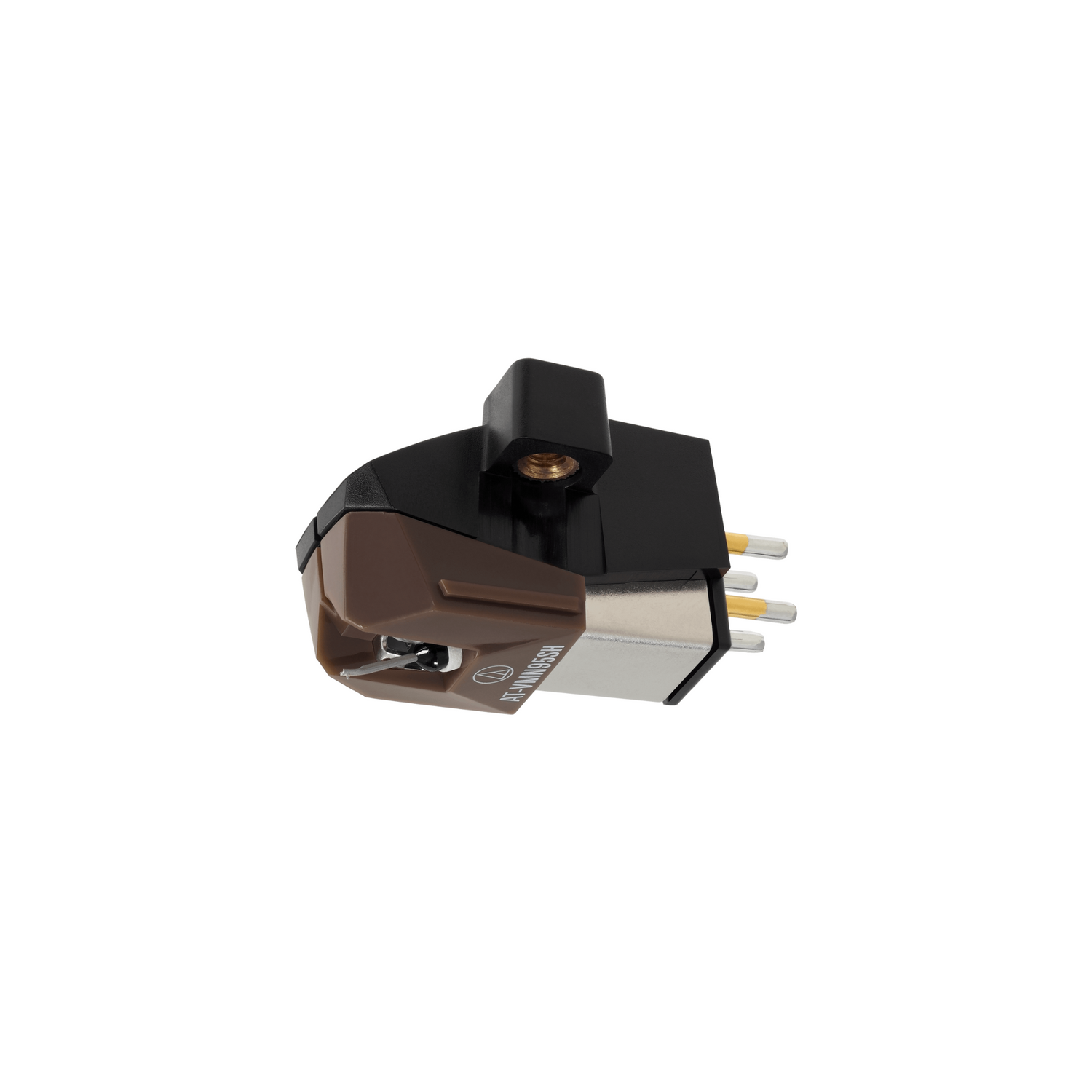

Audio Technica ATVM95SH Shibata Stereo Cartridge
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
-
1-Year Warranty
Description
Description

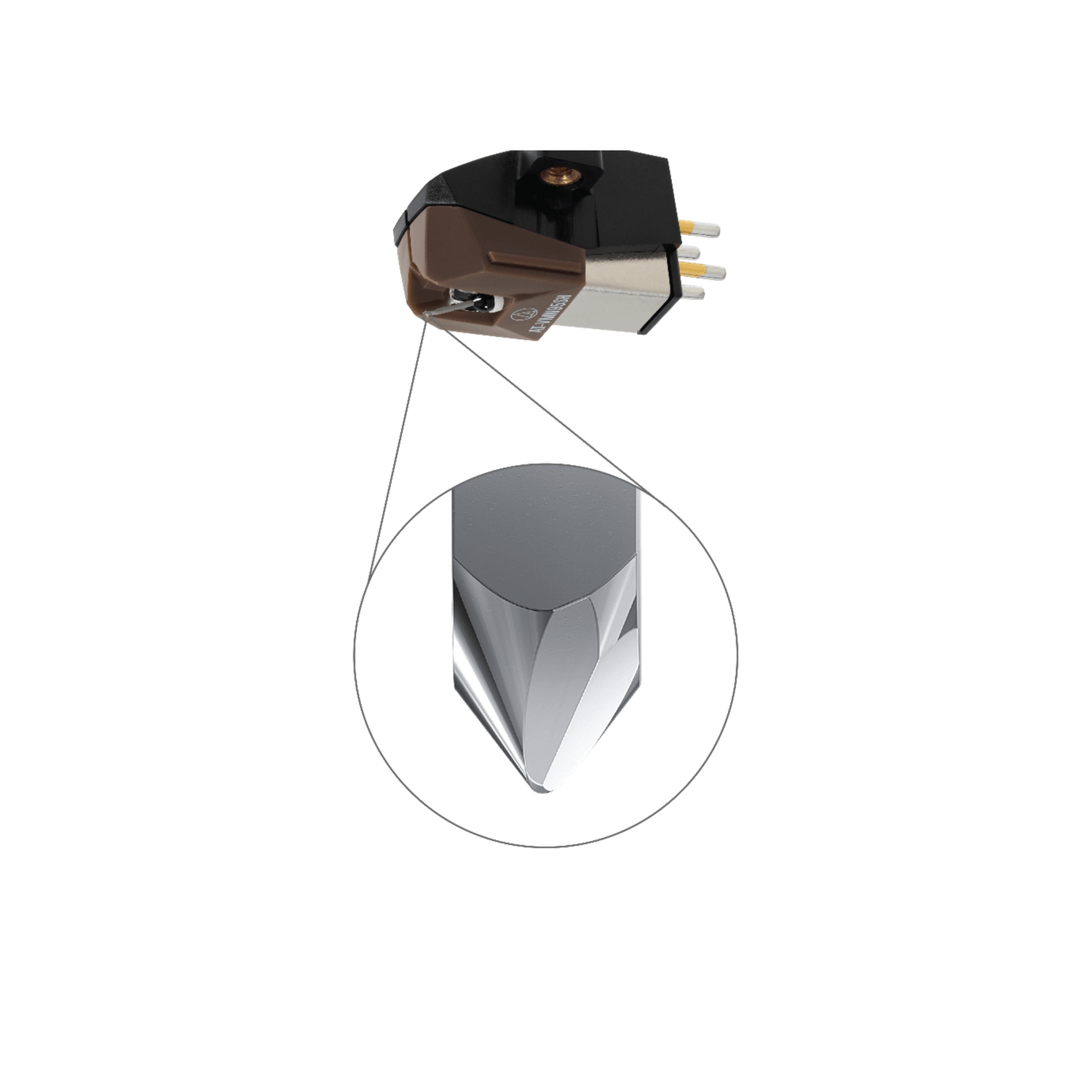

The AT-VM95SH, features a Nude Shibata stylus, one of the most acclaimed stylus format by high end audiophiles. The Shibata stylus produces mid and bass sounds strong and rich in addition to offer a frequency response up to 25,000 Hz.
Compatible with each of the 6 replacement styli in the VM95 range!
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 25,000 Hz |
| Channel Separation | 23 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Square Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | Aluminium Pipe |
| Static Compliance | 20 x 10–6 cm / dyne |
| Dynamic Compliance | 10 x 10–6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 (H x W x D mm) |

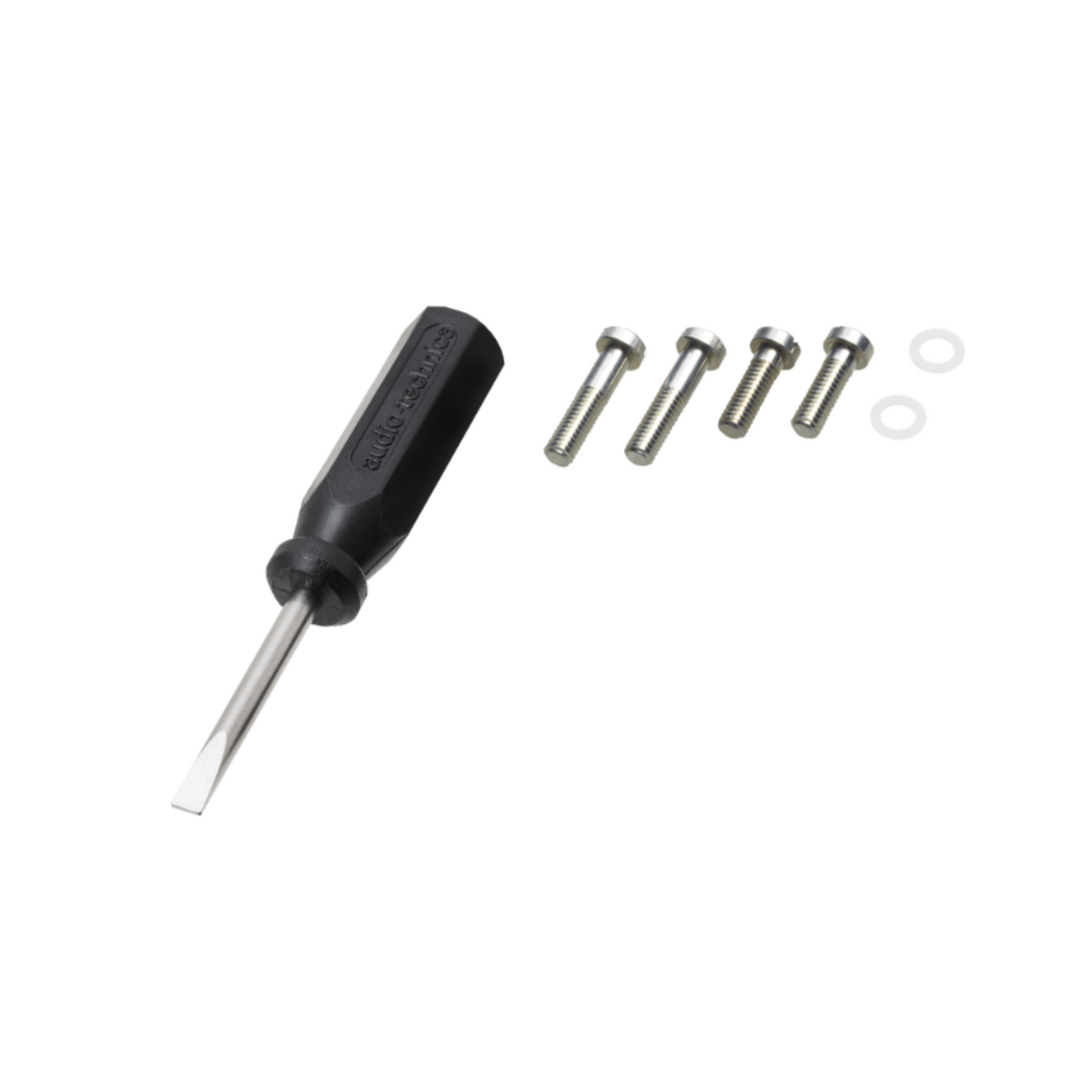

| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers; Non-magnetic screwdriver |
| Model | AT-VM95SH |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95SH |
| Stylus Size | 2.7 x 0.26mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
