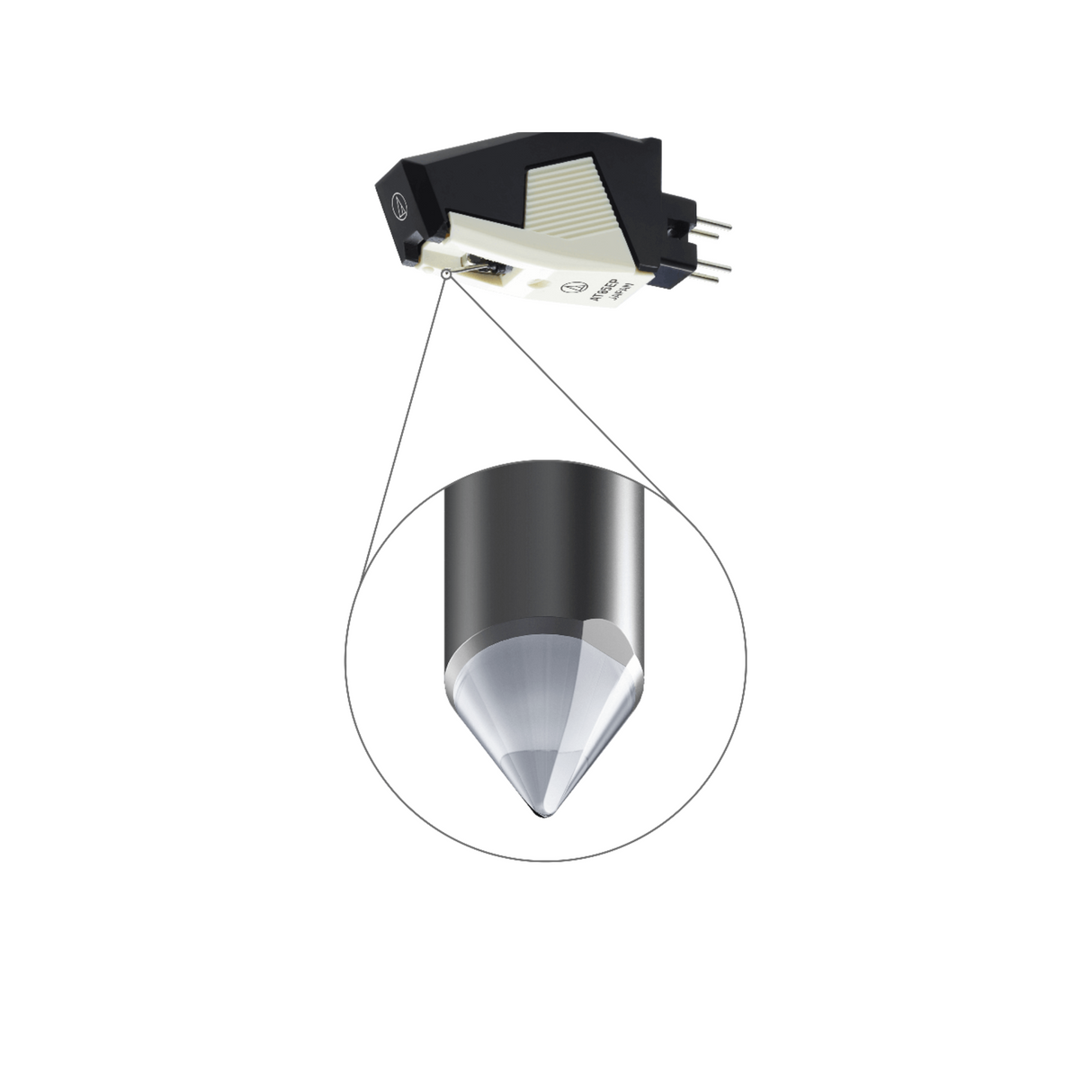

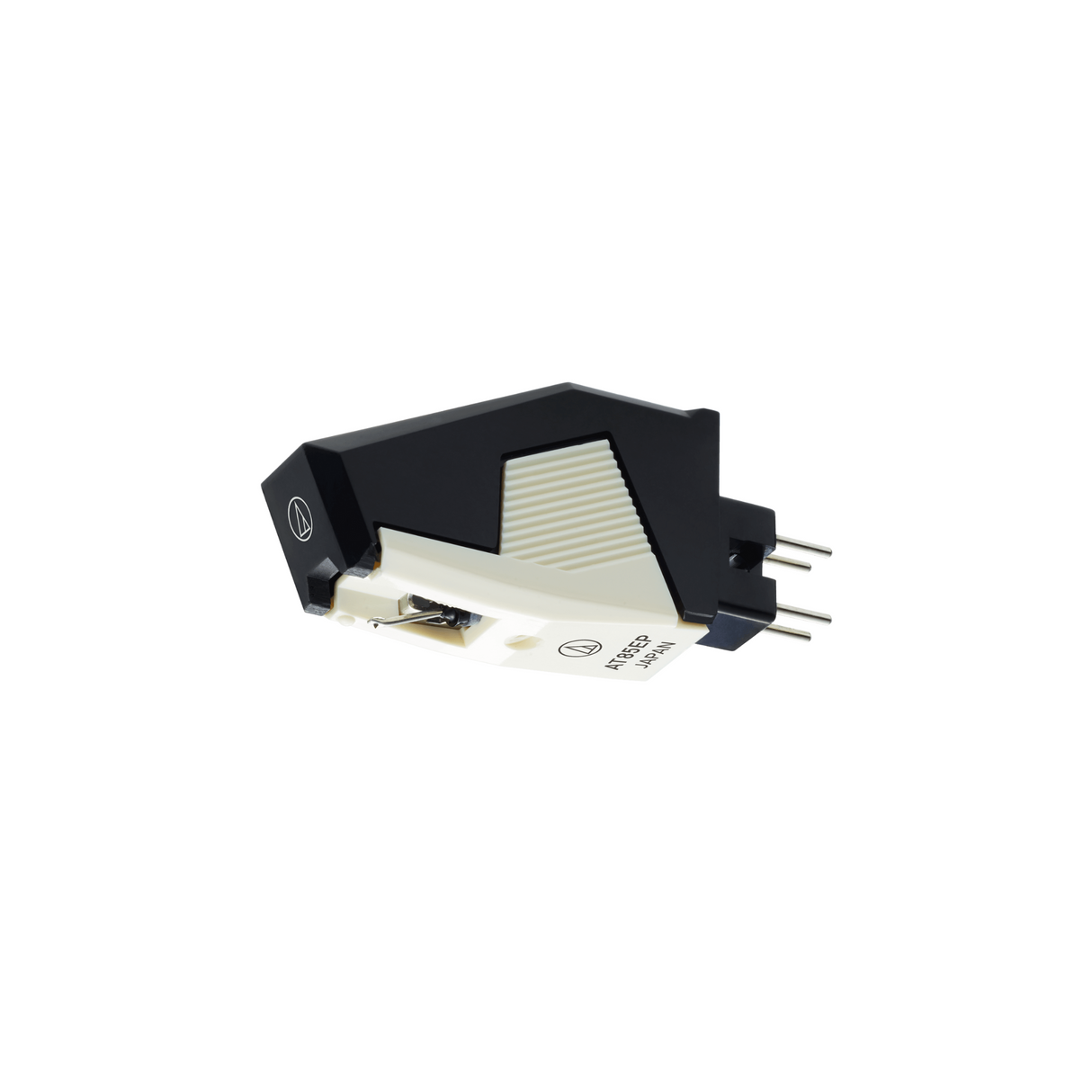

Audio Technica AT85EP P-Mount MM Cartridge
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
-
1-Year Warranty
Description
Description
The AT85EP allows owners of Technics , Hitachi , Pioneer * turntables and other similar linear track turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.
Designed specifically for the linear format, the AT85EP features the exclusive Audio-Technica dual-magnet mobile construction. The double magnet system is combined with the construction of the paratoroidal coil to ensure excellent sonic clarity and wide channel separation.
Note: No longer supplied with P-Mount.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus Information | |
|---|---|
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 20 dB at 1 kHz |
| Vertical Tracking Angle | 20° |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 400 mH (1 kHz) |
| Output Voltage | 3.5 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0 dB |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium Pipe |
| Mounting | P-mount |
| Dimensions | H10.0×W15.3×D35.1 mm |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN85EP |
| Stylus Size | 0.3 x 0.7 mil |
| Type | Dual Magnet |
| Weight | 6.0g |
