Audio Technica AT33SA Moving Coil Cartridge
Audio Technica | SKU:
50364
Model# AT33SA
£679.99
Unit price
/
Unavailable
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
-
1-Year Warranty
Description
Description

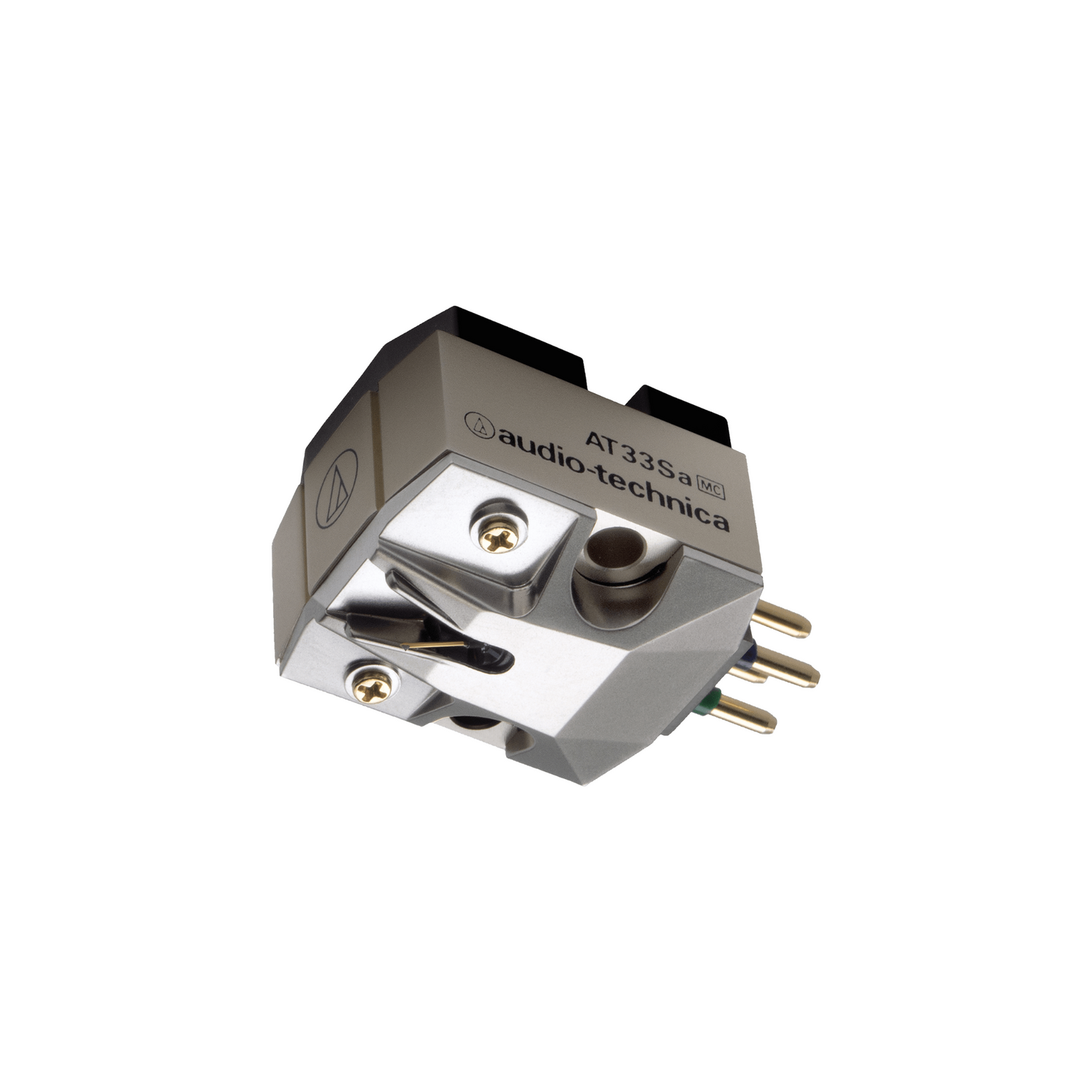

Audio Technica AT33SA Moving Coil Cartridge

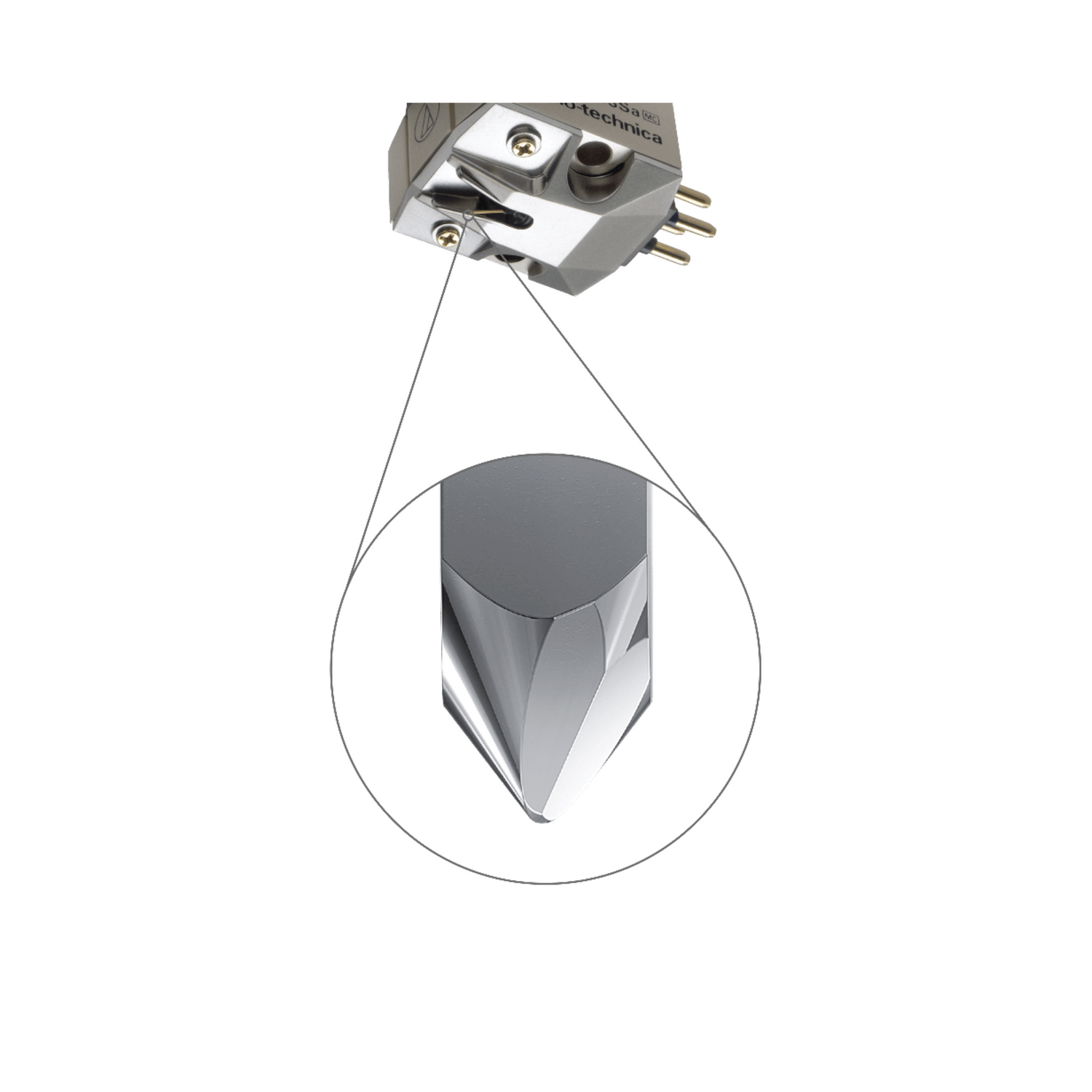

The AT33Sa is the first Audio-Technica MC cartridge model to feature a Shibata stylus. In addition to its superior high-range performance as a line-contact stylus, the Shibata stylus produces mid and bass sound that is strong and rich. The Shibata stylus is mounted on a boron cantilever with a double damper to greatly improve sound quality.Advanced tapered boron cantilever and reduced weightThe AT33Sa uses a tapered boron cantilever. Tapering the cantilever and revising the number of coil rotations reduce the weight, giving the cartridge better high range performance and wide range reproduction. Neodymium magnet with dramatically enhanced magnetic energy and permendur yokeThe model uses a neodymium magnet with maximum energy product BHmax of 50 [kJ/m3] and a permendur yoke with high saturation flux density and outstanding magnetic properties, which further enhances the concentrated magnetic field of the coil gap. Neodymium magnet for dramatically increased magnetic energyThe neodymium magnet provides maximum energy (BHmax of 50[kJ/m3]), while the pure iron yoke provides excellent magnetic properties.
The AT33Sa is the first Audio-Technica MC cartridge model to feature a Shibata stylus. In addition to its superior high-range performance as a line-contact stylus, the Shibata stylus produces mid and bass sound that is strong and rich. The Shibata stylus is mounted on a boron cantilever with a double damper to greatly improve sound quality.Advanced tapered boron cantilever and reduced weightThe AT33Sa uses a tapered boron cantilever. Tapering the cantilever and revising the number of coil rotations reduce the weight, giving the cartridge better high range performance and wide range reproduction. Neodymium magnet with dramatically enhanced magnetic energy and permendur yokeThe model uses a neodymium magnet with maximum energy product BHmax of 50 [kJ/m3] and a permendur yoke with high saturation flux density and outstanding magnetic properties, which further enhances the concentrated magnetic field of the coil gap. Neodymium magnet for dramatically increased magnetic energyThe neodymium magnet provides maximum energy (BHmax of 50[kJ/m3]), while the pure iron yoke provides excellent magnetic properties.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 15 - 50,000Hz |
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min 100Ω |
| Coil Impedance | 10Ω (1kHz) |
| DC Resistance | 10Ω |
| Coil Inductance | 22 µm (1kHz) |
| Output Voltage | 0.4mV (1kHz and 5cm/sec.) |
| Output Channel Balance | 0.5dB (1kHz) |
| Stylus Shape | Shibata |
| Cantilever | Nude tapered boron |
| Static Compliance | 40×10-6cm/dyne |
| Dynamic Compliance | 10×10-6cm/dyne (100Hz) |
| Mounting | 1/2” centers |
| Dimensions | H16×W16.6×D26.5mm |
| Accessories Included | 1 non magnetic screw driver; 1 brush; 2 washers; 2 Nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101) |
| Body Material | Aluminium/Synthetic Resin |
| Stylus Curvature Radius | Shibata |
| Type | Dual Moving Coil |
| Weight | 6.9g |
