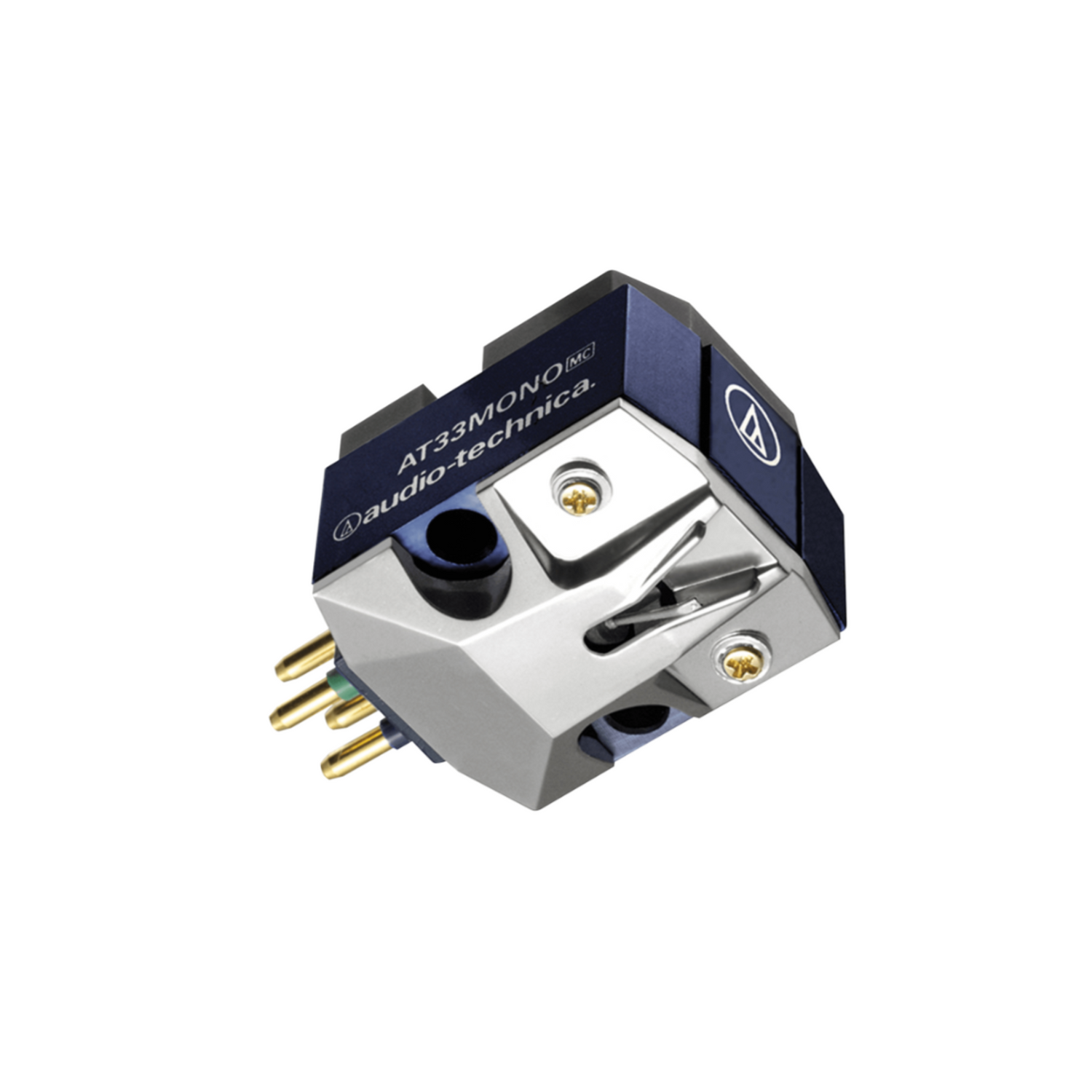

Audio Technica AT33MONO Mono Moving Coil Cartridge
Audio Technica | SKU:
50366
Model# AT33MONO
£319.99
Unit price
/
Unavailable
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
-
1-Year Warranty
Description
Description
Audio Technica AT33MONO Mono Moving Coil Cartridge
The AT33MONO is made specifically for use on mono systems. It has a horizontal coil, and so in principle only generates electricity horizontally.The AT33MONO produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records, producing audio that you couldn't possibly get from a stereo cartridge.The AT33MONO also has appropriate compliance in the vertical direction, so will not cause damage to stereo records. Enjoy those well-known classic mono records of yesteryear with the AT33MONO.
*This model is not compatible with SP records.
A True Mono Cartridge
The AT33MONO cartridge only generates electrical signal with horizontal movement due to the horizontal configuration of the coil.
Eliminates unnecessary vibration
‘Hanenite’ anti-vibration high-damping rubber eliminates unnecessary vibration.
Internal wiring on AT33MONO featuring two horizontal voice coils, each voice coil terminations available independently.
The AT33MONO is made specifically for use on mono systems. It has a horizontal coil, and so in principle only generates electricity horizontally.The AT33MONO produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records, producing audio that you couldn't possibly get from a stereo cartridge.The AT33MONO also has appropriate compliance in the vertical direction, so will not cause damage to stereo records. Enjoy those well-known classic mono records of yesteryear with the AT33MONO.
*This model is not compatible with SP records.
A True Mono Cartridge
The AT33MONO cartridge only generates electrical signal with horizontal movement due to the horizontal configuration of the coil.
Eliminates unnecessary vibration
‘Hanenite’ anti-vibration high-damping rubber eliminates unnecessary vibration.
Internal wiring on AT33MONO featuring two horizontal voice coils, each voice coil terminations available independently.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 20,000Hz |
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 2.3 to 2.7 g (standard 2.5 g) |
| Recommended Load Impedance | More than 100Ω (when head amp connected) |
| Coil Impedance | 10Ω (1kHz) |
| DC Resistance | 10Ω |
| Coil Inductance | 28µH (1kHz) |
| Output Voltage | 0.35mV (1kHz and 5cm/sec. horizontal signal) |
| Output Channel Balance | 1.0dB (1kHz) |

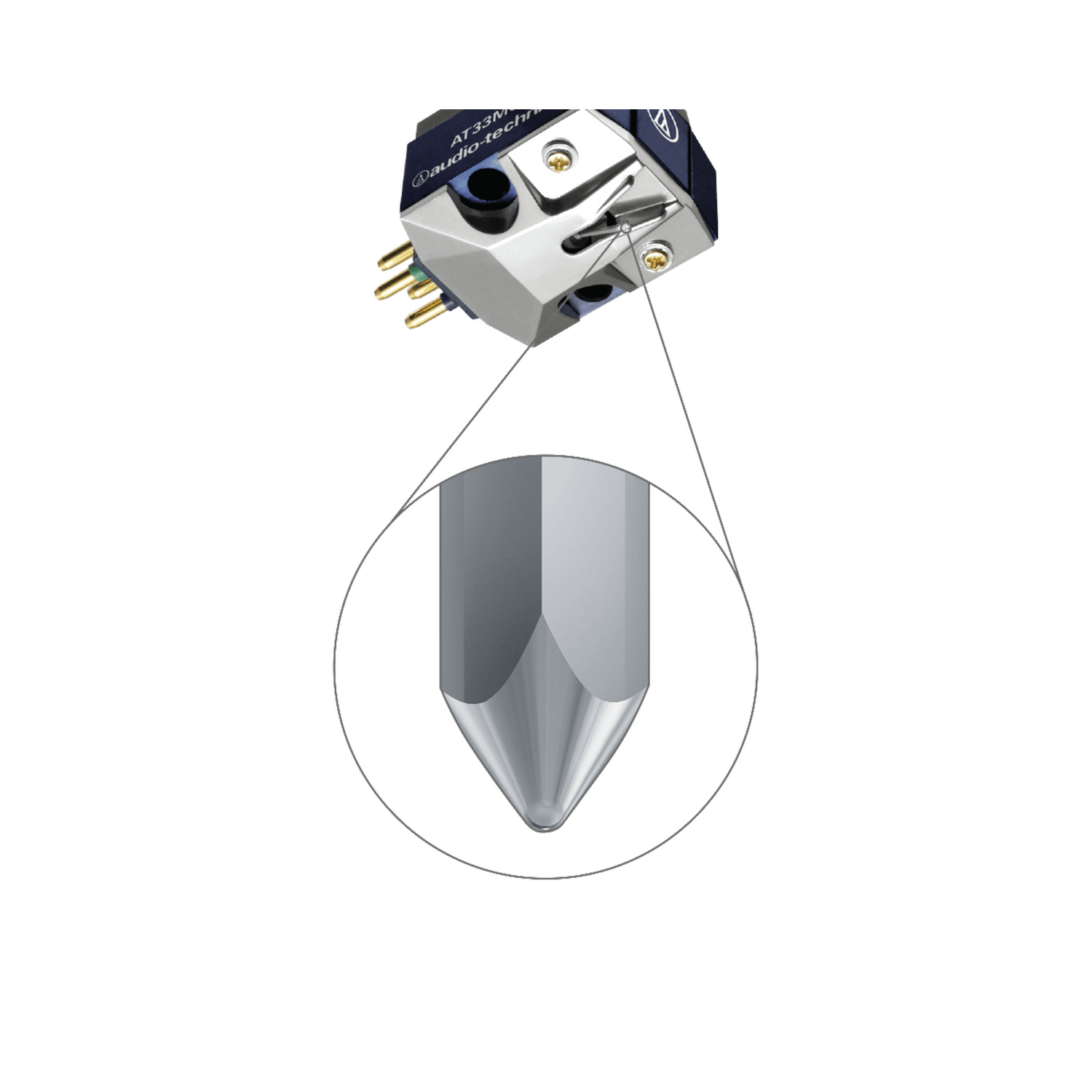

| Stylus Shape | Conical |
| Cantilever | Duralumin pipe |
| Static Compliance | 20×10-6cm/dyne |
| Dynamic Compliance | 6×10-6cm/dyne (100Hz) |
| Mounting | 1/2" Centers |
| Dimensions | H16×W16.6×D26.5mm |
| Accessories Included | Non-magnetic screwdriver x1, Washers x2, Protector x1, Cartridge fastening screw 13mm×2, 19mm×2, Nut x2, Brush x1, PCOCC lead set x1 |
| Body Material | Aluminium/Synthetic Resin |
| Stylus Size | 0.65 mil |
| Type | MC-type |
| Weight | 6.9g |
