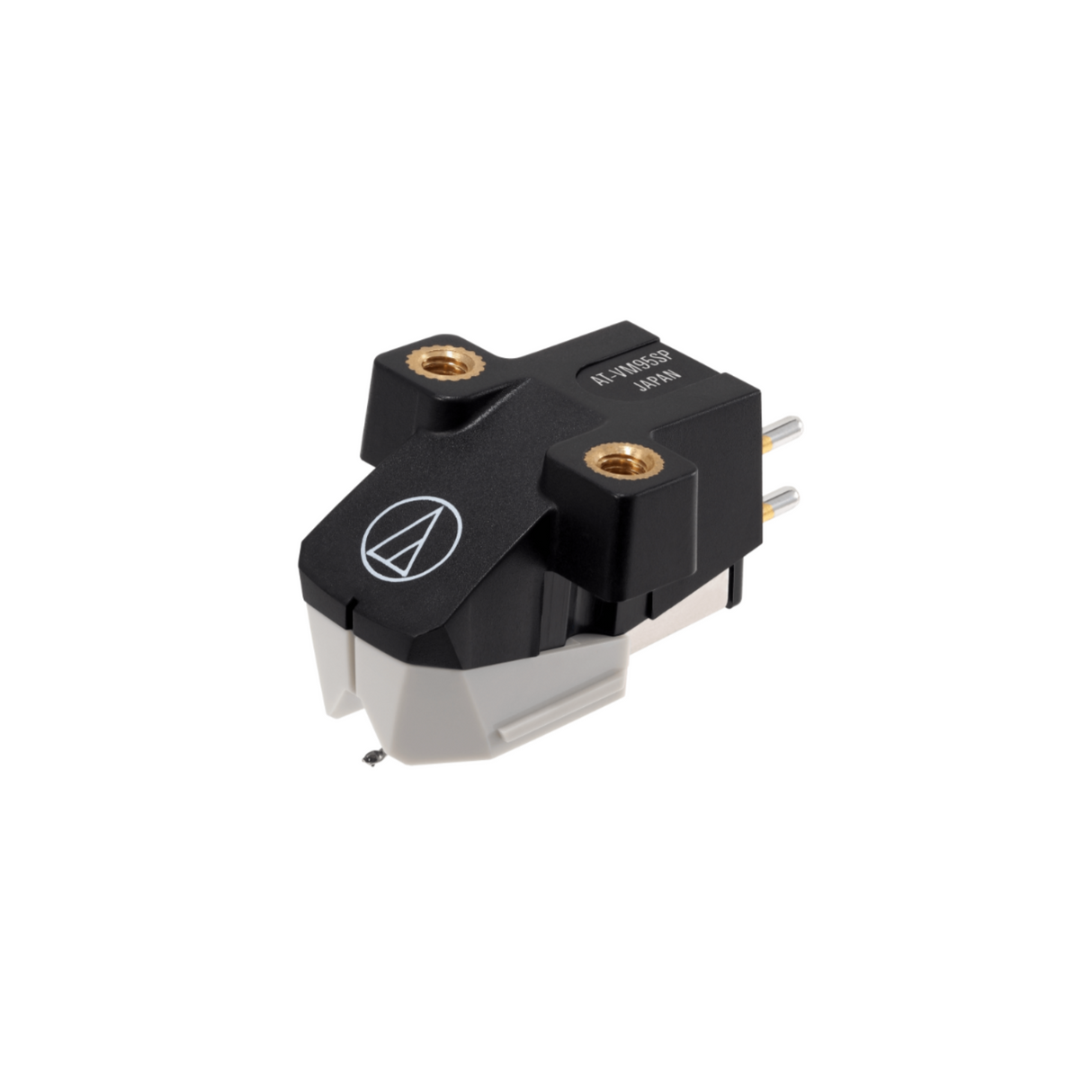

Audio Technica AT-VM95SP 78RPM SP Stereo Cartridge

Audio Technica  |  SKU: 63482
Model# AT-VM95SP
£59.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Product Warranty Available

    1-Year Warranty

Description

Since SP records have monaural modulation, when combining an SP stylus with a stereo body, such as the AT-VM95SP, it is recommended to use the MONO ON function of your standard Stereo Phono Preamplifier to minimize record surface noise.

AT-VM95SP, as stereo cartridge for SP mono records, when used with a dedicated archiving phono preamplifierequalizer incorporating various functions to generate a mono signal from Stereo inputs (Mono L+R, Mono L, Mono R, LR Variable Mix) allows professional archivers to minimize noise and distortion by sampling the least damage side of the grooves from an old record.

Compatible with each of the 6 replacement styli in the VM95 range!

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

Key Features

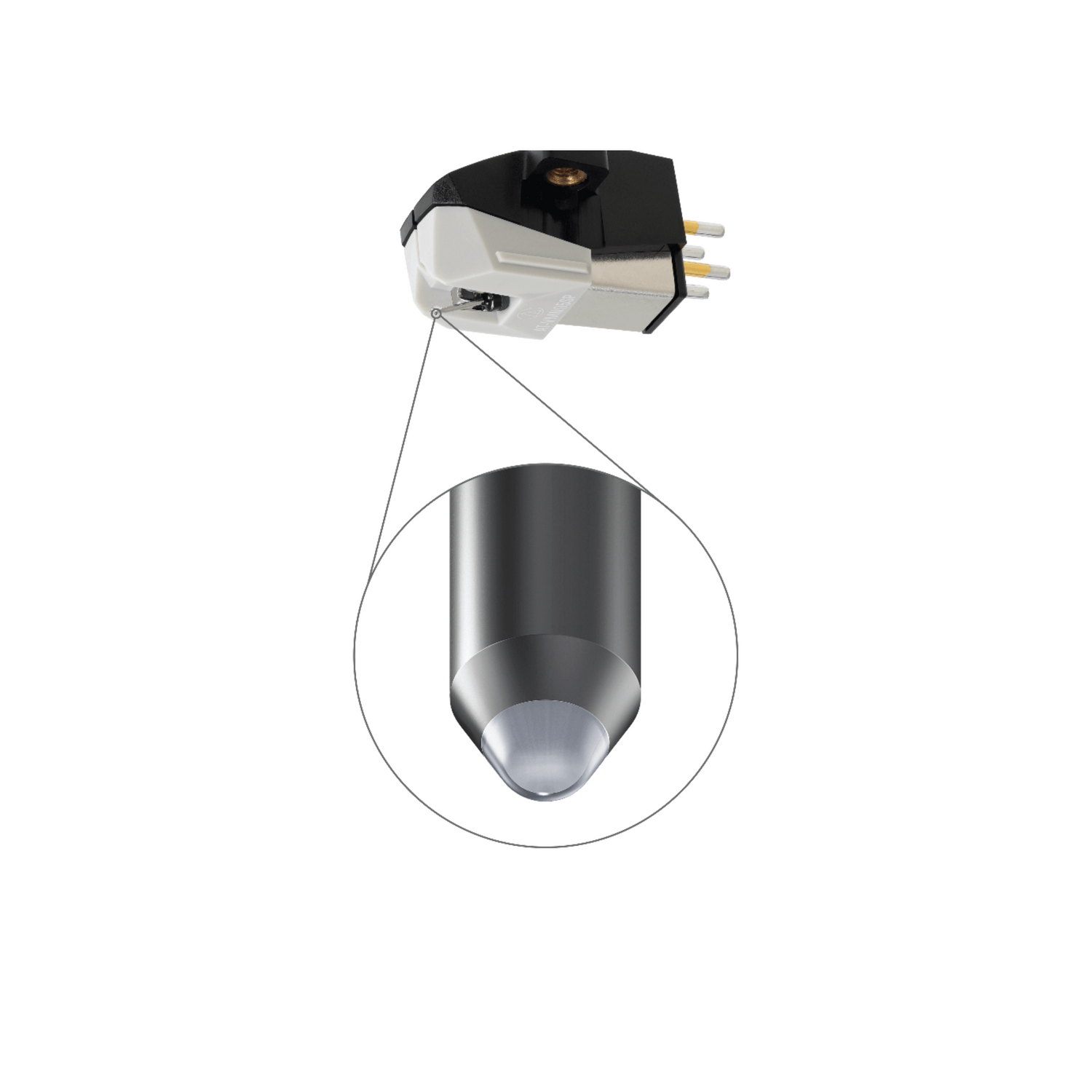

  • 3mil SP stylus for reduced record surface noise
  • Aluminium cantilever
  • 2.7mV output voltage
  • Compatible body with all VM95 Series stylus assemblies

Specifications

Cartridge & Stylus
Frequency Response 20 - 20,000 Hz
Vertical Tracking Angle 23°
Vertical Tracking Force 4.5 to 5.5g (standard 5.0g)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 Ω
Coil Impedance 3.3 kΩ (1 kHz)
DC Resistance 485 Ω
Coil Inductance 550 mH (1 kHz)
Output Voltage 2.7 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape SP 3 mil Conical Bonded
Cantilever Aluminium Pipe
Static Compliance 12 x 10–6 cm / dyne
Dynamic Compliance 2 x 10–6 cm / dyne (100 Hz)
Mounting 1/2” centres
Cartridge Weight 6.1g
Dimensions 17.2 x 18.9 x 28.3 (H x W x D mm)

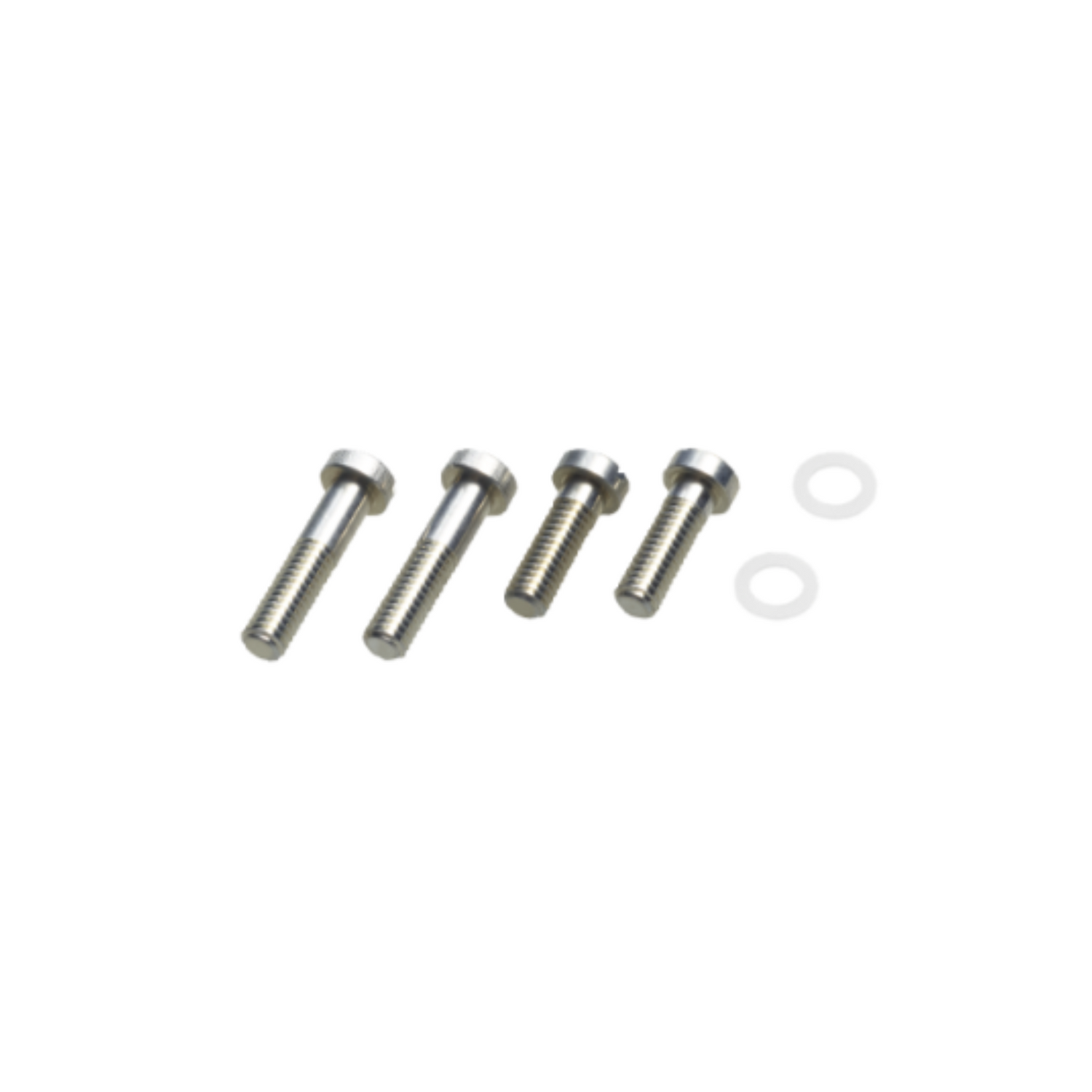

Accessories Included Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model AT-VM95SP
Recommended Load Capacitance 100-200 pF
Replacement Stylus AT-VMN95SP
Stylus Size 3 mil
Type VM Stereo Dual Magnet
Wire Used for Coil T.P. Copper

What's in the Box

  • Audio Technica AT-VM95SP
  • Two 11 mm installation screws;
  • Two 8 mm installation screws;
  • Two washers
