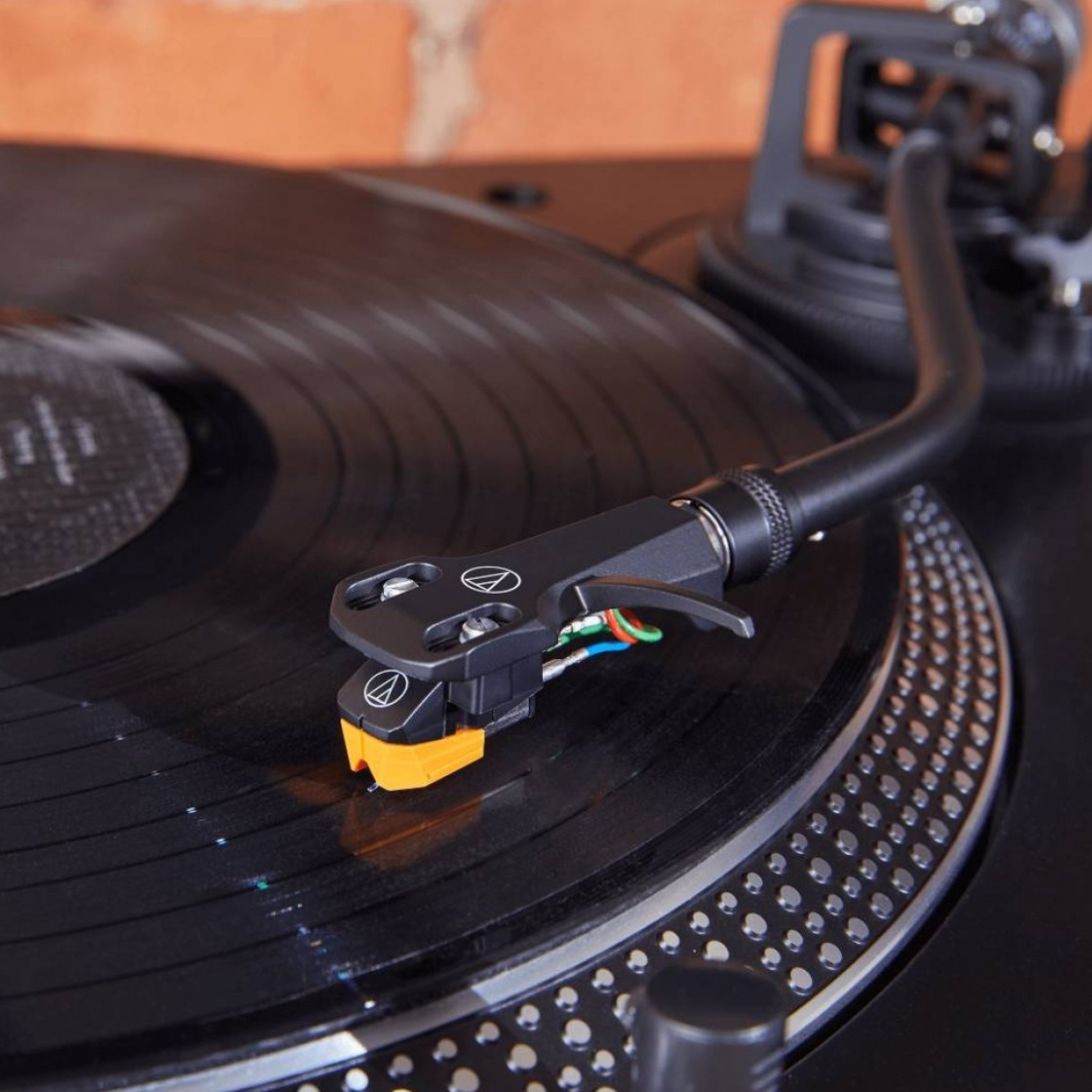

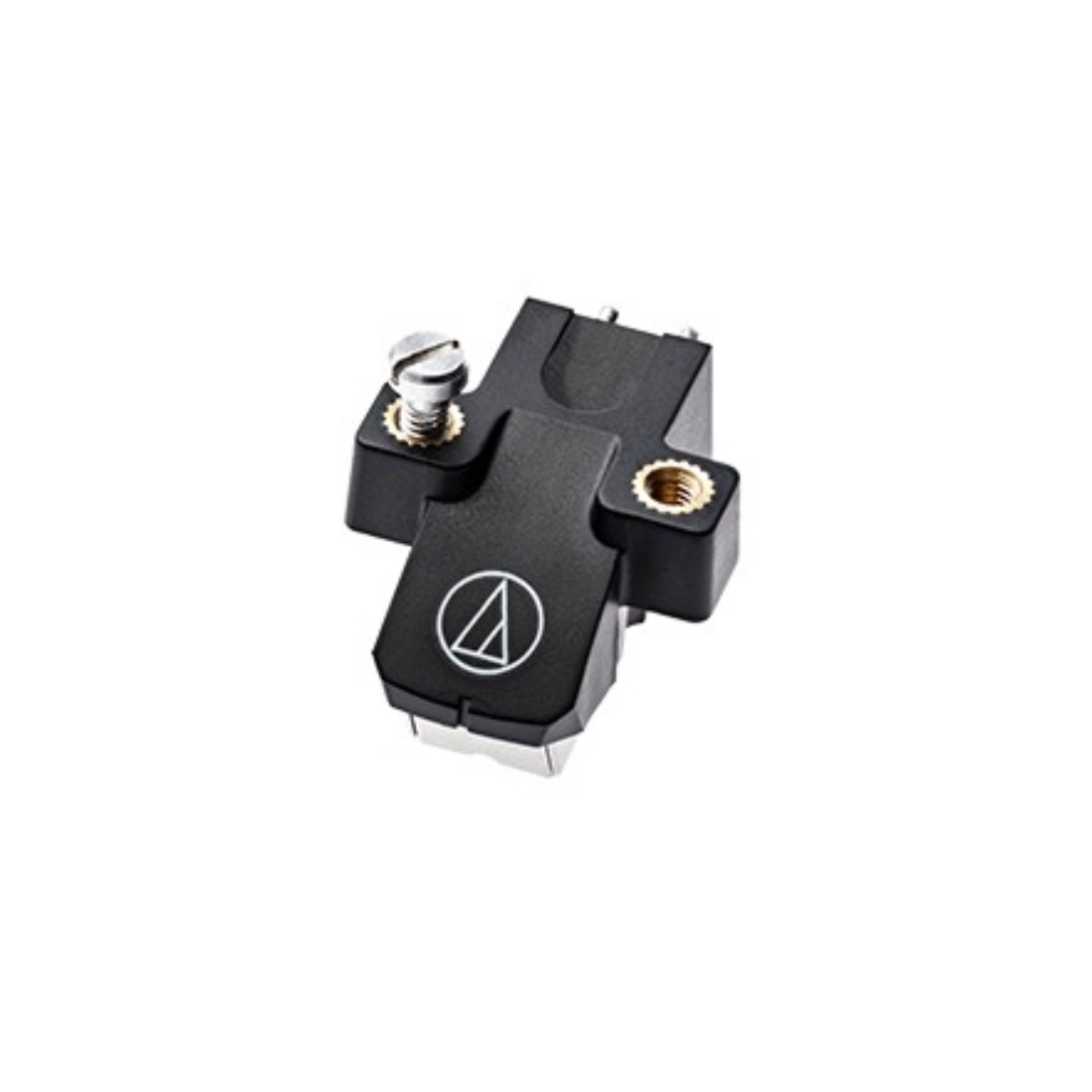

Audio Technica AT-VM95EN/H Cartridge & Headshell
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
-
1-Year Warranty
Description
Description
Elliptical Diamond Stylus
The elliptical diamond stylus provides superior groove tracking accuracy compared to a conical stylus. This results in enhanced frequency and phase responses while reducing distortion for improved audio quality.

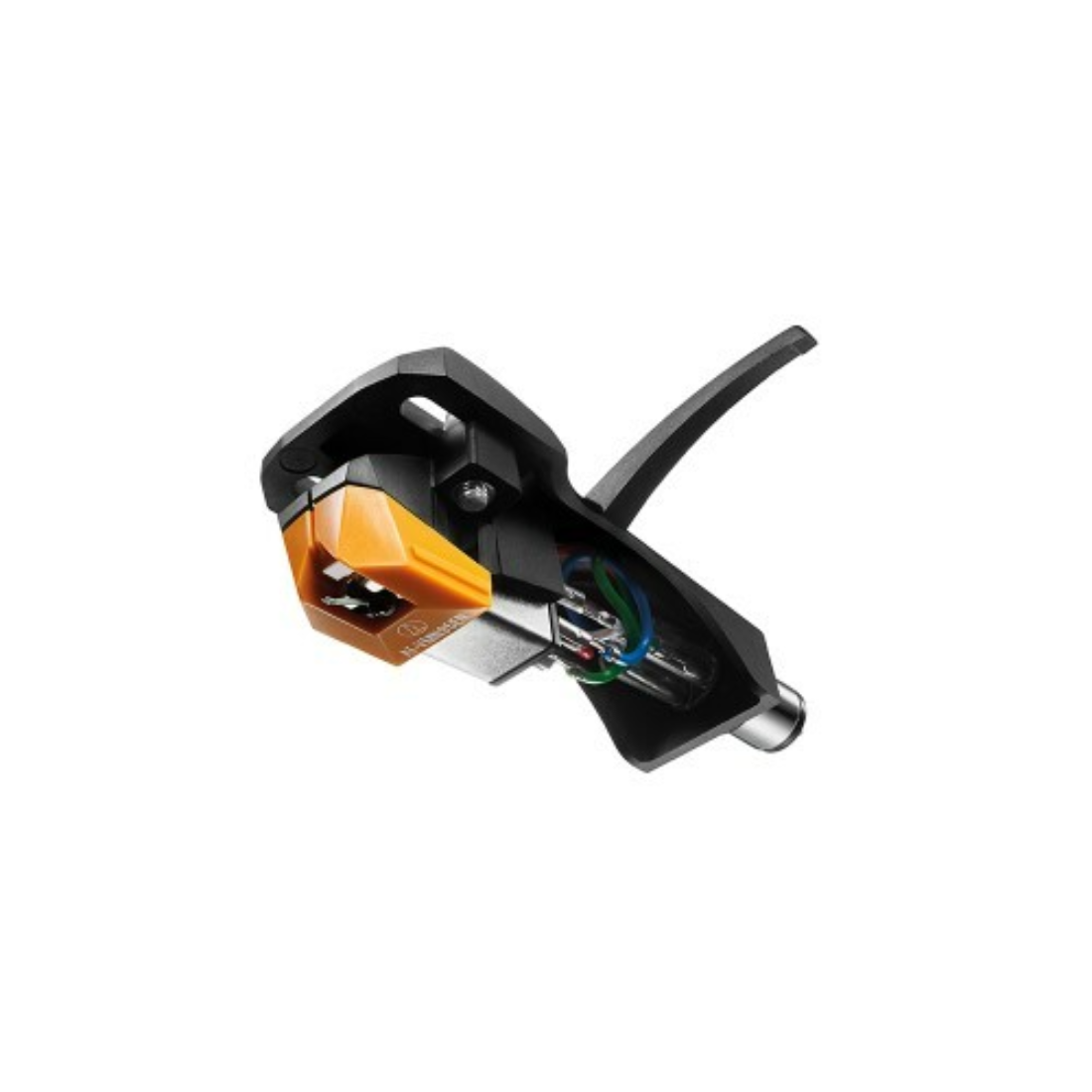

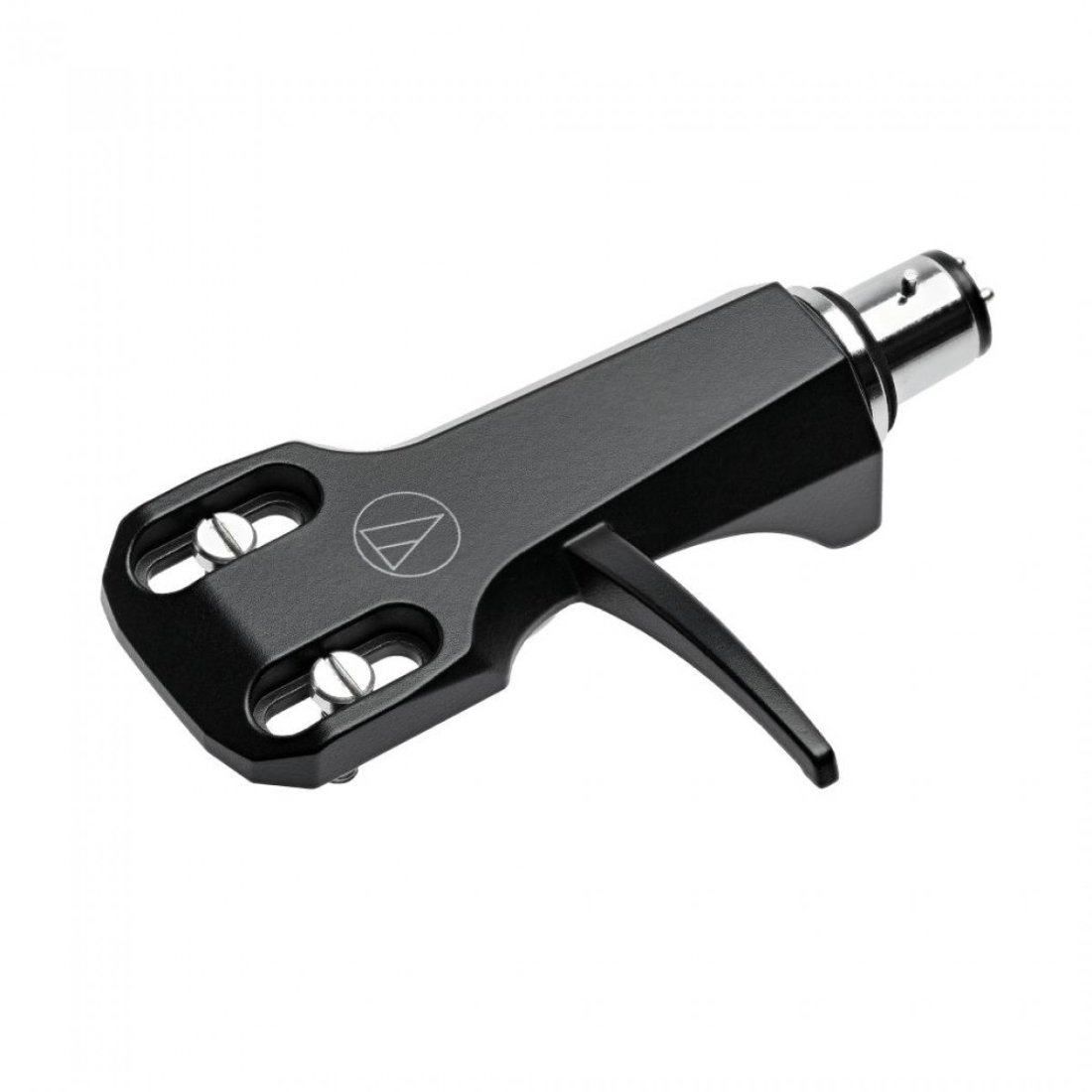

Comes Preassembled with AT-HS6BK Headshell
The AT-VM95C cartridge is already mounted on a 9g aluminum die-cast body headshell for your convenience.
VM95 Series - Stylus Compatibility
Over time, every cartridge diamond stylus wears down with use. Typically, this occurs after around 500 hours for a conical stylus, 300 hours for an elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus. However, our VM95 Series dual-moving magnet cartridges are designed to last almost indefinitely by allowing you to replace the interchangeable stylus. You no longer need to buy a whole new cartridge when the diamond wears out; simply purchase the matching replacement stylus.
Moreover, you have the option to upgrade your cartridge with a different stylus to enhance your listening experience. All six models within the VM95 Series cartridges share the same electromagnetic engine body, making each of the six replacement styli fully compatible.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus Information | |
|---|---|
| Frequency Response | 20 - 23,000 Hz |
| Channel Separation | 22 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Nude Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium Pipe |
| Static Compliance | 20 x 10^–6 cm / dyne |
| Dynamic Compliance | 7 x 10^–6 cm / dyne (100 Hz) |
| Mounting | 1/2” centres |
| Dimensions | 21.2 × 21.4 × 62.4 (H x W x D mm) |
| Model | AT-VM95EN/H |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95EN |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Stereo Dual Magnet |
| Weight | 15.5 g |
| Wire Used for Coil | T.P. Copper |
What's in the Box
What's in the Box
