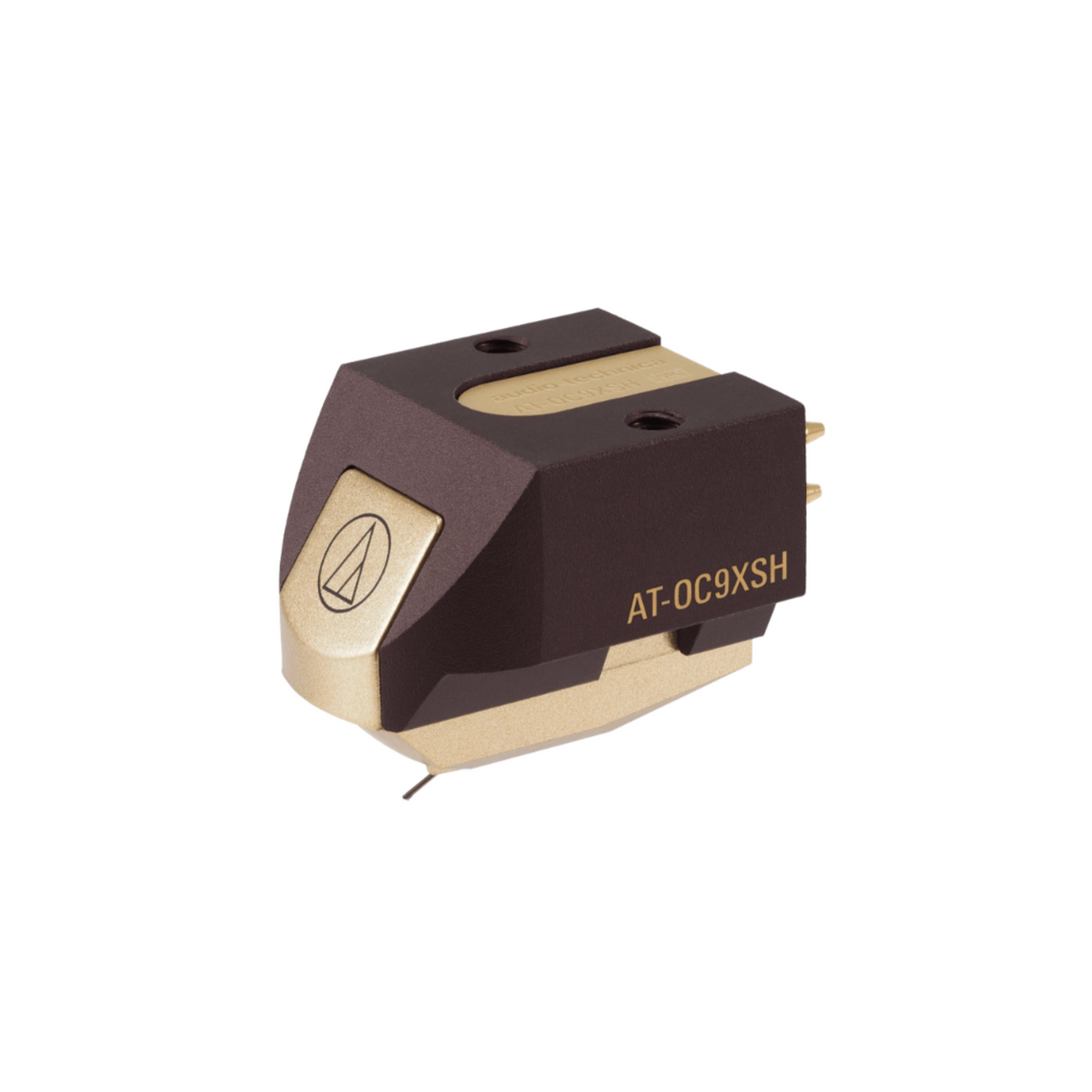

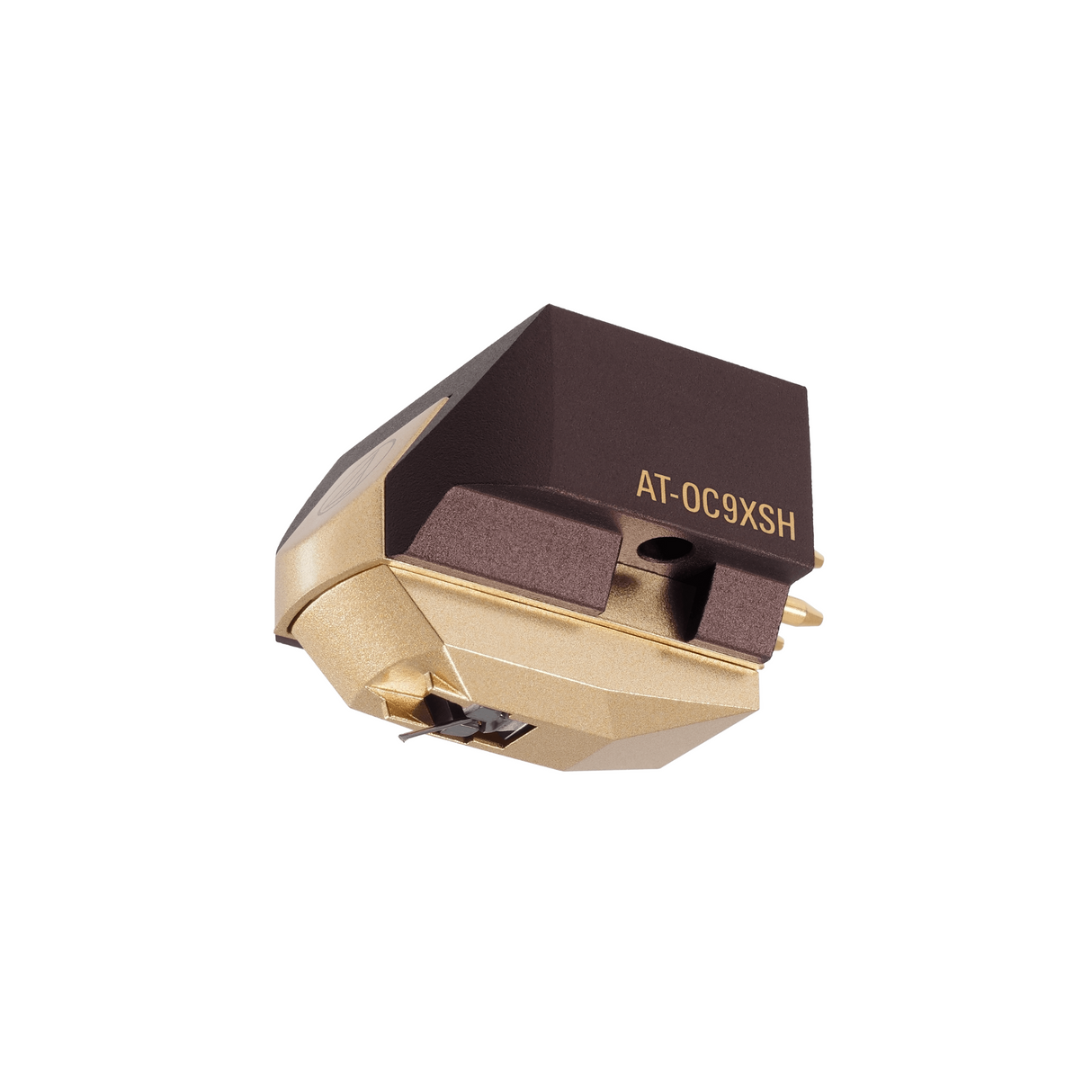

Audio Technica AT-OC9XSH Dual Moving Coil Stereo Cartridge - Shibata
The Audio Technica AT-OC9XSH dual MC Phono Cartridge is the latest iteration of the esteemed OC9 cartridge series, renowned for its musical transparency, sound expression, and meticulous craftsmanship. Featuring a Shibata profile diamond stylus originally designed for Quadraphonic replay, it delivers a depth of sound and remarkable high-frequency response that must be experienced firsthand to be fully appreciated.
Shibata Stylus The Shibata stylus produces a beautiful mid-high range Shibata-signature sound with robust mid-range volume.
Easy Mounting Threaded holes in the cartridge body enable effortless mounting onto the headshell or integral tonearm using just two screws (M2.6) – no nuts or bolts required.
Aluminium Body The aluminium body minimises unwanted vibration, resulting in reduced resonance and superior audio reproduction.
Made in Japan Manufactured in the Audio-Technica Fukui factory in Japan under strict quality control measures to ensure precise manufacturing standards are upheld.
Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 47,000 Hz |
| Channel Separation | 27 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.4 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | 0.28 mm Ø nude boron |
| Static Compliance | 20 x 10–6 cm / dyne |
| Dynamic Compliance | 16 x 10–6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded inserts |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

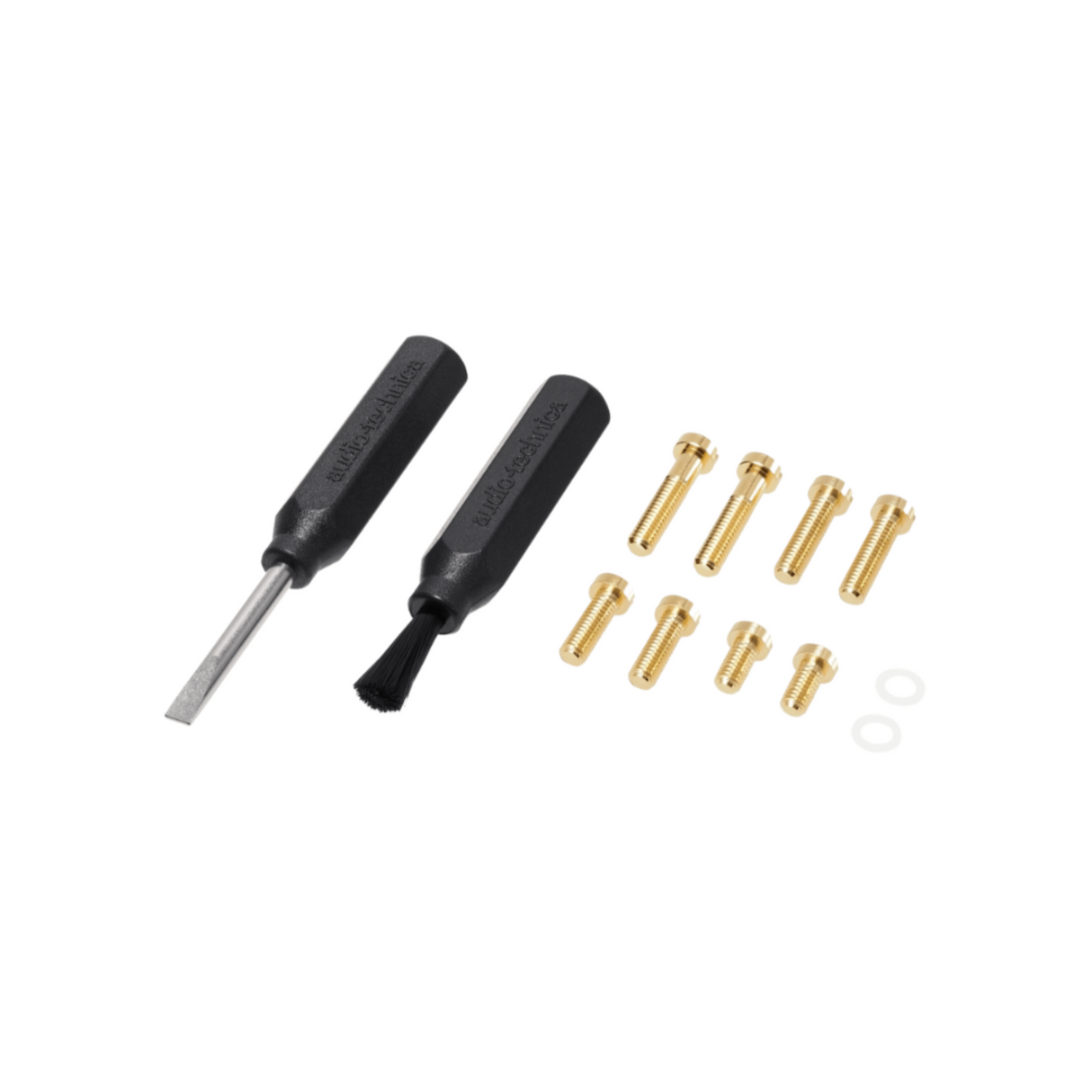

| Accessories Included | 1 non-magnetic screwdriver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XSH |
| Stylus Size | 2.7 x 0.26 mil |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process) |
