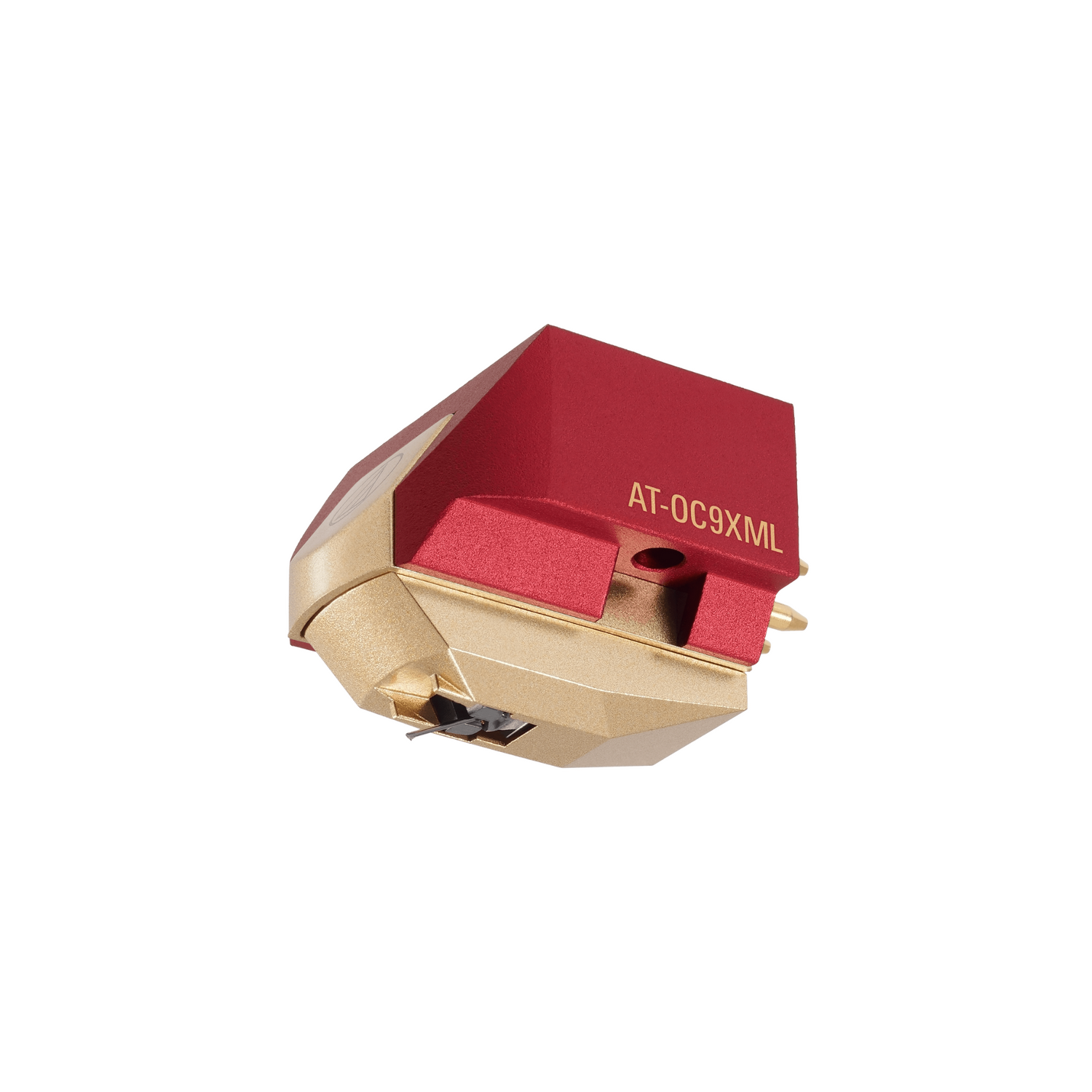

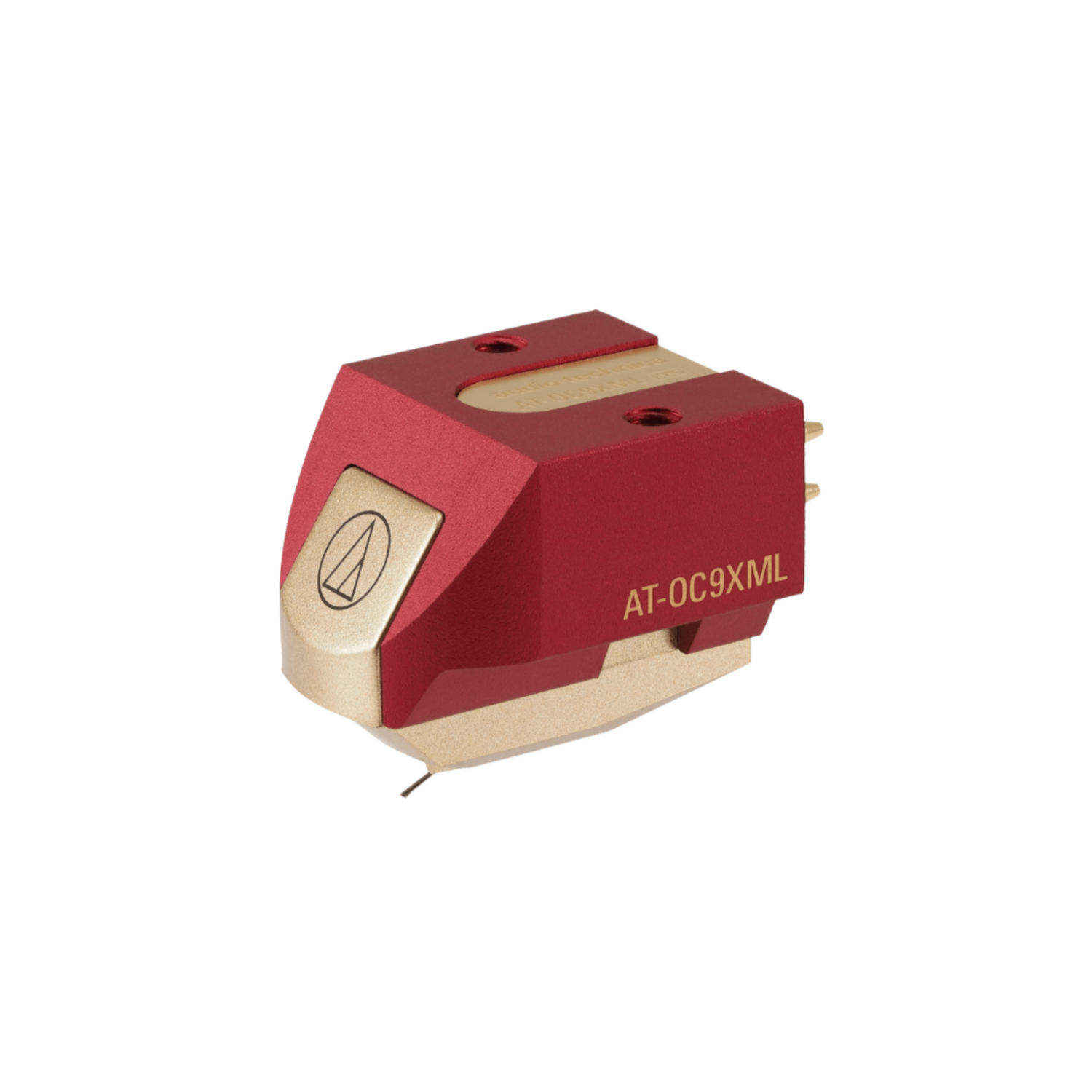

Audio Technica AT-OC9XML Dual Moving Coil Stereo Cartridge
The Audio Technica AT-OC9XML dual moving coil stereo cartridge represents the next generation of the legendary OC9 cartridge series. For over 30 years, the OC9 series has been revered by discerning vinyl enthusiasts and professional critics alike for its musical transparency, expressive sound, and meticulous construction.

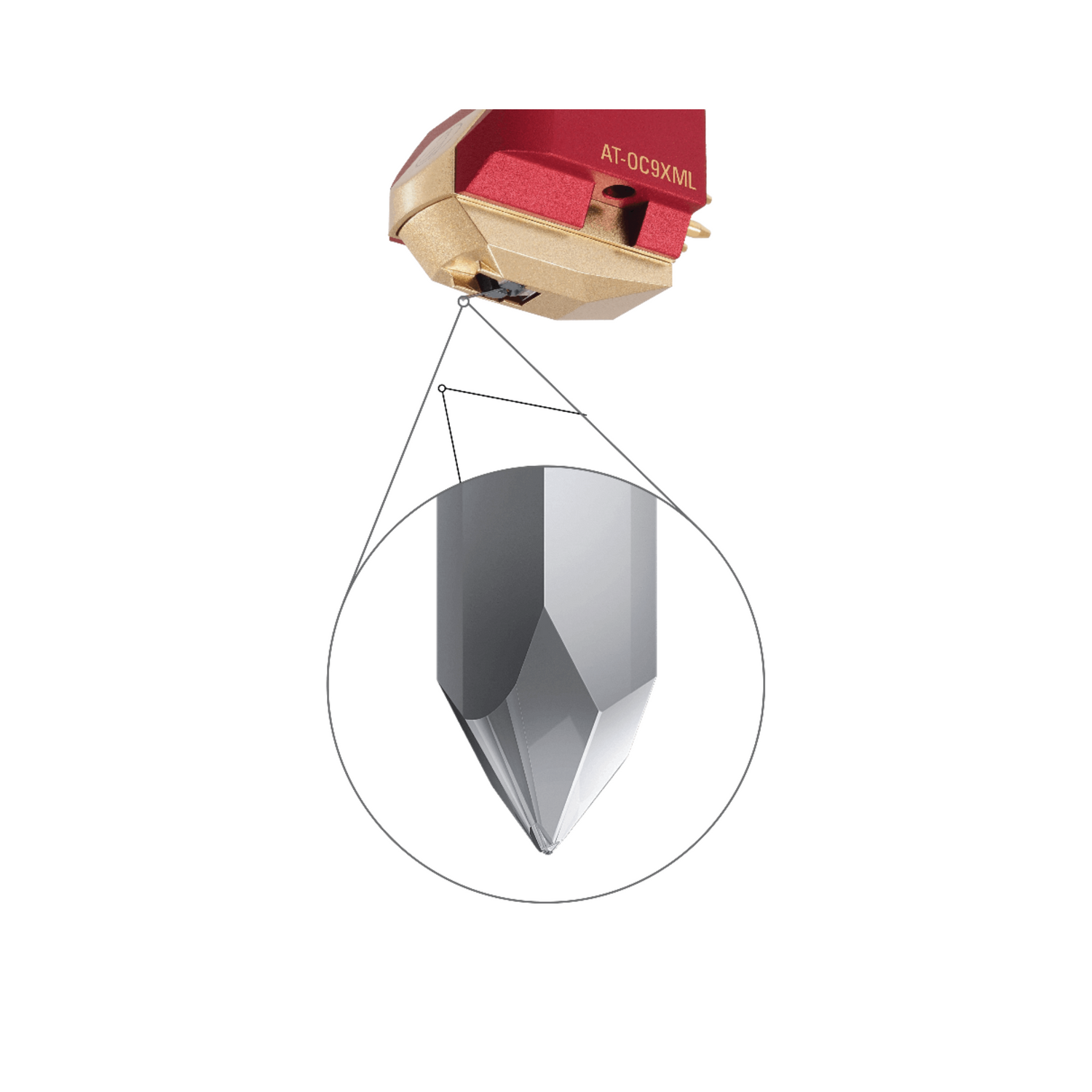

Microlinear Stylus
The AT-OC9XML features a microlinear diamond profile, allowing for higher frequency response and unprecedented detail retrieval while minimising inner groove distortion. This advanced stylus profile also reduces record and stylus wear, ensuring long-term performance and fidelity.
Easy Mounting
With threaded holes in the cartridge body, installation onto a headshell or integral tonearm is effortless, requiring only two screws (M2.6) without the need for nuts or bolts.
Aluminium Body
Crafted from aluminium, the cartridge body minimises unwanted vibration, resulting in reduced resonance and superior audio reproduction.
Made in Japan
Manufactured with precision in the Audio-Technica Fukui factory in Japan, the AT-OC9XML undergoes strict quality control measures to ensure exceptional performance and reliability.
Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 47,000 Hz |
| Channel Separation | 27 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.4 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | Microlinear |
| Cantilever | 0.28 mm Ø nude boron |
| Static Compliance | 20 x 10–6 cm / dyne |
| Dynamic Compliance | 16 x 10–6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

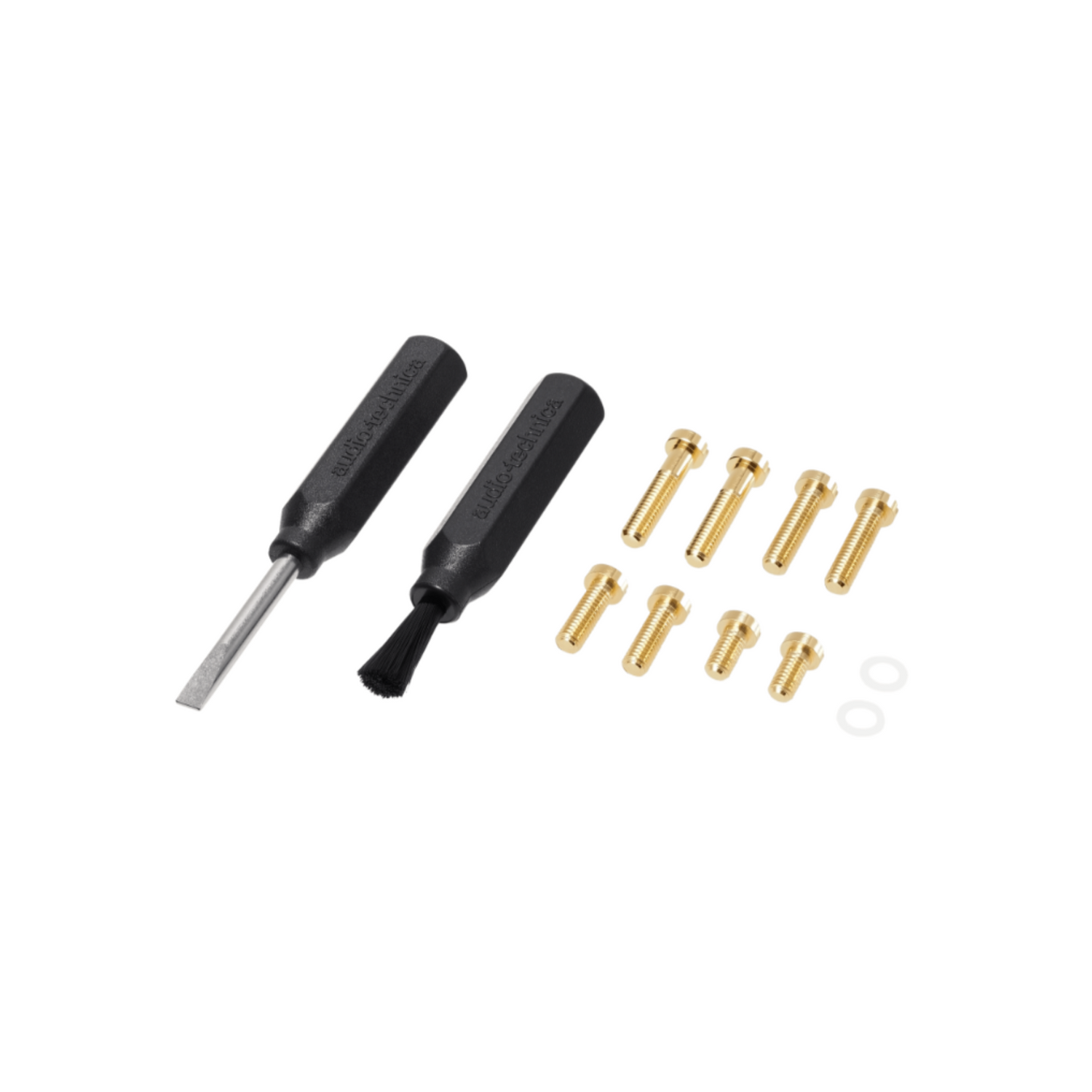

| Accessories Included | 1 non-magnetic screwdriver, 1 brush, 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XML |
| Stylus Size | 2.2 x 0.12 mil |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process) |
