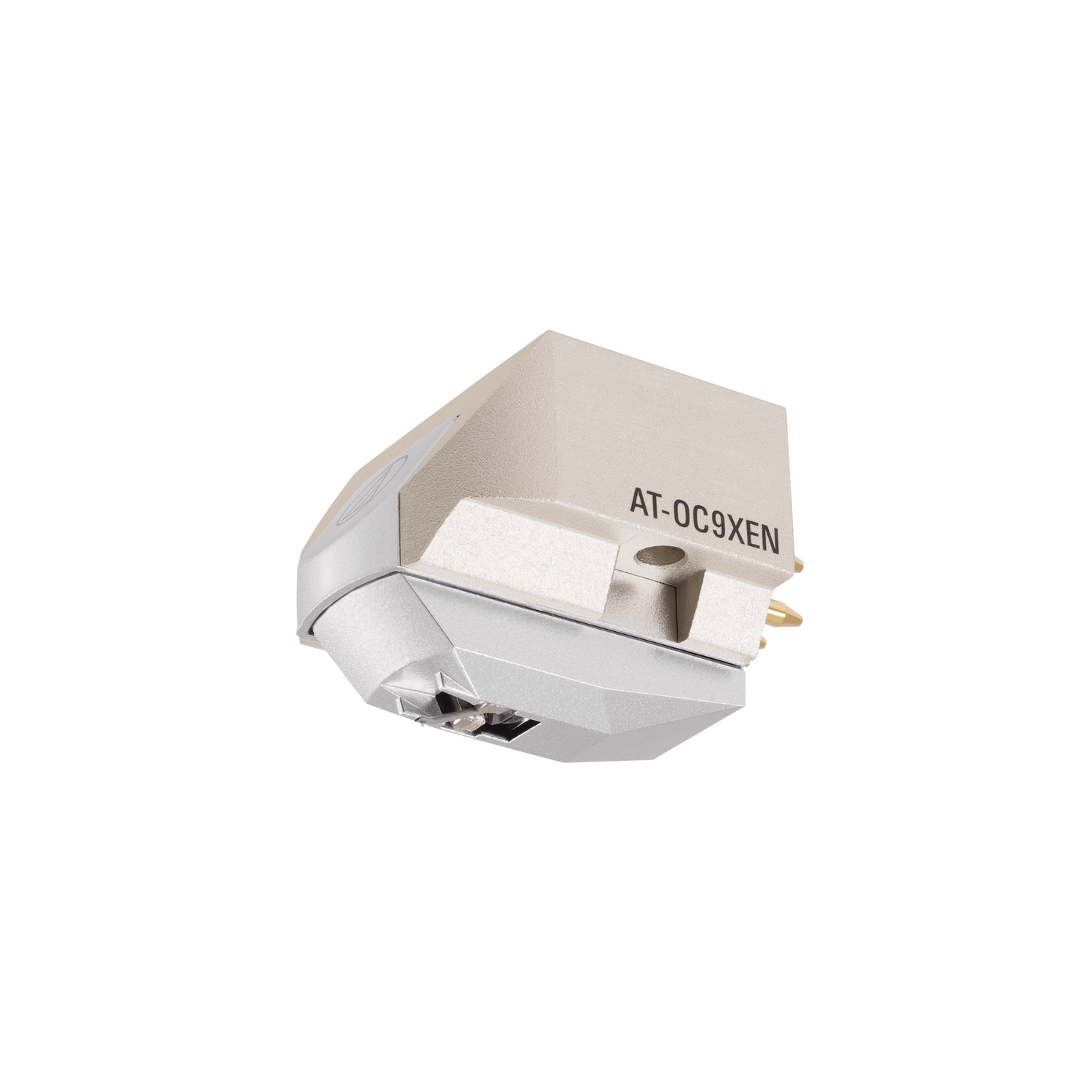

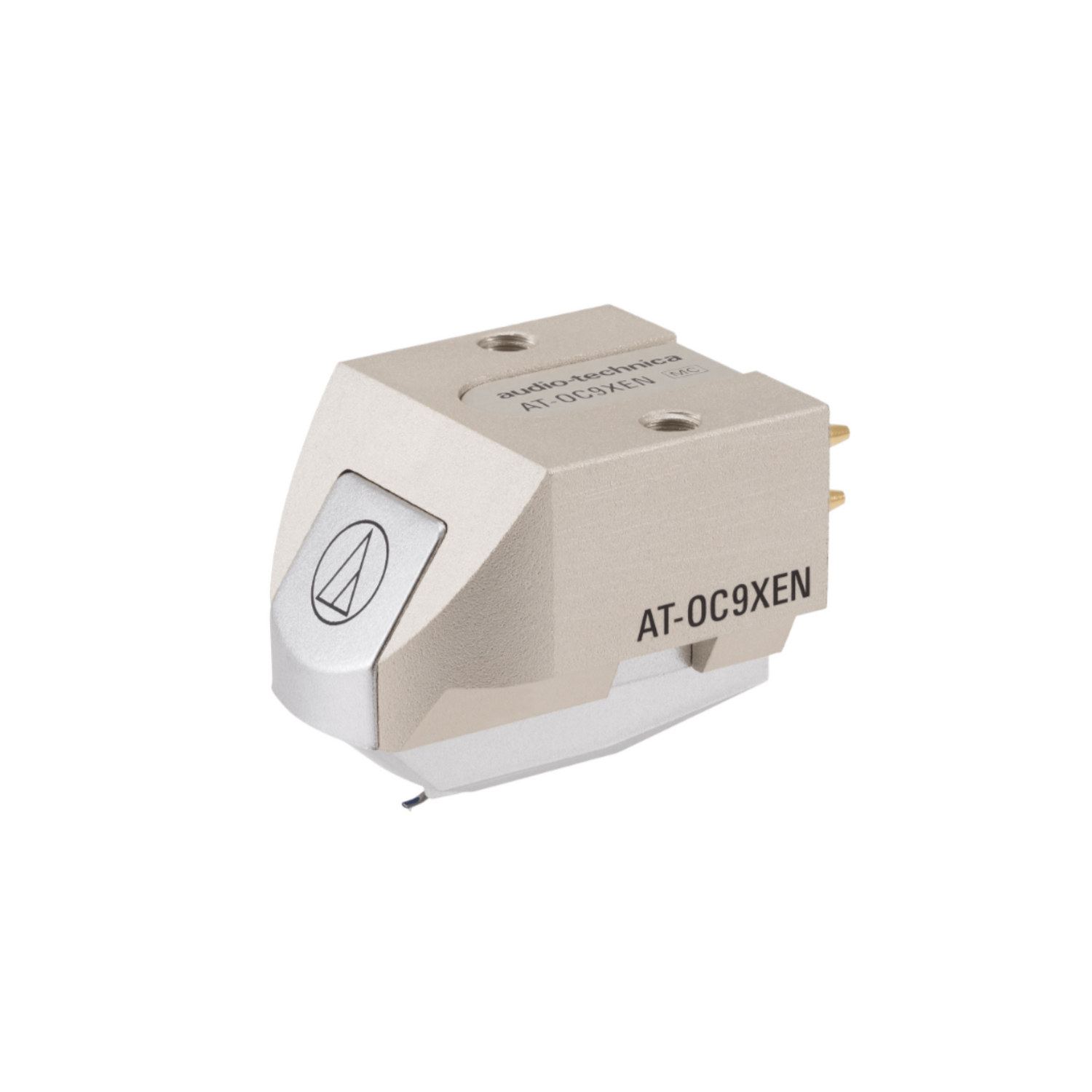

Audio Technica AT-OC9XEN Dual Moving Coil Stereo Cartridge - Elliptical Nude
The Audio Technica AT-OC9XEN dual moving coil stereo cartridge represents the next generation of the legendary OC9 cartridge series. Praised for over 30 years by discerning vinyl enthusiasts and professional critics alike, the OC9 series is renowned for its musical transparency, expressive sound, and meticulous construction. The AT-OC9XEN features a square shank for precise stylus alignment and a nude diamond for enhanced fine detail retrieval.

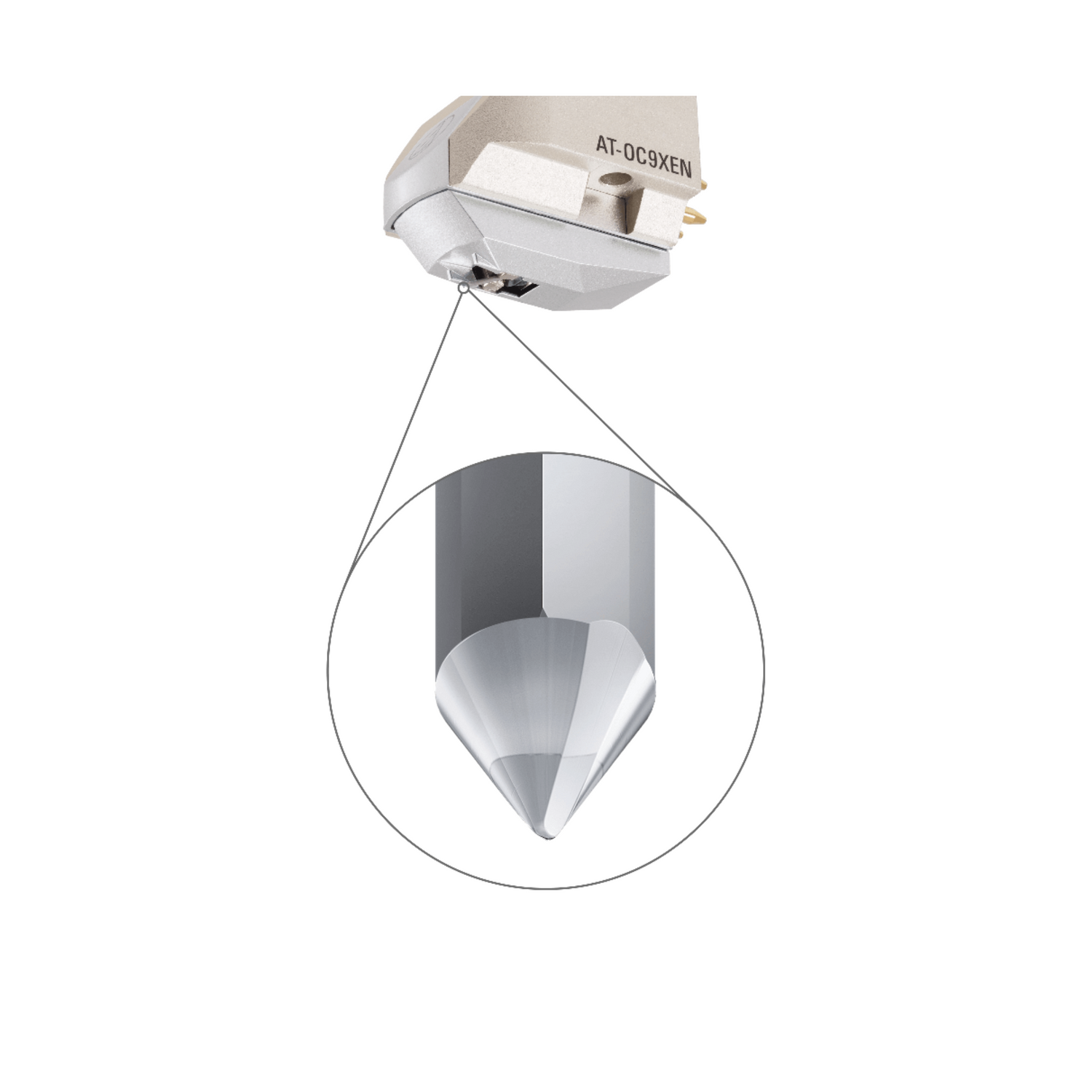

Elliptical Nude Stylus
The elliptical diamond stylus meticulously tracks the groove modulation with exceptional precision, surpassing the performance of a conical stylus. This results in improved frequency and phase responses, along with reduced distortion, providing an enriched listening experience.
Easy Mounting
The cartridge body features threaded holes, enabling easy mounting onto a headshell or integral tonearm using just two screws (M2.6), without the need for additional nuts or bolts.
Aluminium Body
Constructed from aluminium, the cartridge body effectively minimises unwanted vibrations, thereby reducing resonance and enhancing overall audio reproduction quality.
Made in Japan
Manufactured in the Audio-Technica Fukui factory in Japan, the AT-OC9XEN undergoes stringent quality control measures to ensure precise manufacturing standards are met.
Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 30,000 Hz |
| Channel Separation | 25 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.35 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | Elliptical Nude |
| Cantilever | Aluminium pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 9 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded inserts |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

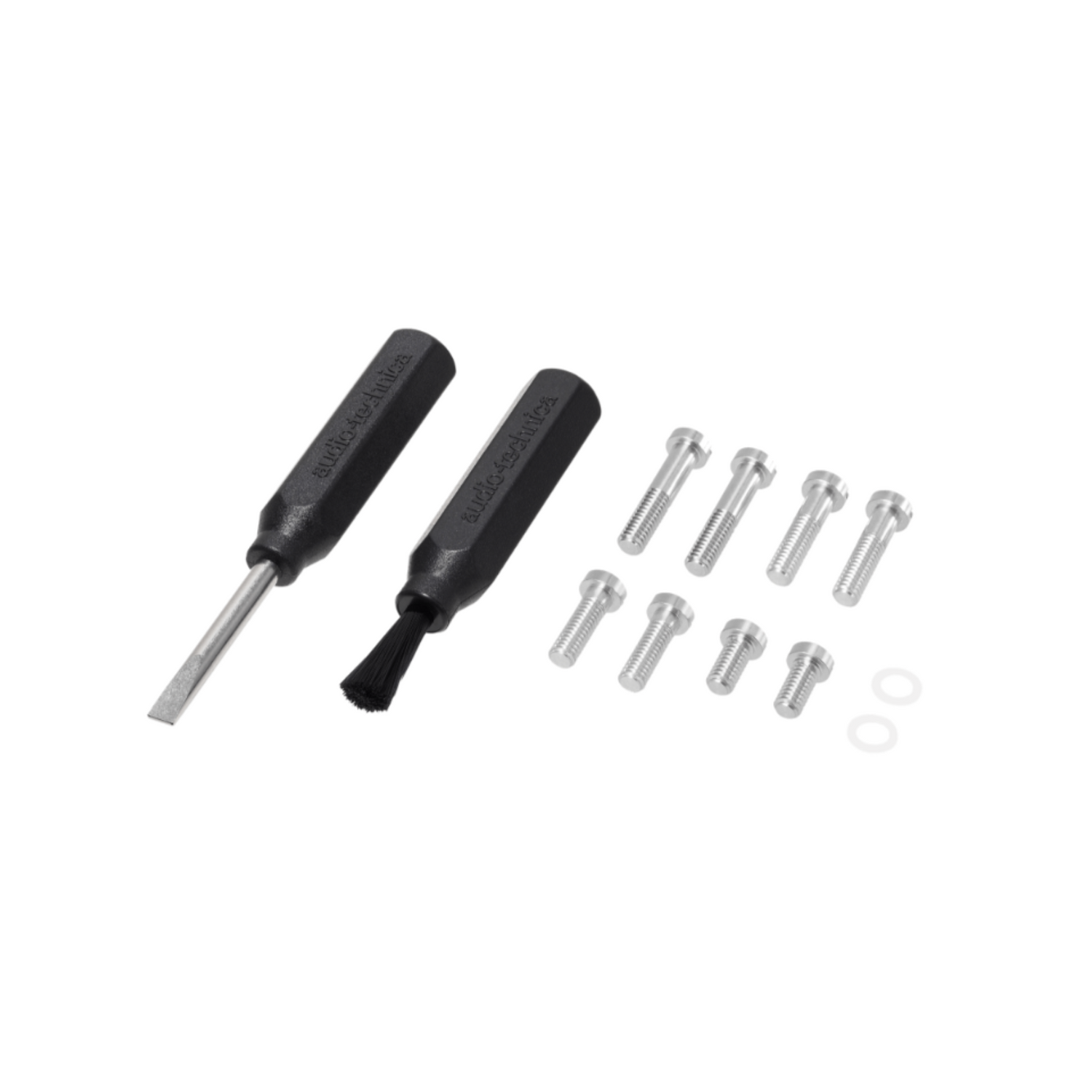

| Accessories Included | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XEN |
| Stylus Size | 0.3 x 0.7 mil |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
