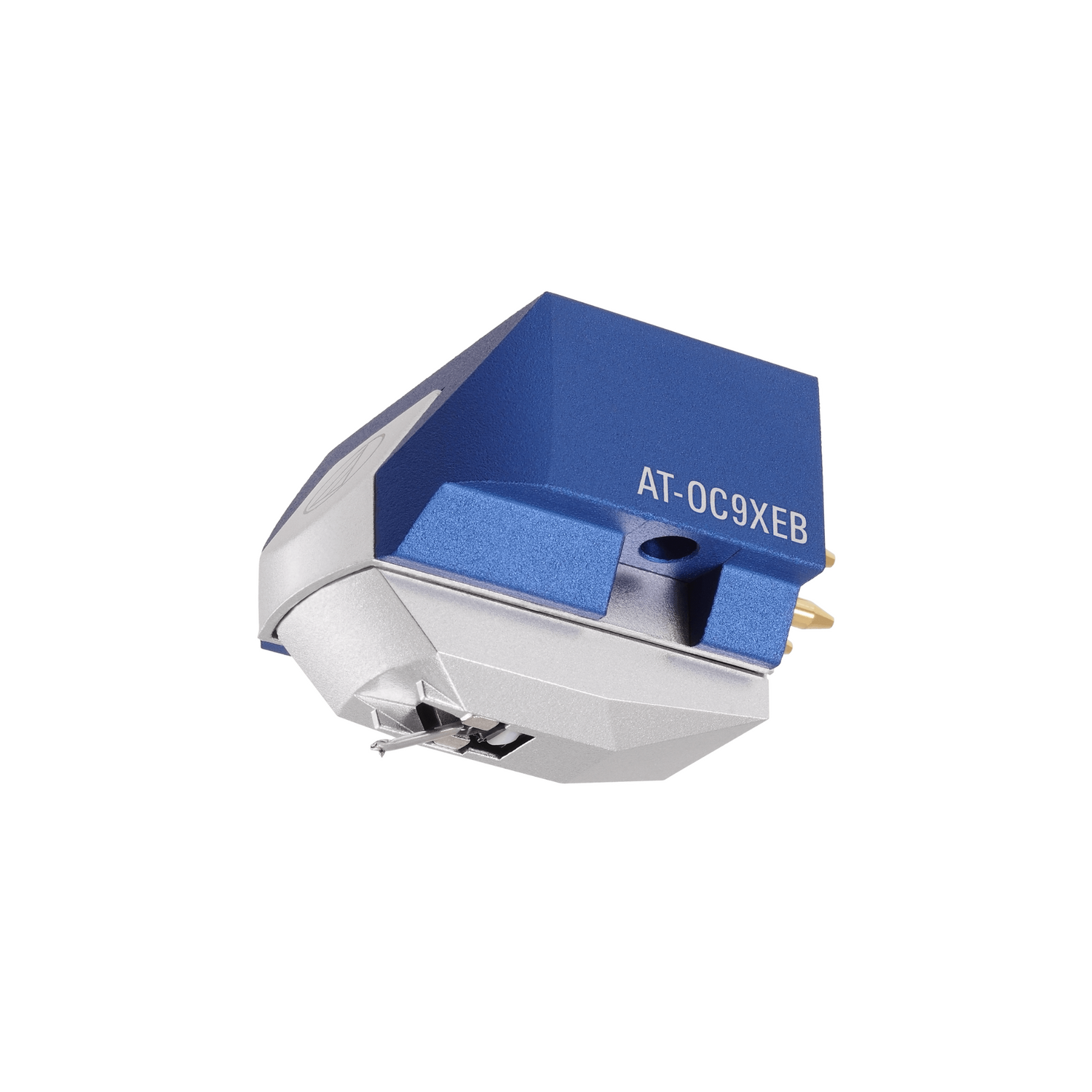

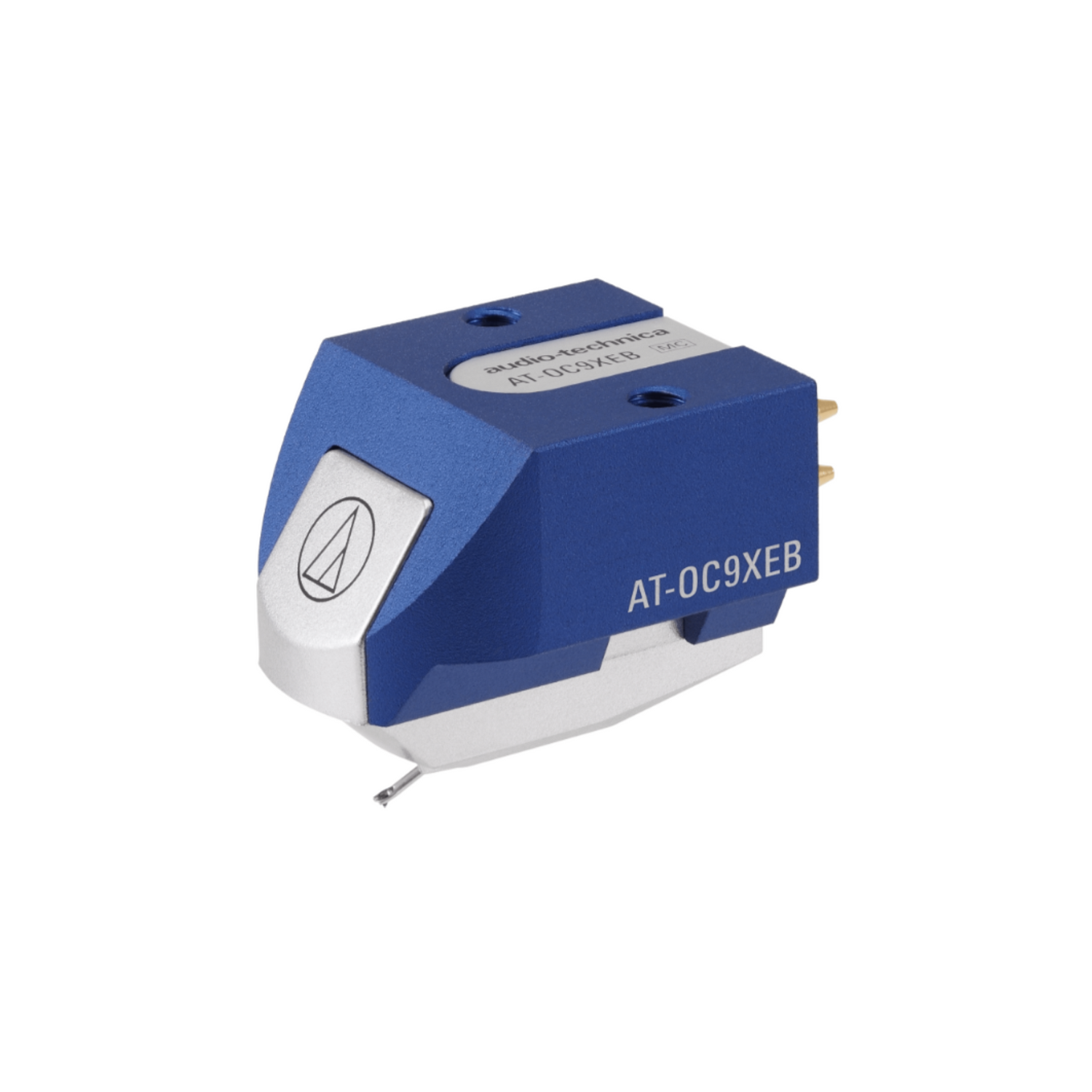

Audio Technica AT-OC9XEB Dual Moving Coil Stereo Cartridge - Elliptical Bonded
Introducing the next generation of the renowned OC9 cartridge series, which has been cherished by discerning vinyl enthusiasts and professional critics alike for over 30 years. Audio-Technica's pioneering moving coil OC9 cartridges are celebrated for their musical transparency, faithful sound reproduction, and meticulous craftsmanship. An excellent and affordable entry point into the world of moving coil cartridges.

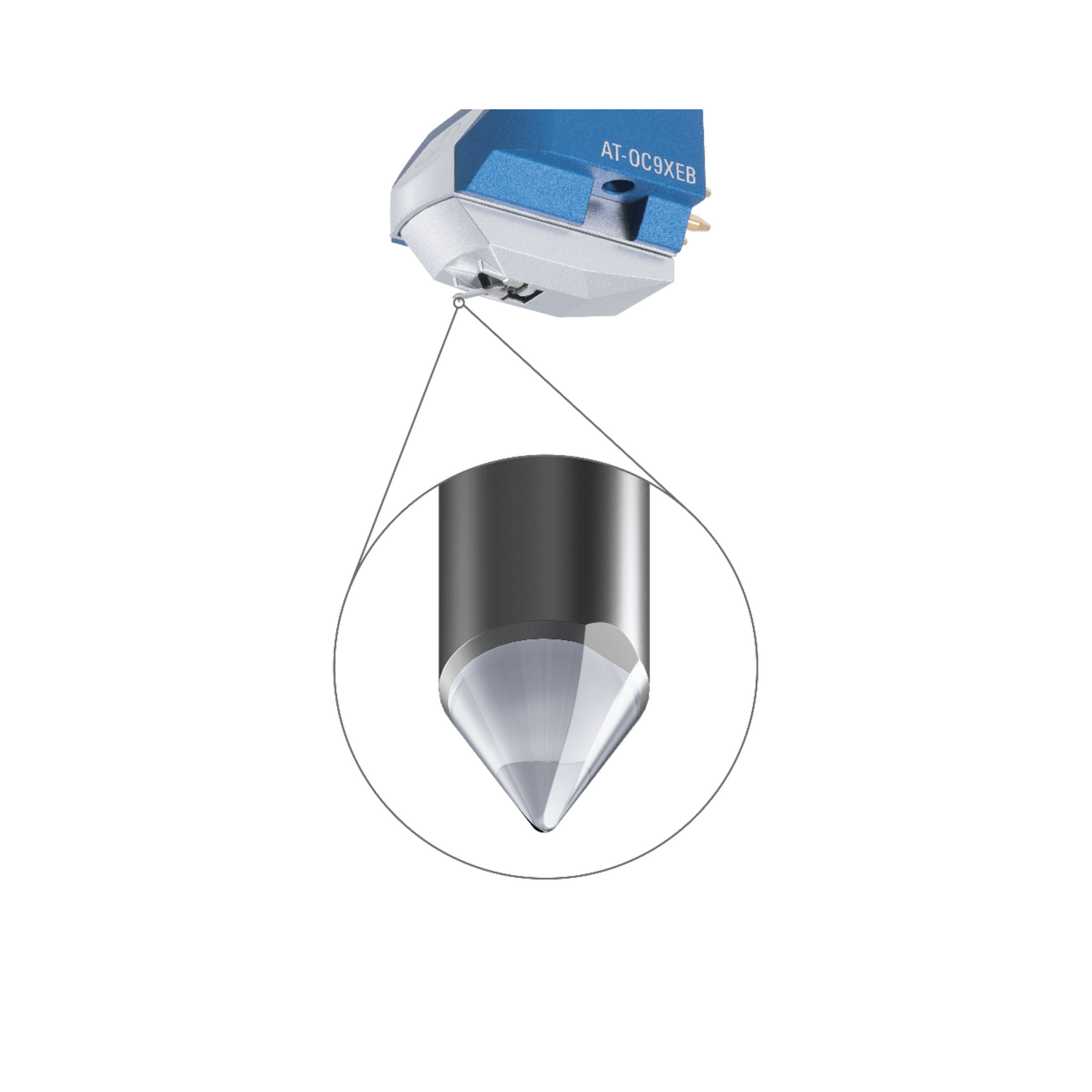

Elliptical Bonded Stylus
The AT-OC9XEB is equipped with an elliptical diamond stylus that meticulously follows the groove modulation with enhanced precision compared to conical styli. This results in improved frequency and phase responses while reducing distortion for a more faithful audio reproduction.
Easy Mounting
Featuring threaded holes in the cartridge body, the AT-OC9XEB can be effortlessly mounted onto a headshell or integral tonearm using just two screws (M2.6), eliminating the need for nuts or bolts.
Aluminium Body
Crafted with an aluminium body, this cartridge effectively minimises unwanted vibrations, reducing resonance and ensuring superior audio reproduction with enhanced clarity.
Made in Japan
Manufactured in the Audio-Technica Fukui factory in Japan under stringent quality control measures, the AT-OC9XEB is precision-engineered to deliver outstanding performance and reliability.
Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 30,000 Hz |
| Channel Separation | 25 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.32 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | Elliptical Bonded |
| Cantilever | Aluminium pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 9 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded inserts |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

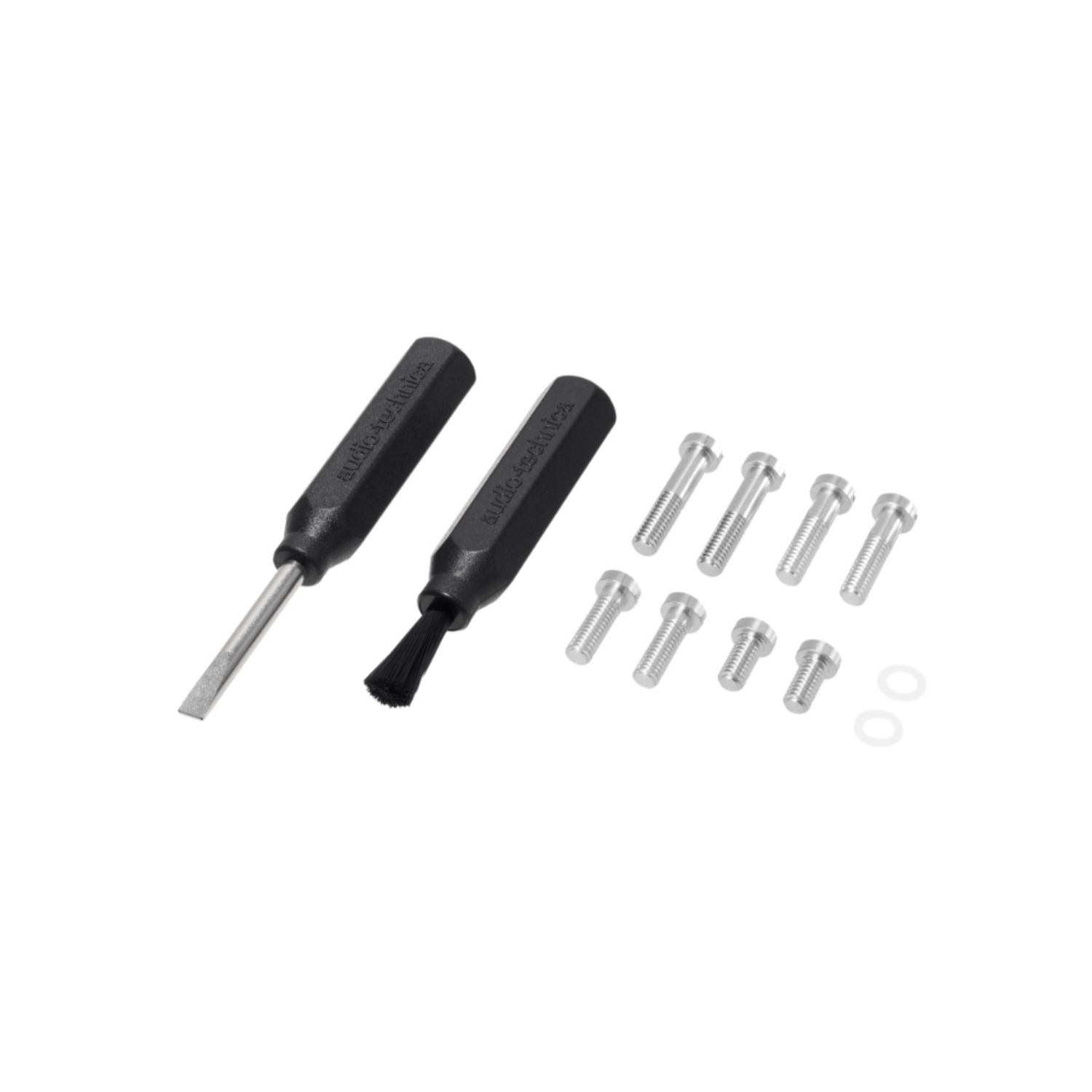

| Accessories Included | 1 non magnetic screw driver, 1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm, 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XEB |
| Stylus Size | 0.3 x 0.7 mil |
| Terminal Pins | Brass |
| Weight | 7.6 g |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
