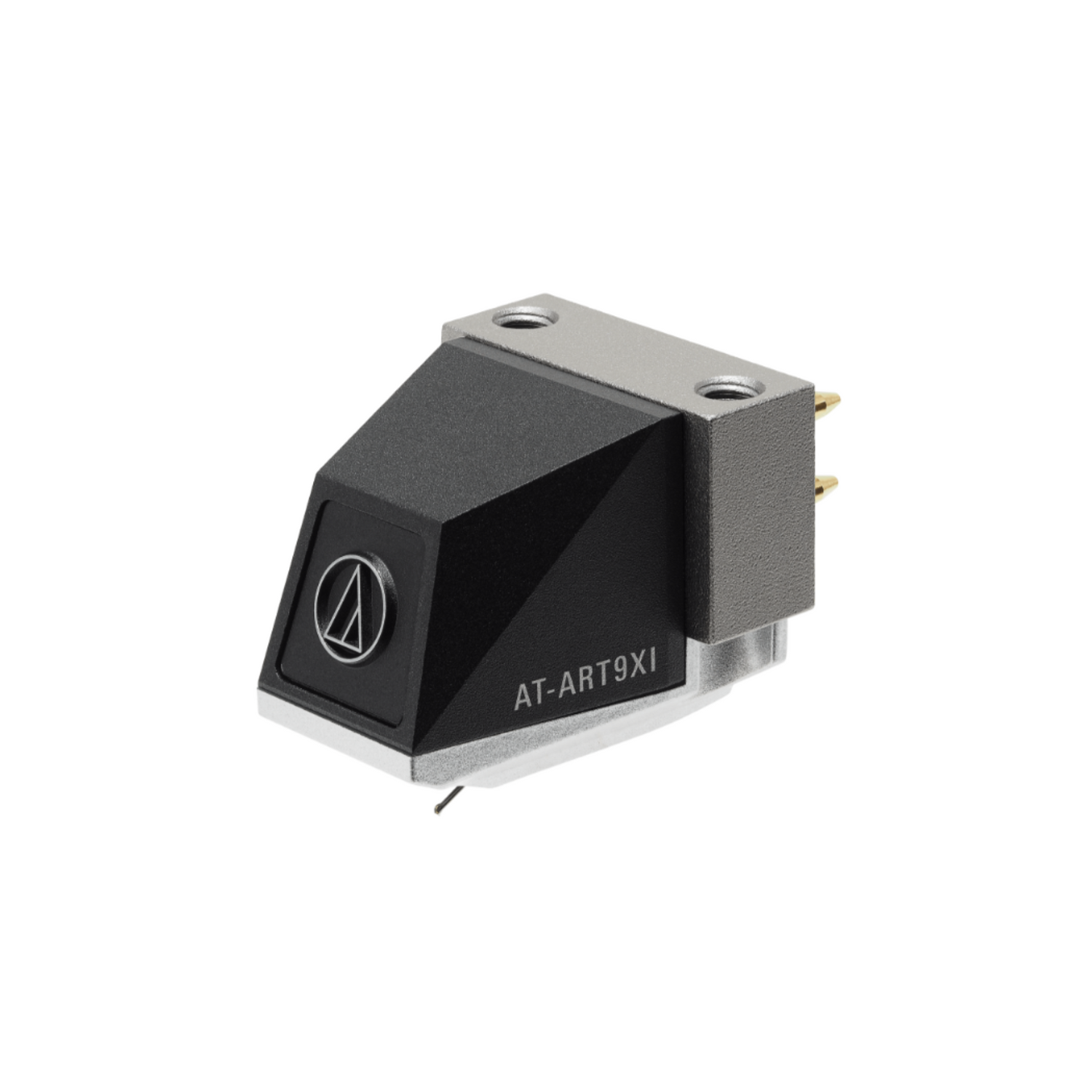

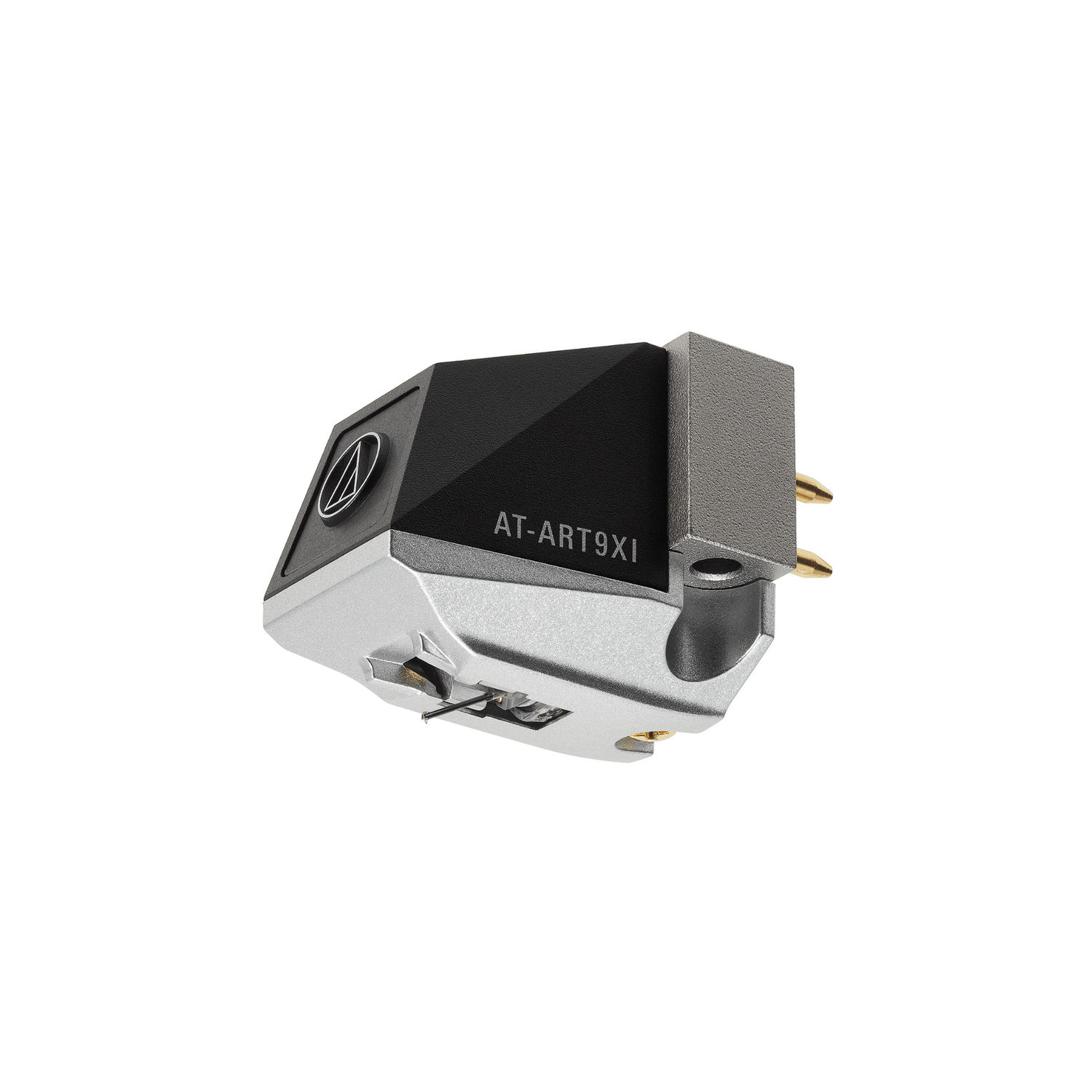

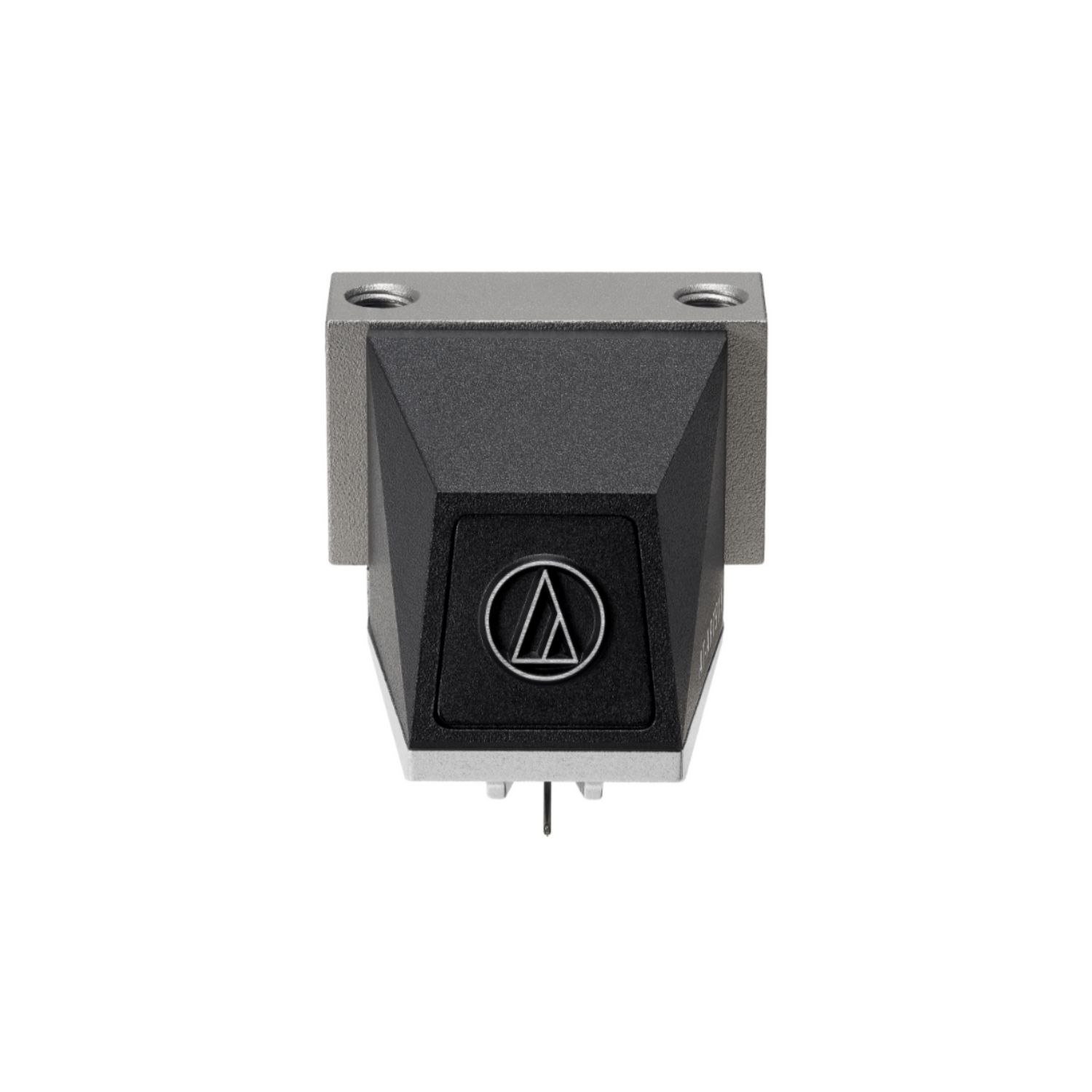

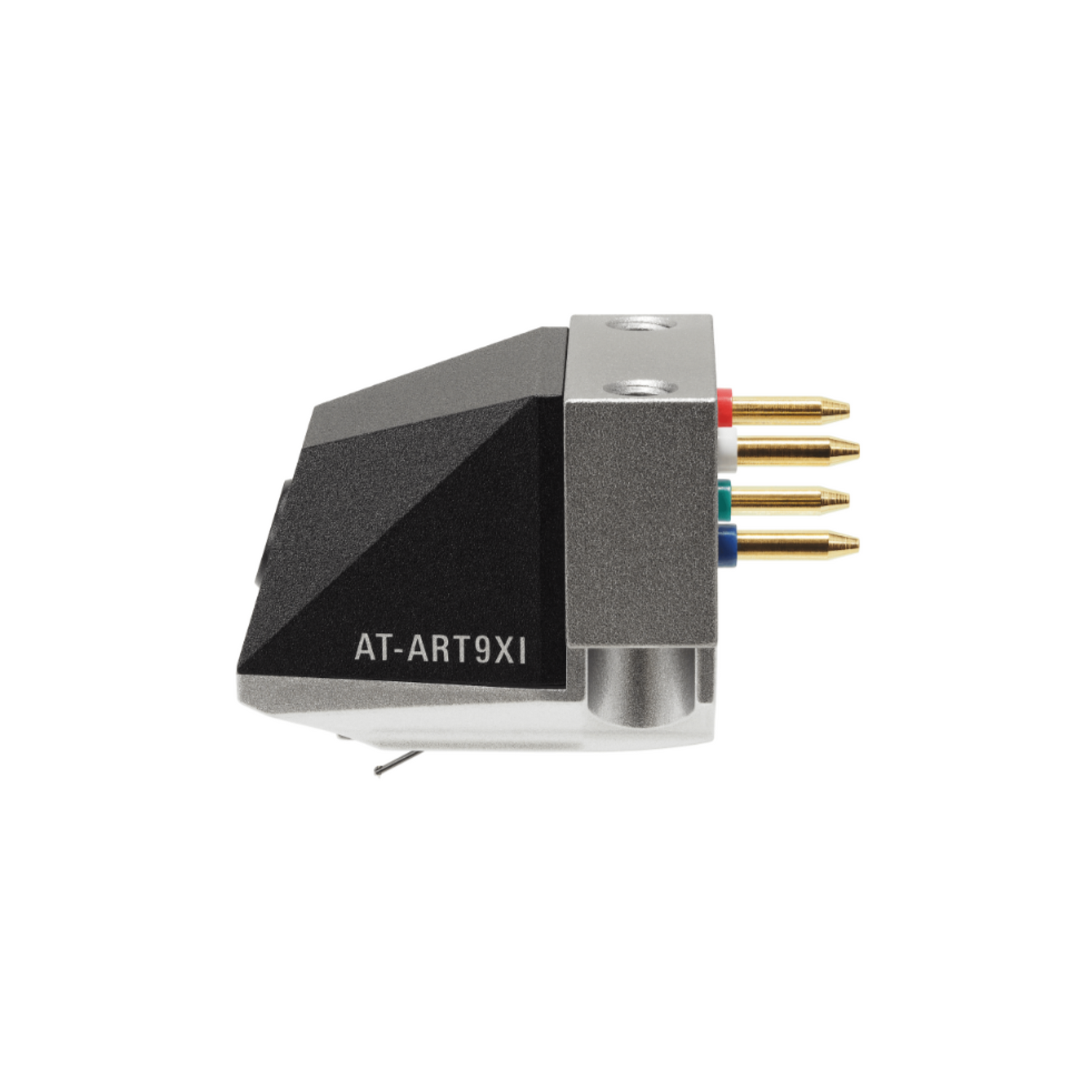

Audio Technica AT-ART9XI Dual Moving Coil Stereo Cartridge (Non-Magnetic Core)

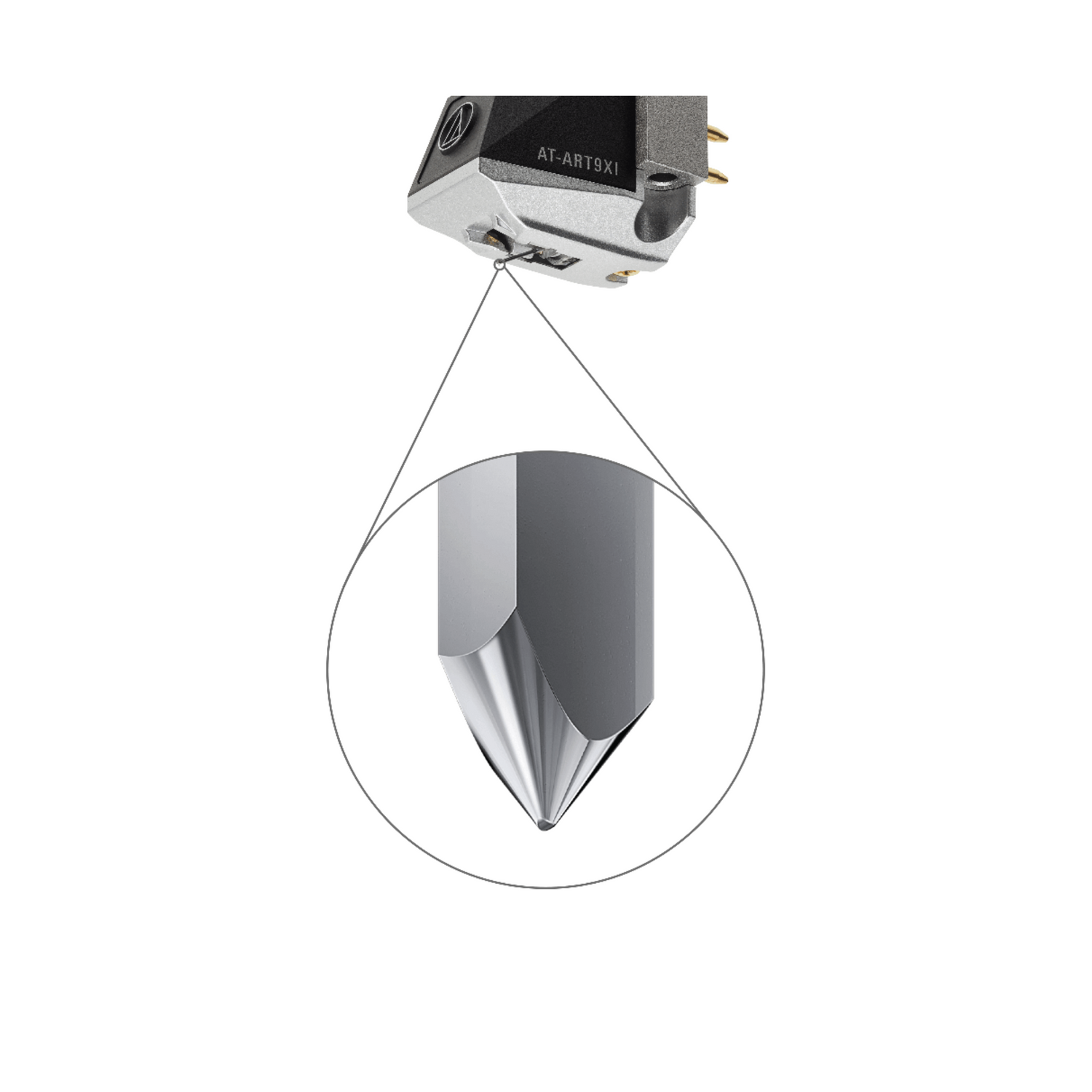

The AT-ART9XI takes the place of Audio-Technica's flagship magnetic core MC cartridge, the AT-ART9, featuring a special line contact stylus mounted on a 0.28 mm diameter solid boron cantilever.
ART Designation
The "ART" designation signifies Audio-Technica Reference Transducer, reserved for flagship phono cartridges. The specially designed magnetic circuit of the AT-ART9XI produces an output voltage of 0.5 mV (1 kHz, 5 cm/sec), ensuring dynamic playback and faithful reproduction of delicate nuances.
Dual Moving Coils
Crafted from high-performance PCOCC wire, the cartridge's dual moving coils are aligned in an inverted V shape to provide high separation and wide response, resulting in clear sound localization and minimal distortion.
Ease of Installation
Threaded cartridge mounting holes simplify installation onto a headshell or integrated tonearm, facilitating a hassle-free setup process.
Please Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-50,000 Hz |
| Channel Separation | 30 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.6-2.0 g (1.8 g standard) |
| Stylus Construction | Nude |
| Recommended Load Impedance | Min. 100 ohms (when head amplifier connected) |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 2.5 µH (1 kHz) |
| Output Voltage | 0.2 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | 0.28 mm diameter solid boron |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 8.5 g (0.30 oz) |
| Dimensions | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |

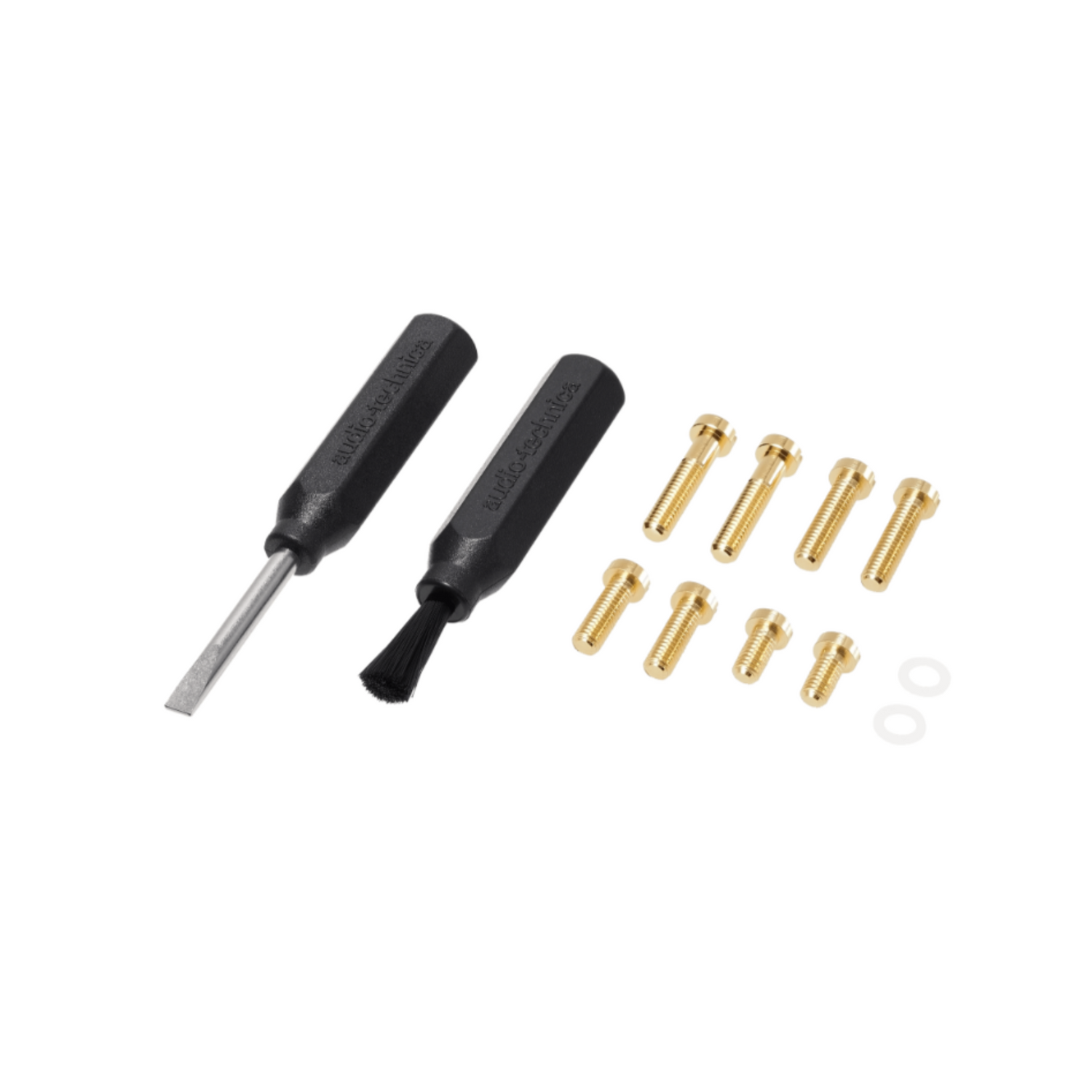

| Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush |
| Threaded Hole | M2.6 x 2 |
| Notes | Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
