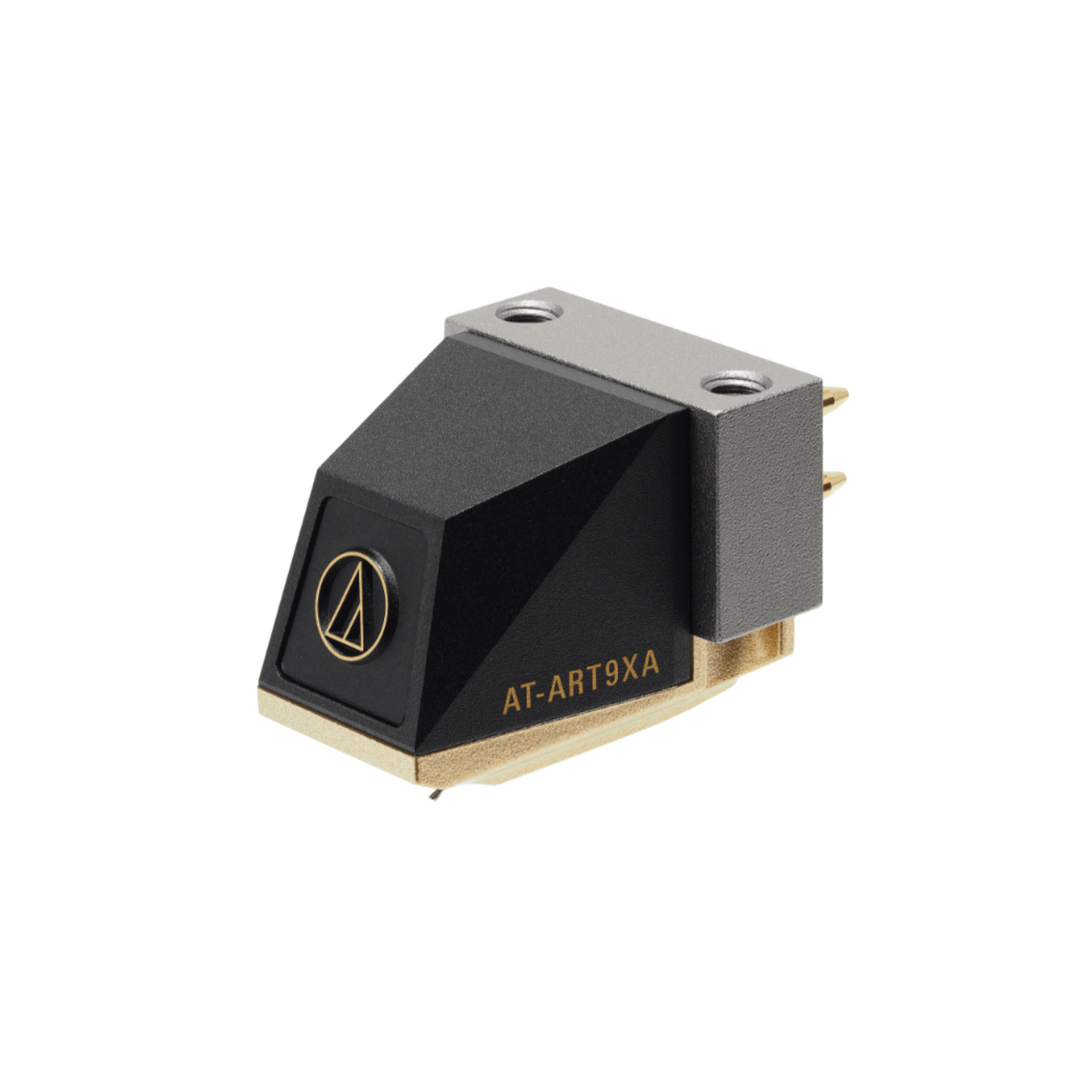

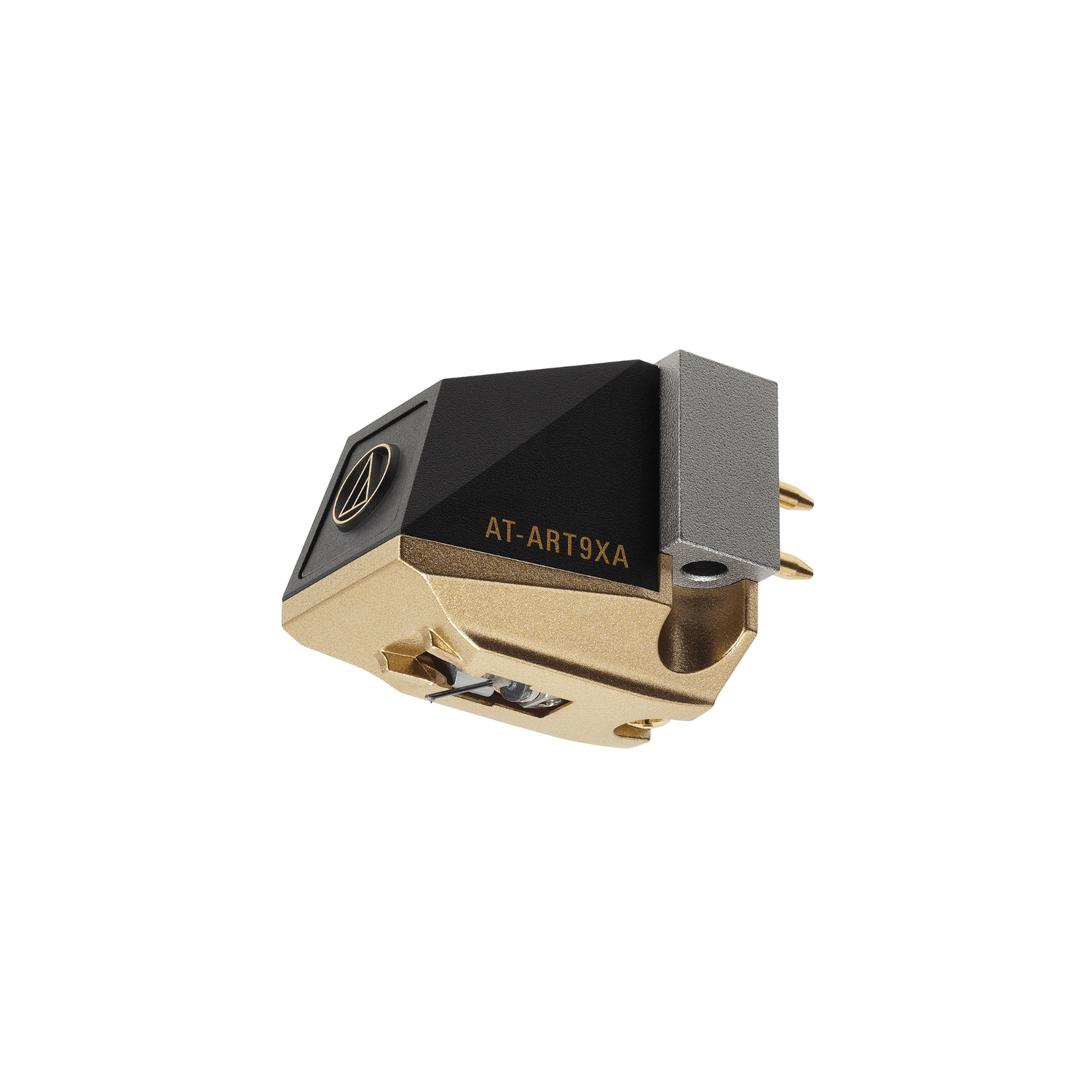

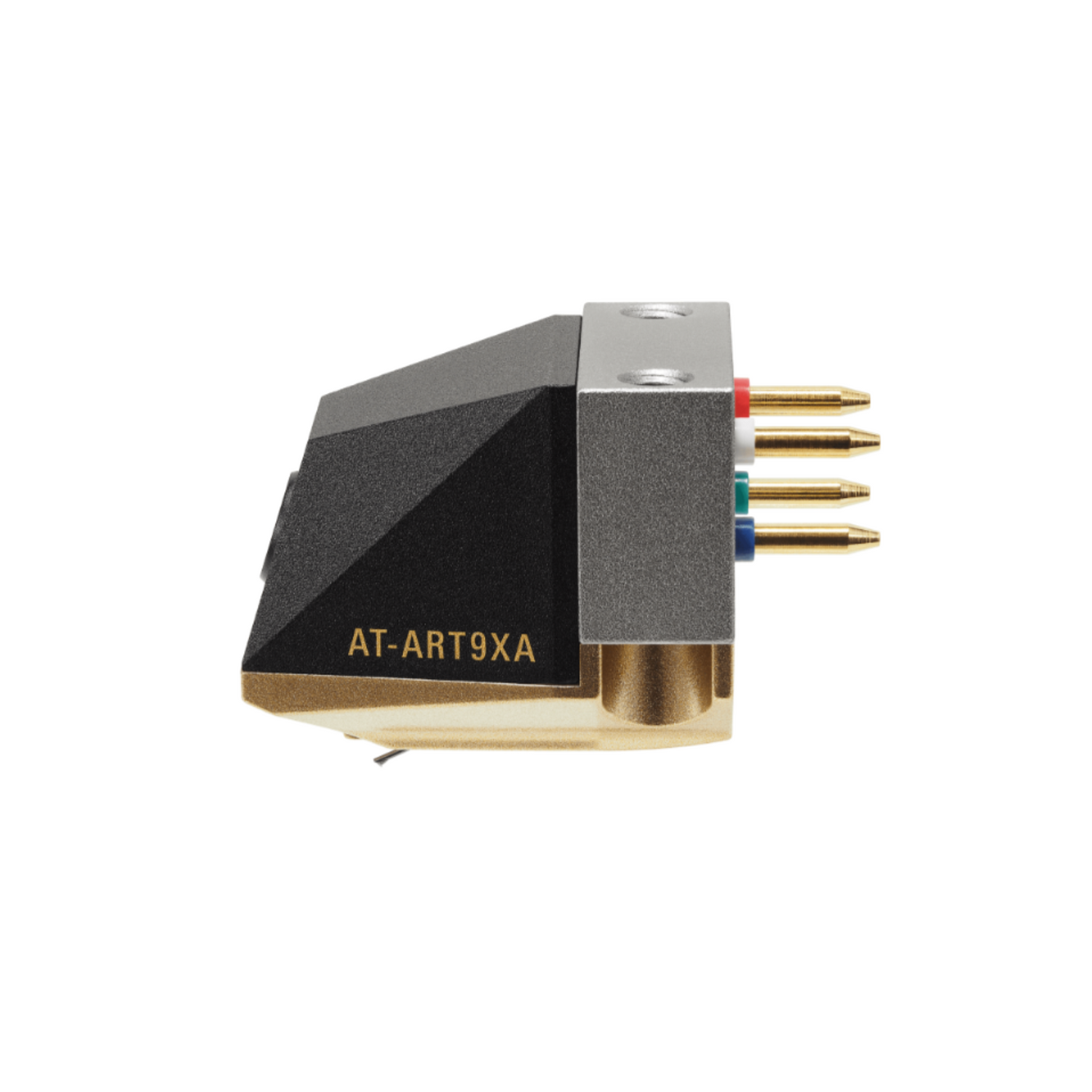

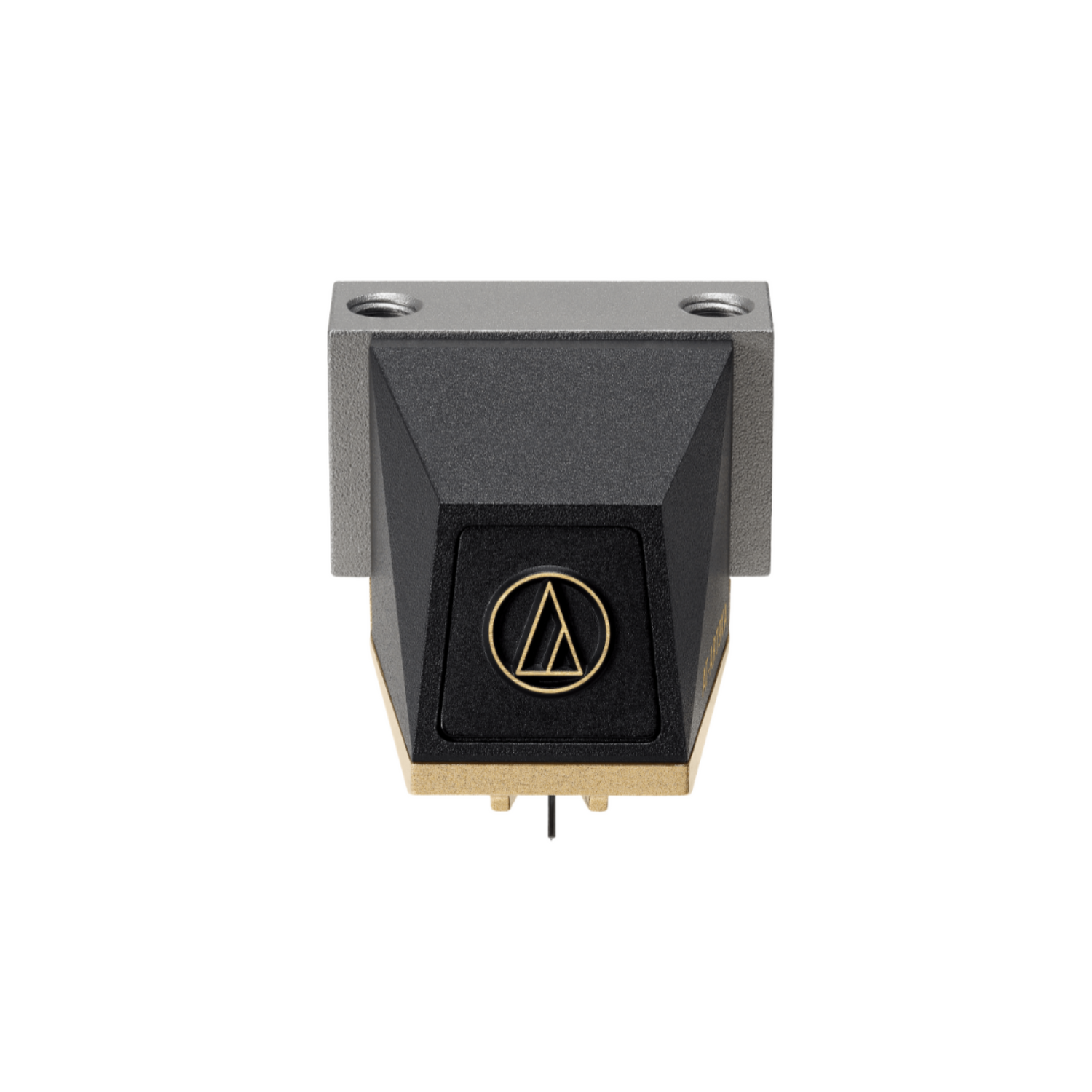

Audio Technica AT-ART9XA Dual Moving Coil Stereo Cartridge (Non-Magnetic Core)
The AT-ART9XA is an upgraded version of the AT-ART7, boasting a non-magnetic core MC cartridge design with exceptional performance features.
Advanced Design

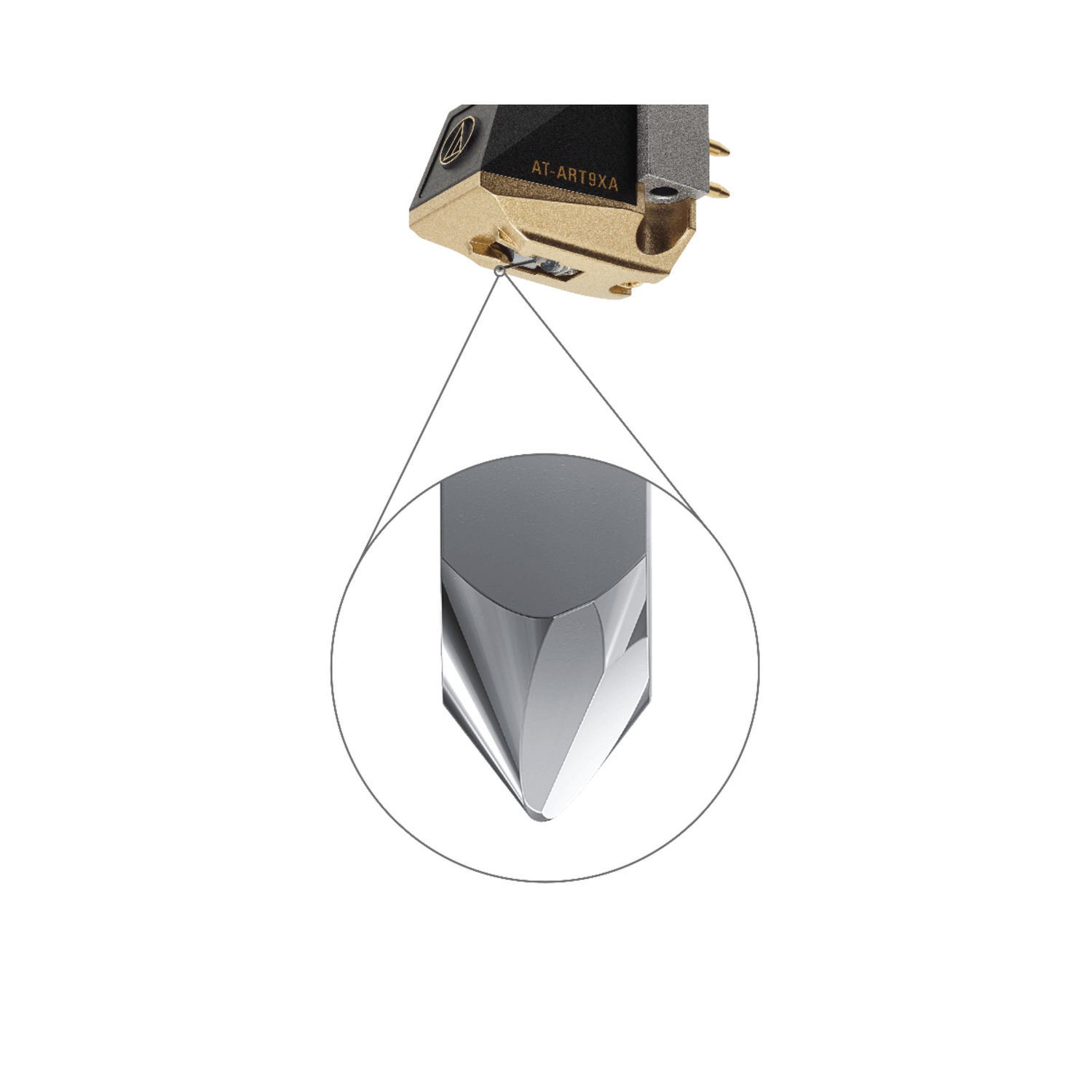

Featuring a Shibata stylus mounted on a 0.28 mm diameter solid boron cantilever, the AT-ART9XA incorporates cutting-edge technology for unparalleled sound reproduction.
Reference Transducer
The "ART" designation in the model name signifies Audio-Technica Reference Transducer, reserved for flagship phono cartridges. Unlike magnetic core cartridges, the non-magnetic core design of the AT-ART9XA eliminates magnetic distortion, resulting in natural timbre and precise sound field reproduction.
Enhanced Output Voltage
While traditional non-magnetic core cartridges often struggle with output voltage, the AT-ART9XA overcomes this limitation with a newly designed coil armature, delivering an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec).
Dual Moving Coils
The cartridge features dual moving coils crafted from high-performance PCOCC wire, arranged in an inverted V shape to ensure high separation and wide response for exceptional audio fidelity.
Easy Installation

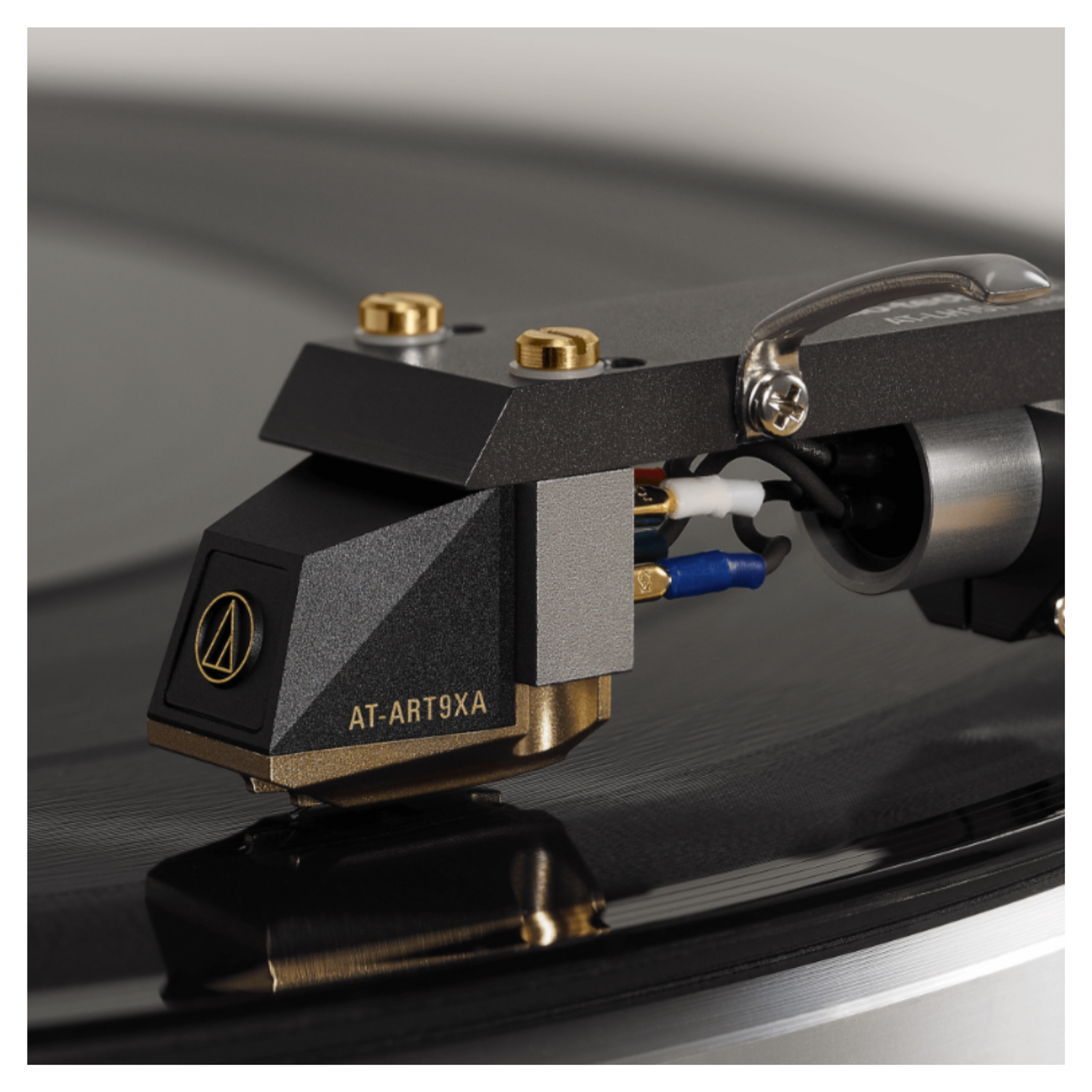

Threaded cartridge mounting holes simplify installation on a headshell or integrated tonearm, making setup hassle-free for users.
Key Features
Key Features
Specifications
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-50,000 Hz |
| Channel Separation | 30 dB (at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.6-2.0 g (1.8 g standard) |
| Stylus Construction | Nude |
| Recommended Load Impedance | Min. 100 ohms (when head amplifier connected) |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 2.5 µH (1 kHz) |
| Output Voltage | 0.2 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | 0.28 mm diameter solid boron |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 8.5 g (0.30 oz) |
| Dimensions | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |

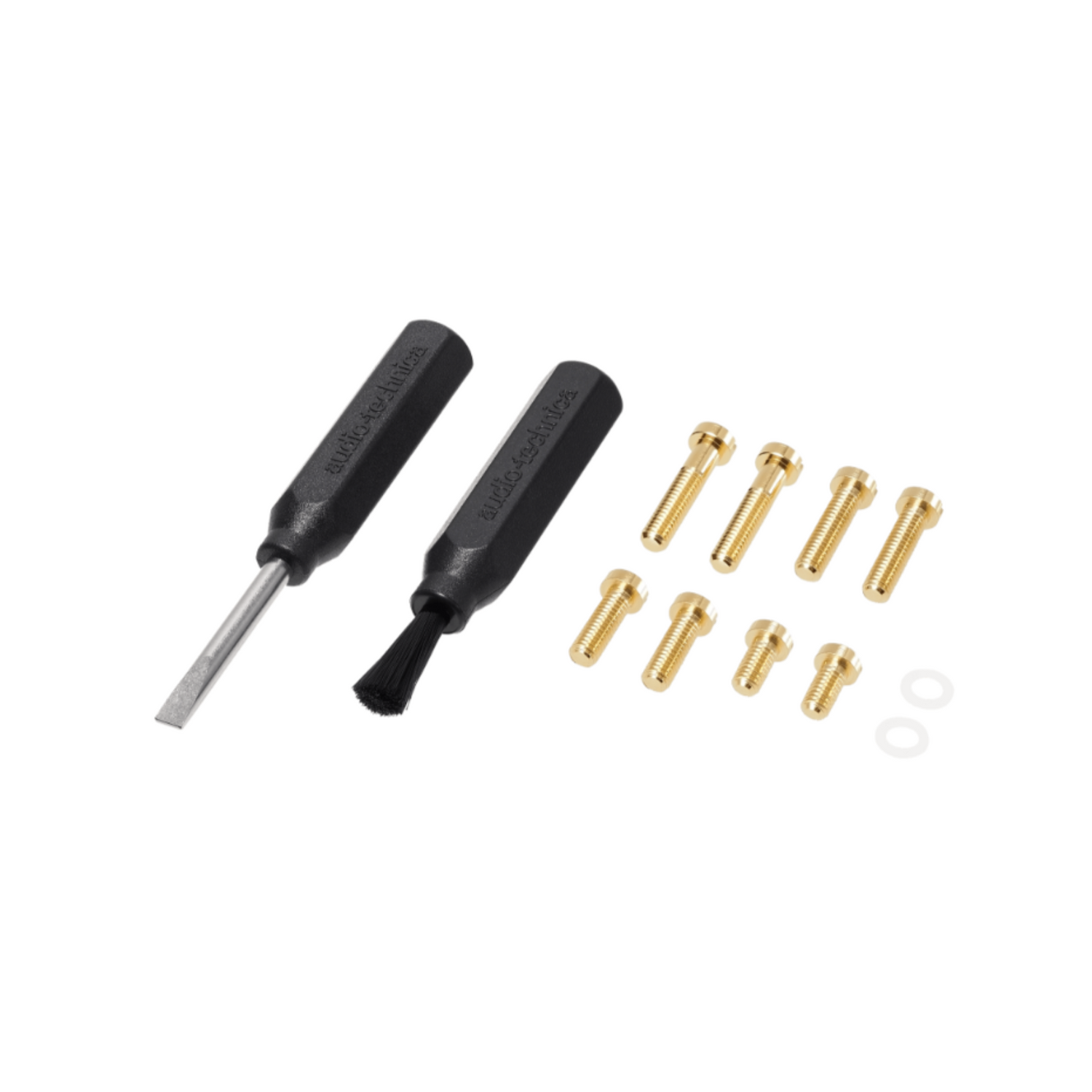

| Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush |
| Threaded Hole | M2.6 x 2 |
| Notes | Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
