Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge

Audio Technica  |  SKU: 95765
Model# AT33SA
£2,749.99
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

  • Product Warranty Available

    1-Year Warranty

Description

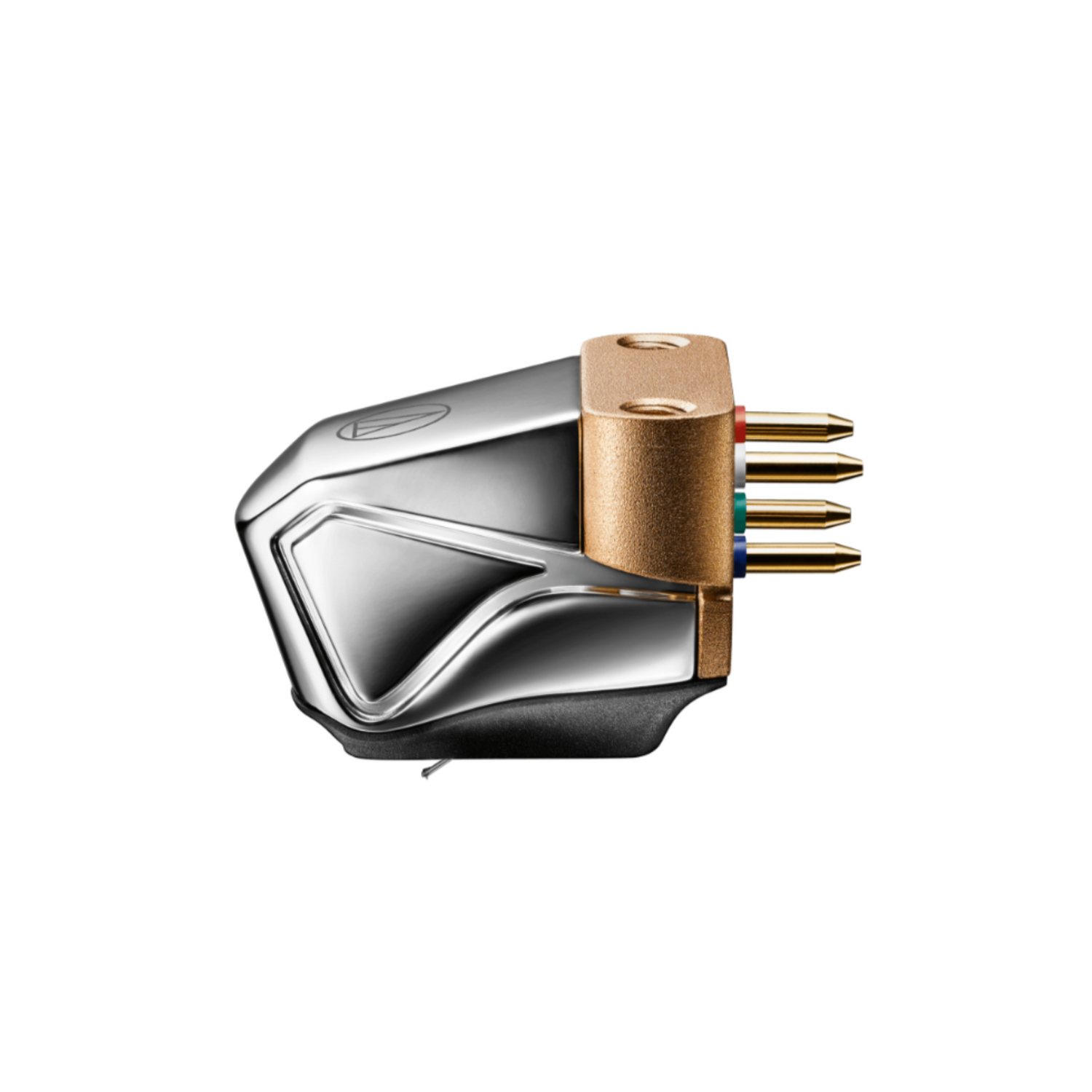

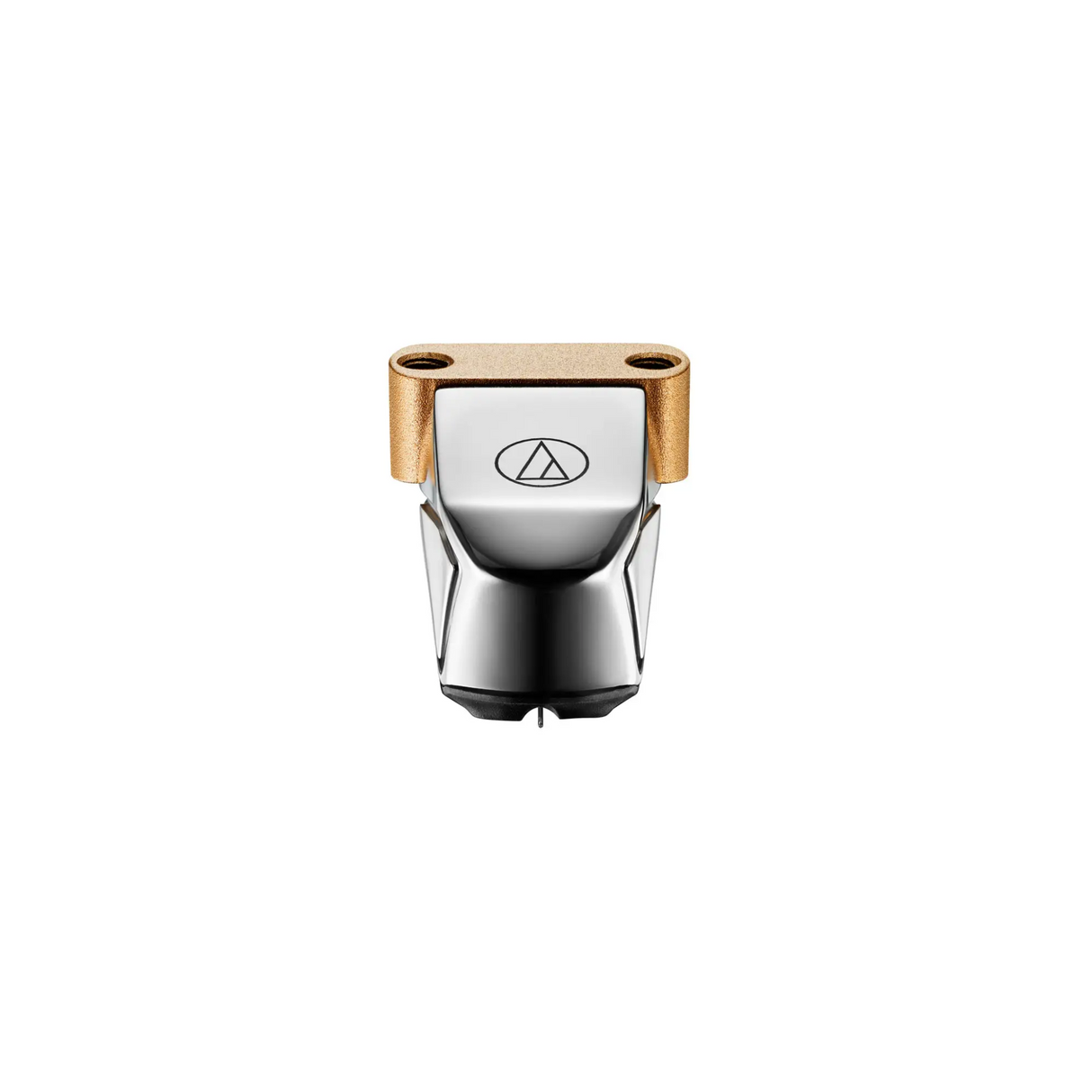

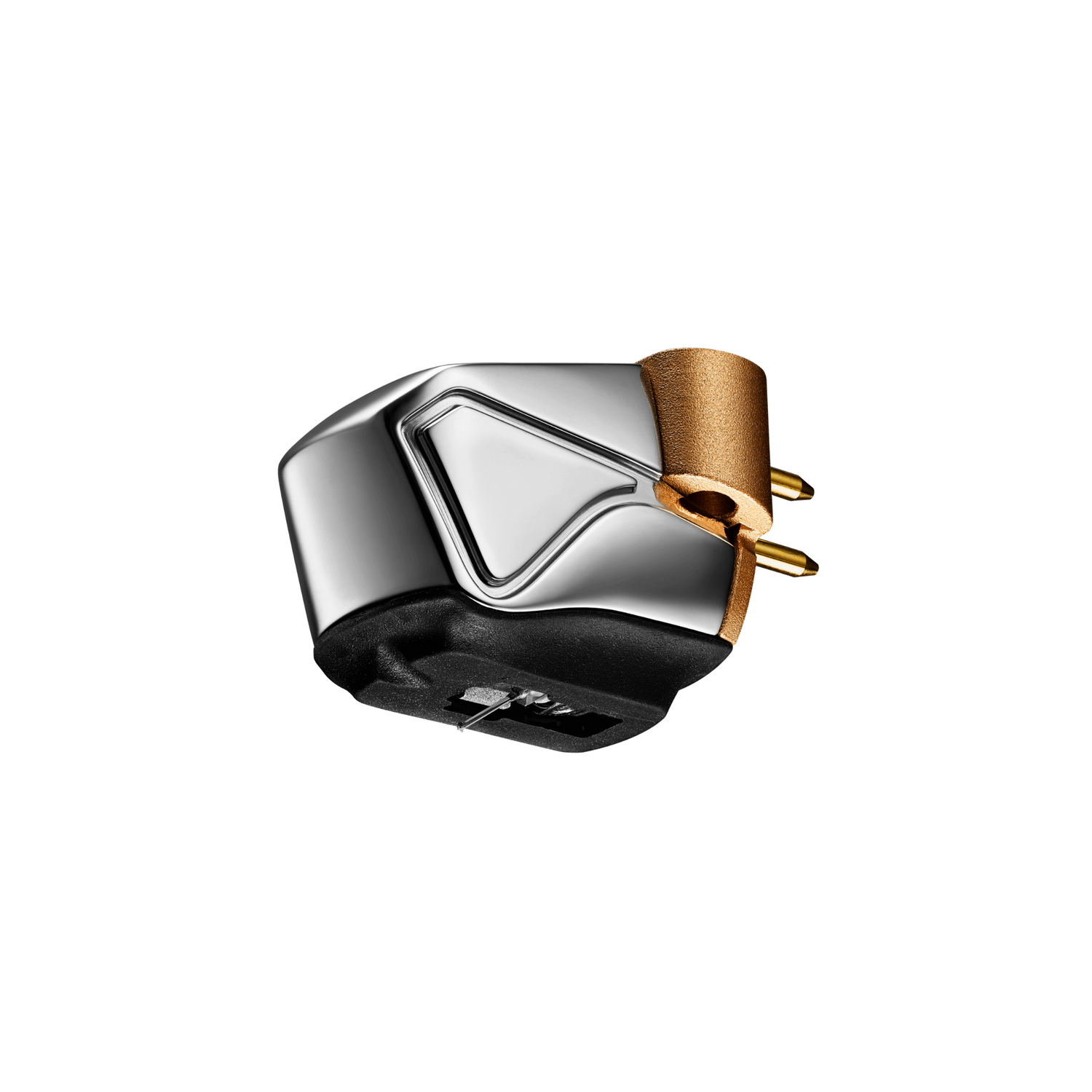

Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge

Embark on a Journey of Analogue Sound

Audio-Technica proudly presents the AT-ART20, the latest addition to our prestigious ART Series, designed to immerse you in a realm of unparalleled sound. With a focus on delivering exceptional analogue sound reproduction and harnessing the benefits of a magnetic core cartridge, the AT-ART20 sets a new standard in high-fidelity audio.

Drawing upon our extensive expertise in cartridge technology and leveraging top-quality materials and advanced manufacturing processes, we have meticulously crafted the AT-ART20 to faithfully reproduce sound with the utmost precision and expression, capturing the full richness of the original recording.

Excellence Recognised

The AT-ART20 has earned the distinction of being designated an Audio-Technica Excellence Product, a testament to its uncompromising performance and fidelity.

Experience Enhanced Sound

The AT-ART20 boasts an extended and detailed high-frequency response, ensuring every nuance is faithfully reproduced. Additionally, the low-frequency range, often obscured by other cartridges, is rendered with unparalleled clarity and impact. Vocals resonate with lifelike clarity and expression, even at lower volumes, while the entirety of the sound source is revitalised, offering extended depth and immersive spatial imaging that transports the listener to the original performance environment.

Key Features

  • Provides superlative analogue sound reproduction
  • Reproduces sound with the full expressiveness of the original recording

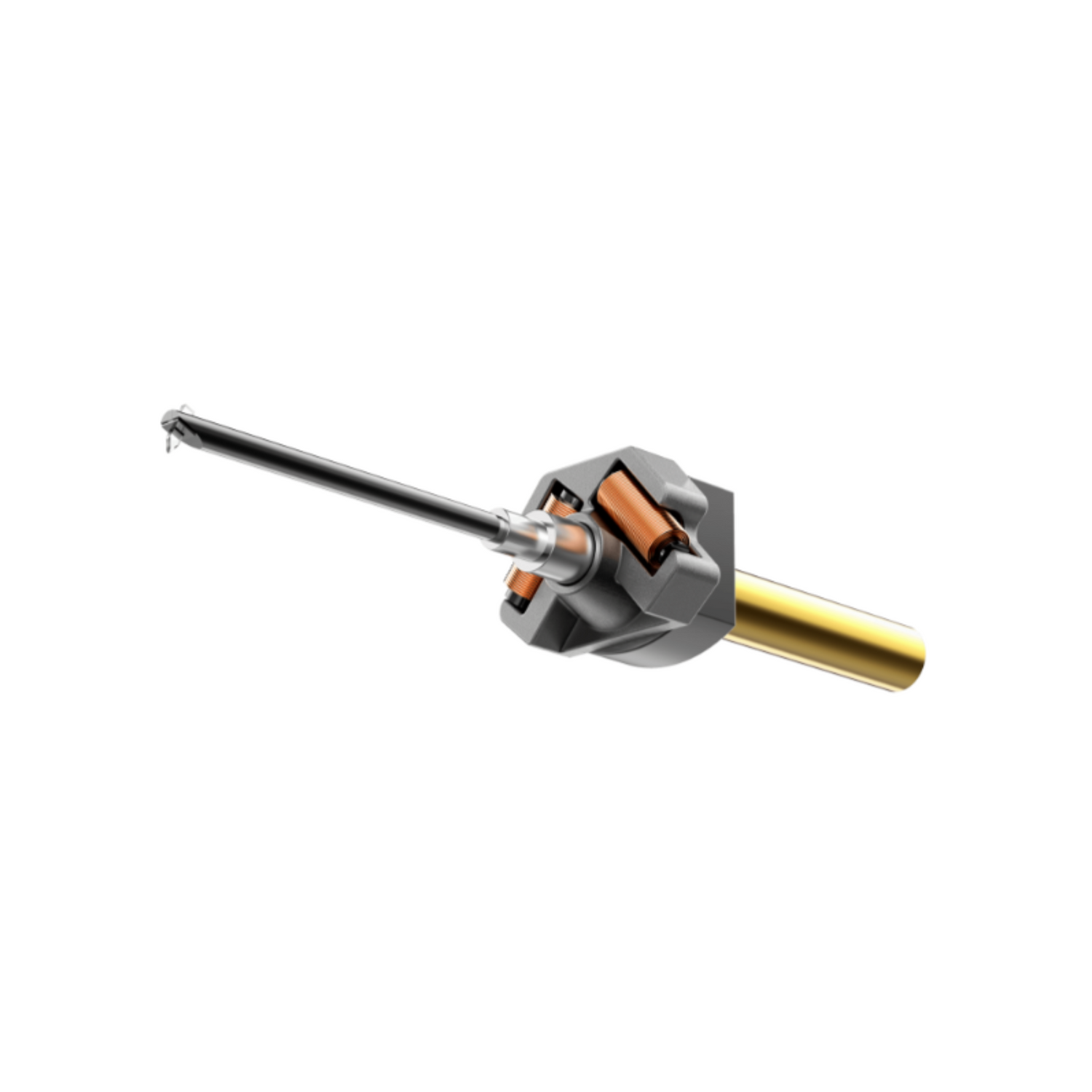

  • Newly designed magnetic circuit improves the cartridge’s efficiency
  • Output voltage is improved by more than 15% without increasing the number of coil turns which can increase mass and impedance.

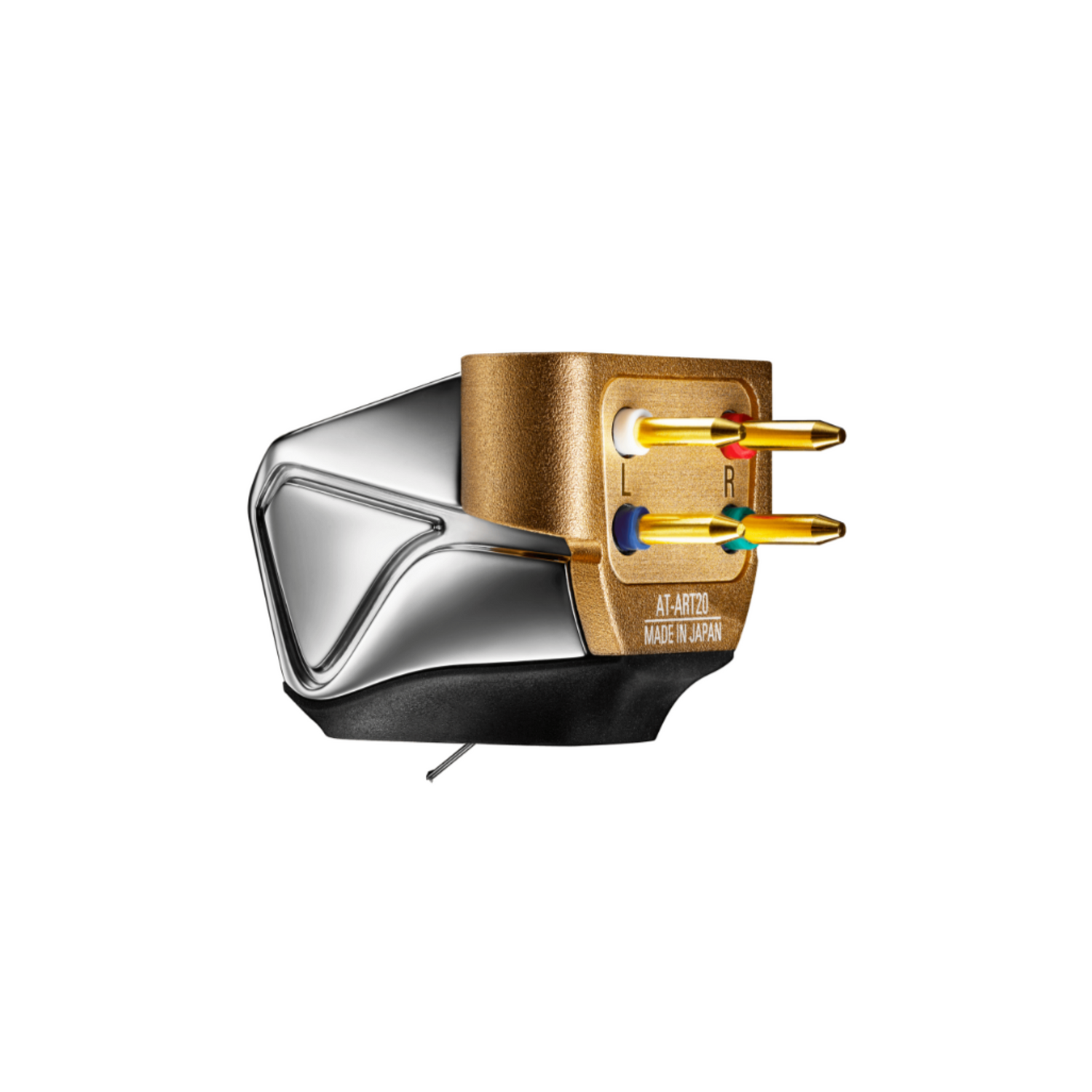

  • High-quality terminal pins with thick gold plating are approximately 30 times than that of conventional products to reduce contact resistance
  • Constructed of titanium, and aluminium with an elastomer undercover to reduce undesirable resonance

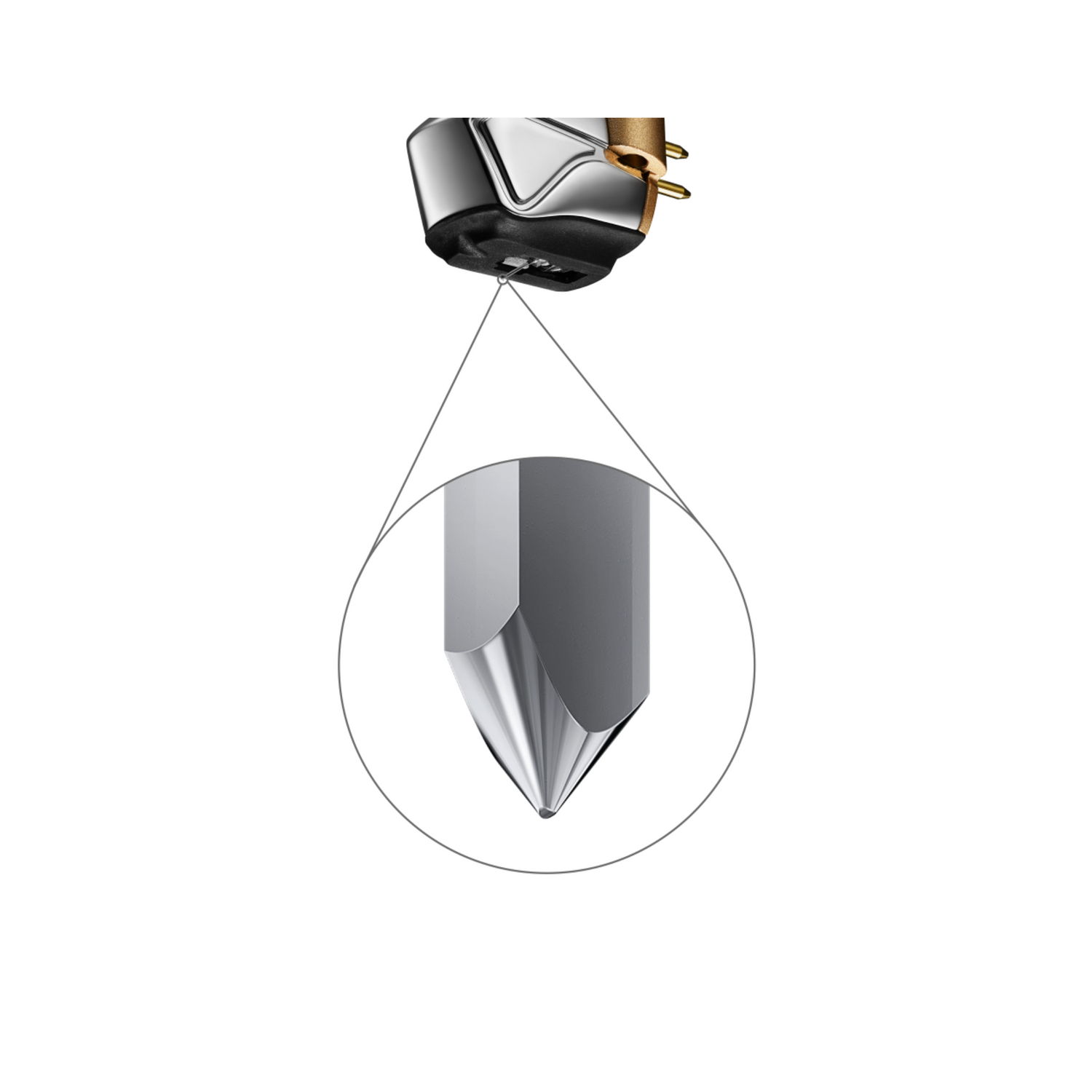

  • Special line contact stylus and solid boron cantilever with a 0.28 mm diameter provide premium high-frequency response with minimal inner-groove distortion for consistent reproduction
  • Utilizes the advanced cutting and polishing technologies cultivated in the eyeglass industry of Sabae City, Fukui Prefecture, with history stretching back more than 100 years
  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Specifications

Cartridge & Stylus
Frequency Response 20 to 50,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 20°
Vertical Tracking Force 1.6 to 2.0 g (1.8 g standard)
Stylus Construction Nude
Recommended Load Impedance ≥ 100 ohms (when head amplifier connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 25 μH (1 kHz)
Output Voltage 0.55 mV (1 kHz, 5 cm/sec.)
Stylus Shape Special Line Contact
Cantilever 0.28 mm (0.011”) diameter solid boron
Static Compliance 23 × 10-6 cm/dyne
Dynamic Compliance 13 × 10-6 cm/dyne (100 Hz)
Cartridge Weight 9.0 g (0.32 oz)
Dimensions 17.3 mm (0.68”)×16.8 mm (0.66”)×26.6 mm (1.05”) (H×W×D)

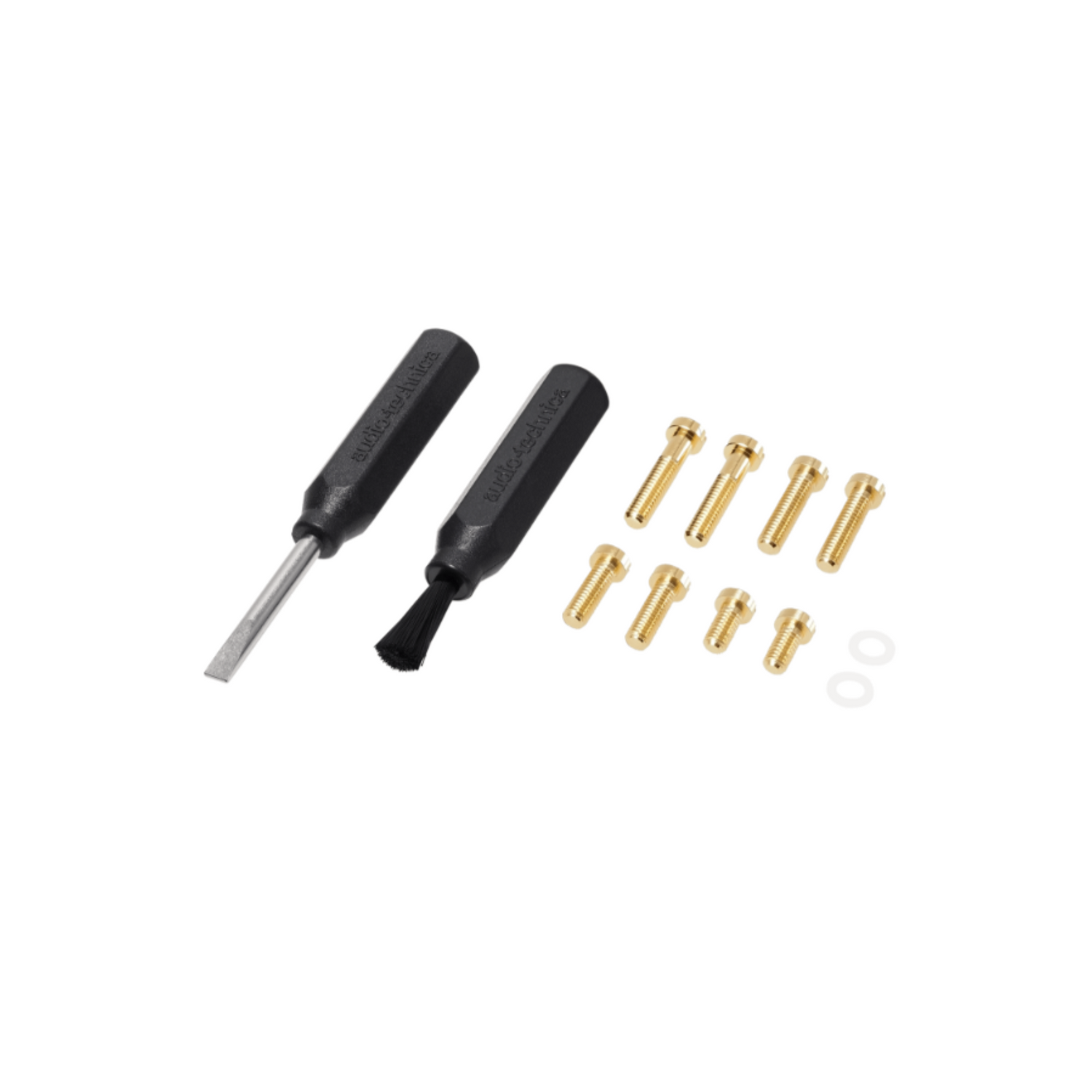

Accessories Included Non-magnetic screwdriver, Brush, Washer × 2, Cartridge installation screws (M2.6) (5.0 mm (0.20”) × 2 , 8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2 , 12.0 mm (0.47”) × 2), Protector
Threaded Hole M2.6 × 2
Stylus Curvature Radius 1.5 × 0.28 mil
Type MC

What's in the Box

  • Audio Technica AT-ART20
  • Non-magnetic screwdriver
  • Brush
  • Washer × 2
  • Cartridge installation screws (M2.6) (5.0 mm (0.20”) × 2 , 8.0 mm (0.31”) × 2
  • 10.0 mm (0.39”) × 2
  • 12.0 mm (0.47”) × 2), Protector
