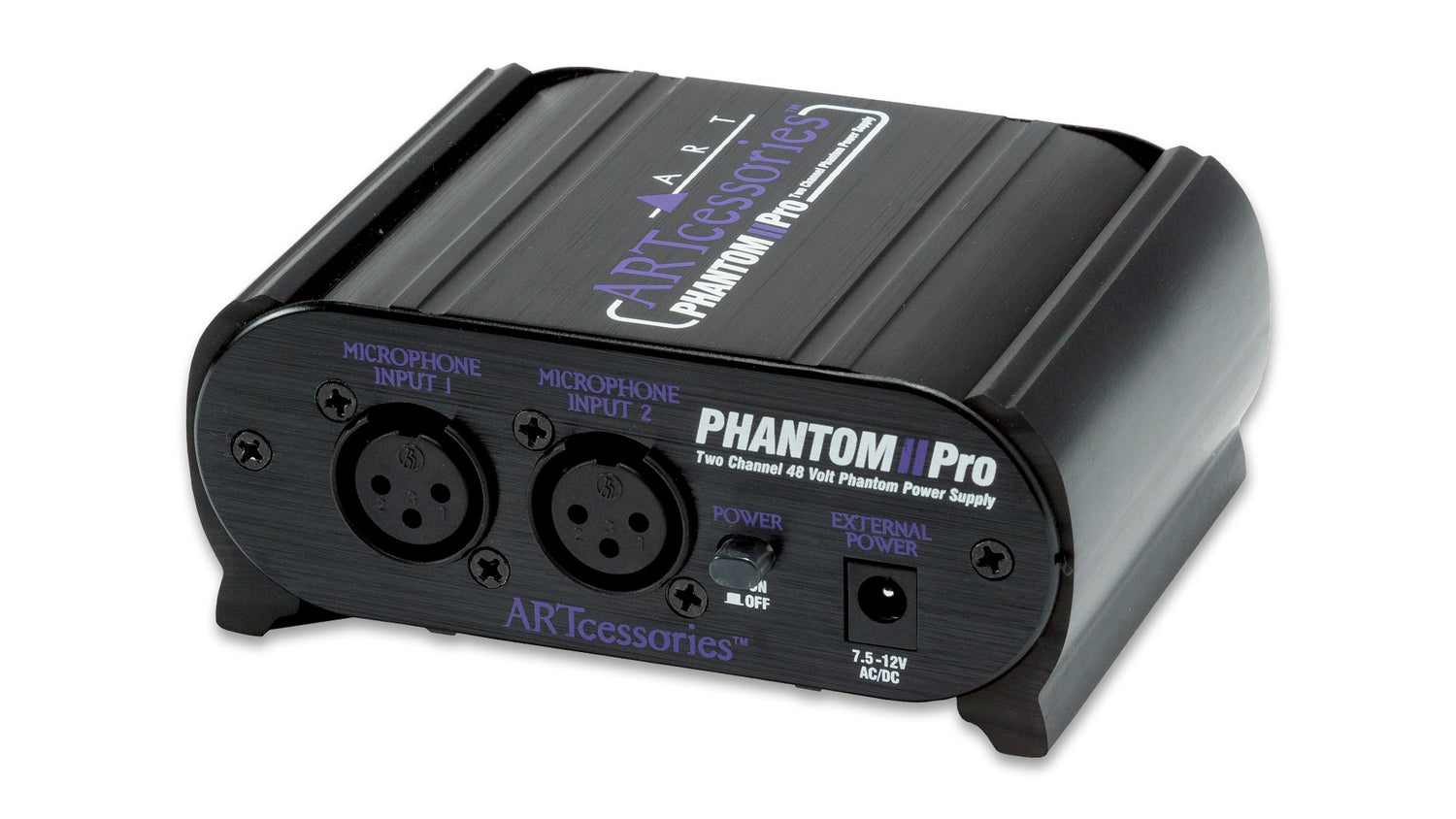

Art Pro Audio PHANTOM2PRO 2 Channel Phantom Power Supply

TASCAM  |  SKU: 108810
£92.99
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

The Phantom II Pro is designed to do one thing and do it well. It provides clean, reliable phantom power for one or two condenser microphones in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximizing battery life. The Phantom II Pro installs inline between your microphone and a balanced line input on your gear. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.

The Phantom II Pro is an invaluable tool in application areas including: home or professional recording studios, live sound, PA, permanent installs, DJ, AV, podcasting and broadcasting; and more. Use it with mixers, audio processors, digital audio workstations or anywhere you need phantom power for your mics.

Key Features

  • Phantom Power 48 Volts DC typical
  • Current Limiting Resistors 98k Ohms
  • Power 9V battery
  • Battery Life ~ 10 hours [with Alkaline battery]
  • Dimensions H4.7cm x W11.7cm x D9.9cm
  • Weight 0.37kg

Specifications

Input Connections Female XLR (2)
Output Connections Male XLR (2)
Phantom Power 48 Volts DC typical
Current Limiting Resistors 6.98k Ω (1%)
Current Drain 10 mA – no load / 45 mA – typical (full load – 2 microphones)
Power 9V battery (IEC 6LR61, ANSI-1604A type Alkaline recommended) orexternal supply 7.5-12 V AC/DC, Any Polarity, <150 mA
Battery Life > 10 hours with Alkaline battery – typical (full load)
Dimensions (HxWxD ) 1.85″H x 4.6″W x 3.9″D (47mm x117mm x 99mm)
Weight Circuitry 0.82 lbs (0.37 kg)

What's in the Box
