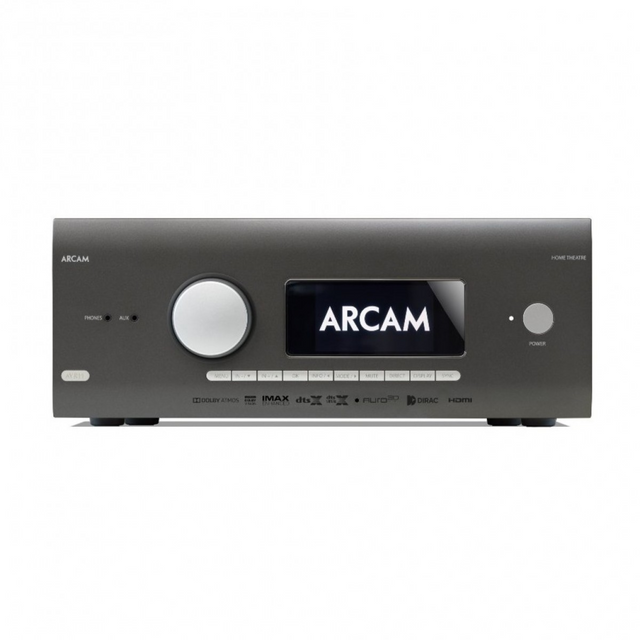

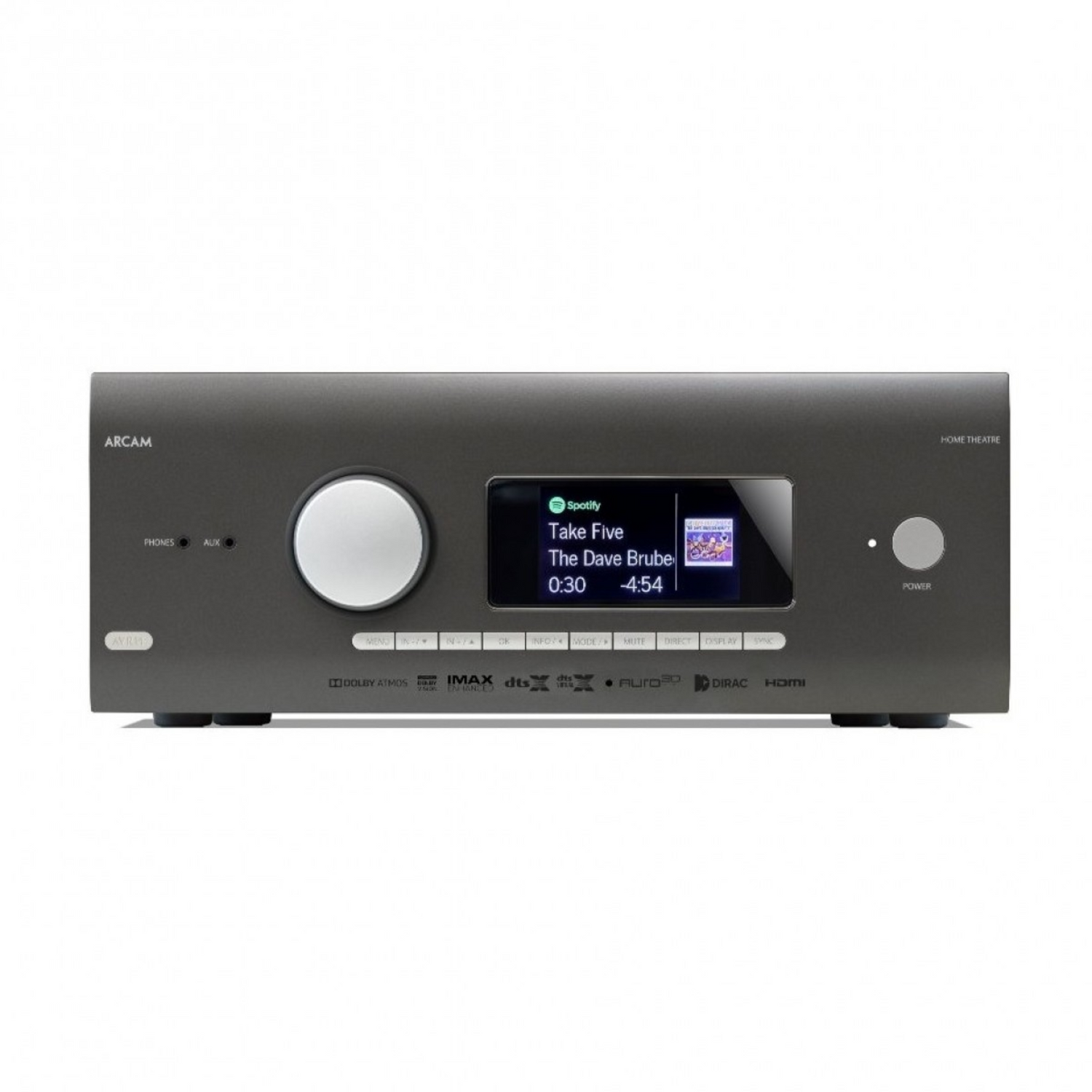

Arcam AVR11 - HDMI 2.1 Class AB AV Receiver
Description
Description
AVR11, your ultimate home-entertainment hub, designed to deliver exceptional sound quality and versatility. This high-resolution-ready receiver supports MQA files and is Roon ready, allowing you to stream high-bitrate audio up to an impressive 32-bit/768kHz. Whether you're enjoying hi-res audio from services like Tidal or combining your personal CD collection with digital files, the AVR11 gives you the freedom to create your ideal audio system, compatible with various brands.
Customizable Control Options
Take control of your setup with the AVR11's multiple control options, ensuring that you can manage your receiver according to your preferences. Whether it's through manual control, WiFi/Ethernet, RS232, or IR, you have the flexibility to adjust your receiver from various interfaces, including third-party controllers, your smartphone, or computer. You can even control your external devices using the universal AV11 controller, giving you the freedom to tailor your entertainment experience.
All-in-One Home Entertainment Center

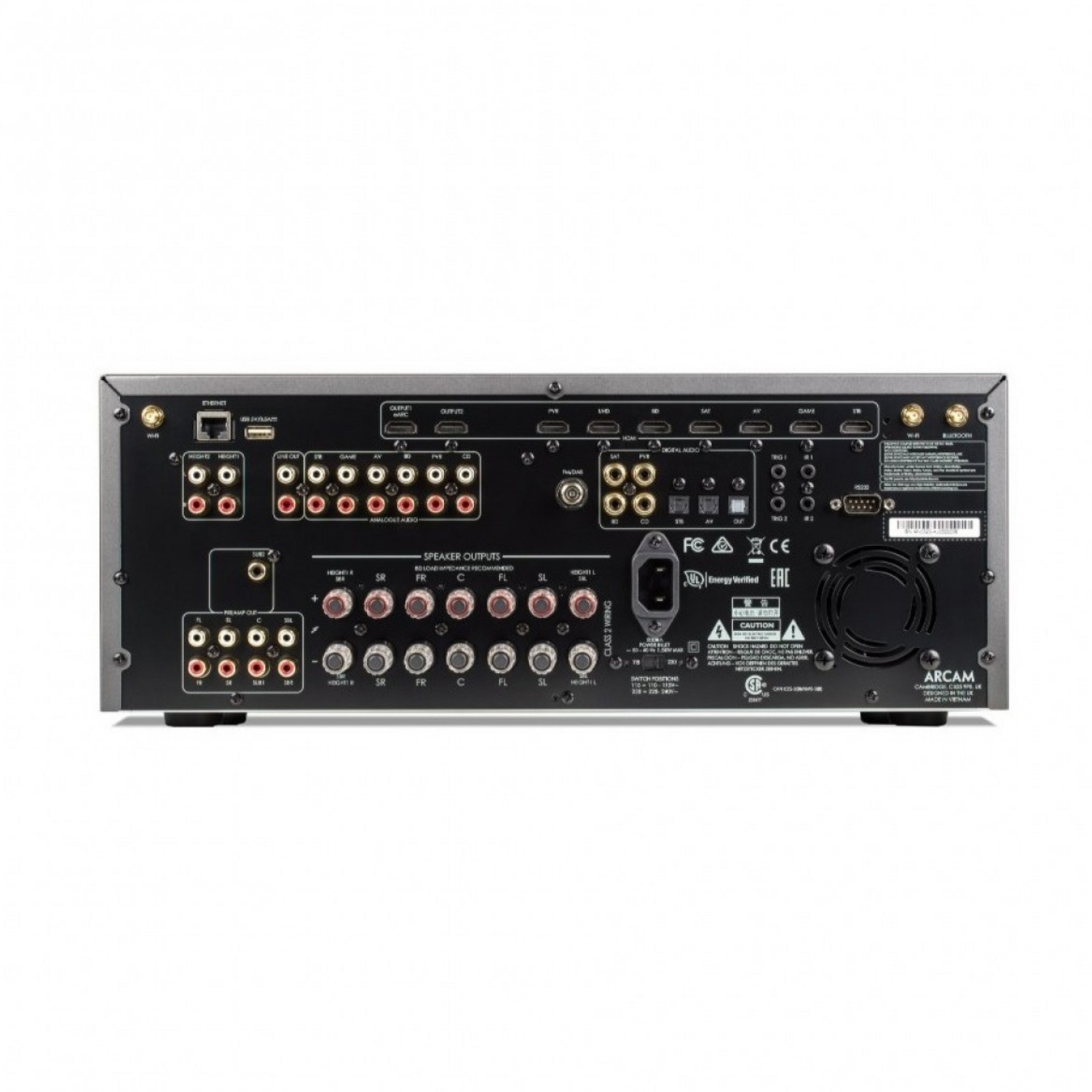

The Arcam AVR11 is an all-in-one home entertainment center with a wealth of connection options. Its integrated Class AB amplifiers provide seven channels of power amplification, delivering impressive audio performance. The HDMI ports support 8K@60FPS with HDR10+ and HDMI 2.1 with HDCP2.3, along with Dolby Vision support, ensuring stunning visuals. Plus, with eARC support, you'll experience lossless audio that immerses you in your favorite music, shows, movies, sports events, and games.
Elevate Your Home Cinema Experience
Prepare to be captivated by the AVR11's home cinema experience. With AURO-3D, Dolby Atmos, and DTS:X 7.1.4 decoding, you can enjoy the full theater experience in the comfort of your living space. Dolby Atmos, in particular, takes your multimedia to new heights, enhancing everything from movies to music, games, and podcasts. It creates a multidimensional soundscape, making you feel like you're right in the action, whether it's a thrilling movie scene or a live music performance. Elevate your surround sound experience with the AVR11, redefining home entertainment.
Key Features
Key Features
Specifications
Specifications
| Continuous Power Output, Per Channel, 8Ω/4Ω | 2 Channels Driven, 20Hz - 20kHz, <0.02 THD: 80W/100W |
|---|---|
| 2 Channels Driven, 1kHz, 0.2 THD: 85W/120W | |
| 7 Channels Driven, 1kHz, 0.2 THD: 60W/85W | |
| Residual Noise & Hum (A-wtd) | <0.15mV |
| Stereo Line Inputs | Maximum Input: 4.5V RMS |
| Nominal Sensitivity: 1V, 2V, 4V (User Adjustable) | |
| Input Impedance: 47kΩ | |
| Signal/Noise Ratio (A-wtd Ref 100W) Normal/Stereo Direct: 93dB/110dB | |
| Frequency Response: 20Hz—20kHz ± 0.2dB | |
| Preamplifier Outputs | Nominal Output Level: 0.8V RMS |
| Output Impedance: 560Ω | |
| THD+N (20Hz—20kHz): –100dB | |
| Headphone Output | Maximum Output Level into 32 Ω: 5Vrms |
| Output Impedance: <100Ω | |
| General | Mains Voltage: 110–120V or 220–240V, 50–60Hz |
| Power Consumption (Maximum): 1.5kW (Thermal Dissipation Approx. 5200 BTU/hour) | |
| Power Consumption (Idle, Typical): 90W (Thermal Dissipation Approx. 340 BTU/hour) | |
| Power Consumption (Standby): <0.5W | |
| Dimensions W x D (Including Speaker Terminals) x H (Including Feet): 433 x 425 x 171mm | |
| Weight (Net): 16.5kg | |
| Weight (Packed): 19.8kg |
