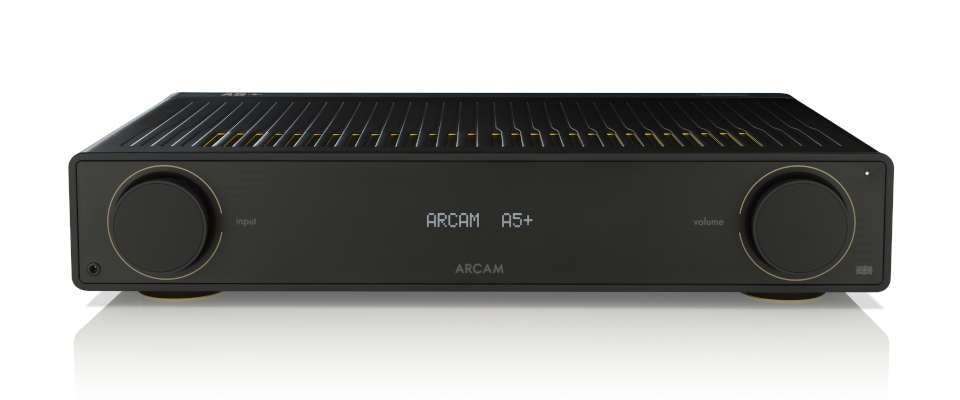

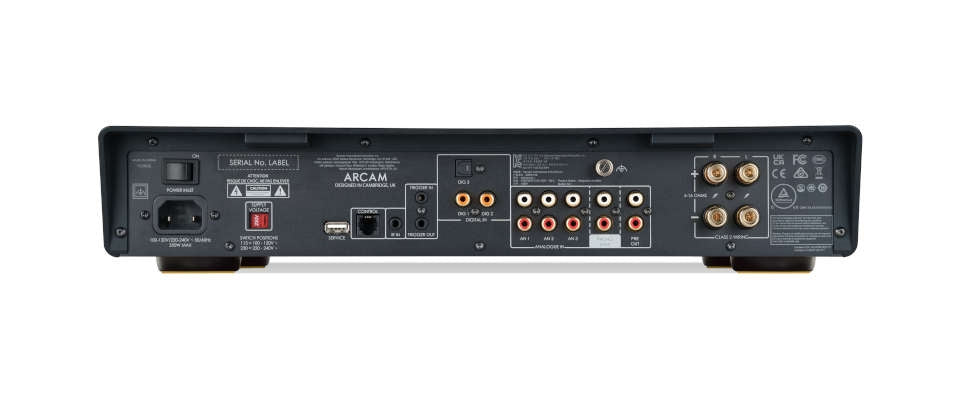

ARCAM A5+ INTERGRATED BLUETOOTH AMPLIFIER NEW MODEL
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
ARCAM A5+ INTERGRATED BLUETOOTH AMPLIFIER NEW MODEL
Description
Description
The ARCAM A5+ builds on nearly five decades of amplifier expertise, refining the award-winning A5 with improved performance and versatility. It features an upgraded power supply and advanced wireless technology, including Snapdragon Sound for lossless Bluetooth playback and Auracast for seamless multi-device sharing. With a full range of digital and analogue connections, plus a carefully tuned phono stage, the A5+ delivers outstanding sound quality whether you’re listening to vinyl, streaming, or connecting modern home entertainment sources.
| Continuous power output (0.5% THD) 2 channels driven | |
|---|---|
| 8Ω, 20Hz ‑ 20kHz | 50W |
| 4Ω, 1kHz | 75W |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.003% |
|
Analogue Inputs |
|
| Number of inputs | 3 (RCA pairs) |
| Signal/noise ratio (A-wtd, ref. 50W, 1V input) | 106dB |
| Frequency response | 20Hz—20kHz ± 0.2dB |
|
Phono (MM) Input |
|
| Input impedance | 47kΩ + 100pF |
| Frequency response (ref. RIAA curve) | 20Hz—20kHz ± 1dB |
|
Digital Inputs |
|
| Supported Sample Rates | 192, 176.4, 96, 88.2, 48, 44.1 kHz |
| Bit depths | 24, 16 |
| Frequency response (filter 1) | 20Hz—20kHz ± 0.2dB |
| Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) | 109dB |
|
Headphone Output |
|
| Maximum output level (RMS) into 32Ω/300Ω | 2.5V/5V |
| Load range | 16Ω - 2kΩ |
|
Wireless Specifications |
|
| Bluetooth Version | 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast |
| Bluetooth Transmitter Frequency and Power | 2,400 MHz to 2,483.5 MHz: <20dBm |
|
General |
|
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 350W |
| Power consumption (standby) | <0.5W |
| Dimensions (WxDxH) | 431mm x 344mm x 83mm |
| Weight | 8.14kg |
| Supplied accessories | Mains lead(s) Remote control with 2 x AAA batteries Quick Start Guide Important Safety Instructions |
