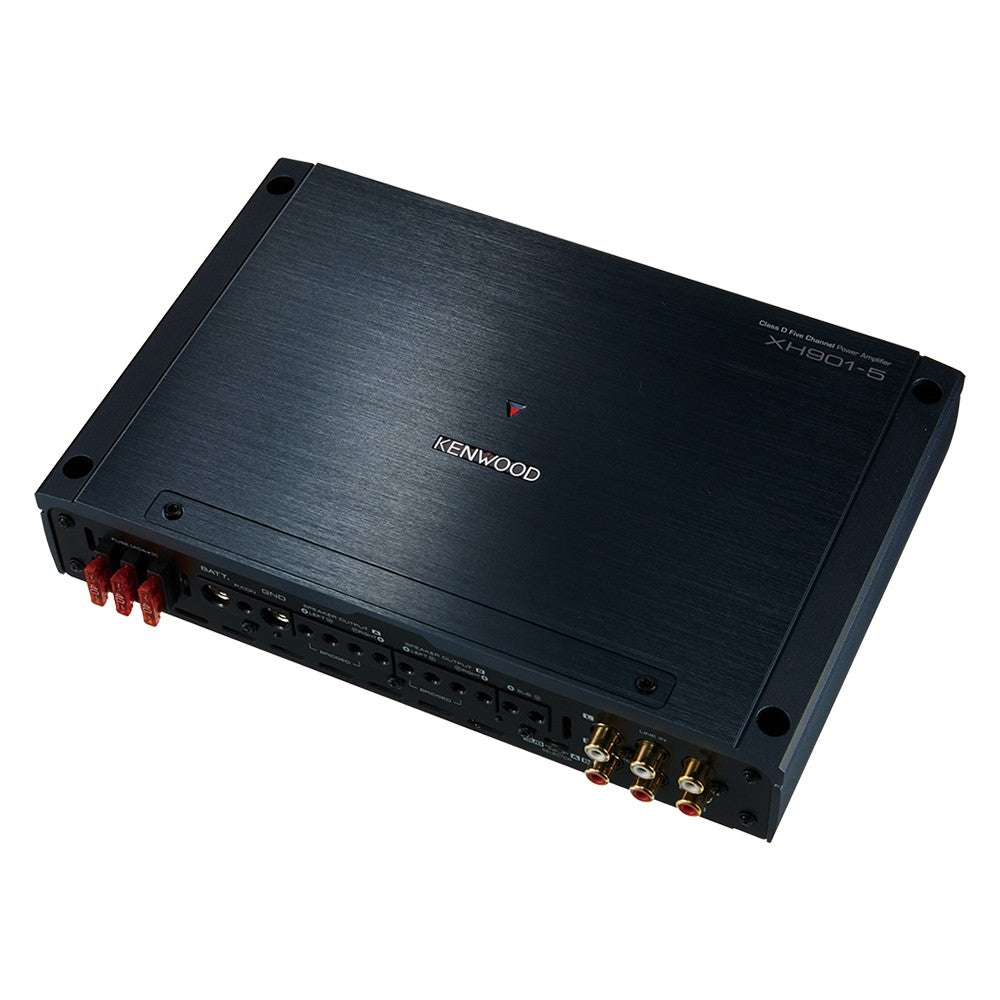

Kenwood XH901-5 X-Series Full Range Class-D 5 Channel Amplifier
Kenwood | SKU:
228384
Model# XH901-5
£384.99
Unit price
/
Unavailable
Couldn't load pickup availability
-
Free & Next-Day Delivery Available
-
Hassle-Free Returns Within 30 Days
Kenwood XH901-5 X-Series Full Range Class-D 5 Channel Amplifier
£384.99
Unit price
/
Unavailable
Description
Description
Amplifier Features
- Class D Amplifier Yes
- Load Capability 2Ω Stable
- Rated Power output 60W x 4 + 40W x 1 (4Ω)
- Rated Power Output 75W x 4 + 600W x 1 (2Ω)
- CEA-2006 Compliant Yes
- Low-pass Filter Yes
- High-pass Fliter Yes
- Bass Boost Circuit Yes
- Dual Sigma Drive Yes
- Switched Mode Power supply Yes
- Cooling Fan Yes
- Signal Sensing Turn-on Yes
- Protection function Yes
- Line in 6 channel RCA (Gold Plated)
- Input Selector SUB/AB
- Speaker level input via line-in (RCA) A-ch & B-ch
- Single Side Terminals Yes
- Die-Cast Aluminium Heat Sink Yes
Amplifier-Specifications
- Rated power output (4Ω, 14,4V) 60W x 4 (20Hz ~ 20000Hz, 1%THD)
- Rated subwoofer power output (4Ω, 14,4V) 400 W (20Hz - 200Hz, 1% THD)
- Rated power output (2Ω, 14,4V) 75W x 4 (1000Hz, 1%THD)
- Rated subwoofer power output (2Ω, 14,4V) 600W (100Hz, 1% THD)
- Rated power output (CEA-2006) 60Watts RMS x 4 at 4 ohms and 1% THD
- Rated subwoofer power output (CEA-2006) 400W
- Low-pass Filter 50~200Hz (-12dB/oct)
- Low-pass filter (sub channel) 50Hz - 200Hz (12dB/oct)
- High-pass Fliter 50~200Hz & 2,5~10kHz (-12dB/oct)
- Bass Boost Circuit 40Hz (0~18dB/oct) Sub-ch
- Bass Boost Frequency 40Hz
- RCA Input Sensitivity 0.2 ~ 5V
- Speaker Level Input Sensitivity 4 ~ 12V
- Input Impedance 10kΩ
- Signal to Noise Ratio 100dB
- Signal to noise ratio (CEA-2006) 76dBa (Reference: 1 Watt into 4 Ohms)
- Frequency response (+0dB, -3dB) 20Hz ~ 50000Hz
- Frequency response (+0dB, -1dB) 20Hz ~ 40000Hz
- Operating voltage 14.4V (11V ～ 16V allowable)
- Maximum current consumption 80A
- Dimensions (WxHxD) 260 x 51 x 169(mm),
- Weight 2.4kg
