Anthem AVM70 8K 15.2 Channel AV Processor

Anthem  |  SKU: 76380
Model# AVM70
£3,900.00
  • Free & Next-Day Delivery Available

    Free & Next-Day Delivery Available

  • Hassle-Free Returns Within 30 Days

    Hassle-Free Returns Within 30 Days

Description

The Anthem AVM70 8K 15.2 Channel AV Processor is designed to provide the ultimate modern home theater experience, featuring state-of-the-art technology and capabilities to meet the demands of audio enthusiasts. With support for 8K/60Hz HDMI 2.1, eARC, and up to 15.2 channel surround sound, including outputs for balanced XLR amplifier connections, it's a powerhouse for home audio and video.

Key Features:

Anthem Room Correction (ARC) Genesis Kit: The AVM70 comes with a comprehensive ARC Genesis kit, including a refined calibration microphone. This kit enables you to measure and optimize your speaker setup using free software for both MAC and PC, resulting in precise and customized audio performance.

Anthem Web UI and Remote App: Take full control and customization of your processor using the Anthem Web User Interface and the new Anthem Remote App. These tools provide easy access to settings, adjustments, and power over your audio system, offering a user-friendly experience.

Object-Based Audio Technologies: The AVM70 supports the latest object-based audio technologies, including DTS:X, Dolby Atmos, and IMAX Enhanced. These technologies deliver immersive and lifelike audio experiences, enhancing your home theater setup.

Music Streaming: For music enthusiasts, the AVM70 offers instant music streaming via Apple Airplay 2, Chromecast, and Bluetooth 4.2. It also provides physical connections for digital optical and coaxial inputs, RCA, and Phono MM for vinyl enthusiasts, making it a versatile audio hub.

Advanced Connectivity: With seven HDMI 2.1 inputs, HDCP 2.3, and full 8K support, the AVM70 ensures high-quality home cinema experiences with support for 8K/60Hz or 4K/120Hz passthrough. It maintains brightness, sharp colors, and contrast for visual formats such as Dolby Vision, IMAX Enhanced, HDR10+, and standard HLG, along with 4:4:4 subsampling.

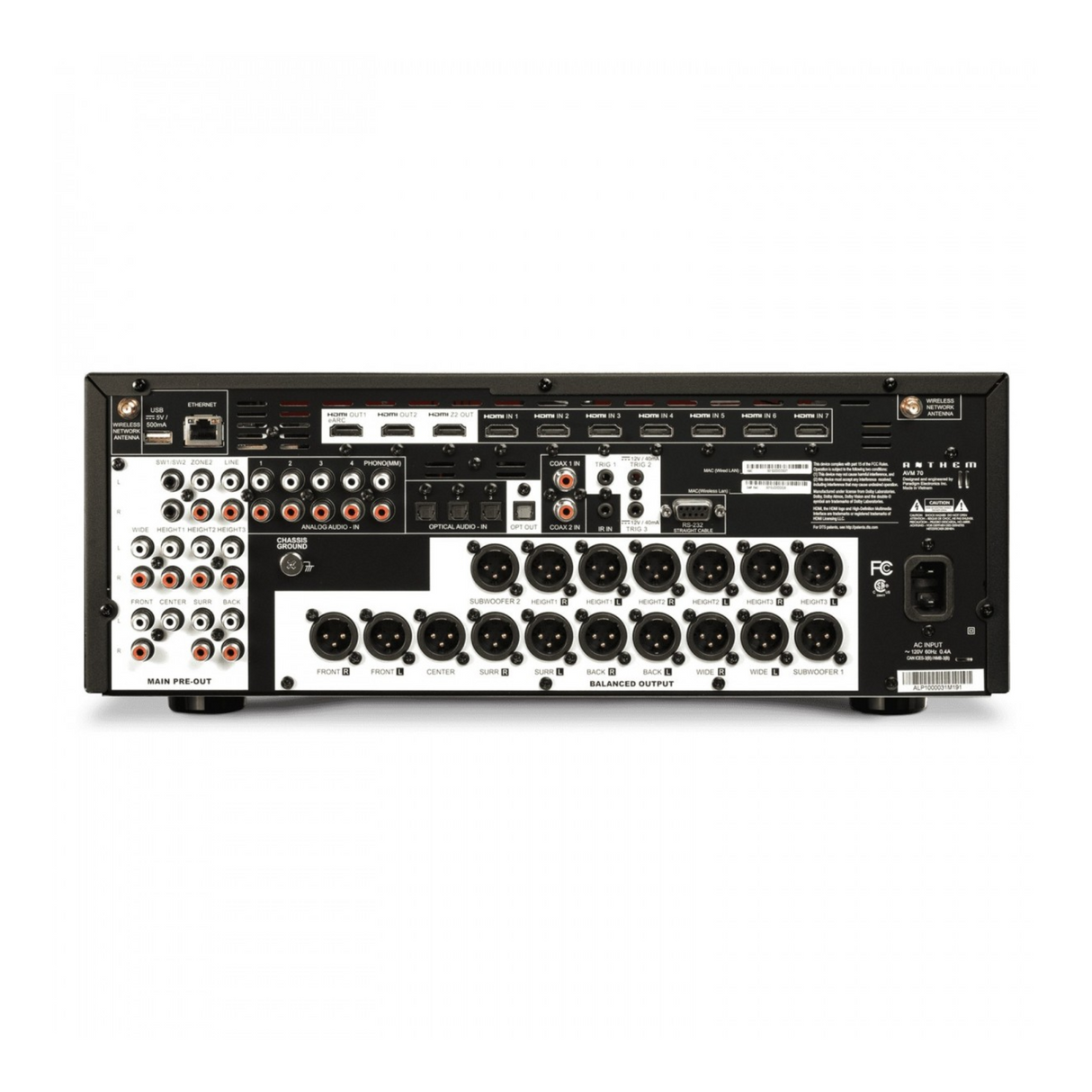

Full Connectivity: The AVM70 offers advanced connectivity options, including balanced XLR and standard RCA pre-outs. You can configure an expansive 15.2 sound system with surround channels, wides, and three pairs of height L/R. It also features Zone 2 pre-outs and HDMI for creating an independent multiroom audio solution.

Engulfing Surround Sound: Benefit from the latest object-based audio technologies such as Dolby Atmos, DTS:X, and IMAX Enhanced, providing an immersive and natural sound experience for your home cinema. Details and dialogue are preserved, ensuring a multi-dimensional audio experience.

Musical Nerve Center: The AVM70 caters not only to home cinema but also to audiophile-grade music systems. It offers a wide range of inputs, both digital and analog, including a direct connection for MM turntables. You can enjoy music streaming via AirPlay 2, Chromecast, and Bluetooth 4.2, with future compatibility for Spotify Connect and Roon.

Web User Interface: The Anthem Web User Interface simplifies control and adjustment, allowing you to manage settings, volume, zones, and network configurations from your smart devices, PC, or laptop. It provides a user-friendly control hub for your audio system.

Anthem Room Correction: With over 35 years of industry innovation, Anthem's AVM70 includes Anthem Room Correction (ARC) technology. The sophisticated ARC microphone, compatible with ARC Genesis, offers room measurement and optimization for speaker output based on your listening room's acoustics.

The Anthem AVM70 8K 15.2 Channel AV Processor is the choice for those who seek precise control over their speaker setup and a premium audiovisual experience in their home theater.

Key Features

  • 15.2 Channel Processing: Enjoy versatile connectivity through both RCA and balanced XLR amplifier connections.
  • Immersive Sound: Experience high-quality object-based home cinema sound with Dolby Atmos, DTS:X, and IMAX Enhanced support.
  • Anthem Room Correction (ARC) Kit: Included with everything needed for calibration, including a microphone, to optimize audio performance.
  • ARC Genesis: Use this feature to fine-tune audio based on acoustic measurements of your room, ensuring optimal sound quality.
  • HDMI 2.1 Inputs: Seven HDMI inputs with HDCP 2.3 support, 8K/60Hz, and 4K/120Hz passthrough for the latest video standards.
  • HDMI 8K Outputs: Three dedicated HDMI 8K outputs with eARC (Enhanced Audio Return Channel) and the option for multi-zone display.
  • Enhanced Viewing: Enjoy stunning detail with Dolby Vision, Dynamic HDR10+, and IMAX Enhanced for advanced contrasts and vibrant colors.
  • Gaming Excellence: Elevate your gaming experience with 4K/120Hz refresh rates, Auto Low Latency Mode (ALLM), HGiG, and Variable Refresh Rate (VRR) support, along with advanced surround sound processing.
  • Music Connectivity: Access your music collection with a 32-Bit/768 kHz DAC, offering analogue, phono MM, and digital inputs.
  • Wireless Streaming: Stream music wirelessly via Bluetooth v4.2, Apple AirPlay 2, and Chromecast, with planned updates for Spotify Connect and Roon on the horizon.

Specifications

Specification Value
Dimensions (W x D x H) (Without feet, including WiFi antenna, and no power cord) 431.8 x 364 x 152.4 mm
Height (with Rackmount Kit) 4U
Weight 10.1 kg
Preamplifier (Measured at XLR Output)
Maximum Output (<0.1% THD) 10.7 VRMS, Subwoofer 11 VRMS
Frequency Response 20 Hz — 35 kHz (+/-0.2dB)
Frequency Response, Analog-Direct 20 Hz — 80 kHz (+0, -2 dB)
THD+N (4 Vrms output) -100 dB
S/N Ratio (4 Vrms output, IEC-A filter) 110 dB
XLR Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative
Power Consumption
Typical Load 60 W
Standby 0.3 W
Standby IP Control Enabled 1.8 W
Standby HDMI Bypass Enabled 4.9 W

What's in the Box
  • The Anthem AVM70 15.2 Channel AV Processor
  • 2 x Wireless network antennas
  • 1 x Remote control (w/ 2 x AAA batteries)
  • 1 x IEC power cord

Anthem Room Correction kit:

  • USB microphone
  • Microphone clip
  • Telescopic stand with boom
  • USB cable
